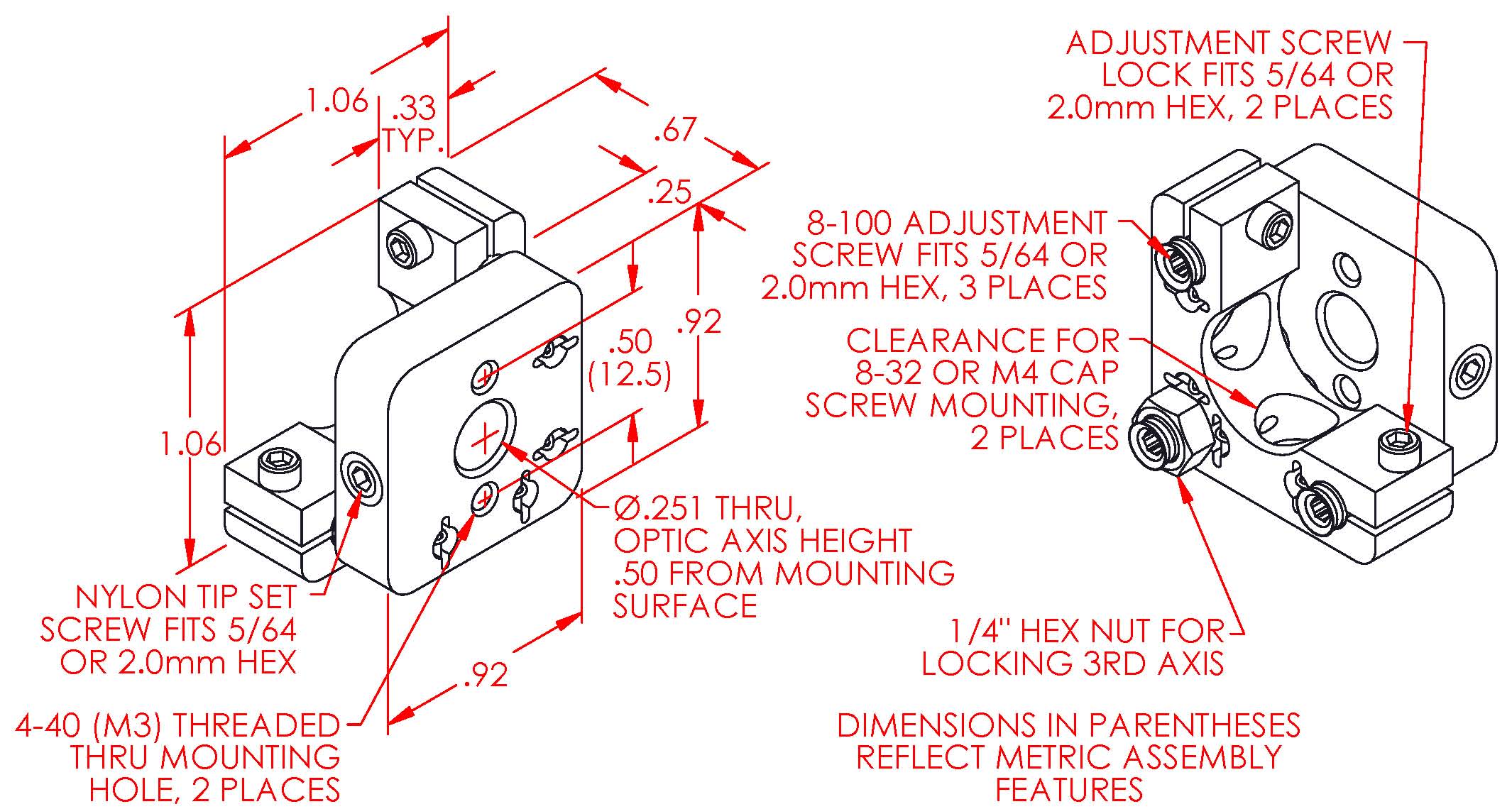

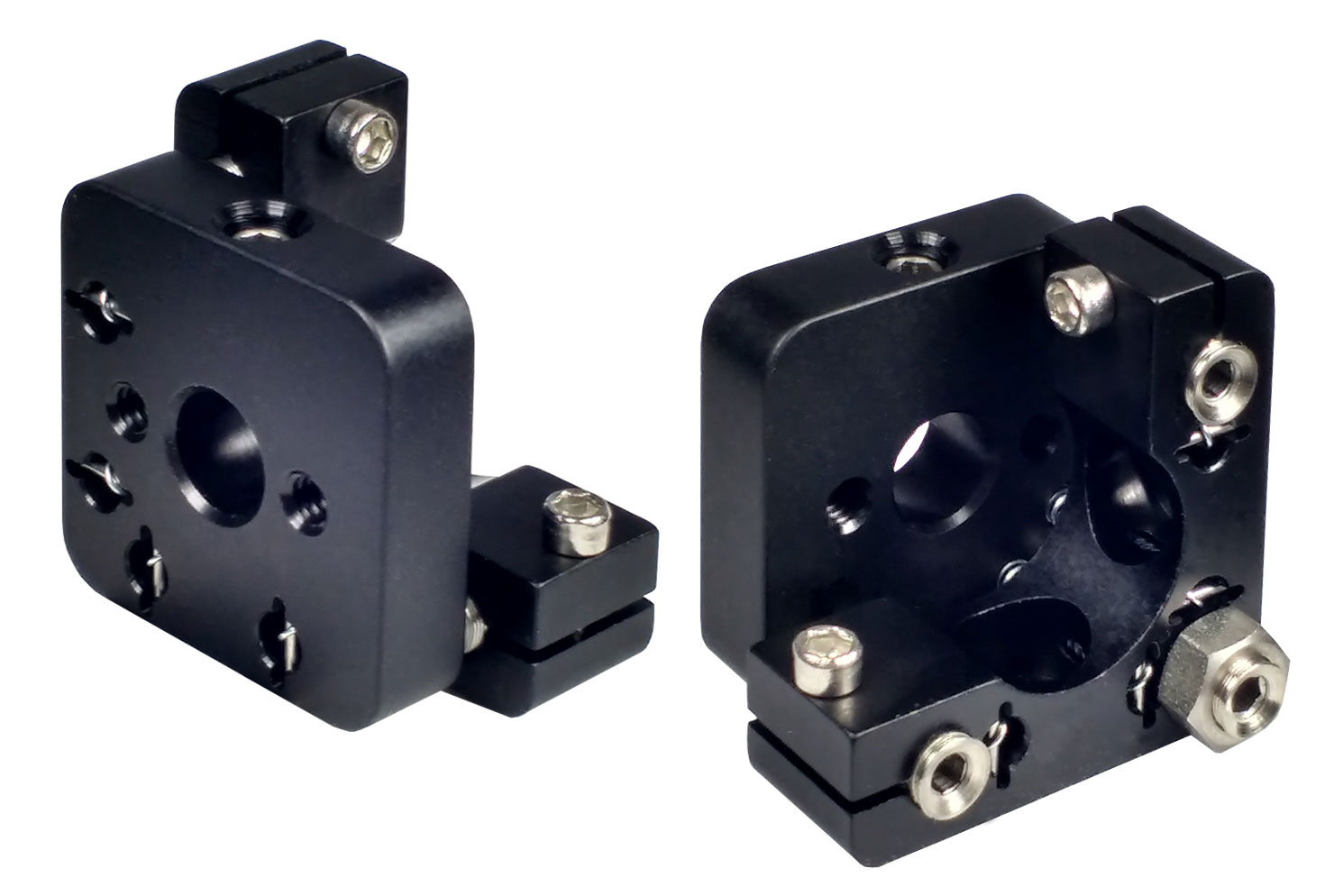

These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM05.3 series mounts use 3 precision 100TPI adjustment screws with excellent resolution and feel in the hand. The 3-axis adjustment is ideal for laser cavity applications. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left hand compatibility. These mounts use a full "L" cutaway back for maximum clear aperture. The IM05.C3 versions have a cutaway front face to optimize tight beam layouts, and are available in right hand or left hand versions. IM05.P3 versions can be used with our OMH series optic holder or offer tapped holes for use as a tip/tilt/translate platform.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
