IM100.1 Series Mount
SKU:
IM100.1 SERIES
Name:
DRIVE TYPE:
HEX DRIVE
DRIVE TYPE:
KNOB
OPTIC SIZE:
PLATFORM
UOM:
IMPERIAL
UOM:
METRIC
VOLUME:
0.000000
WEIGHT UOM:
LB
$72.00
IM100.1 Series Mount
$72.00
IM100.1 Series Mount
The IM100.1 is designed to be used with our OMH series optical mirror holders. The 5/16-inch thick back plate uses 100TPI precision adjustment screws with hardened steel balls that run on carbide pads to provide stable movement.
Product Features
- 100 pitch adjustment screws
- SoftTouch® or hex adjustment versions
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
Performance Specifications
- Travel / axis: 10°
- Minimum controllable motion: 8.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

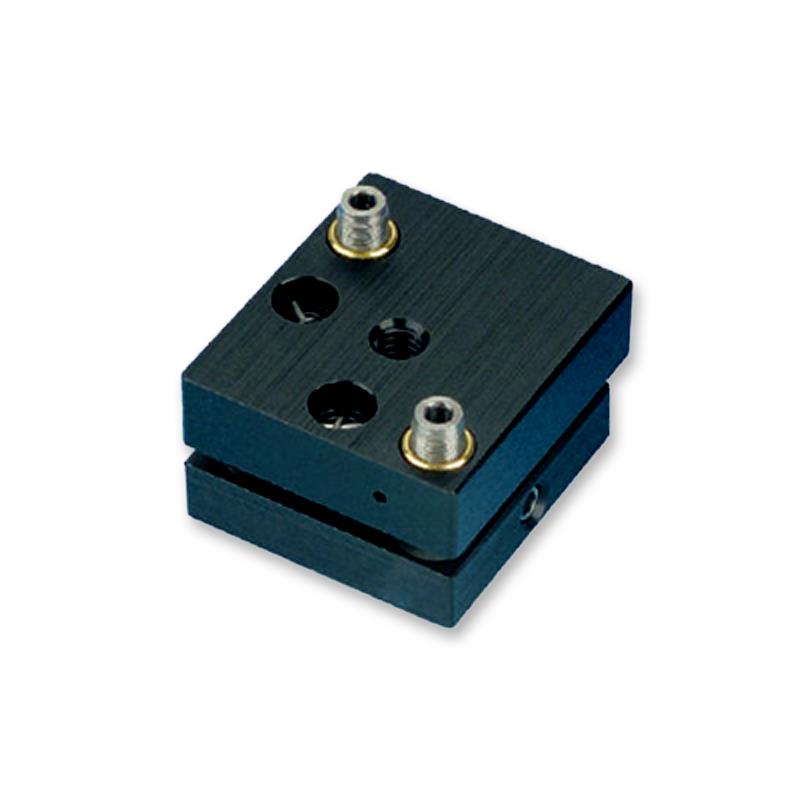

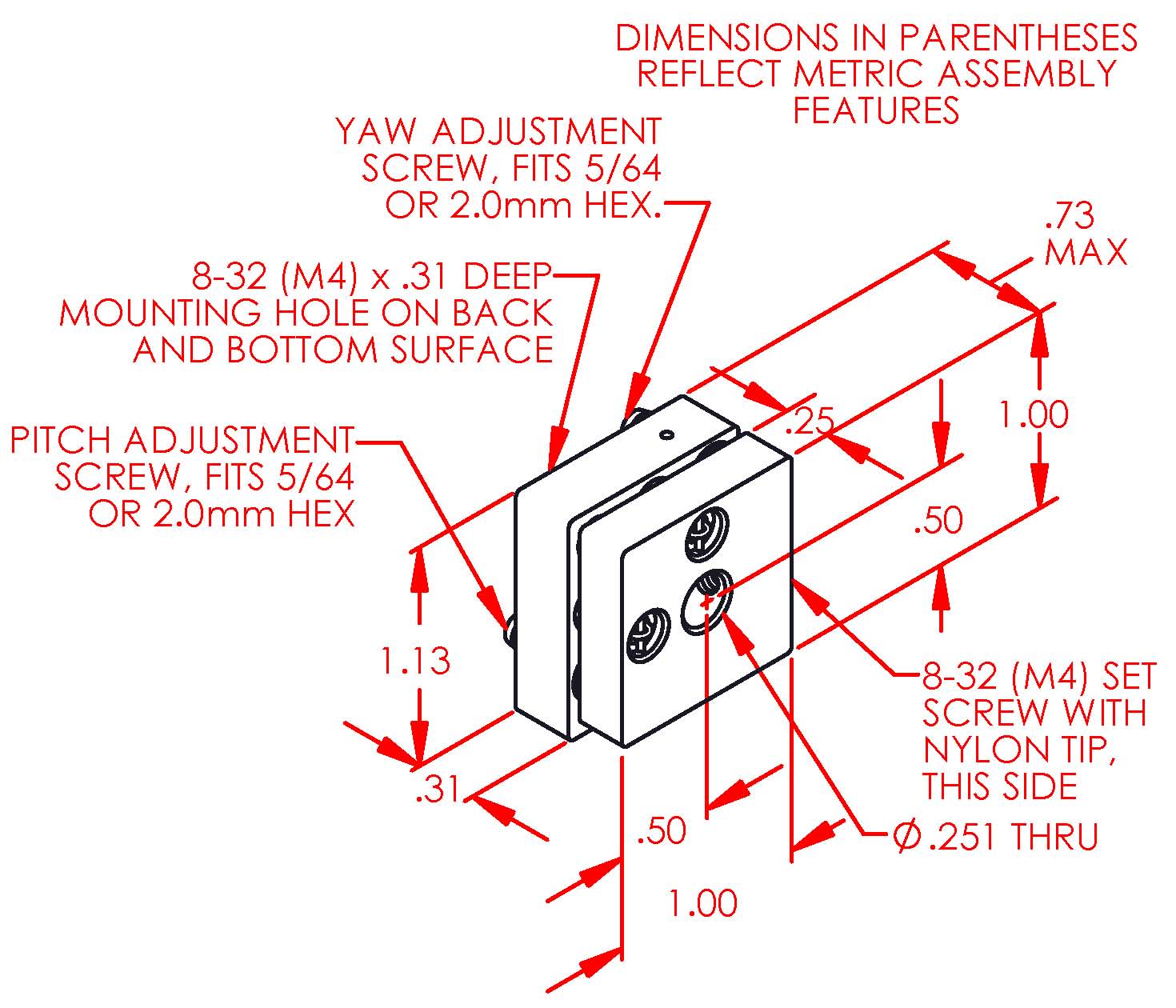

IM100.1H [67760000E]
Variant Images
![IM100.1H [67760000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67760000E.jpg)
![IM100.1H [67760000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67760000E_1.jpg)
Product Details
The IM100.1 is designed to be used with our OMH series optical mirror holders. The 5/16-inch thick back plate uses 100TPI precision adjustment screws with hardened steel balls that run on carbide pads to provide stable movement.
Product Features:
- 100 pitch adjustment screws
- SoftTouch® or hex adjustment versions
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 10°
- Minimum controllable motion*: 8.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

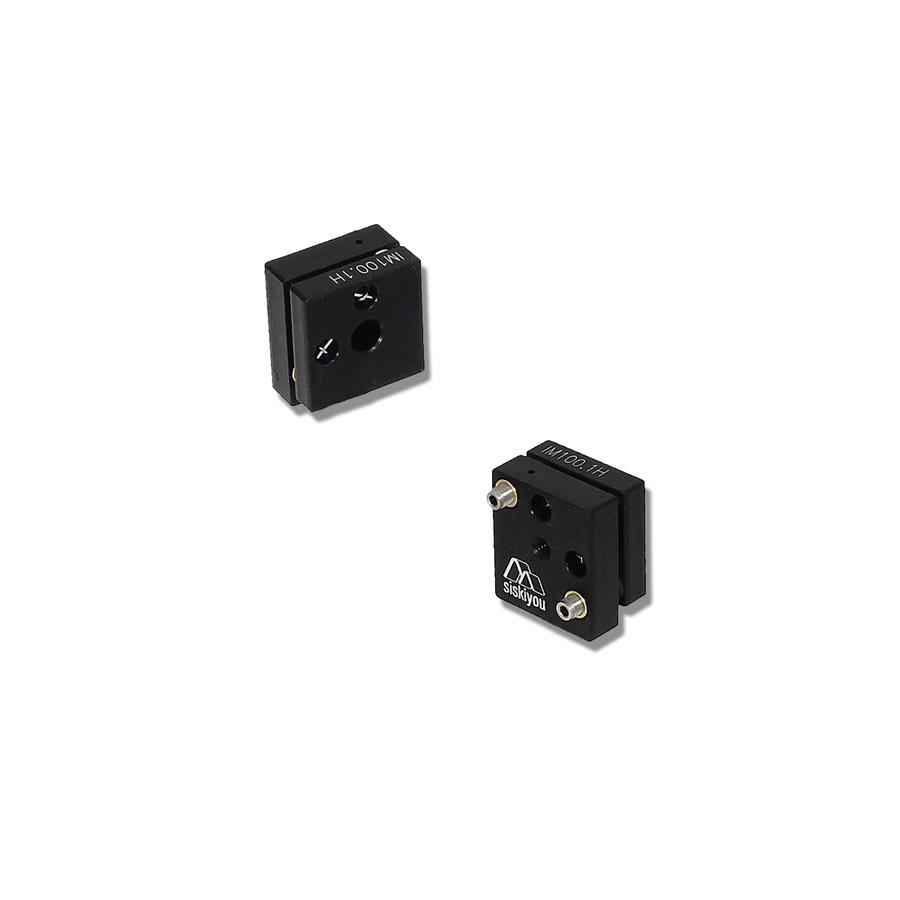

IM100.1H M [67760000M]
Variant Images
![IM100.1H M [67760000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67760000M.jpg)
![IM100.1H M [67760000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67760000M_1.jpg)
Product Details
The IM100.1 is designed to be used with our OMH series optical mirror holders. The 5/16-inch thick back plate uses 100TPI precision adjustment screws with hardened steel balls that run on carbide pads to provide stable movement.
Product Features:
- 100 pitch adjustment screws
- SoftTouch® or hex adjustment versions
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 10°
- Minimum controllable motion*: 8.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

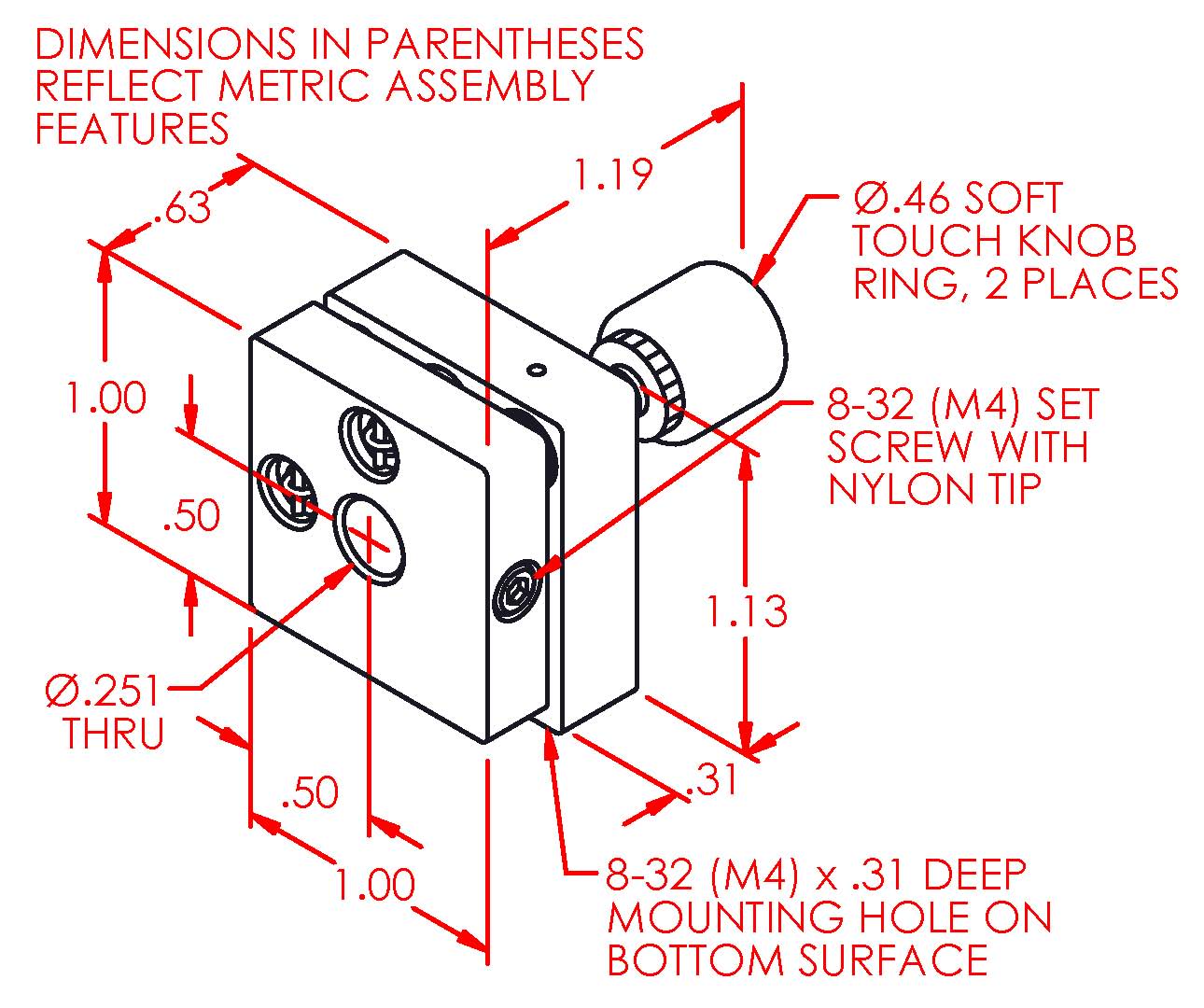

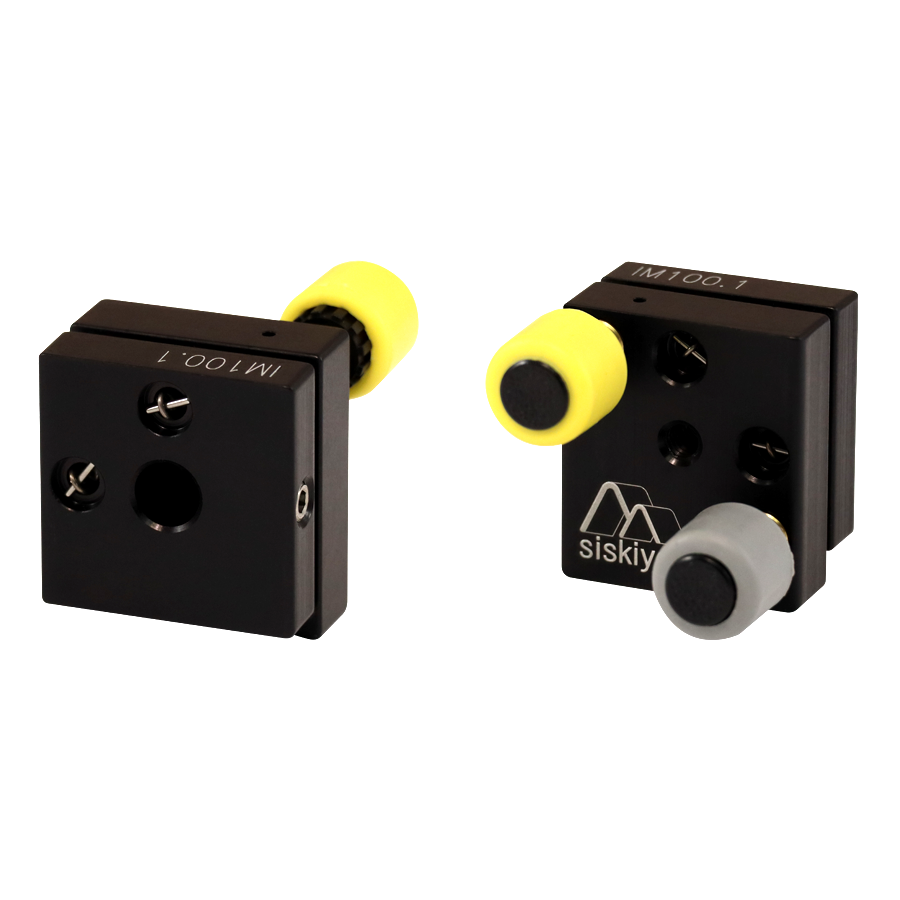

IM100.1 [67650000E]
Variant Images
![IM100.1 [67650000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67650000E.png)
![IM100.1 [67650000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67650000E_1.jpg)
Product Details
The IM100.1 is designed to be used with our OMH series optical mirror holders. The 5/16-inch thick back plate uses 100TPI precision adjustment screws with hardened steel balls that run on carbide pads to provide stable movement.
Product Features:
- 100 pitch adjustment screws
- SoftTouch® or hex adjustment versions
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 10°
- Minimum controllable motion*: 8.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

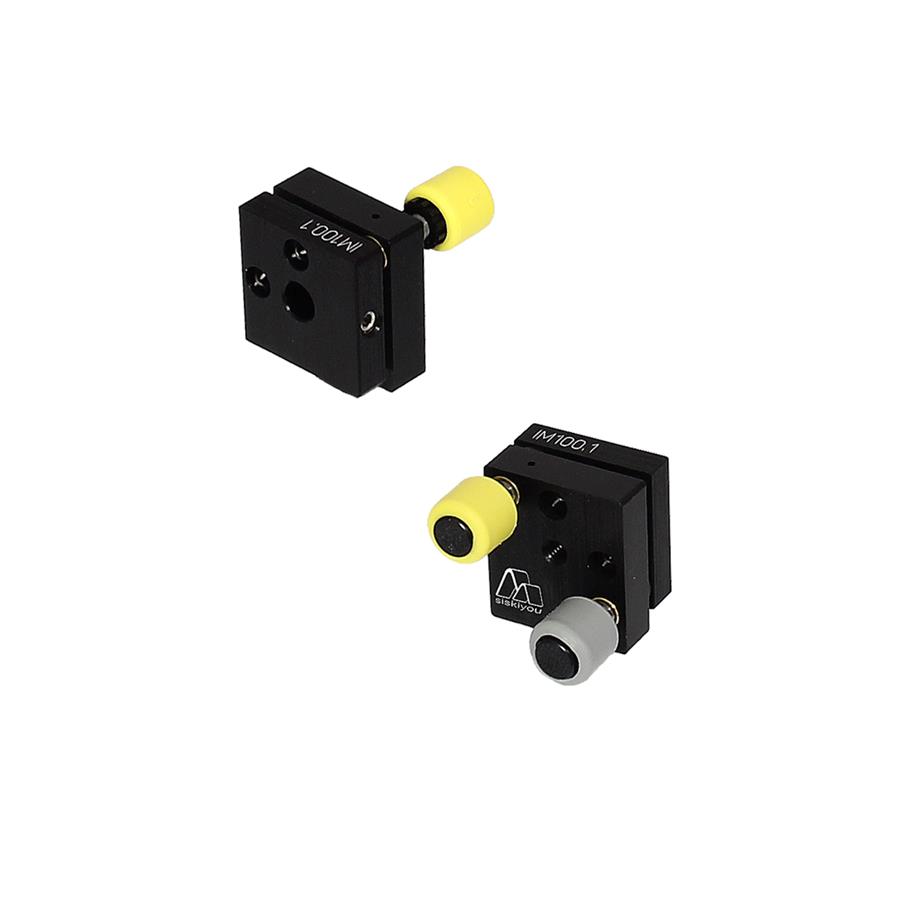

IM100.1 M [67650000M]
Variant Images
![IM100.1 M [67650000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67650000M.jpg)
![IM100.1 M [67650000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67650000M_1.jpg)
Product Details
The IM100.1 is designed to be used with our OMH series optical mirror holders. The 5/16-inch thick back plate uses 100TPI precision adjustment screws with hardened steel balls that run on carbide pads to provide stable movement.
Product Features:
- 100 pitch adjustment screws
- SoftTouch® or hex adjustment versions
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 10°
- Minimum controllable motion*: 8.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
