IM100.T Series Mount

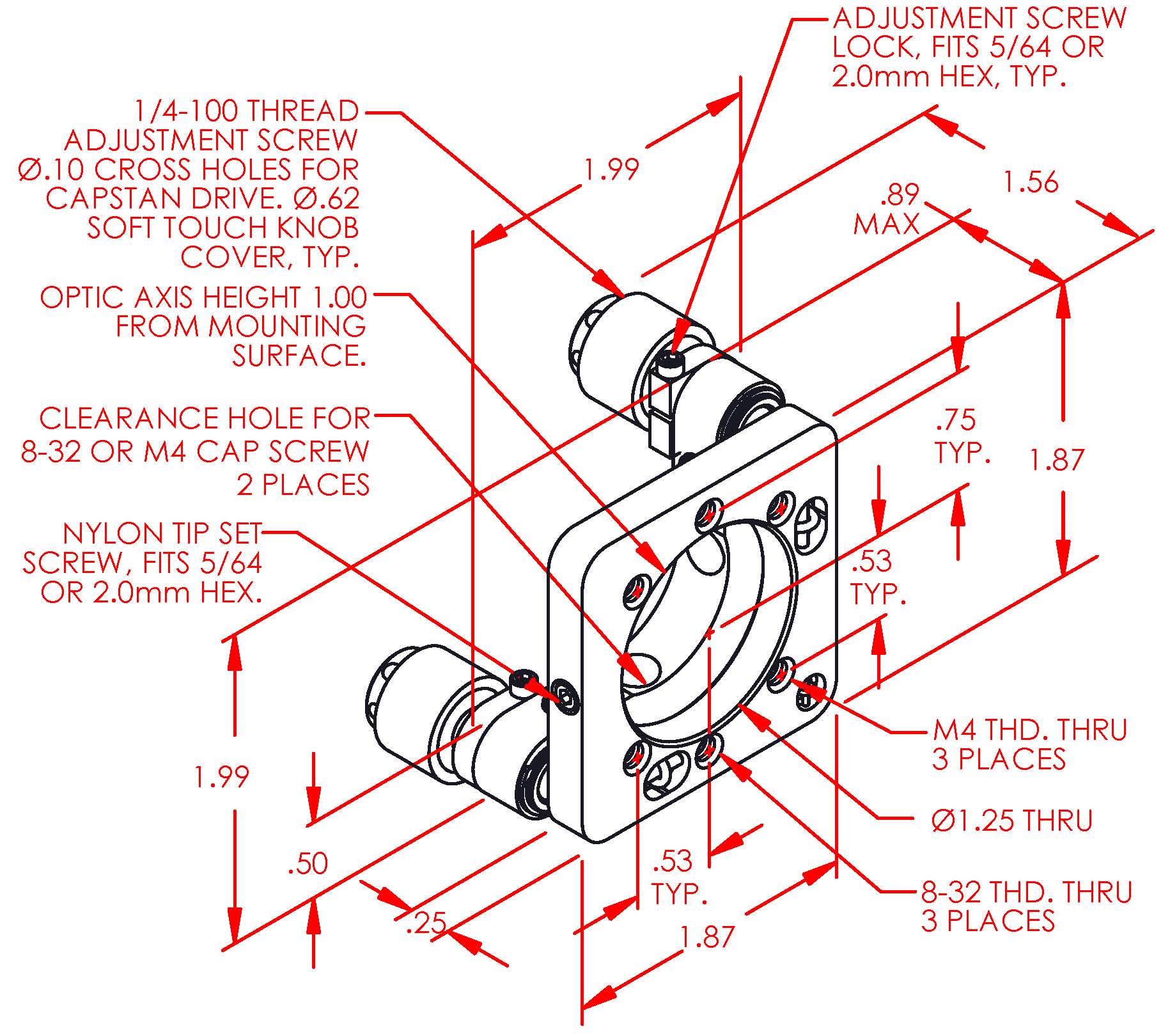

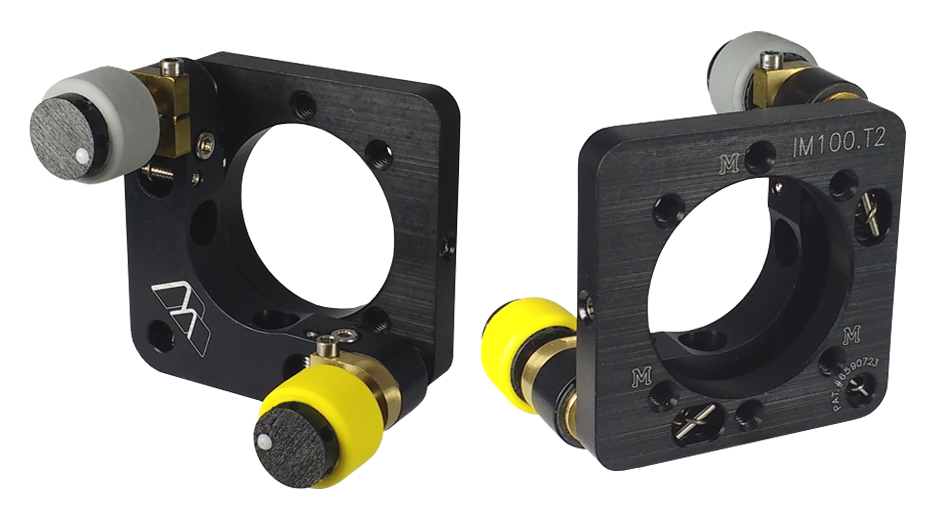

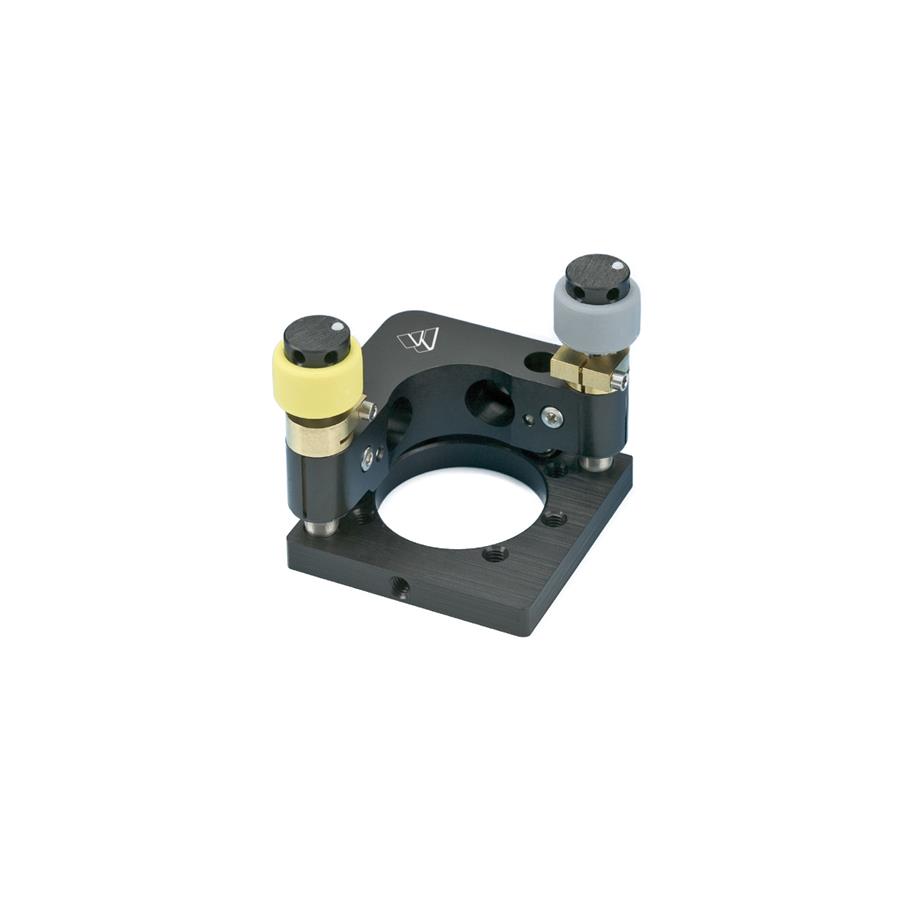

These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM100 series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left-hand compatibility. Our unique spring-loaded pivot ensures a stability that far exceeds other mounts.

Product Features:

• 100 pitch lockable adjustment screws
• Color coded axis knobs
• Unique spring-loaded pivot point
• Vacuum compatible versions available upon request
• RoHS compliant

Performance Specifications:

• Travel/axis: 8°
• Minimum controllable motion*: 3.8 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

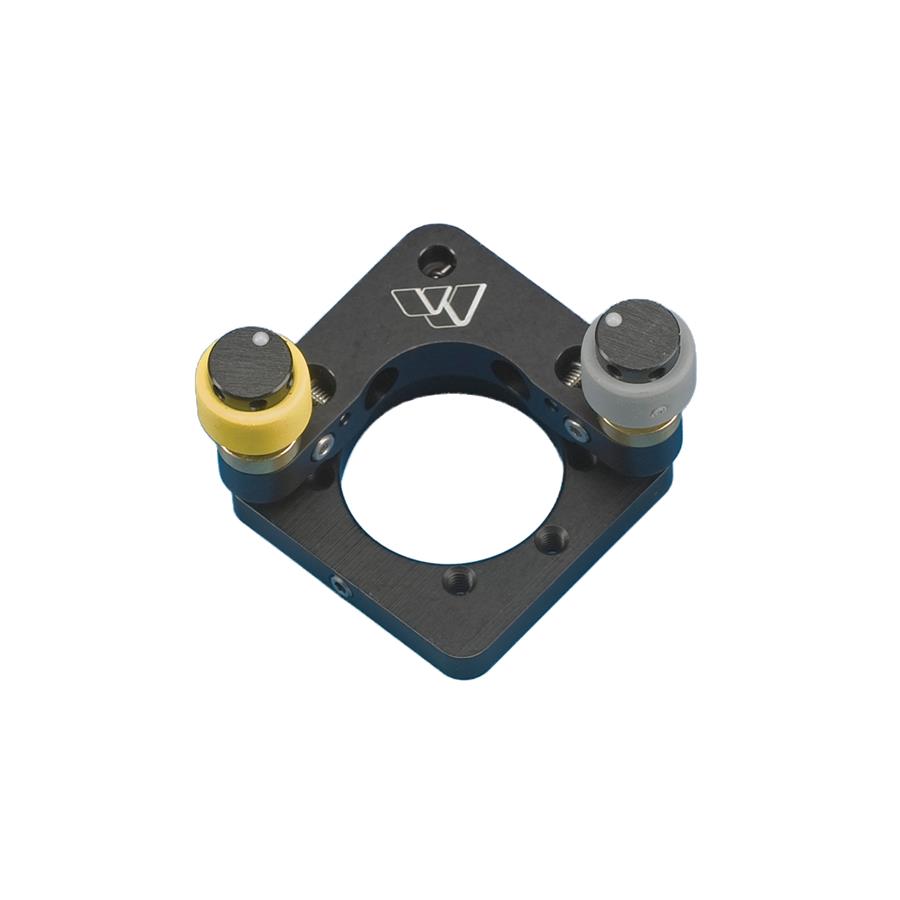

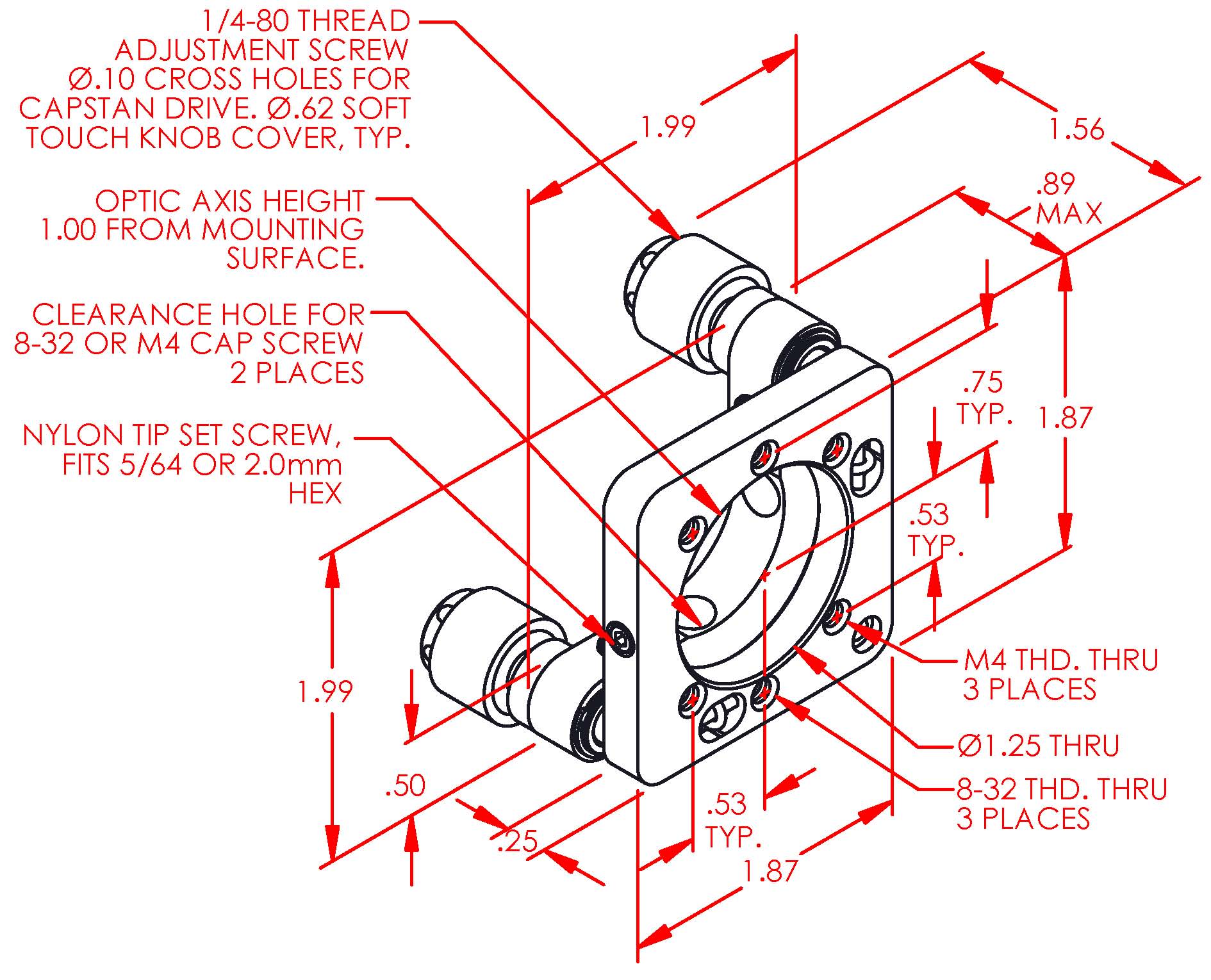

This economy grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM100 series mounts use precision 80TPI adjustment screws for excellent resolution and feel in hand. The solid 3/8-inch thick aluminum backplate offers two 8-32 [M4] mounting options for right or left-hand compatibility.

Our IM100 series mounts use a full L cutaway back for maximum clear aperture. Within the backplate we use precision machined 80TPI adjustment screws with hardened steel balls that run on carbide pads to provide stable movement. The 80TPI adjustment screws run in full-hard brass bushings which are individually matched to ensure the best fit in the industry.

All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions.

Product Features

• 80TPI adjustment screws
• Color coded axis knobs
• Good value

Performance Specifications

• Travel / axis: 8°
• Minimum controllable motion: 3.8 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

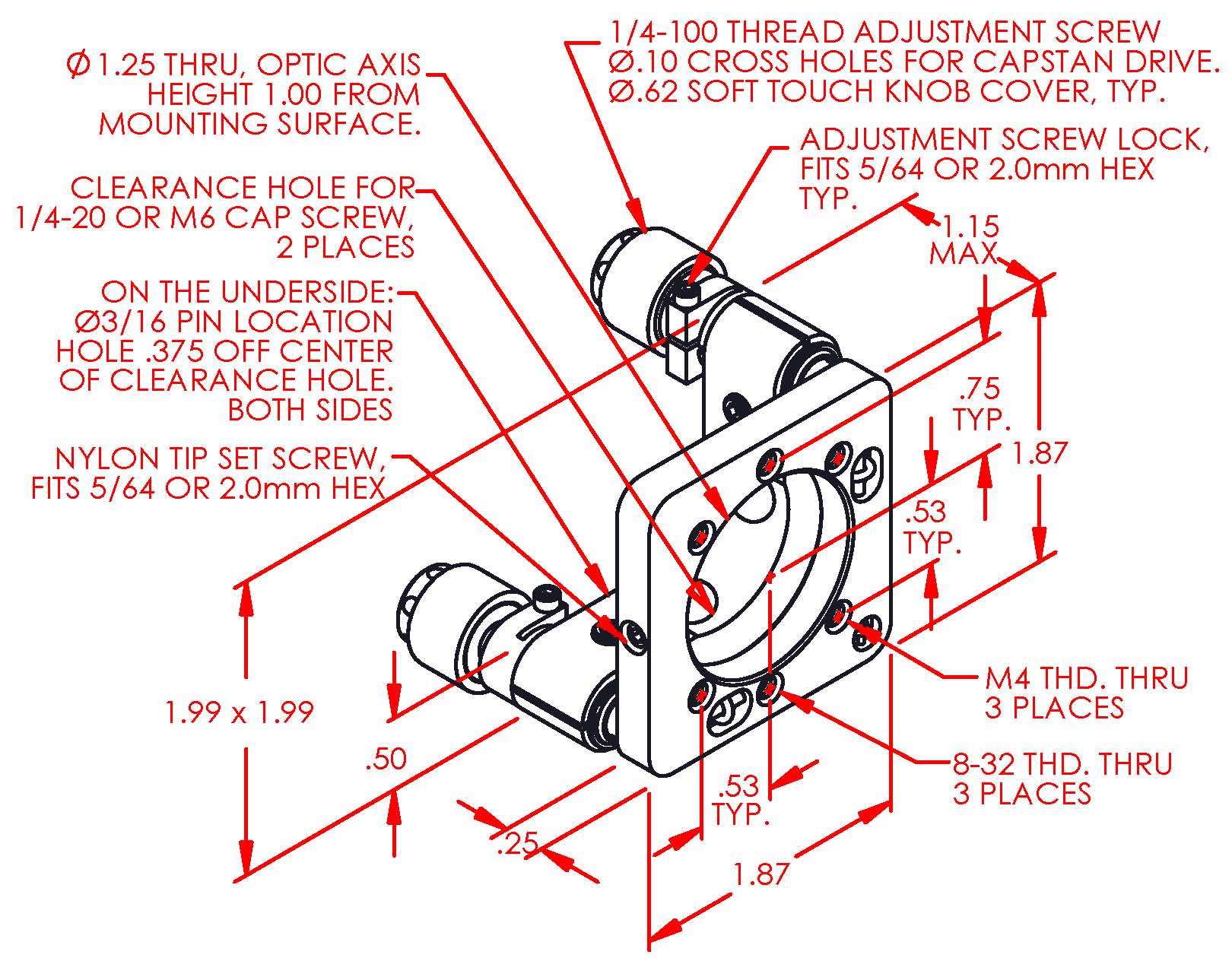

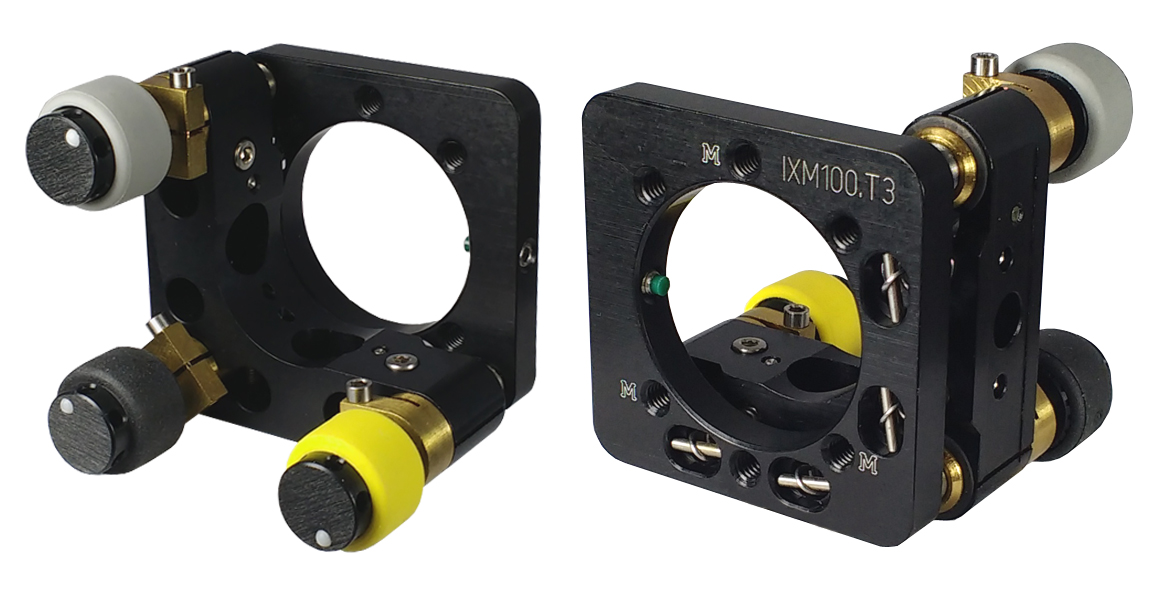

These Industrial eXtreme optical mounts offer the most stability found in the industry with a wide variety of flexible options. Our IXM100 series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 5/8-inch thick aluminum back plate offers two 1/4-20 (M6) mounting options for right or left hand compatibility. Our unique spring-loaded pivot ensures a stability that far exceeds other mounts.

Product Features:

• 100 pitch lockable adjustment screws
• Color coded axis knobs
• Unique spring-loaded pivot point
• Vacuum compatible versions available upon request
• RoHS compliant

Performance Specifications:

• Travel/axis: 8°
• Minimum controllable motion*: 3.8 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

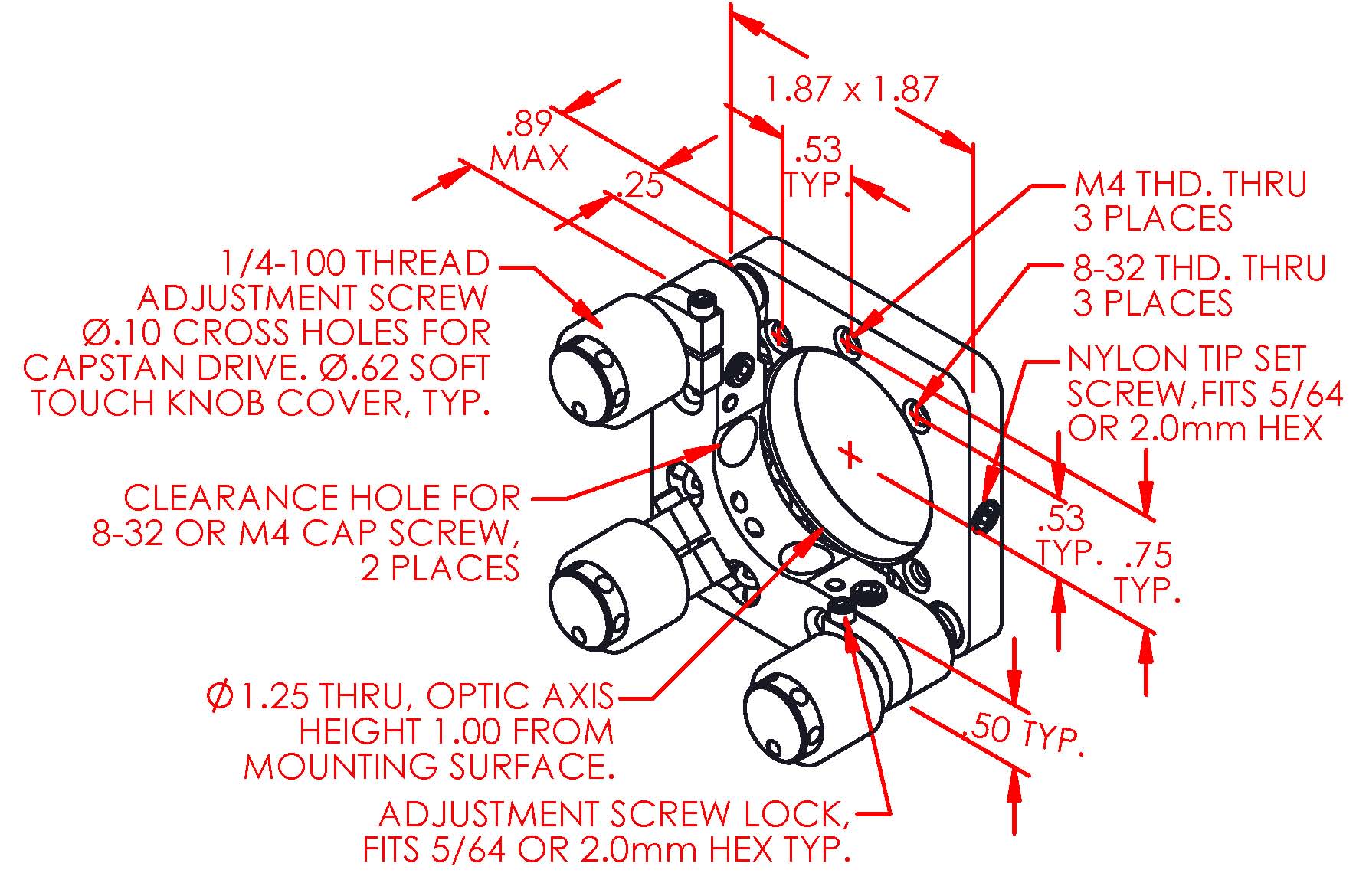

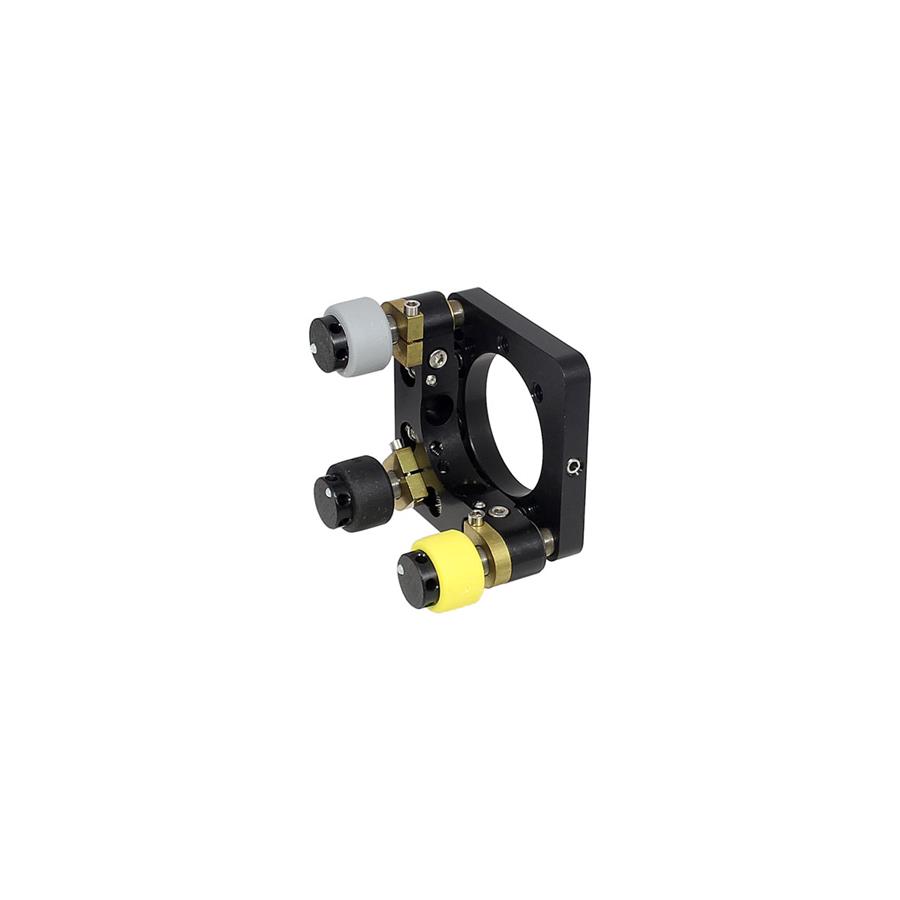

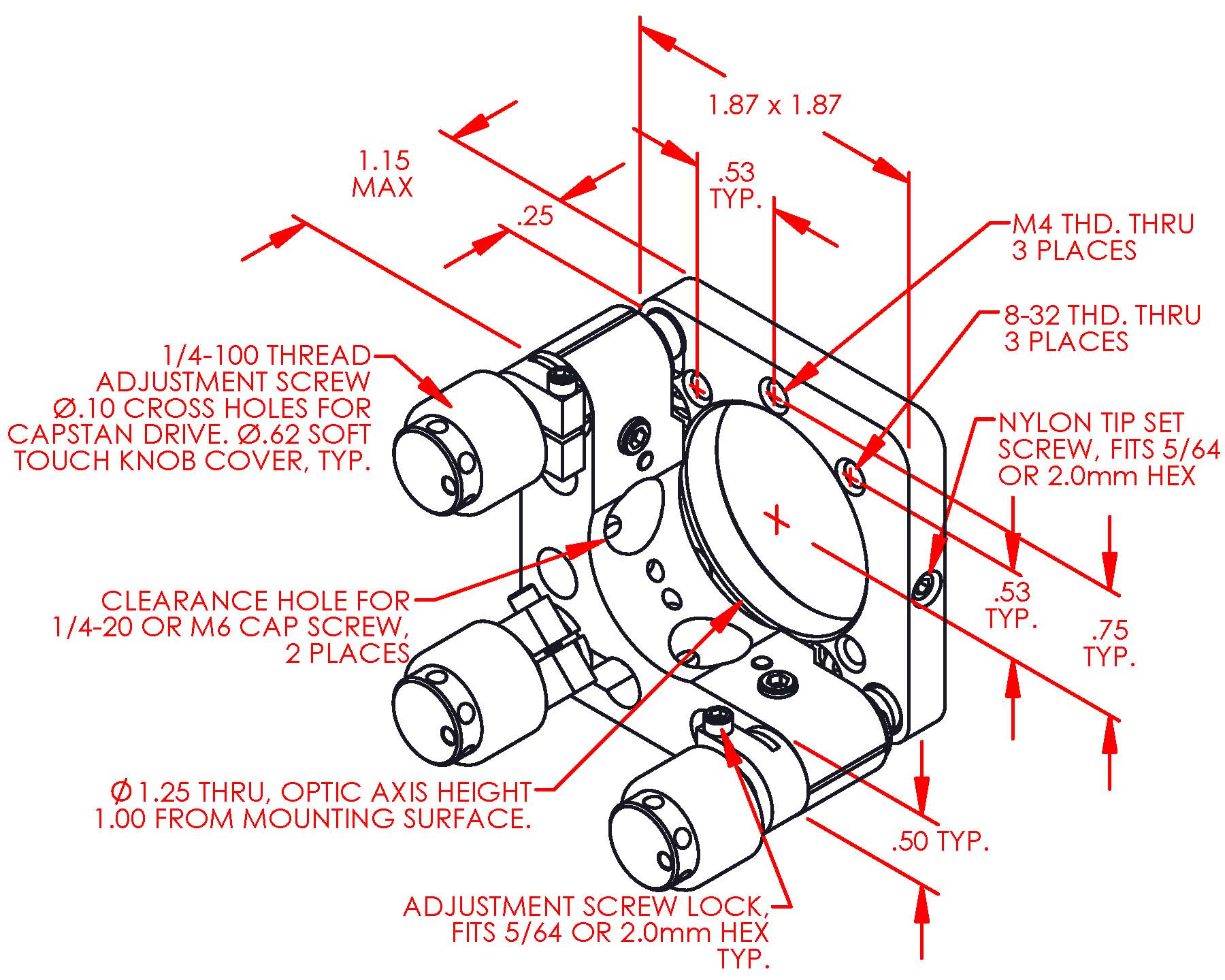

These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM100 series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left-hand compatibility.

Product Features:

• 100 pitch lockable adjustment screws
• Color coded axis knobs
• Third axis adjustment
• Vacuum compatible versions available upon request
• RoHS compliant

Performance Specifications:

• Travel/axis: 8°
• Minimum controllable motion*: 3.8 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM100 series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left-hand compatibility.

Product Features:

• 100 pitch lockable adjustment screws
• Color coded axis knobs
• Third axis adjustment
• Vacuum compatible versions available upon request
• RoHS compliant

Performance Specifications:

• Travel/axis: 8°
• Minimum controllable motion*: 3.8 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
