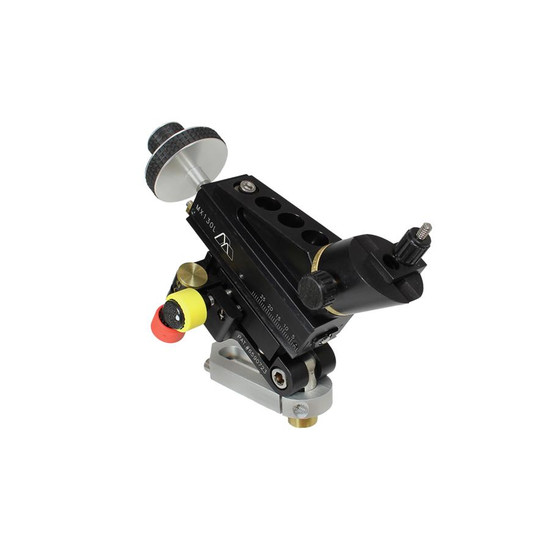

The MX130 Manipulator is designed to maximize available space. The narrow profile design allows multiple manipulators to be placed in one quadrant. The MX130 provides 42mm coarse and 3mm fine positioning travel in the X-axis. Two-and-a-half turns of the coarse adjustment knob will fully retract the device in the X-axis. The assembly is fitted with our MXC-45 probe clamp for easy changing of electrodes or other implements.
Y-and Z-axis adjustments are accomplished with the fine adjustment screws mounted on the back of the device. Additionally, the Z-axis adjustment screw may be configured with the knob on the top or the bottom, whichever provides the best access. The device angle is easily set by loosening the locking screw. The RTC-0.5 mounting base provides coarse rotational positioning and flexible mounting options of either base or post support. Left or right-hand models allow additional flexibility to suit the application.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
