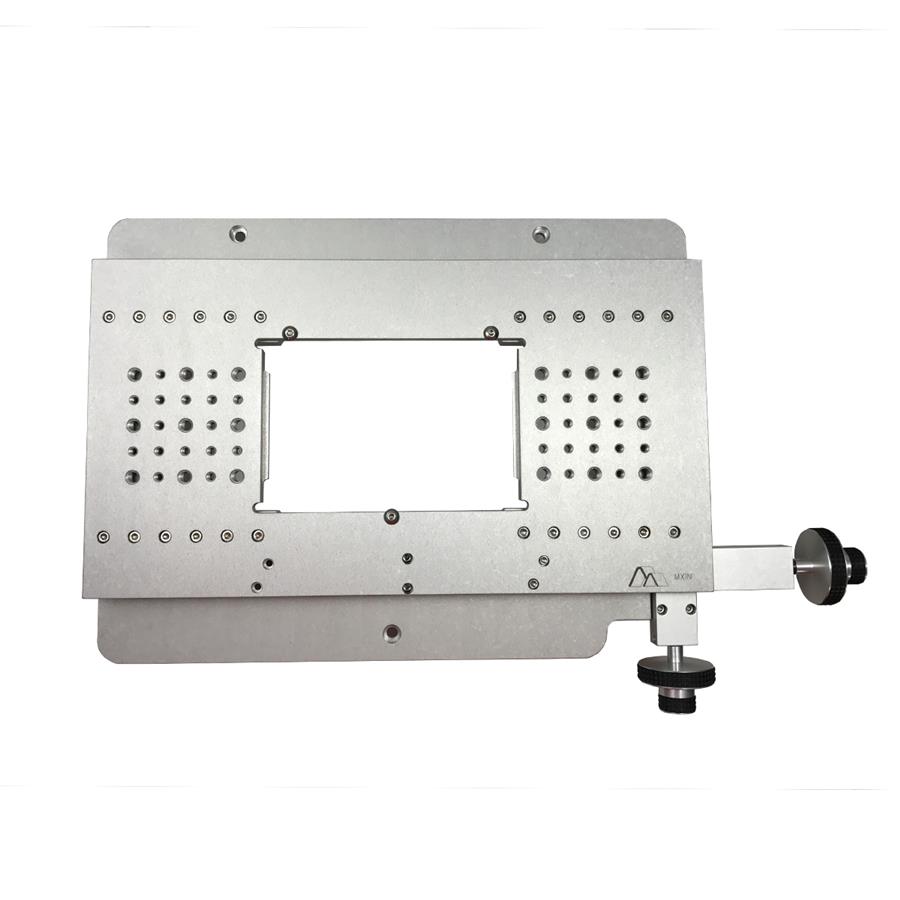

MXIN-LDMI Series Stage

Siskiyou's MXIN series inverted microscope stage incorporates our unique coarse-fine drive system, for rapid travel in x-axis & y-axis, as well as 3mm of high-resolution fine control in both axis. Accommodates the Leica DMI series inverted research microscope.

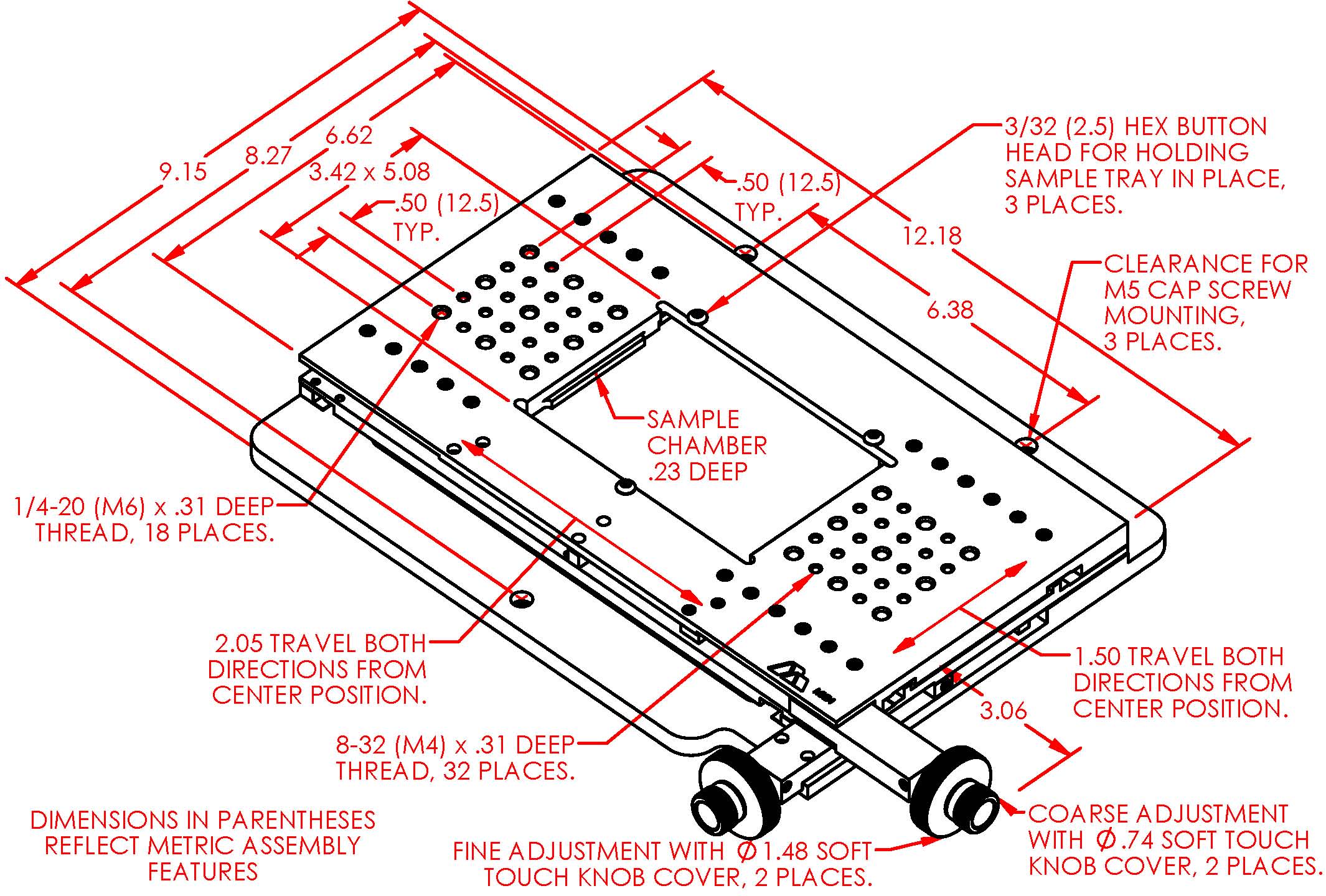

Performance Specifications

• Travel range:
• X axis, coarse/fast: 104 mm
• X axis, fine: 3.5 mm
• Y axis, coarse/fast: 76 mm
• Y axis, fine: 3.5 mm
• Resolution:
• Coarse/fast: 100 µm
• Fine: 5 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Choose options to see performance specifications and downloads.
