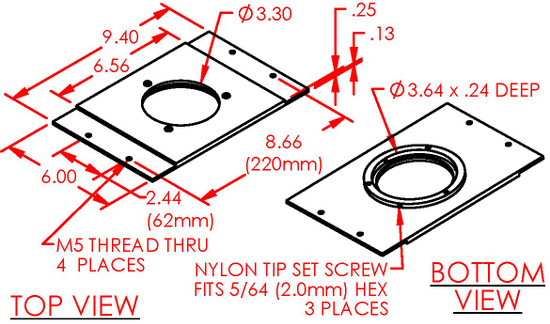

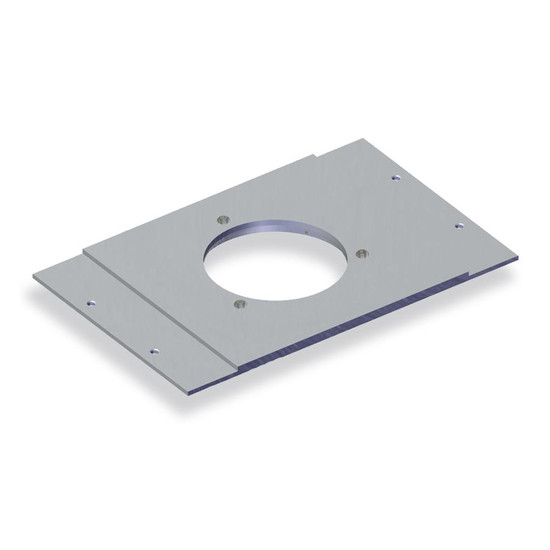

MXIN-N80i/90i/U Adapter

An adapter plate which allows our MXIN-IX series to be fitted with the Nikon Eclipse Series upright microscopes. The MXIN series microscope stage incorporates our unique coarse-fine drive system, for rapid travel in x-axis & y-axis, as well as 3mm of high-resolution fine control in both axis.

Performance Specifications

• Travel range:
• X axis, coarse/fast: 104 mm
• X axis, fine: 3.5 mm
• Y axis, coarse/fast: 76 mm
• Y axis, fine: 3.5 mm
• Resolution
• Coarse/fast: 100 µm
• Fine: 5 µm
