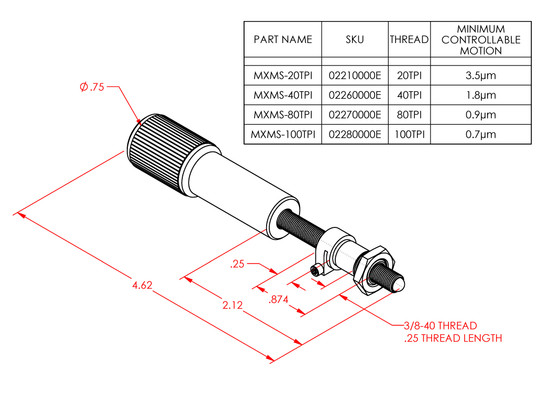

MXMS-40TPI

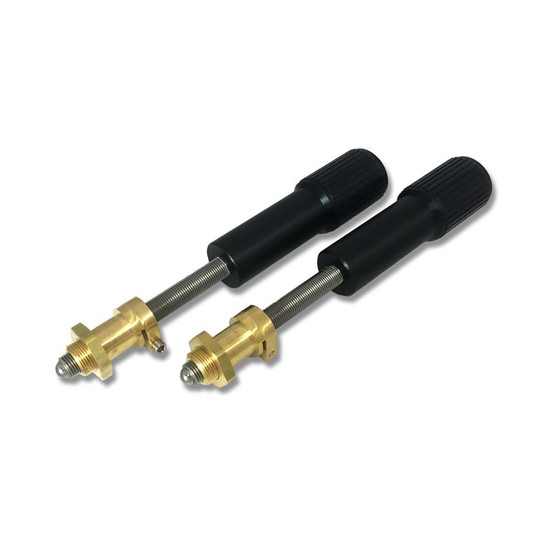

Siskiyou TPI series adjustment screws designed for the MXMS microscope translator. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension, as well as locking screw movement.

Product Features

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• Extended reach actuators
• Vacuum compatible versions available

Performance Specifications

• Travel: 635µm/rev
• Minimum controllable motion*: 1.7µm
• Axial load: 100lb

*MINIMUM CONTROLLABLE MOTION BASED ON 1° OF ROTATION
