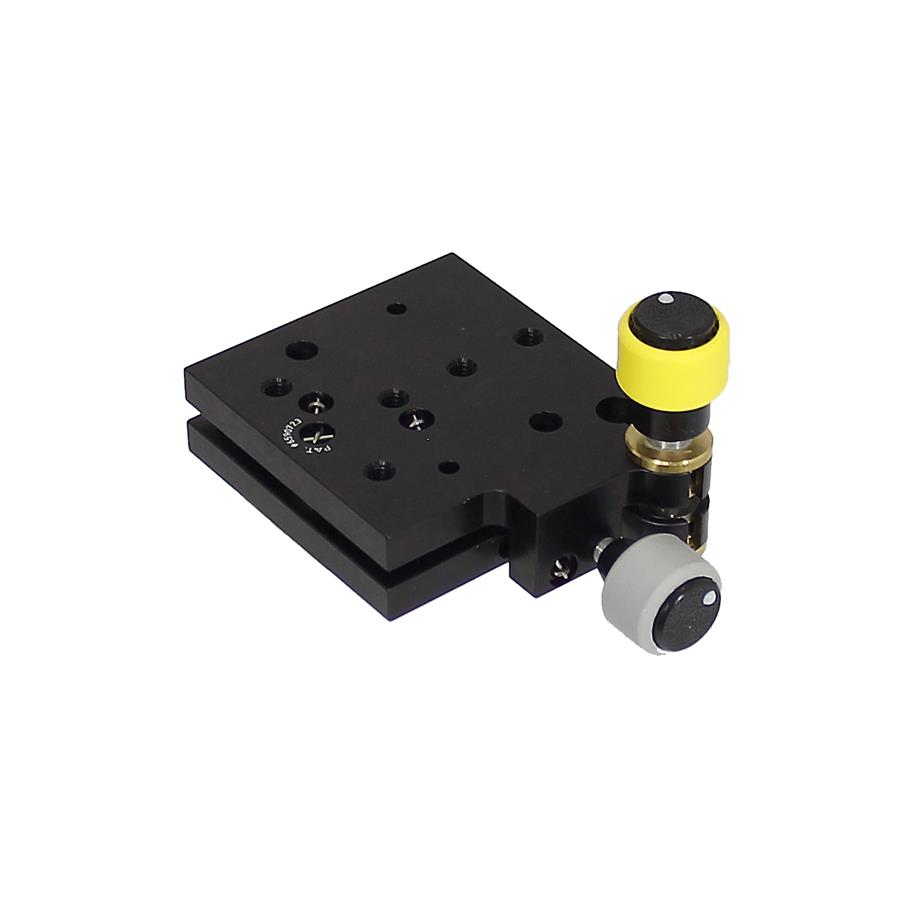

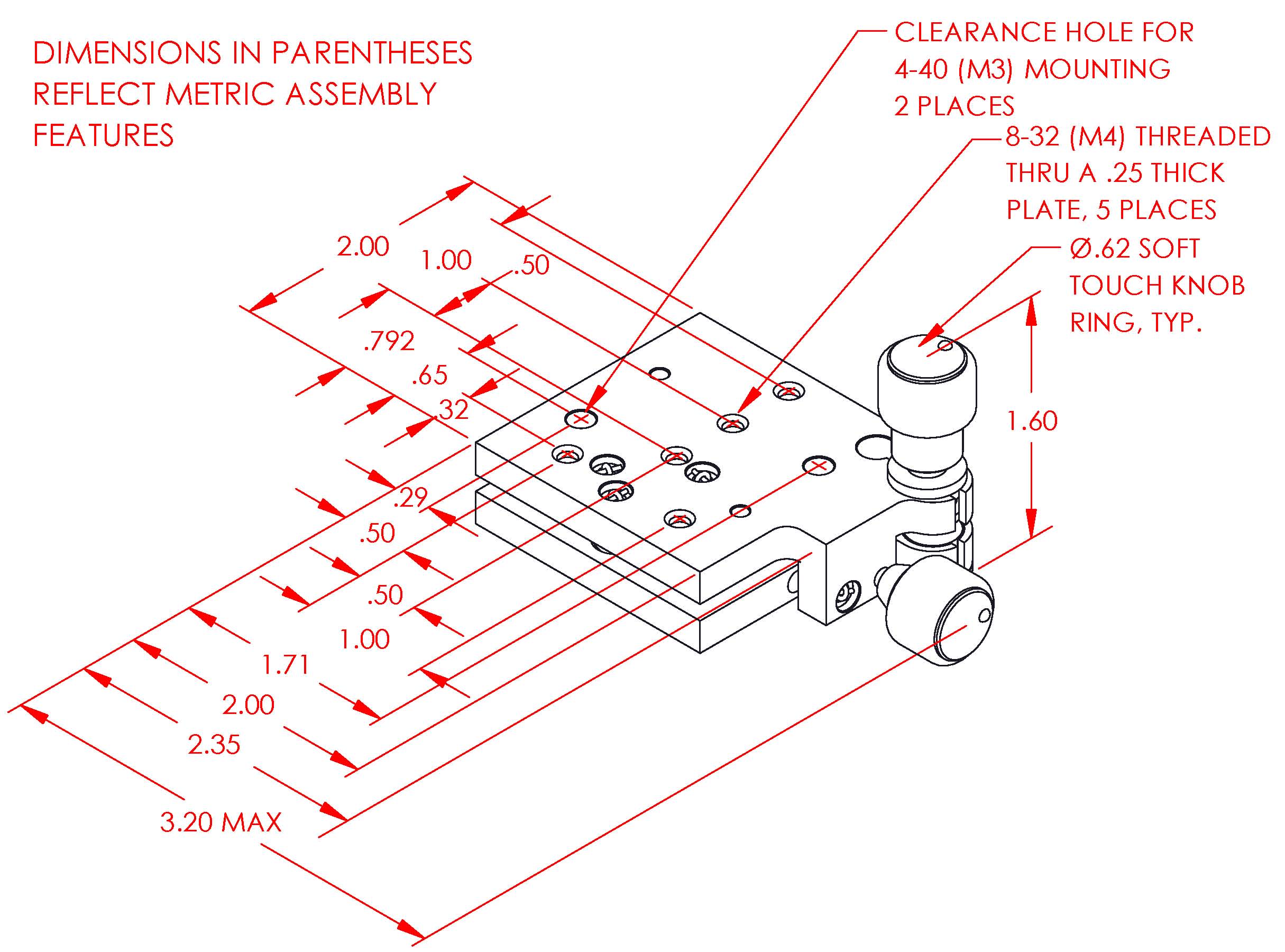

The PY-2 pitch / yaw mount is designed to be used in conjunction with the Model 3010 fiber holder and 1600 or 7600 series translation stages. The axially loaded pivot mechanism provides a stable platform that gives 7° of pitch and yaw motion. The PY-2 is designed as a modular component that integrates with many devices. To facilitate multiple configurations the yellow knob pitch adjustment screw and stop can be removed and the position switched by the user. 80TPI adjustment screws are used for precise positioning and our color coded SoftTouch™ knob caps provide easy axis identification in low light conditions.

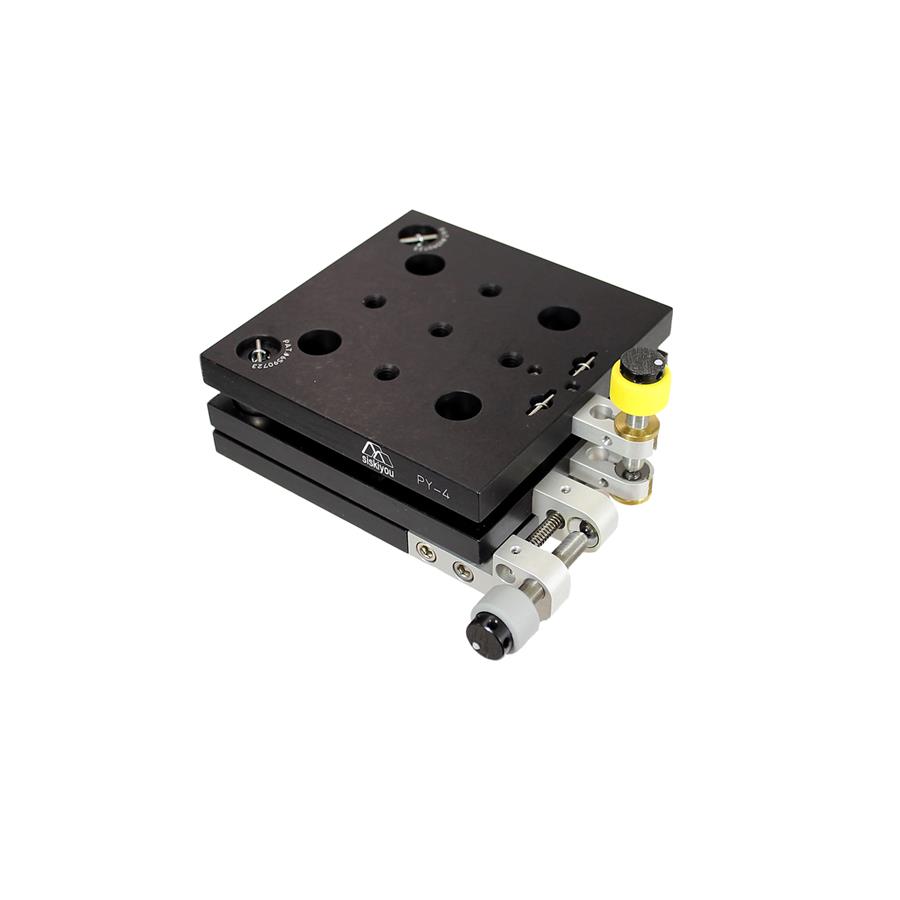

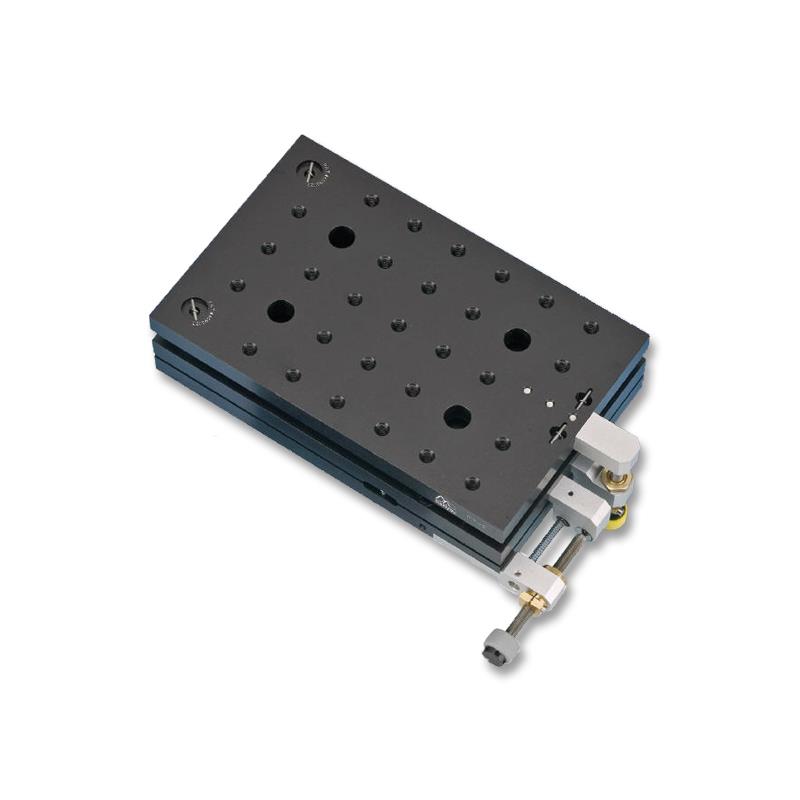

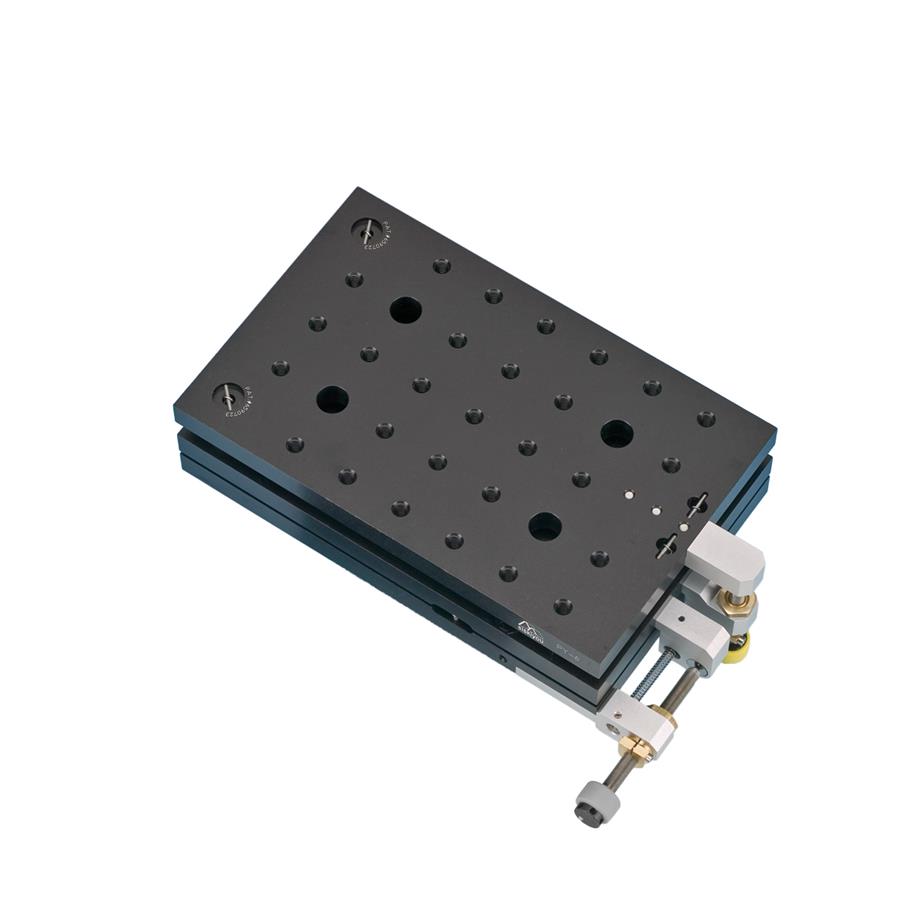

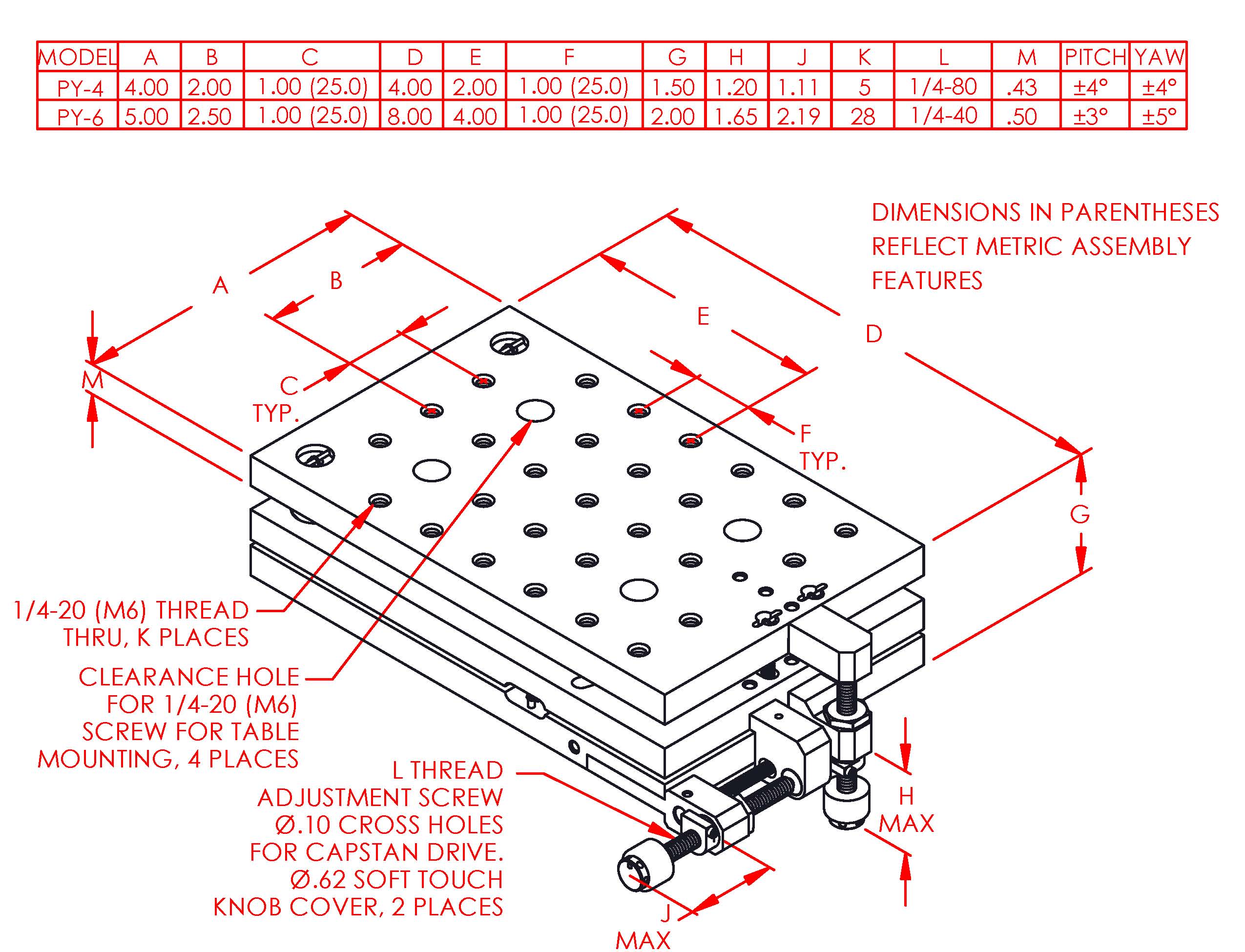

The PY-4 and PY-6 are designed for heavier and larger applications than the PY-2. Like the PY-2 these larger versions incorporate the same unique pivot design but they have been engineered to hold larger loads to ensure rock-solid load capability even under the most extreme conditions. The PY-6 can be driven with our motorized 420 or 840 series DC servo actuators for even greater position accuracy. The PY-4 is designed to attach to our DT-300 331 or 100cr stages for increased X XY or XYZ positioning.
Choose options to see performance specifications and downloads.
