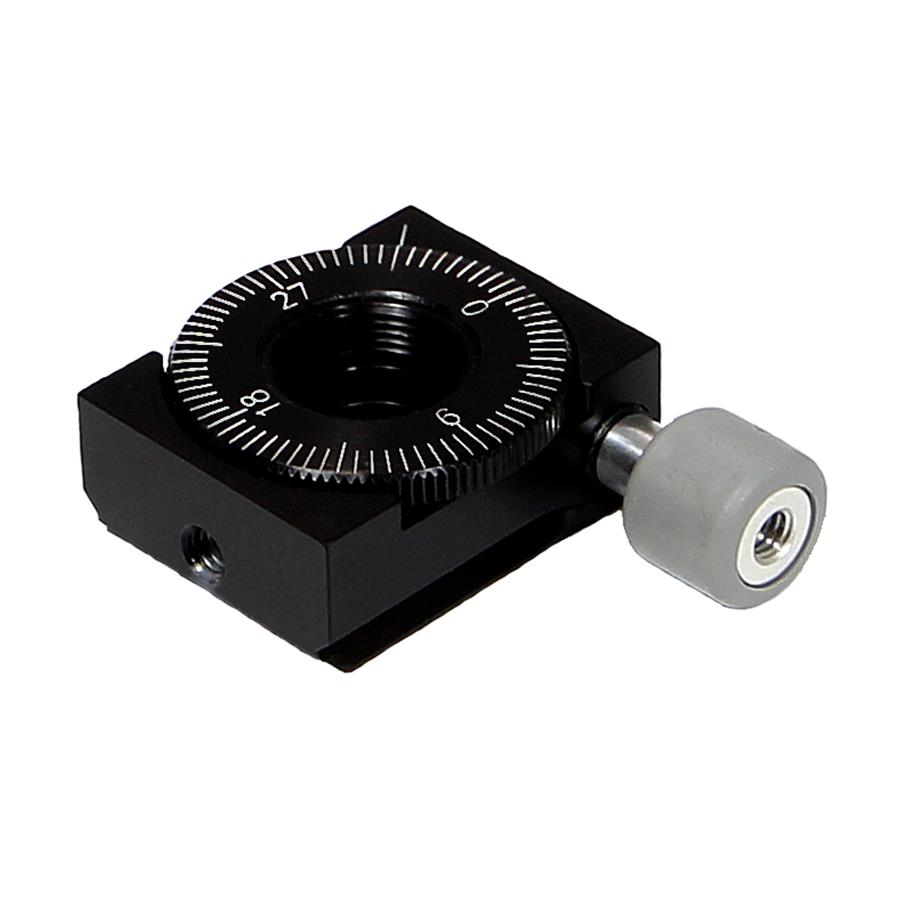

The RS100's compact design and right angle drive are ideal for close coupled optic stacking. 0.5-inch polarizers, wave plates, and other small optics can be coarsely positioned using the external knurled dial through a full 360°. Final tuning is accomplished with the worm driven adjustment knob that is located conveniently on the side. The RS100 rotation stage uses our unique integrated bearing design. This ball bearing design is a robust alternative to more expensive bearing packages. Our worm drive system, coupled with the bearing system, ensures smooth positioning throughout the 360° of rotation. The face of the dial is marked in 5° increments for easy referencing.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
