150.25dt-A Series Stage
SKU:
91260000
Name:
$248.00
150.25dt-A Series Stage
$248.00
150.25dt-A Series Stage
The newest version of our 150.25dt Dovetail Linear Stage now available with an aperture. These stages are the thinnest line of dovetail stages on the market. Their design is simple but effective for set-it-and-forget-it applications. This aperture version 150.25dt-A stage is ideal for LASER and Microscopy applications where a light path through the stage is necessary.
Product Features
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
Performance Specifications
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion* 0.7 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
150.25dt-A [91260000E]
Variant Images

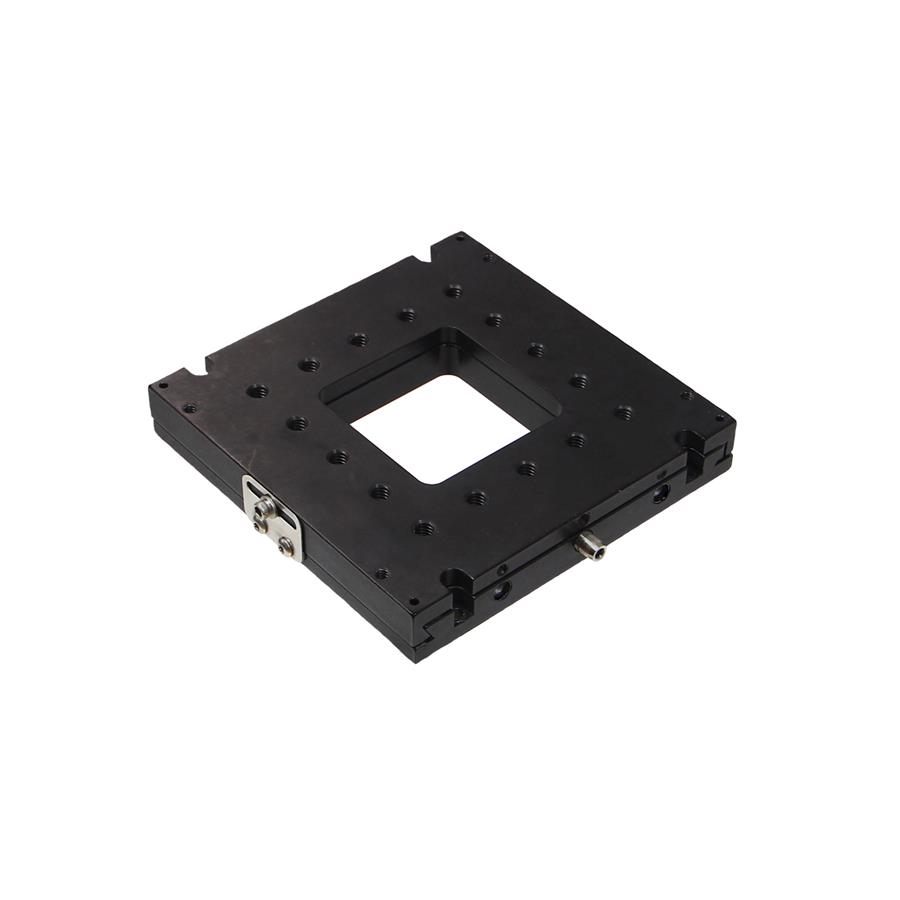

![150.25dt-A [91260000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91260000E.jpg)
![150.25dt-A [91260000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91260000E_1.jpg)
Product Details
The newest version of our 150.25dt Dovetail Linear Stage now available with an aperture. These stages are the thinnest line of dovetail stages on the market. Their design is simple but effective for set-it-and-forget-it applications. This aperture version 150.25dt-A stage is ideal for LASER and Microscopy applications where a light path through the stage is necessary.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 0.7 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
150.25dt-A M [91260000M]
Variant Images

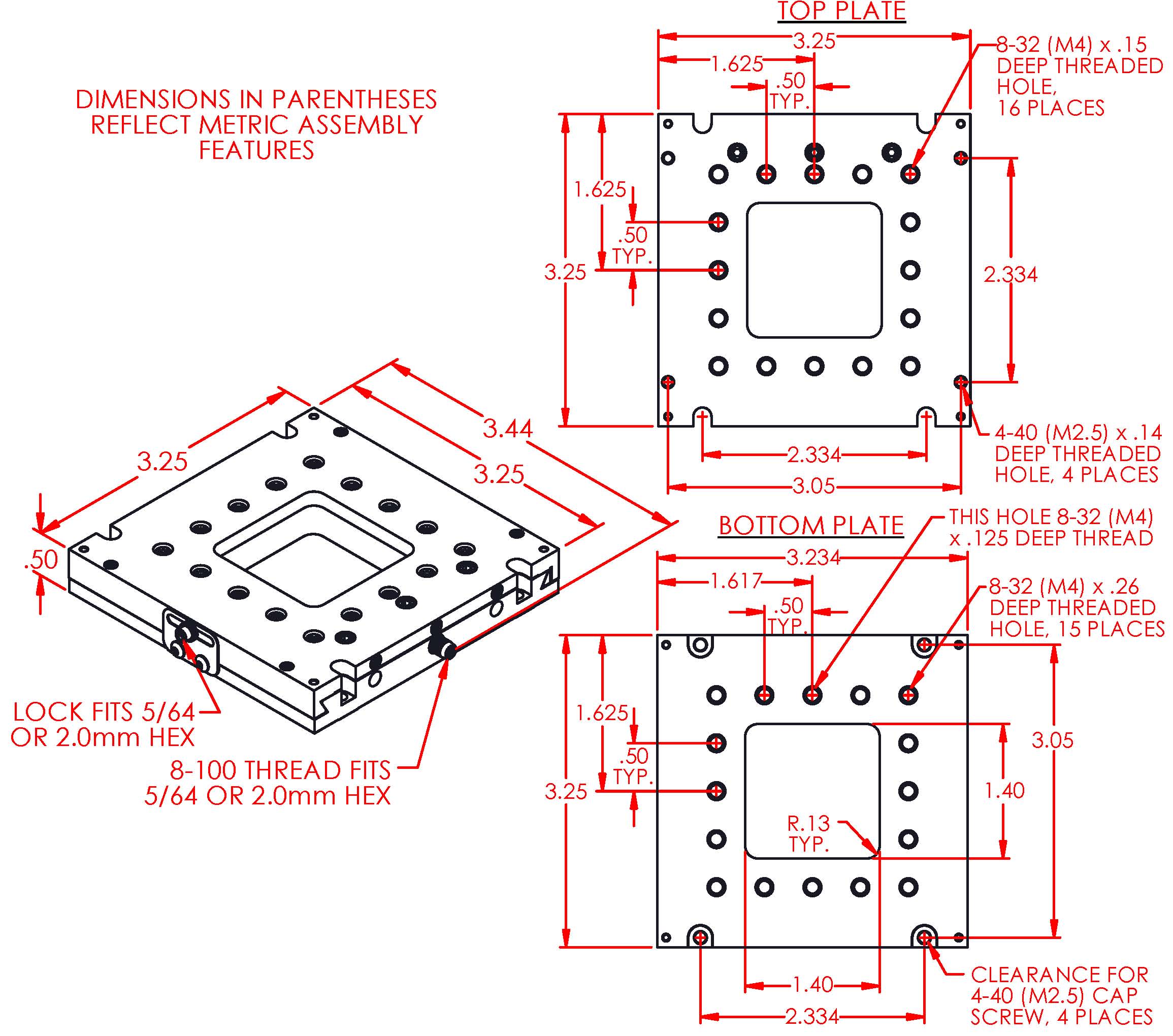

![150.25dt-A M [91260000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91260000M.jpg)
![150.25dt-A M [91260000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91260000M_1.jpg)
Product Details
The newest version of our 150.25dt Dovetail Linear Stage now available with an aperture. These stages are the thinnest line of dovetail stages on the market. Their design is simple but effective for set-it-and-forget-it applications. This aperture version 150.25dt-A stage is ideal for LASER and Microscopy applications where a light path through the stage is necessary.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 0.7 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
