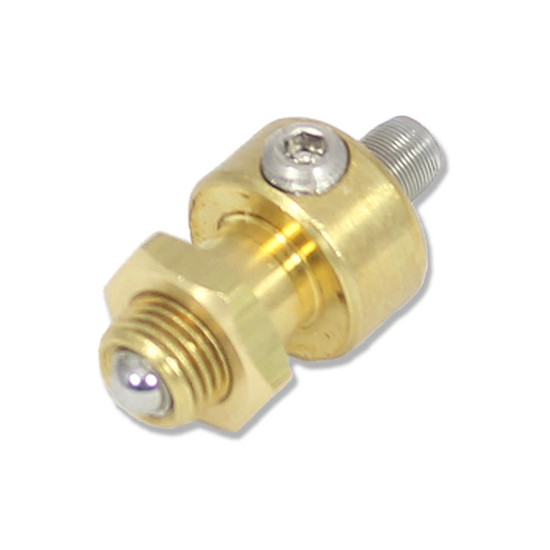

#8-TPI Series Adjustment Screw

0 review Write a Review
SKU: 8-TPI ADJ SCREW
DRIVE TYPE: HEX DRIVE
DRIVE TYPE: KNOB
SERIES: 100TPI
SERIES: 80TPI
TRAVEL: 12MM/.50IN
TRAVEL: 25MM/1.0IN
TRAVEL: 6MM/.25IN
VOLUME: 0.000000
WEIGHT UOM: LB
$30.00 - $32.00

#8-TPI Series Adjustment Screw

$30.00 - $32.00
Choose Options

#8-TPI Series Adjustment Screw

$30.00 - $32.00

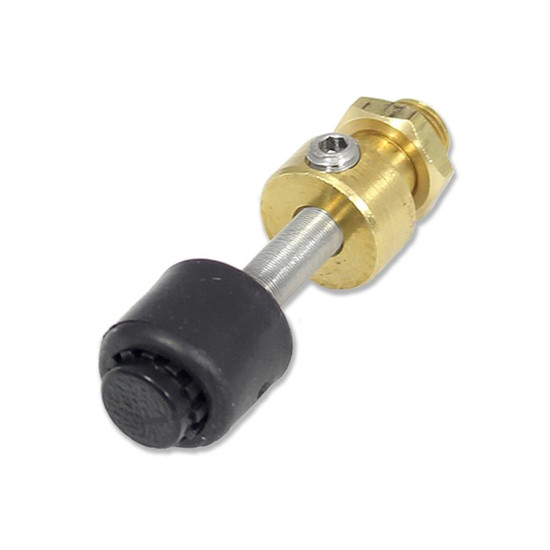

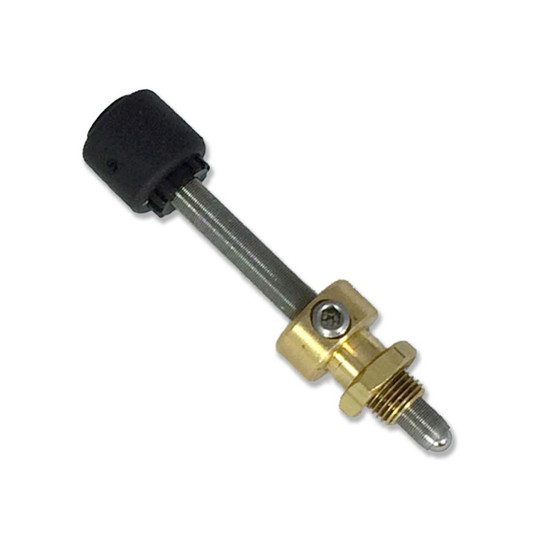

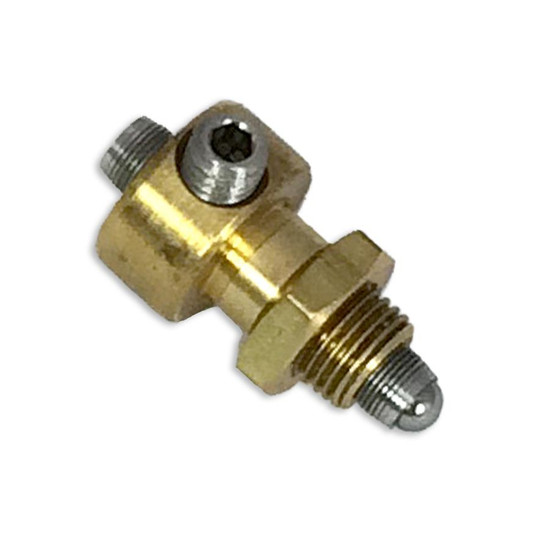

Siskiyou's 1/4-inch collet hex drive or SoftTouch™ TPI series adjustment screws are ideal for OEM and custom applications and are miniature versions of our 3/8-inch collet adjustment screws. They feature single-wrench-size adjustment and locking screw hex drives. The brass collet includes a built-in travel-lock mechanism to reliably hold device positioning.

TPI series fine and ultrafine adjustment screws are producing industry-leading resolutions and a cost-effective alternative to standard micrometers, where position readout is not a requirement. Adjustment screw contact tips are fitted with a hardened ball bearing for exceptionally smooth adjustment.

Our TPI adjustment screws are fitted with 'black' SoftTouch™ drive-knob caps by default.

Product Features

  • 80 or 100 thread pitch
  • Fits 1/4-inch collet diameter products
  • Split-clamp lock
  • SoftTouch™ actuators available
  • Vacuum compatible versions available

Performance Specifications

  • Travel 318 or 254 µm/rev
  • Minimum controllable motion*
    • 0.9µm (80 TPI versions)
    • 0.7µm (100 TPI versions)
  • Axial load 40lb

*MINIMUM CONTROLLABLE MOTION BASED ON 1 DEGREE OF ROTATION



Choose options to see performance specifications and downloads.
