AS-1A Series Spacer
SKU:
60300000
Name:
د.إ132.21
AS-1A Series Spacer
د.إ132.21
AS-1A Series Spacer
AS aluminum spacers for spacing of any device that needs to be adjusted in either the vertical or horizontal plane. AS spacers can be used by themselves or with ABP series base plates. They are also useful for added height adjustment on top of our PSR platform support rods. For horizontal applications use our BB-1.0 building block cube attached to the top of an AS spacer, then bolt another AS spacer to one or more of the four sides.
Product Features
- Solid aluminum construction
- Cost-effective support system
- Vacuum compatible versions available upon request
- Sizes from 0.125- to 2.0-inch
*AS-1A Inch Size Aluminum Spacers, Assortment Kit
- One (1) of each spacer size AS-.125 through AS-2.00
- Two (2) 1/4-20 x 5/8 stainless set screws to attach AS-1.50 to AS-2.00
*AS-25A Metric Size Aluminum Spacers, Assortment Kit
- One (1) of each spacer size AS-3 through AS-50
- Two (2) M6 x 15 stainless steel set screws to attach AS-40 to AS-50
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

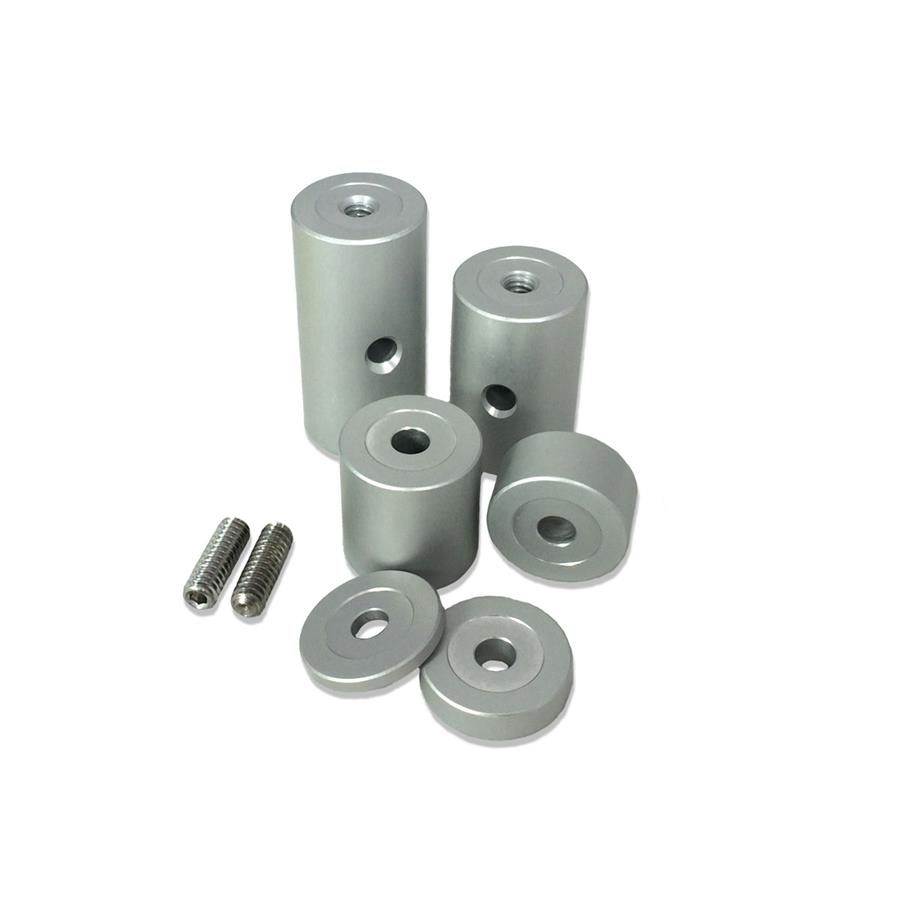

AS-1A [60300000E]
Variant Images
![AS-1A [60300000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/60300000E.jpg)
![AS-1A [60300000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/60300000E_1.jpg)
Product Details
AS aluminum spacers for spacing of any device that needs to be adjusted in either the vertical or horizontal plane. AS spacers can be used by themselves or with ABP series base plates. They are also useful for added height adjustment on top of our PSR platform support rods. For horizontal applications use our BB-1.0 building block cube attached to the top of an AS spacer then bolt another AS spacer to one or more of the four sides.
Product Features:
- Solid aluminum construction
- Cost-effective support system
- Vacuum compatible versions available upon request
- Sizes from 0.125- to 2.0-inch
- RoHS compliant
*AS-1A Inch Size Aluminum Spacers Assortment Kit
- One (1) of each spacer size AS-.125 through AS-2.00
- Two (2) 1/4-20 x 5/8 stainless set screws to attach AS-1.50 to AS-2.00

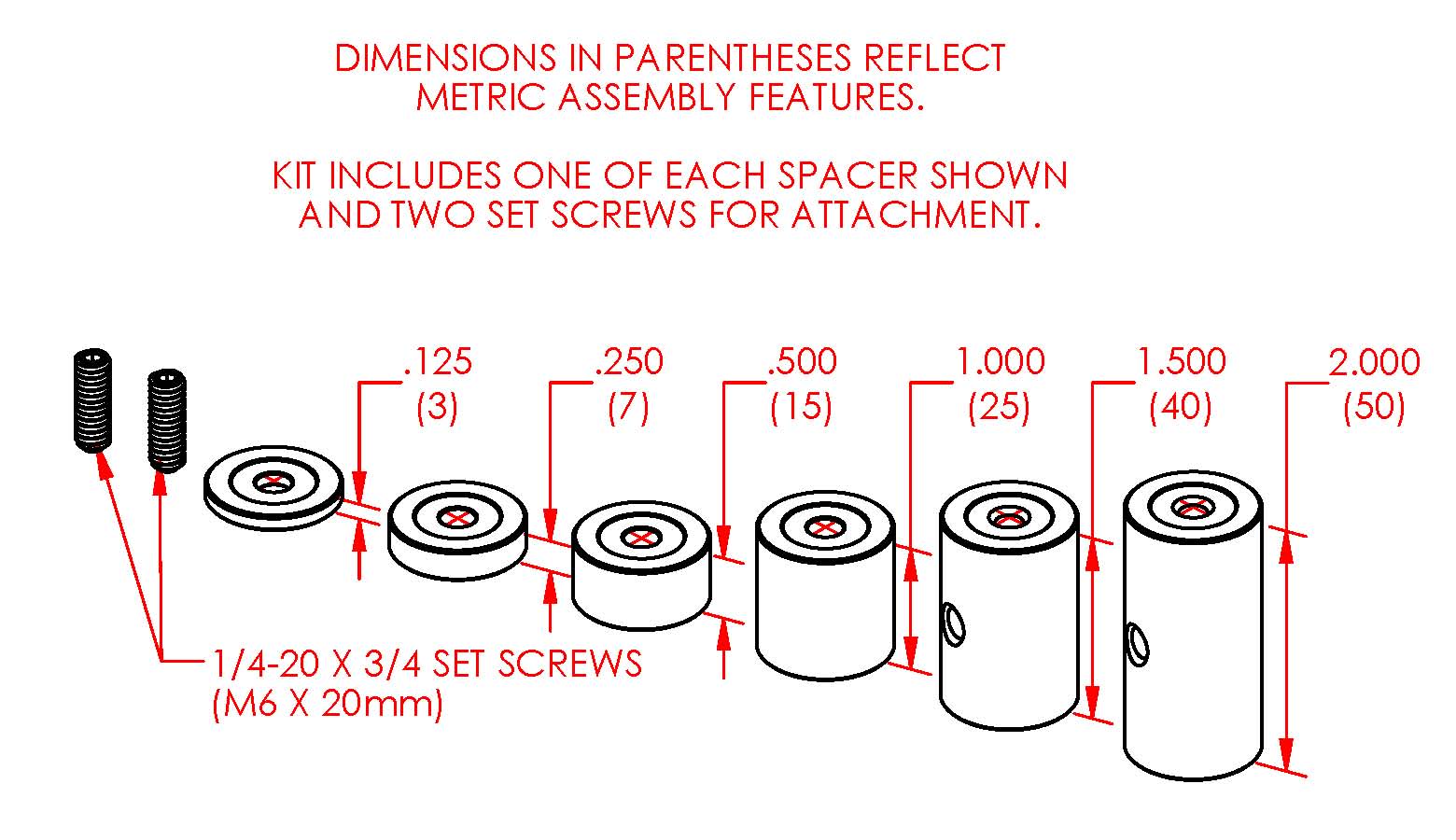

AS-25A M [60300000M]
Variant Images
![AS-25A M [60300000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/60300000M.jpg)
![AS-25A M [60300000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/60300000M_1.jpg)
Product Details
AS aluminum spacers for spacing of any device that needs to be adjusted in either the vertical or horizontal plane. AS spacers can be used by themselves or with ABP series base plates. They are also useful for added height adjustment on top of our PSR platform support rods. For horizontal applications use our BB-1.0 building block cube attached to the top of an AS spacer then bolt another AS spacer to one or more of the four sides.
Product Features:
- Solid aluminum construction
- Cost-effective support system
- Vacuum compatible versions available upon request
- RoHS compliant
*AS-25A Metric Size Aluminum Spacers Assortment Kit
- One (1) of each spacer size AS-3 through AS-50
- Two (2) M6 x 15 stainless steel set screws to attach AS-40 to AS-50
