CFT Series Translator
SKU:
CFT SERIES
Name:
$435.00 - $605.00
CFT Series Translator
$435.00 - $605.00
CFT Series Translator
The compact design of our CFT series of fiber translators makes them ideal for crowded beam path applications. This compact fiber translator uses our OT.5-5 as the basis for this small package. 80TPI adjustment screws are used for precise positioning of the 3- and 5-axis systems. The CFT series uses our SoftTouch® color-coded knob caps for easy axis identification in low light conditions. The Y-axis knob uses a unique capture screw design to ensure no drift due to overloading in that axis.
Product Features
- 80 pitch adjustment screws
- Rod or base mounting
- Compatible with CFC series fiber chucks
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

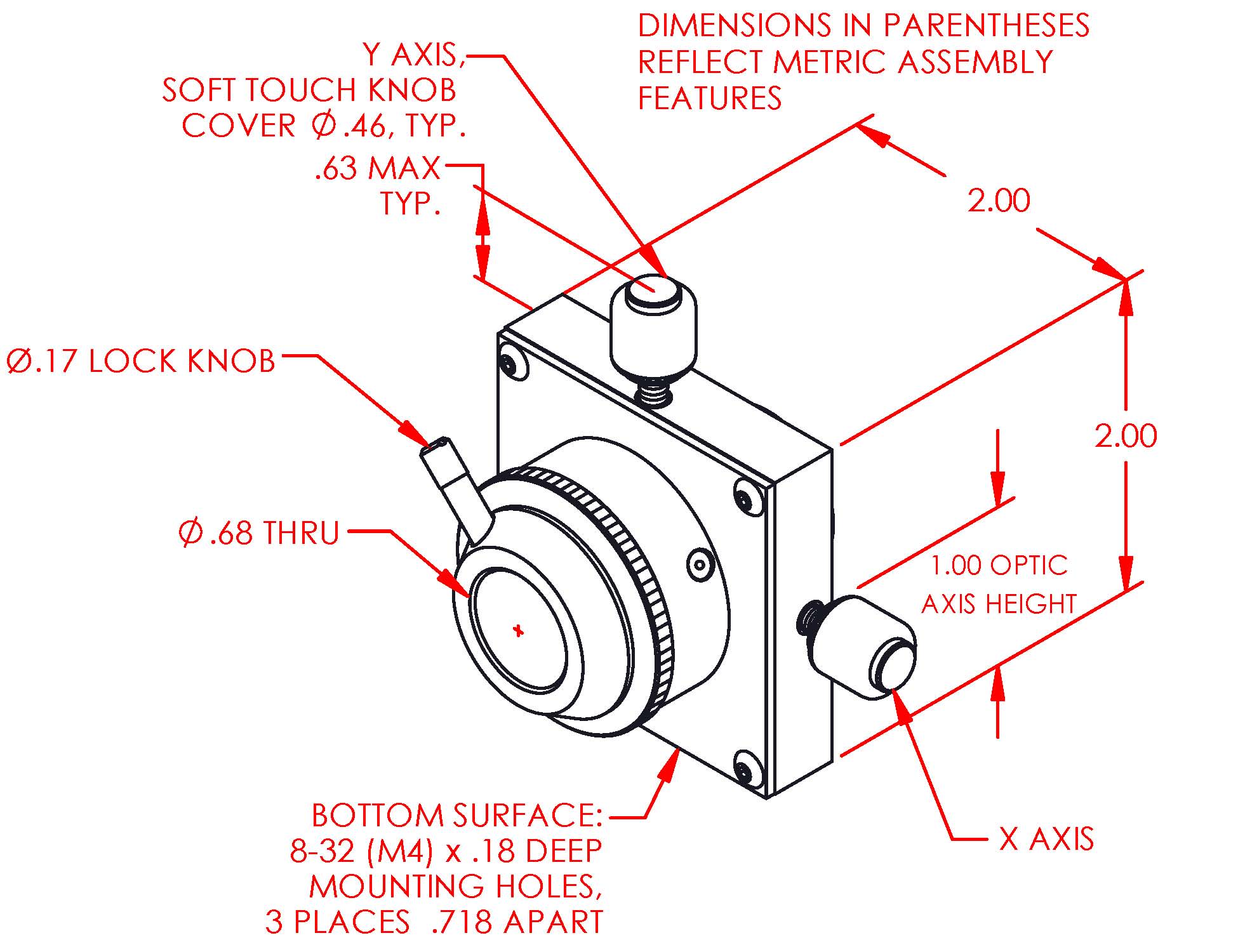

CFT-3 [31300000E]
Variant Images
![CFT-3 [31300000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31300000E.jpg)
![CFT-3 [31300000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31300000E_1.jpg)
Product Details
The compact design of our CFT series of fiber translators makes them ideal for crowded beam path applications. This compact fiber translator uses our OT.5-5 as the basis for this small package. 80TPI adjustment screws are used for precise positioning of the 3- and 5-axis systems. The CFT series uses our SoftTouch® color-coded knob caps for easy axis identification in low light conditions. The Y-axis knob uses a unique capture screw design to ensure no drift due to overloading in that axis.
Product Features:
- 80 pitch adjustment screws
- Rod or base mounting
- Compatible with CFC series fiber chucks
- RoHS compliant
Performance Specifications:
Travel / axis:
- X and Y: 0.12 inch (3.1 mm)
- Z:0.25 inch (6.3 mm)
- Pitch and Yaw: 5°
Minimum controllable motion*:
- X Y and Z: 1 µm
- Pitch and Yaw: 5 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

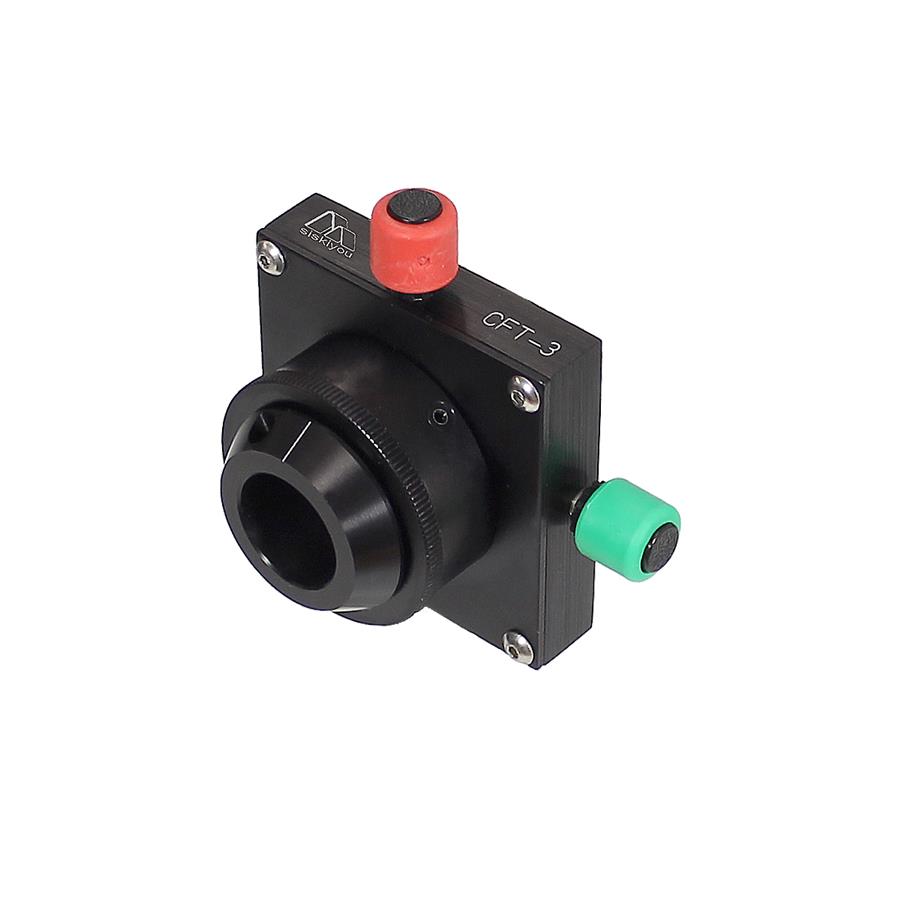

CFT-3 M [31300000M]
Variant Images
![CFT-3 M [31300000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31300000M.jpg)
![CFT-3 M [31300000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31300000M_1.jpg)
Product Details
The compact design of our CFT series of fiber translators makes them ideal for crowded beam path applications. This compact fiber translator uses our OT.5-5 as the basis for this small package. 80TPI adjustment screws are used for precise positioning of the 3- and 5-axis systems. The CFT series uses our SoftTouch® color-coded knob caps for easy axis identification in low light conditions. The Y-axis knob uses a unique capture screw design to ensure no drift due to overloading in that axis.
Product Features:
- 80 pitch adjustment screws
- Rod or base mounting
- Compatible with CFC series fiber chucks
- RoHS compliant
Performance Specifications:
Travel / axis:
- X and Y: 0.12 inch (3.1 mm)
- Z:0.25 inch (6.3 mm)
- Pitch and Yaw: 5°
Minimum controllable motion*:
- X Y and Z: 1 µm
- Pitch and Yaw: 5 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

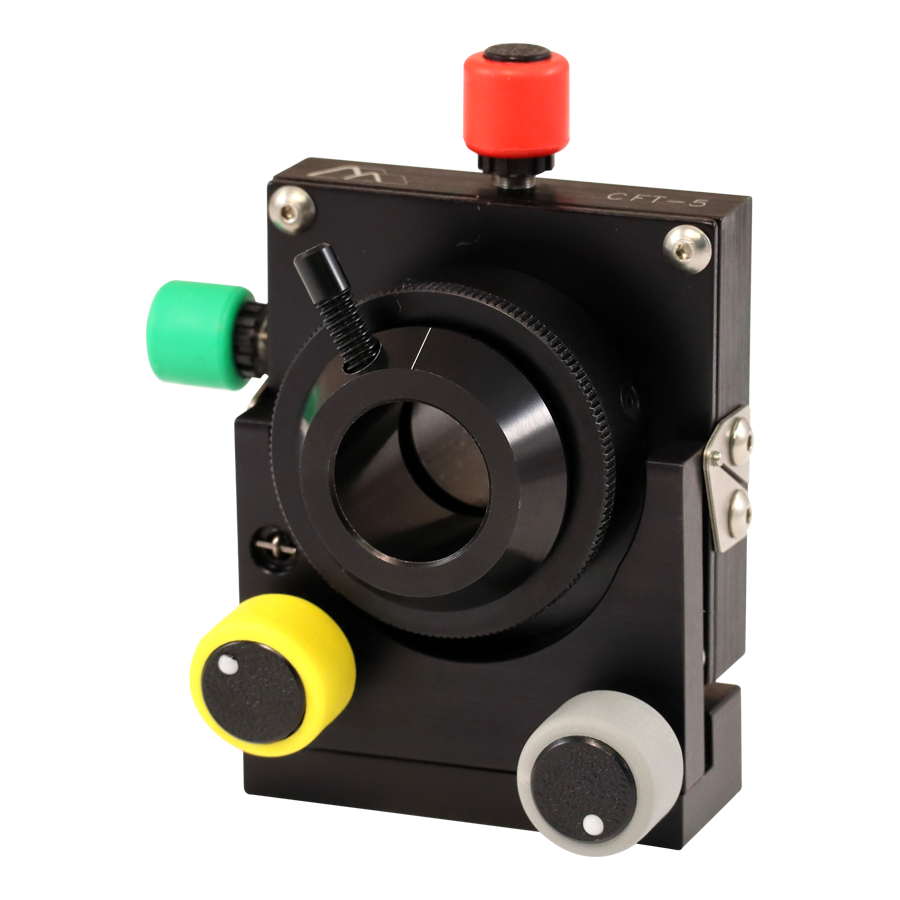

CFT-5 [31310000E]
Variant Images
![CFT-5 [31310000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31310000E.png)
![CFT-5 [31310000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31310000E_1.jpg)
Product Details
The compact design of our CFT series of fiber translators makes them ideal for crowded beam path applications. This compact fiber translator uses our OT.5-5 as the basis for this small package. 80TPI adjustment screws are used for precise positioning of the 5-axis system. The CFT series uses our SoftTouch® color-coded knob caps for easy axis identification in low light conditions. The Y-axis knob uses a unique capture screw design to ensure no drift due to overloading in that axis.
Product Features:
- 80 pitch adjustment screws
- Rod or base mounting
- Compatible with CFC series fiber chucks
- RoHS compliant
Performance Specifications:
Travel / axis:
- X and Y: 0.12 inch (3.1 mm)
- Z: 0.25 inch (6.3 mm)
- Pitch and Yaw: 5°
Minimum controllable motion*:
- X Y and Z: 1 µm
- Pitch and Yaw: 5 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

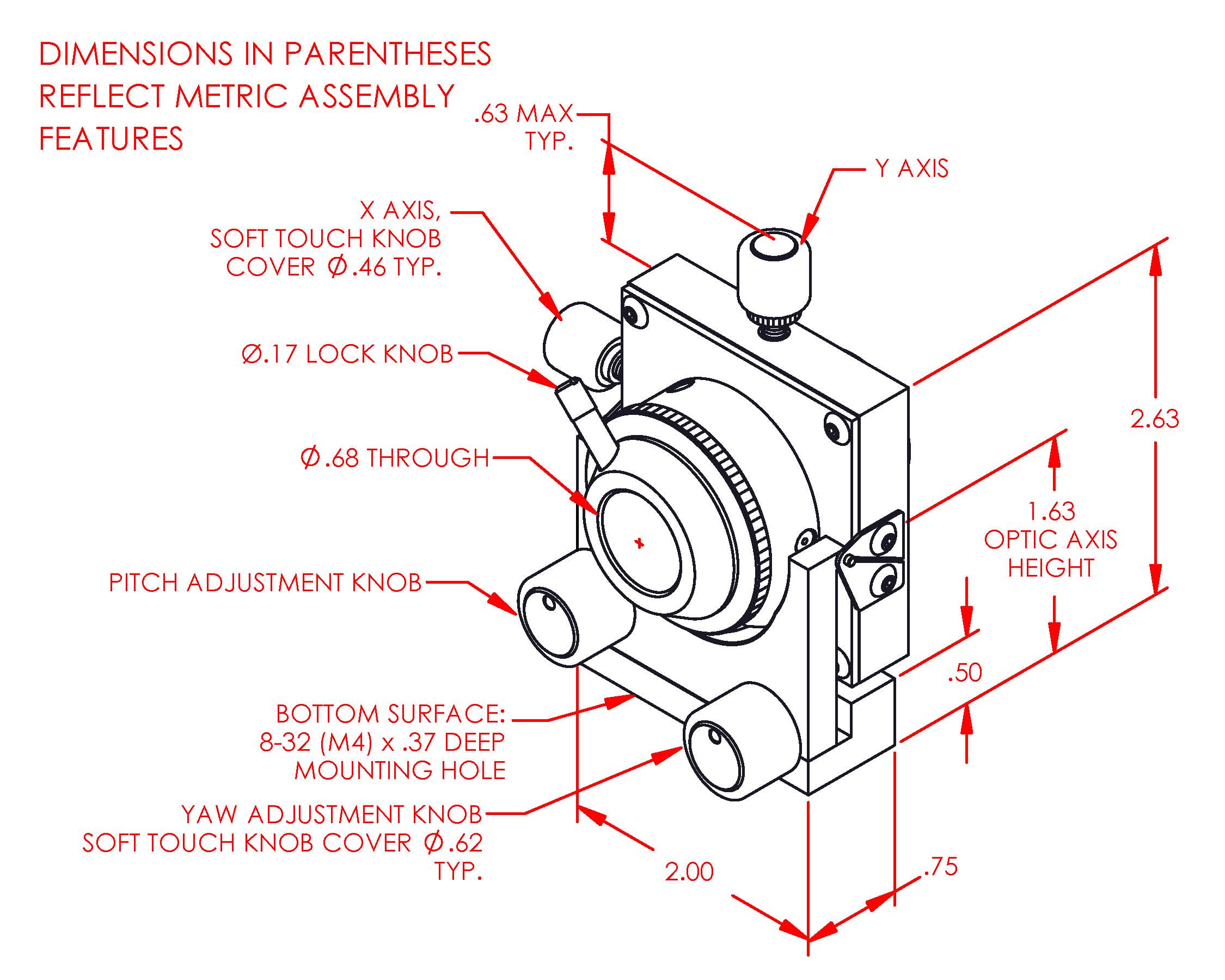

CFT-5 M [31310000M]
Variant Images
![CFT-5 M [31310000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31310000M.png)
![CFT-5 M [31310000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/31310000M_1.jpg)
Product Details
The compact design of our CFT series of fiber translators makes them ideal for crowded beam path applications. This compact fiber translator uses our OT.5-5 as the basis for this small package. 80TPI adjustment screws are used for precise positioning of the 5-axis system. The CFT series uses our SoftTouch® color-coded knob caps for easy axis identification in low light conditions. The Y-axis knob uses a unique capture screw design to ensure no drift due to overloading in that axis.
Product Features:
- 80 pitch adjustment screws
- Rod or base mounting
- Compatible with CFC series fiber chucks
- RoHS compliant
Performance Specifications:
Travel / axis:
- X and Y: 0.12 inch (3.1 mm)
- Z: 0.25 inch (6.3 mm)
- Pitch and Yaw: 5°
Minimum controllable motion*:
- X Y and Z: 1 µm
- Pitch and Yaw: 5 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
