CFTx Series Translator

$745.00 - $885.00

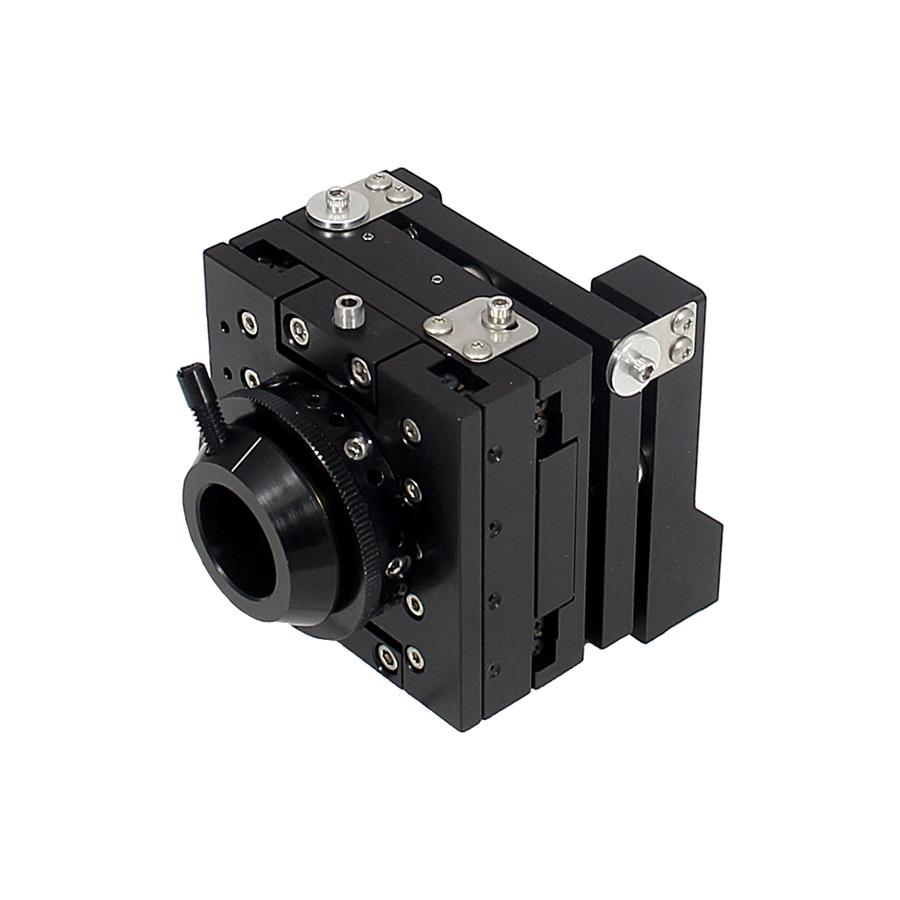

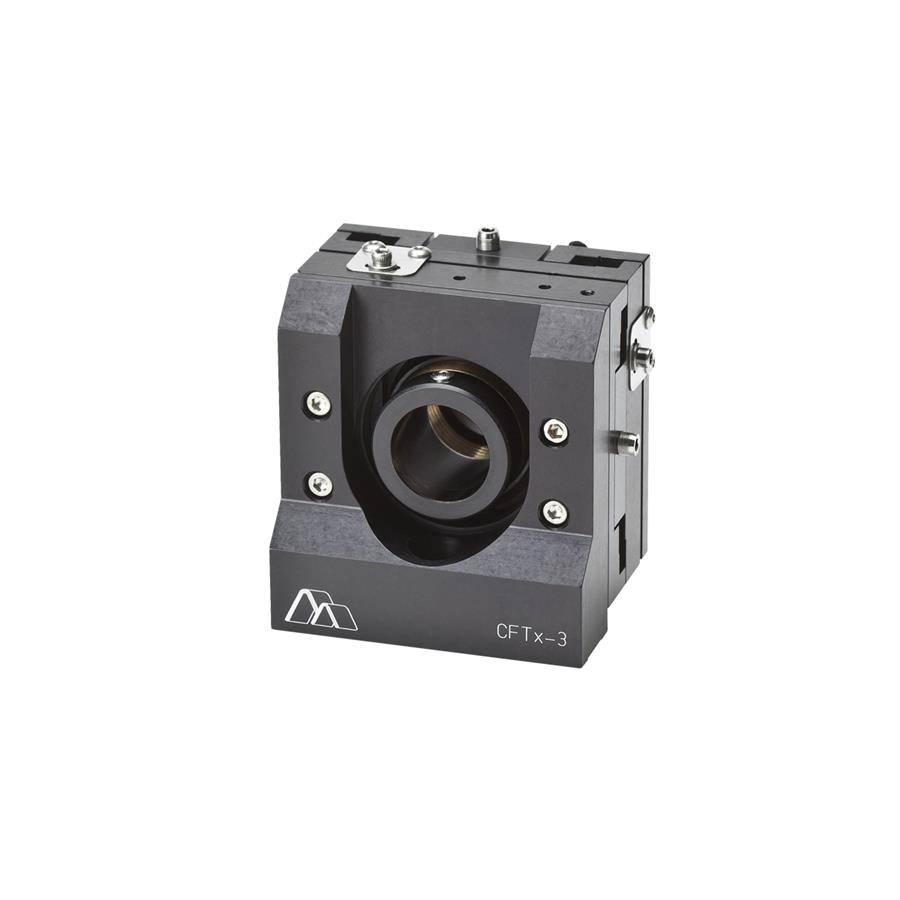

The robust design of our CFTx series of fiber translators makes them ideal for critical applications in tough environments, and to maintain alignment during shipping. Based on the rock-solid OTX lens positioners, these fiber translators can take a 4G jolt without moving more than 5 microns when the axes are locked. 100 TPI precision screws are used for precise positioning, with hex adjusters to prevent accidental misalignment. The Z-axis adjustment boasts an 80-pitch internal thread for precise focusing.

Product Features

  • 100 pitch adjustment screws
  • Compatible with CFC series fiber chucks

Performance Specifications

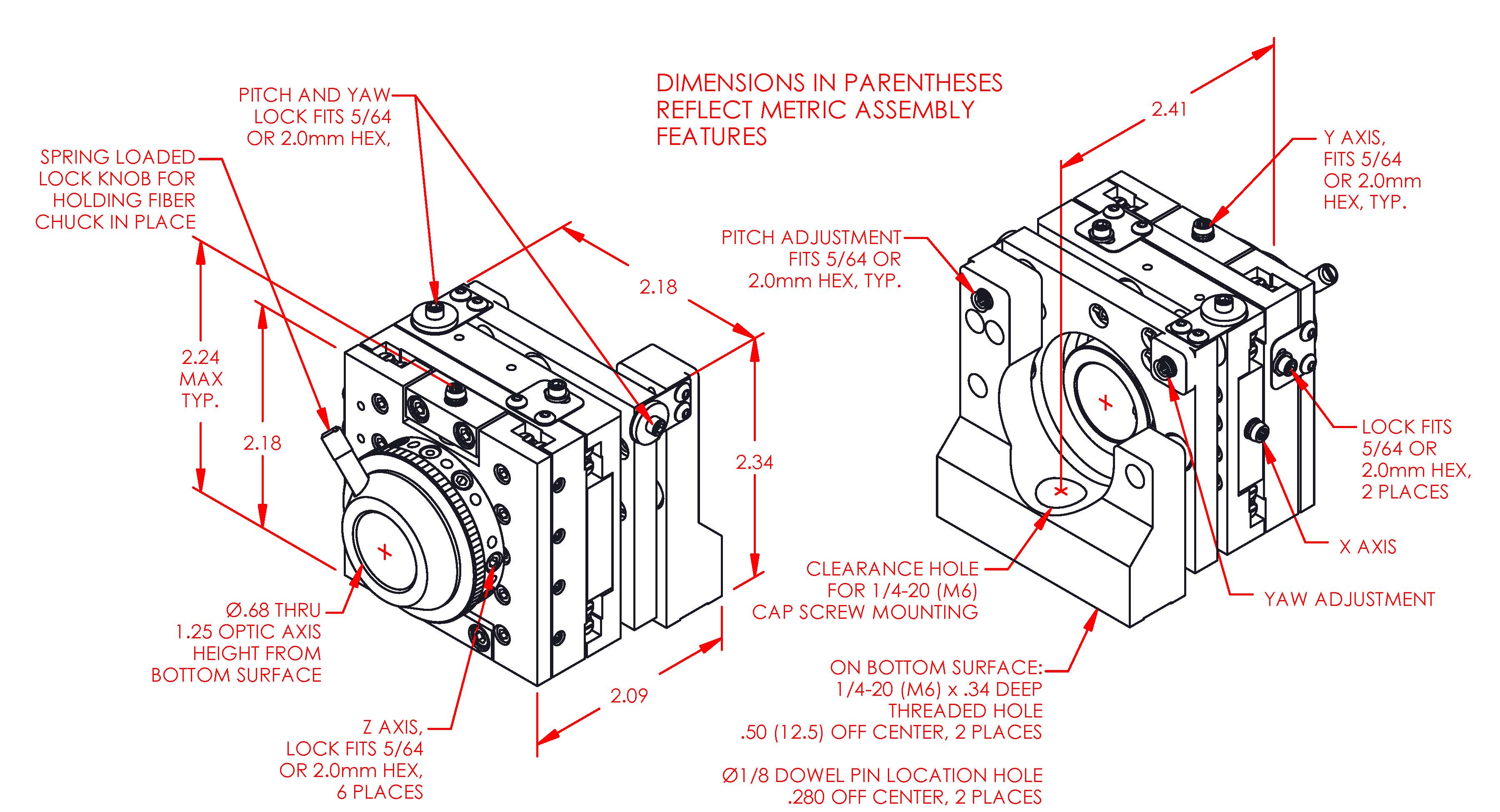

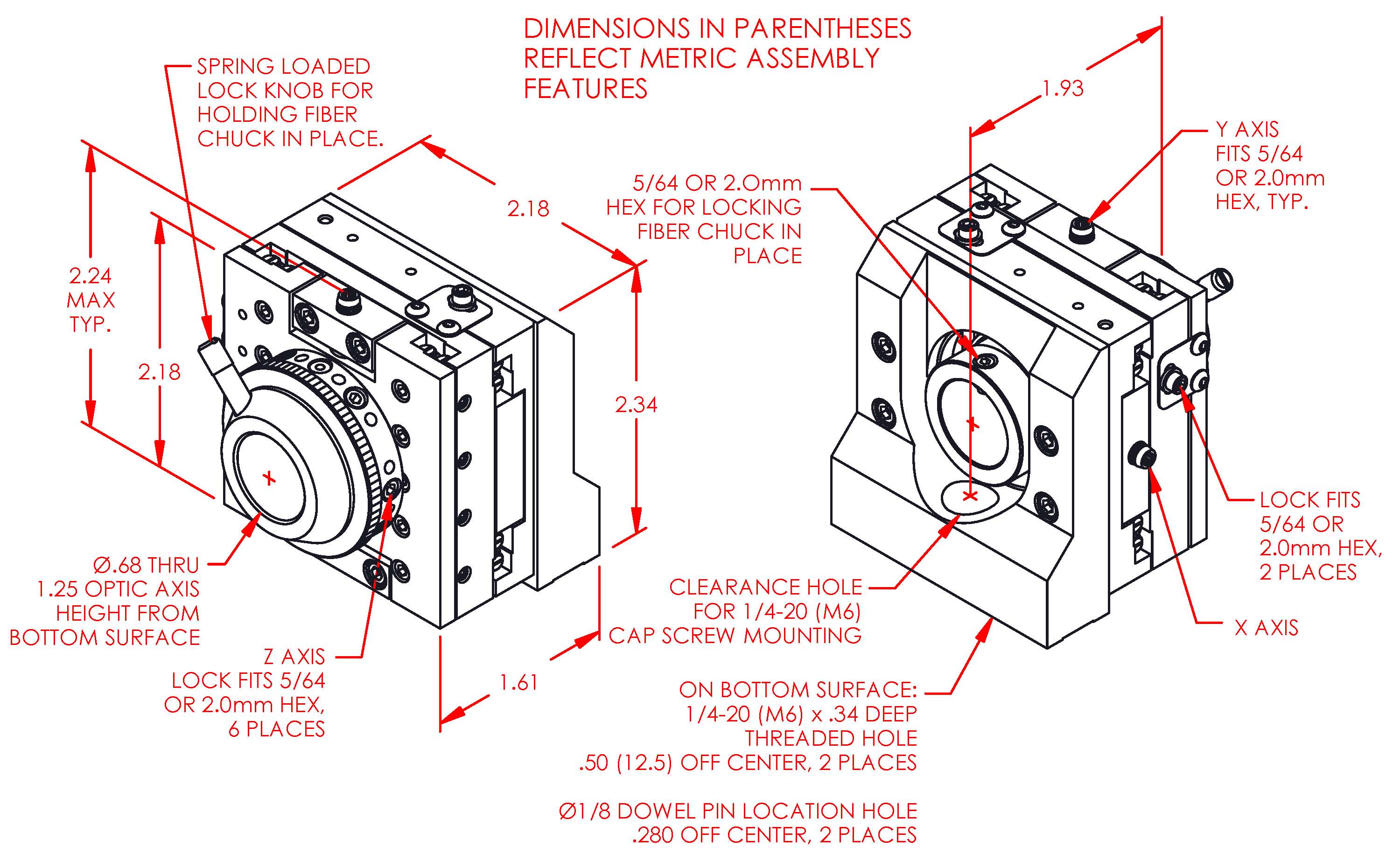

Travel / axis

  • X and Y: 0.125 inch (3 mm)
  • Z: 0.18 inch (4.5 mm)
  • Pitch and Yaw: 5°

Choose options to see performance specifications and downloads.
