CVM Series, Compact Top-Adjust Kinematic Mounts
SKU:
CVM .
Name:
Axes of Adjustment:
TIP/TILT
OPTIC SIZE:
1.0IN
UOM:
IMPERIAL
UOM:
METRIC
VOLUME:
0.000000
WEIGHT UOM:
LB
$187.00
CVM Series, Compact Top-Adjust Kinematic Mounts
$187.00
CVM Series, Compact Top-Adjust Kinematic Mounts
A low-profile version of our popular IVM100 series mirror mount. The new compact design is ideal for applications in which space or height is critical. The optical axis height is 1.00 inch from the mounting surface. 100TPI adjustment screws are used to control the fine pitch/yaw resolution of this mount, and the screws are swaged at the top to prevent over-adjustment. To ensure rock-solid stability we incorporate our spring-loaded pivot with four other springs that are aligned with the individual axes of rotation.
Product Features
- Low profile
- 100TPI adjustment screws
- Unique spring-loaded pivot design
- UV compatible versions available upon request
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

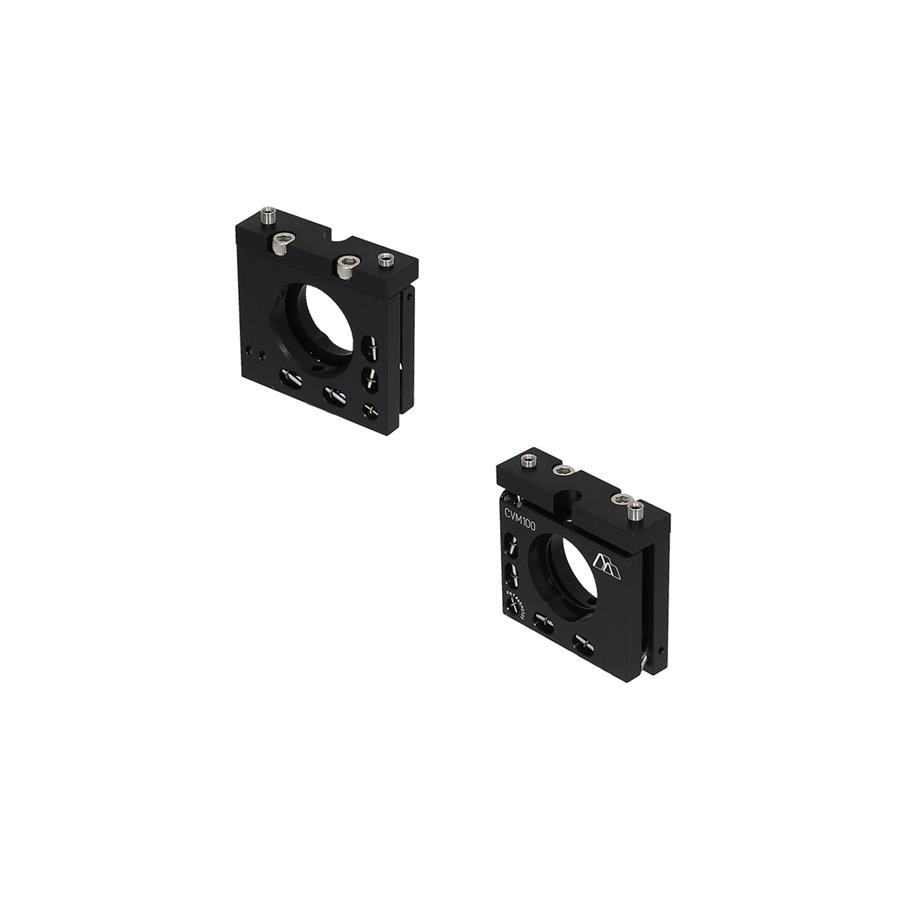

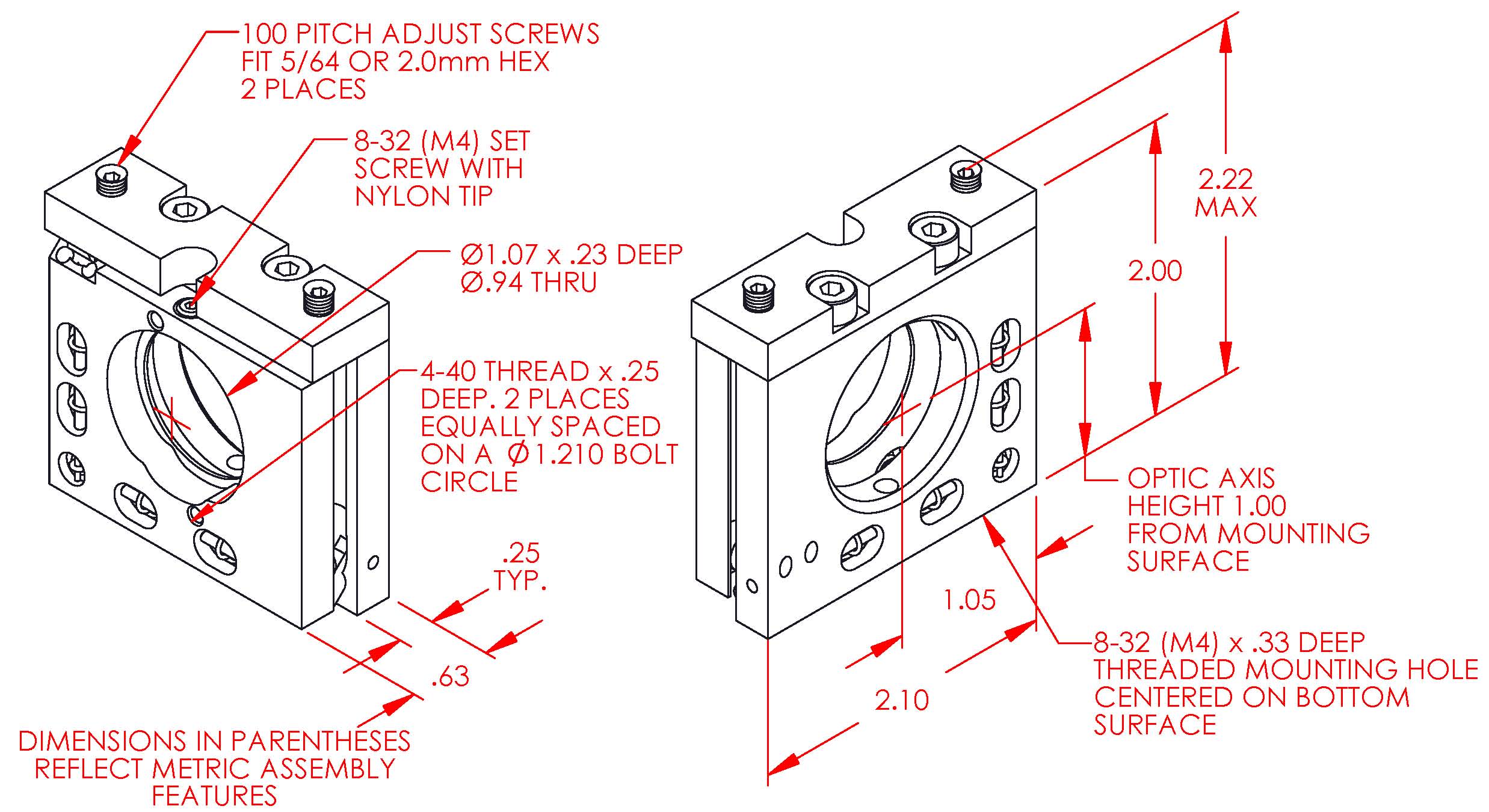

CVM100 [66100000E]
Variant Images
![CVM100 [66100000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66100000E.jpg)
![CVM100 [66100000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66100000E_1.jpg)
Product Details
A low-profile version of our popular IVM100 series mirror mount. The new compact design is ideal for applications in which space or height is critical. The optical axis height is 1.00 inch from the mounting surface. 100TPI adjustment screws are used to control the fine pitch/yaw resolution of this mount and the screws are swaged at the top to prevent over-adjustment. To ensure rock-solid stability we incorporate our spring-loaded pivot with four other springs that are aligned with the individual axes of rotation.
Product Features:
- Low profile
- 100TPI adjustment screws
- Unique spring-loaded pivot design
- UV compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Pitch: 7°
- Yaw: 6°
Minimum controllable motion*: 4.6 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
CVM100 M [66100000M]
Variant Images
![CVM100 M [66100000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66100000M.jpg)
![CVM100 M [66100000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66100000M_1.jpg)
Product Details
A low-profile version of our popular IVM100 series mirror mount. The new compact design is ideal for applications in which space or height is critical. The optical axis height is 1.00 inch from the mounting surface. 100TPI adjustment screws are used to control the fine pitch/yaw resolution of this mount and the screws are swaged at the top to prevent over-adjustment. To ensure rock-solid stability we incorporate our spring-loaded pivot with four other springs that are aligned with the individual axes of rotation.
Product Features:
- Low profile
- 100TPI adjustment screws
- Unique spring-loaded pivot design
- UV compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Pitch: 7°
- Yaw: 6°
Minimum controllable motion*: 4.6 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
