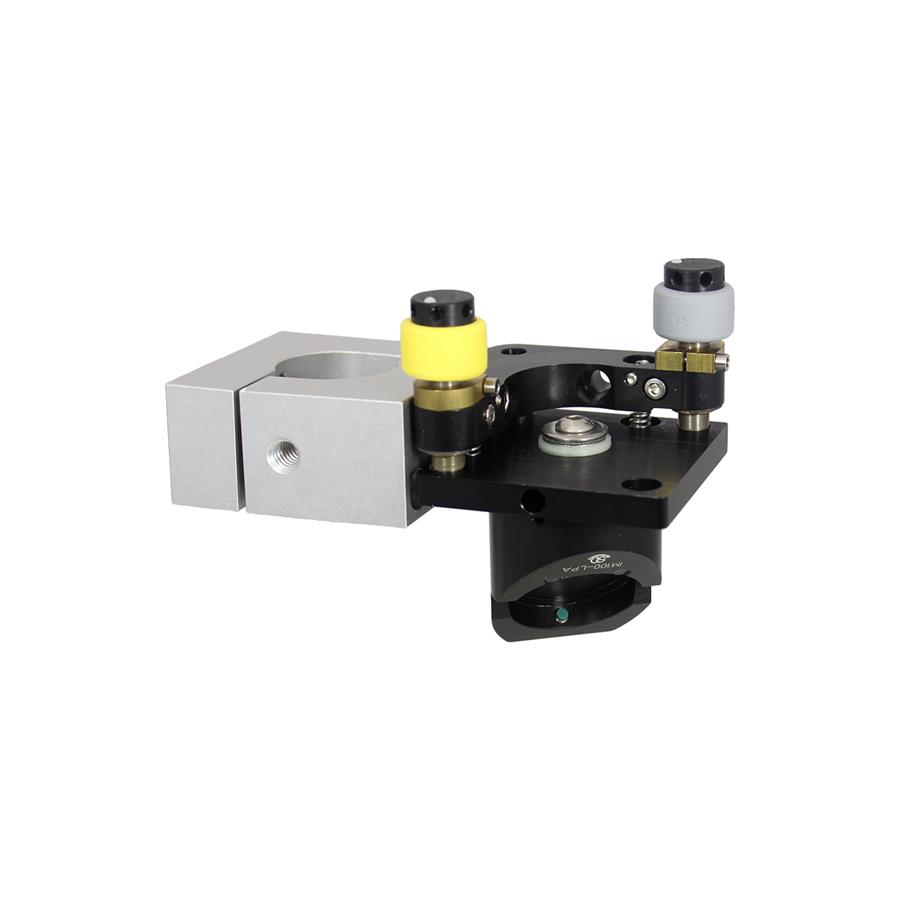

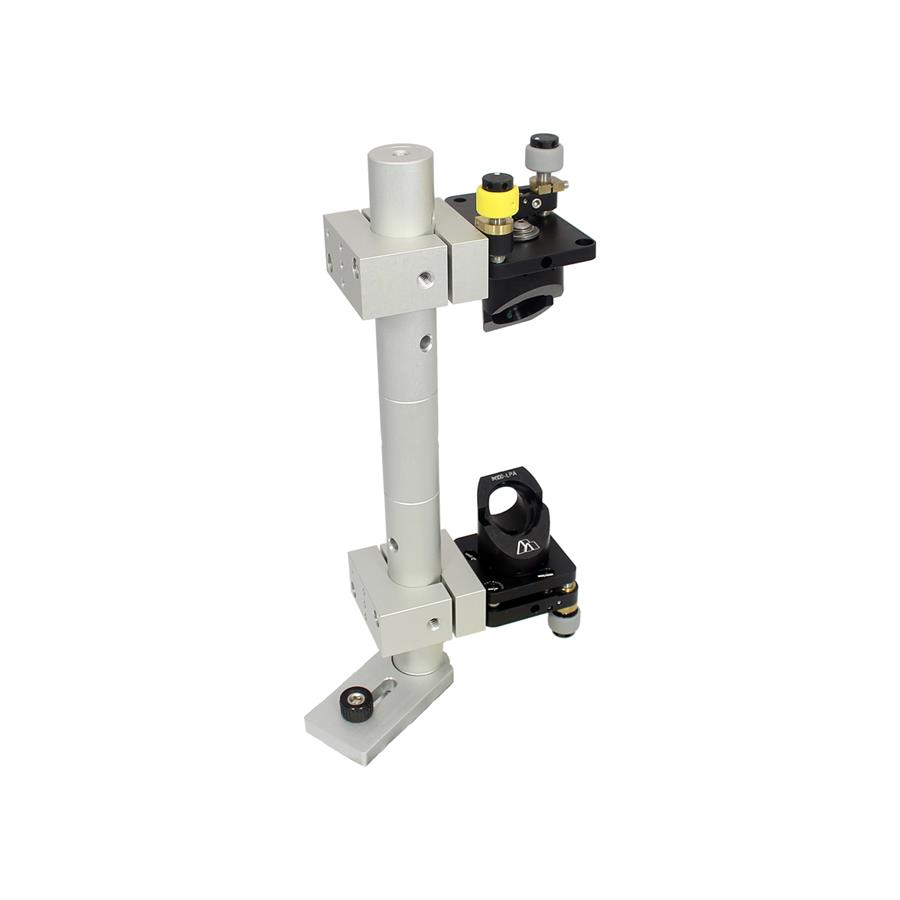

Our periscope assembly combines our industrial grade IM100 series mounts, AS Series spacers, AS-C clamp, and TC-4 clamp fork to create a beam steering periscope, perfect for introducing a free-space beam into a microscope experiment. The combination of these robust components creates a very stable and flexible mounting platform. The IM100 series mounts have our spring-loaded pivot and a unique 45° optic holder that uses our capstan drive design to rotate the optic while keeping your fingers out of the beam path. The AS series spacers are 2.0 inch in length and can be added for more height. The AS-C clamp is designed to fit our AS series spacers and has 1/4-20 (M6) and 8-32 (M4) attachments on four sides. The TC-4 fork clamp allows the user to position the periscope assembly anywhere on the isolation table top - even between the mounting holes.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
