IVM bs Series, Top-Adjust, Beam-Splitter Kinematic Mounts
L5,775.42 - L8,864.59
IVM bs Series, Top-Adjust, Beam-Splitter Kinematic Mounts
These top-adjusted or vertical optical mounts have our unique zero crosstalk system that guarantees true orthogonal motion between the X and Y axes. By using our spring-loaded pivot these mounts are the most stable in the industry, far exceeding other mounts. Our IVM series mounts use precision 100TPI adjustment screws for excellent resolution and touch.
Product Features
- Zero-crosstalk
- 100TPI adjustment screws
- Unique spring-loaded pivot design
- Vacuum compatible versions available upon request
Choose options to see performance specifications and downloads.
*serch terms* ivm100, ivm200, ivm100/bs, ivm200/bs, ivm100/bs-k, ivm200/bs-k
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
IVM100/BS [65240000E]
Variant Images

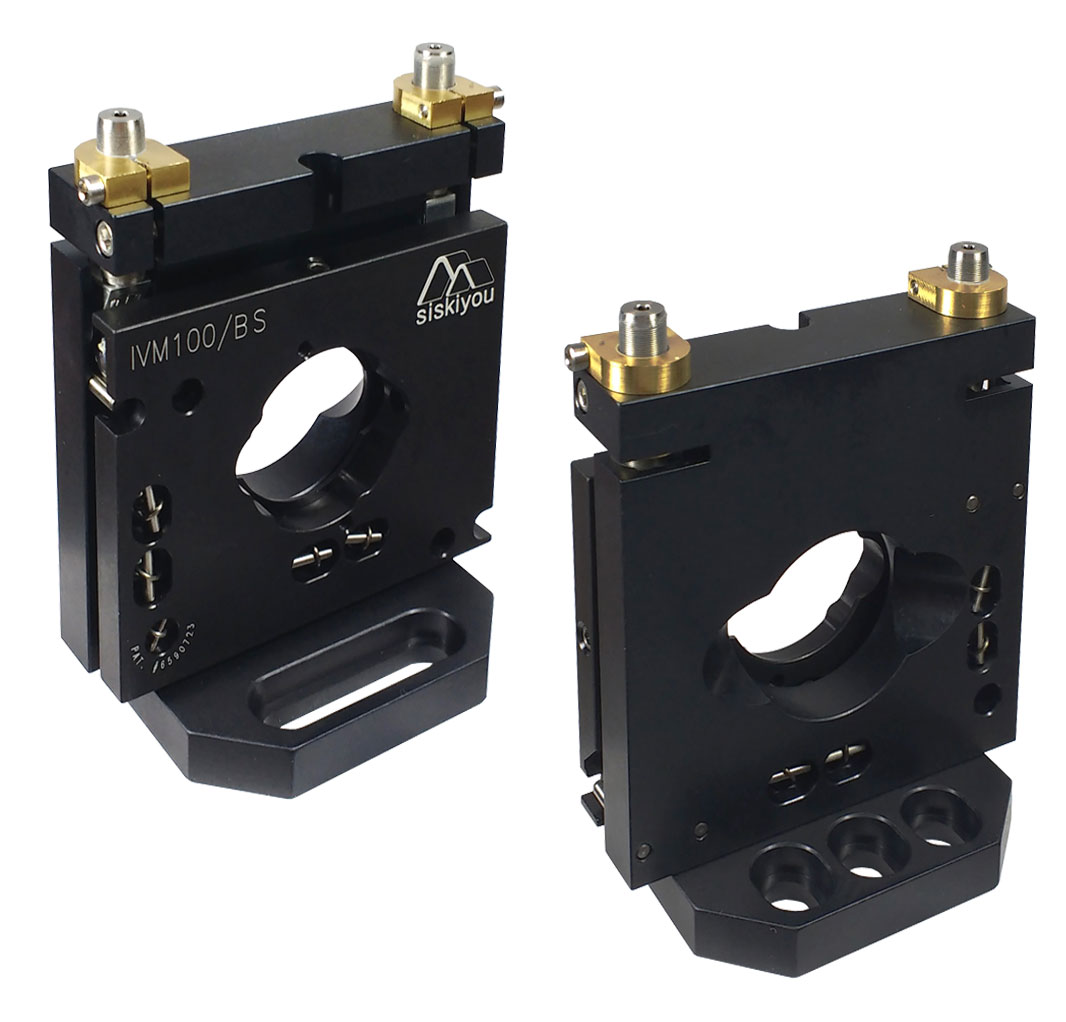

![IVM100/BS [65240000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65240000E.jpg)

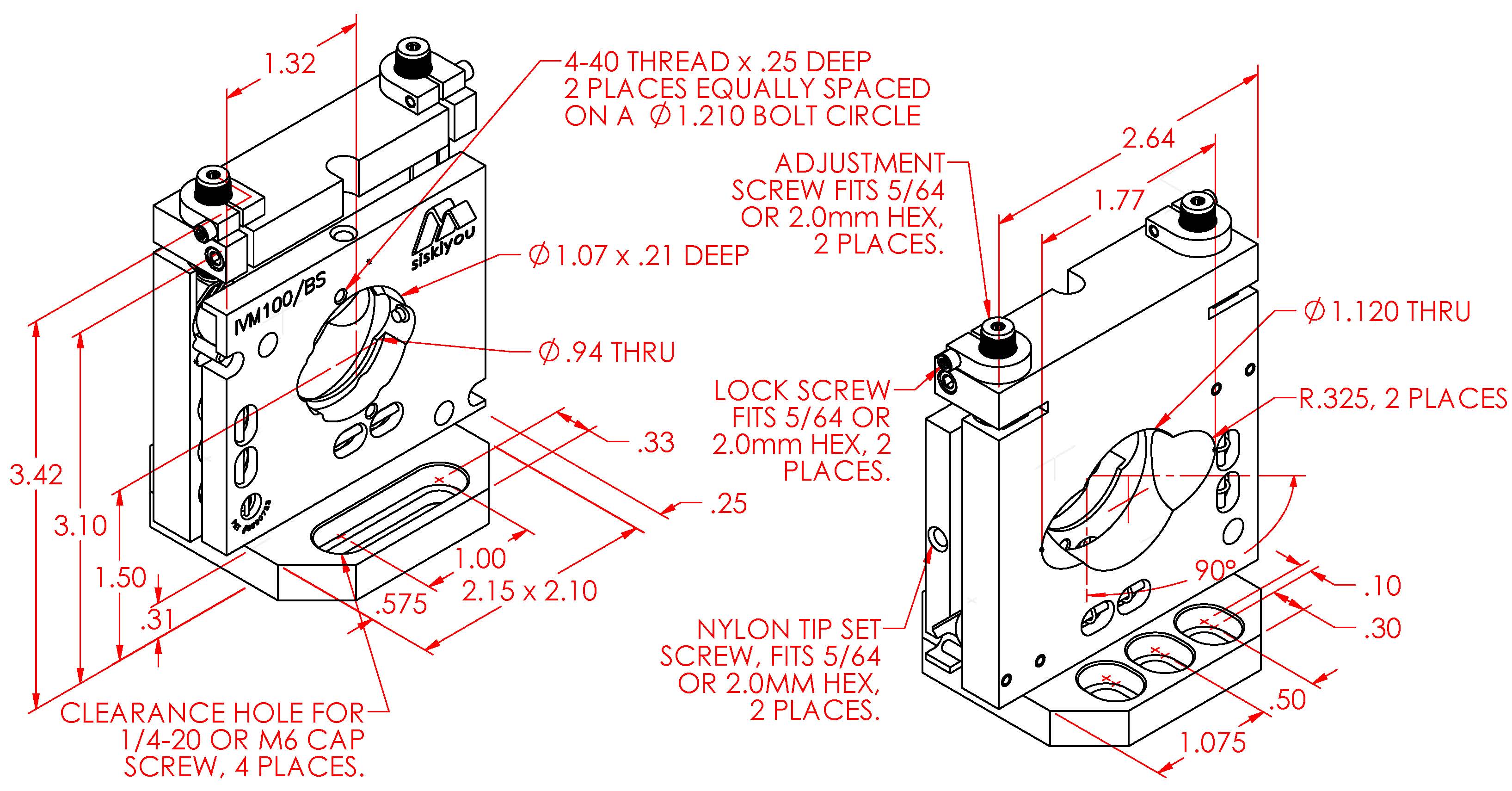

![IVM100/BS [65240000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65240000E_1.jpg)
Product Details
Our new beam splitter versions of our popular IVM series mounts incorporate large 45° clear aperture cutouts on the back plate and unique mounting plate configurations to facilitate mounting at various angles up to 45°. These top-adjusted or vertical optical mounts have our unique zero crosstalk system that guarantees true orthogonal motion between the X and Y axes.
Product Features:
- Large clear aperture
- Zero crosstalk
- Unique spring-loaded design
- UV and Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 2.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IVM100/BS-K [66610000E]
Variant Images

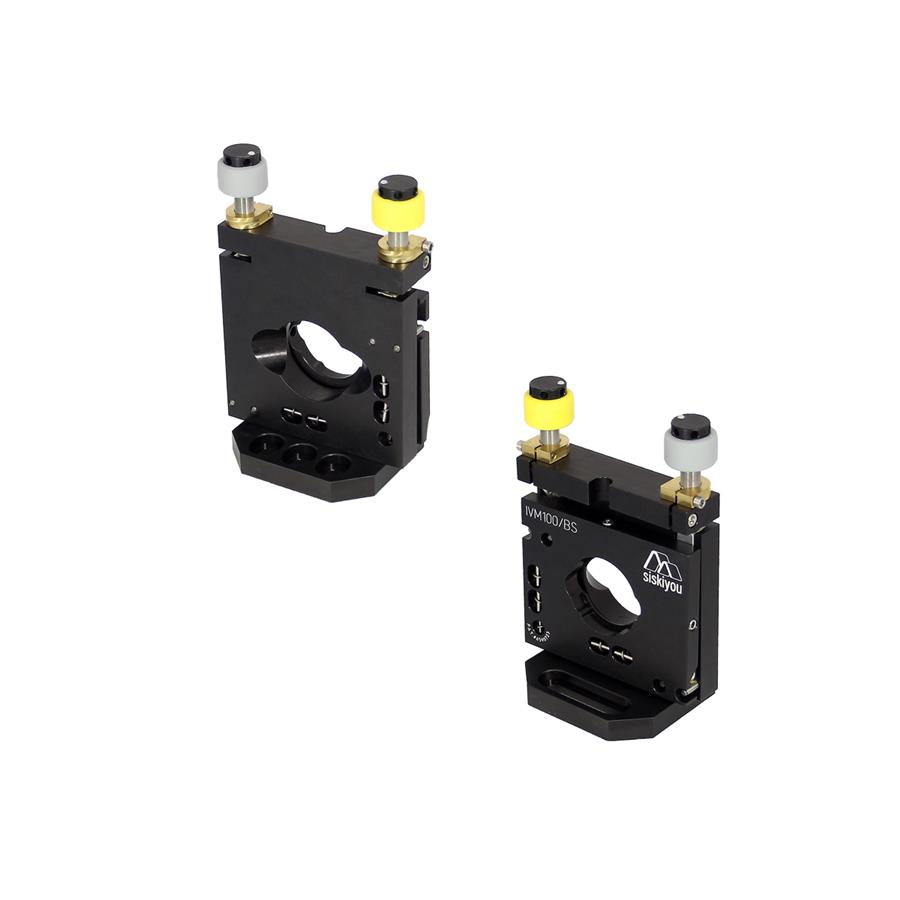

![IVM100/BS-K [66610000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66610000E.jpg)

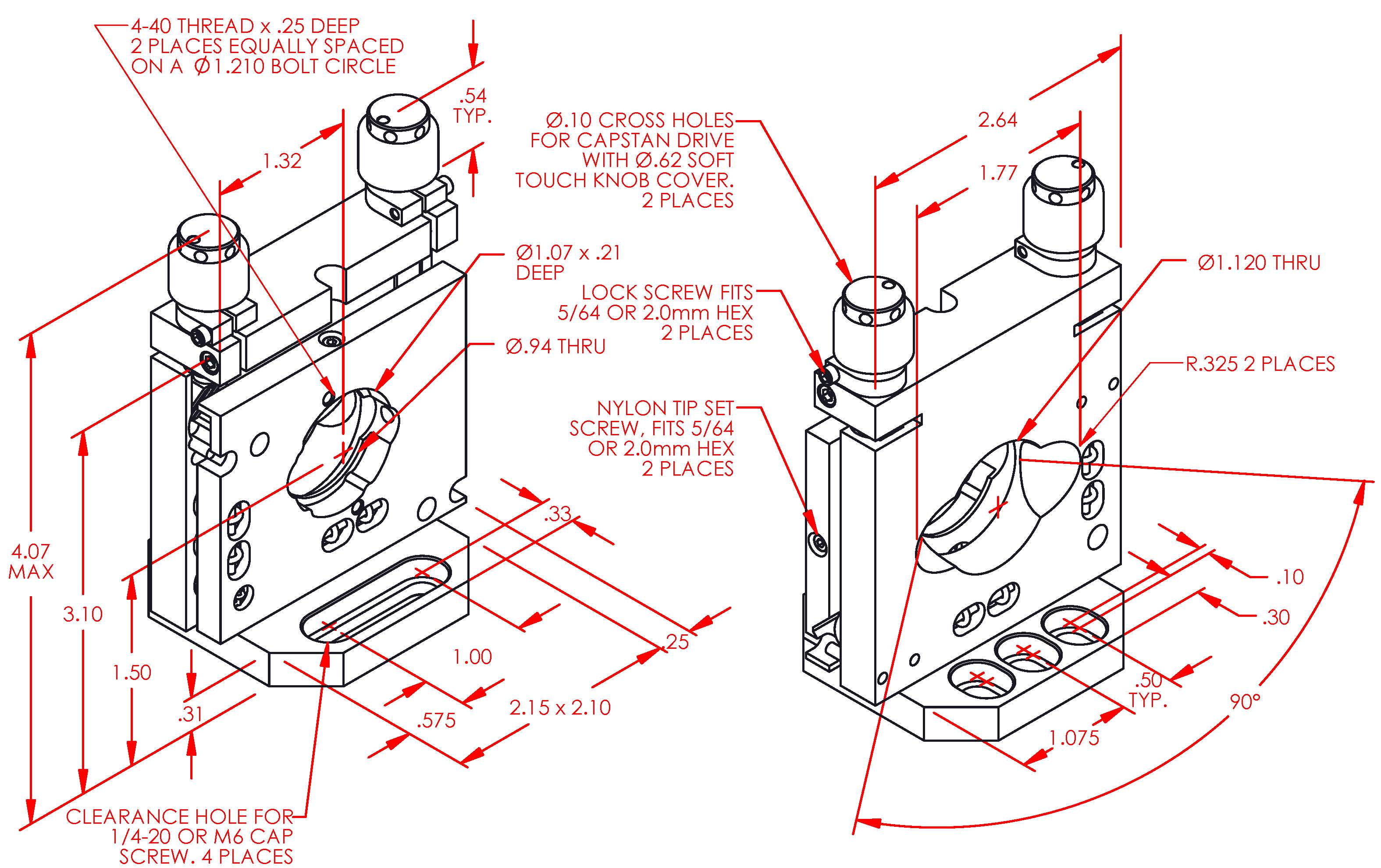

![IVM100/BS-K [66610000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66610000E_1.jpg)
Product Details
These top-adjusted or vertical optical mounts have our unique zero crosstalk system that guarantees true orthogonal motion between the X and Y axes. By using our unique spring-loaded pivot these mounts are the most stable in the industry far exceeding other mounts.
Product Features:
- Large clear aperture
- Zero crosstalk
- Unique spring-loaded design
- UV and Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 3.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IVM200/BS [65230000E]
Variant Images

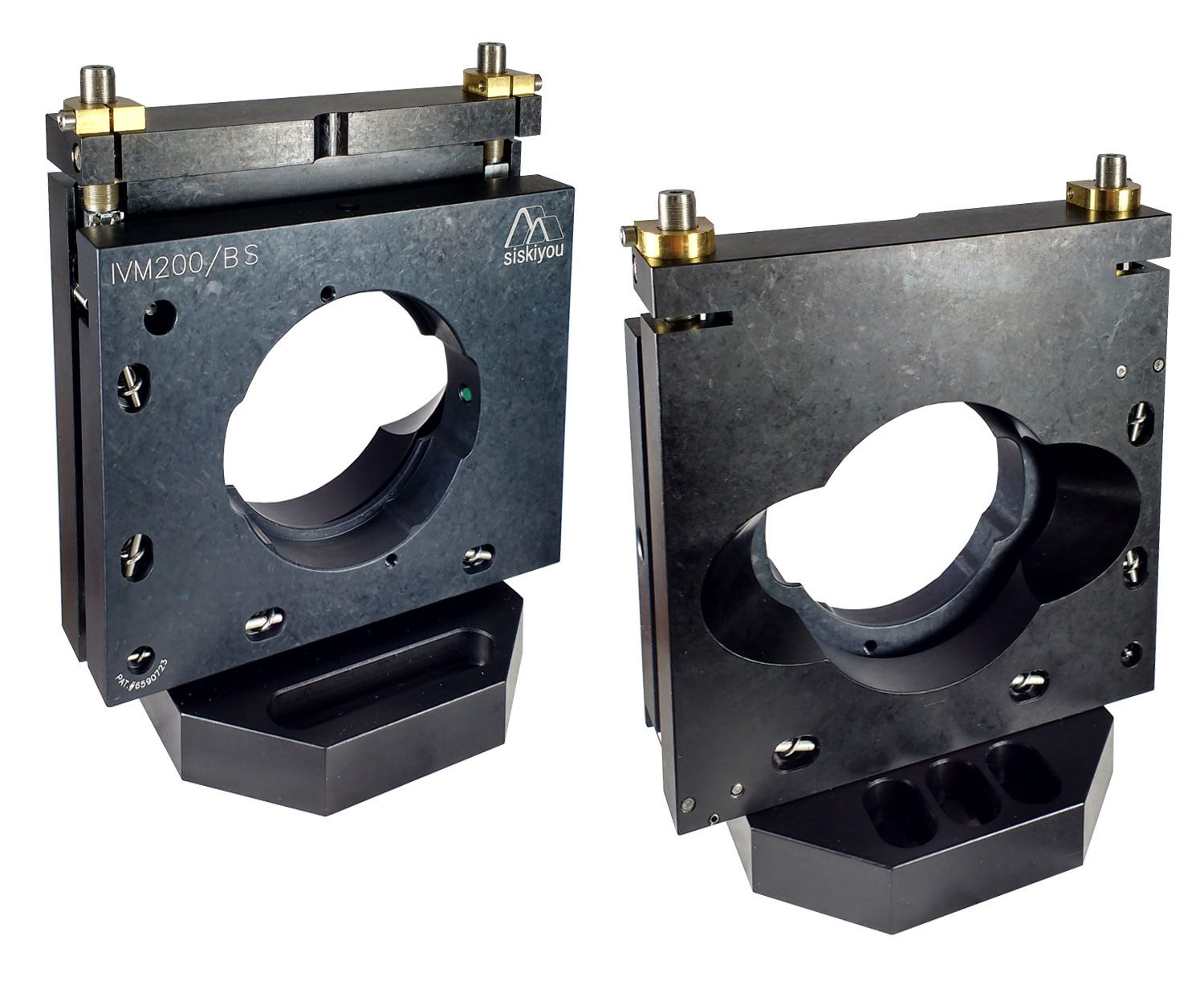

![IVM200/BS [65230000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65230000E.jpg)

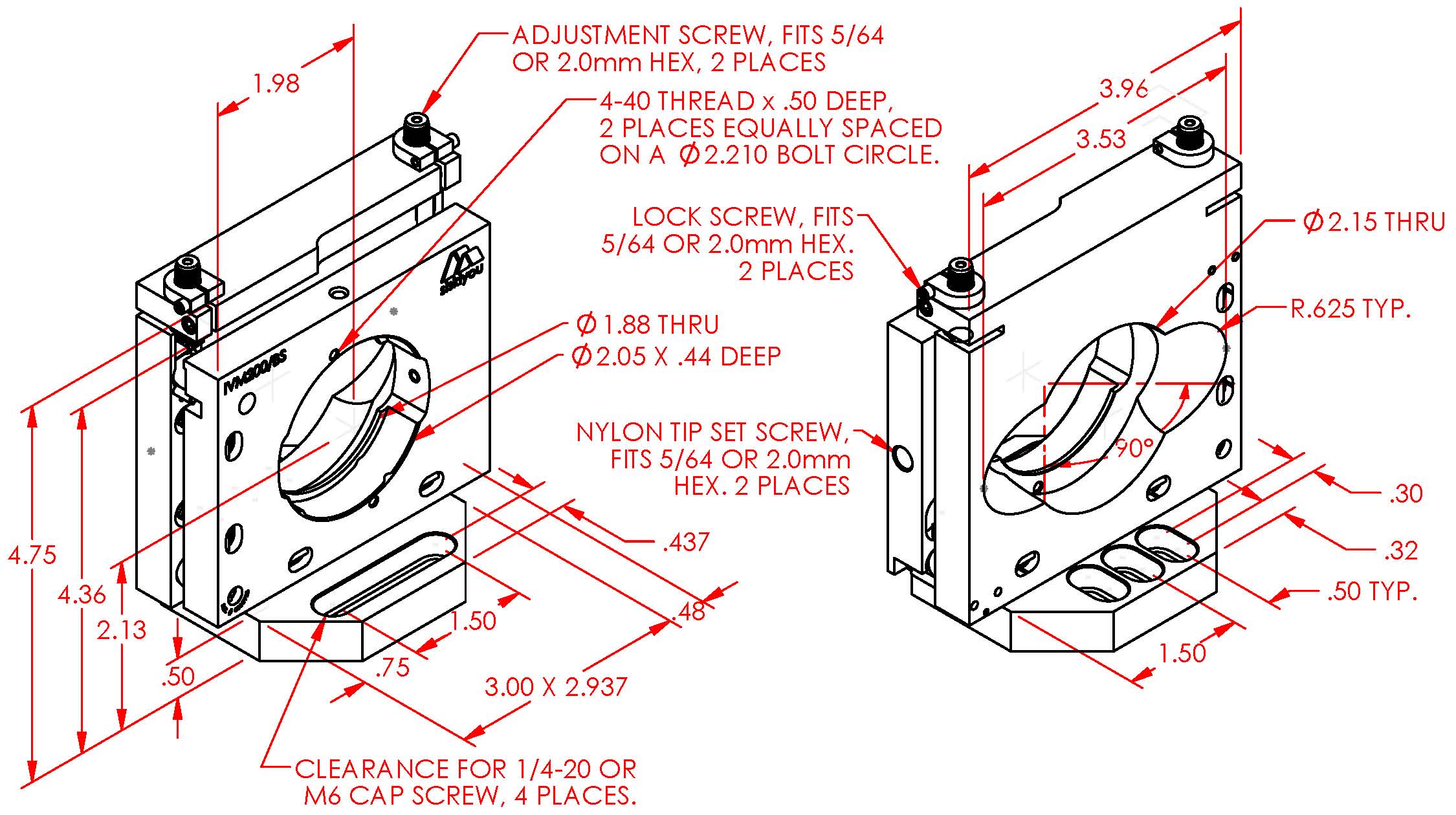

![IVM200/BS [65230000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65230000E_1.jpg)
Product Details
These top-adjusted or vertical optical mounts have our unique zero crosstalk system that guarantees true orthogonal motion between the X and Y axes. By using our unique spring-loaded pivot these mounts are the most stable in the industry far exceeding other mounts.
Product Features:
- Large clear aperture
- Zero crosstalk
- Unique spring-loaded design
- UV and Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 3.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IVM200/BS-K [66600000E]
Variant Images

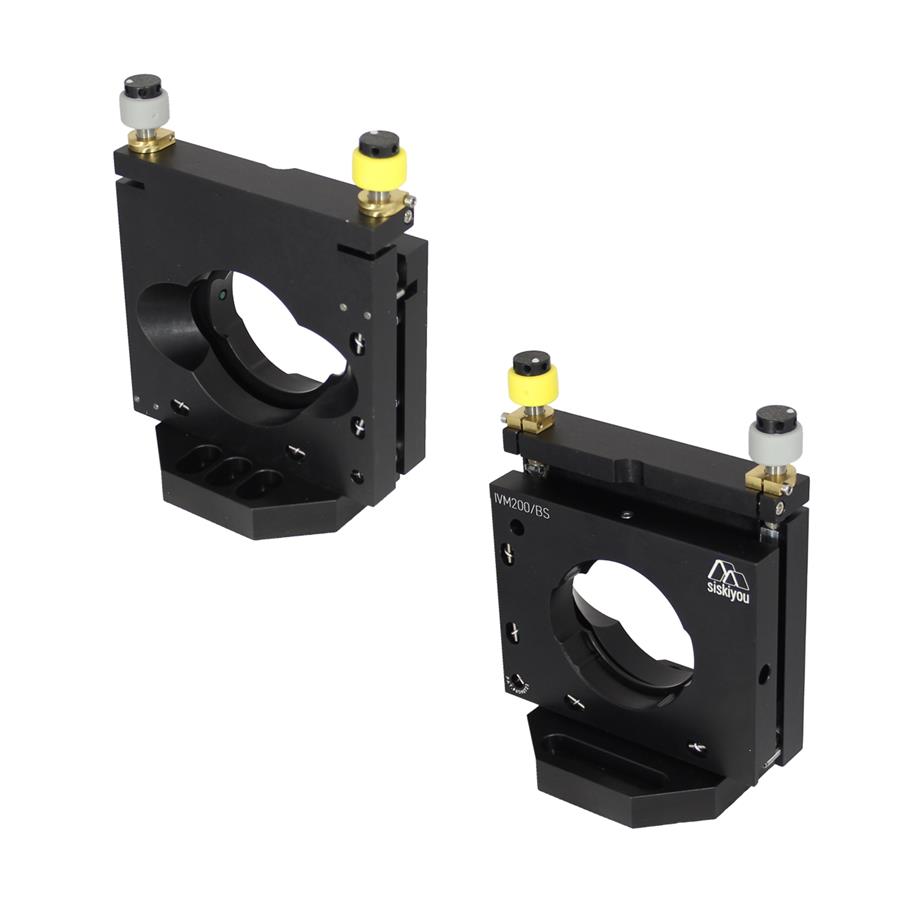

![IVM200/BS-K [66600000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66600000E.jpg)

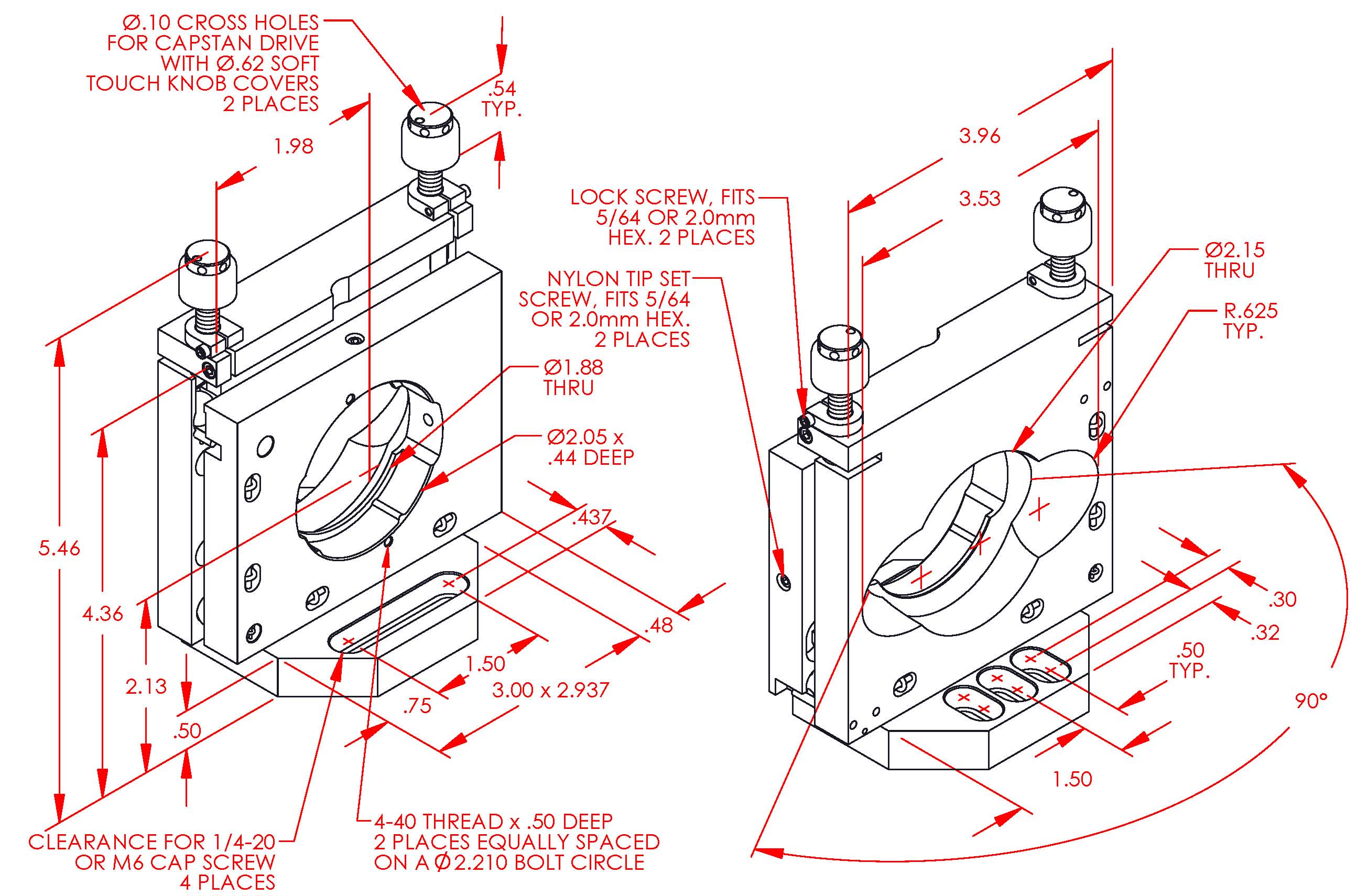

![IVM200/BS-K [66600000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66600000E_1.jpg)
Product Details
Our new beam splitter versions of our popular IVM series mounts incorporate large 45° clear aperture cutouts on the back plate and unique mounting plate configurations to facilitate mounting at various angles up to 45°. These top-adjusted or vertical optical mounts have our unique zero crosstalk system that guarantees true orthogonal motion between the X and Y axes.
Product Features
- Large clear aperture
- Zero crosstalk
- Unique spring-loaded design
- UV and Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 2.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
