IXF SQUARE OPTIC FLEXURE MOUNTS
SKU:
IXF.SQ FLEXURE MOUNTS
Name:
$0.00
IXF SQUARE OPTIC FLEXURE MOUNTS
$0.00
IXF SQUARE OPTIC FLEXURE MOUNTS
The IXF.SQ series monolithic flexure mounts are the newest addition to our line of mounts that are specifically designed for OEM applications. They have mounting options including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. In addition, these versions have pre-tensioning locks on the adjustment screws to prevent unwanted motion.
Product Features
- Lockable 100TPI adjustment screws
- One-piece construction
- UV and vacuum compatible versions available
Choose options to see performance specifications.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
IXF.50SQa M [65570000M]
Product Details
The IXF.SQa series monolithic flexure mounts are a line of mounts that are specifically designed for OEM applications. They have mounting options including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. In addition these versions incorporate locks on the adjustment screws.
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Lockable 100TPI adjustment screws
- Aluminum
- One-piece construction
- UV and vacuum compatible
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 5.0°(±2.5°)
- Yaw: 4.0°(±2.0°)
- Minimum controllable motion*:
- Pitch: 6.5 arc sec.
- Yaw: 5.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF.50SQss M [65500000M]
Product Details
The IXF.SQss series monolithic flexure mounts are a line of mounts that are specifically designed for OEM applications. They have mounting options including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. In addition these versions incorporate friction locks on the adjustment screws.
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Lockable 100TPI adjustment screws
- Stainlesss Steel
- One-piece construction
- UV and vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 5.0°(±2.5°)
- Yaw: 4.0°(±2.0°)
- Minimum controllable motion*:
- Pitch: 6.5 arc sec.
- Yaw: 5.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF.50SQta M [65580000M]
Product Details
The IXF.SQta series top-adjust monolithic flexure mounts are specifically designed for OEM applications. Top-adjust versions have a novel actuating mechanism to eliminate rotational torque being applied to the axis under adjustment. Designed to be either panel or bracket-mounted; Siskiyou flexures provide the ultimate in stability even in challenging environments. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. The monolithic construction results in substantially better heat conduction from one side of the component to the other for quicker response to changes in temperature. (Patent # 8 925 409)
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Top adjustable design
- 100TPI lockable adjustment screws
- Aluminum
- One-piece construction
- UV and vacuum compatible
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 5.0°(±2.5°)
- Yaw: 4.0°(±2.0°)
- Minimum controllable motion*:
- Pitch: 6.5 arc sec.
- Yaw: 5.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF.50SQtss M [65510000M]
Product Details
The IXF.SQtss series top-adjust monolithic flexure mounts are specifically designed for OEM applications. Top-adjust versions have a novel actuating mechanism to eliminate rotational torque being applied to the axis under adjustment. Designed to be either panel or bracket-mounted; Siskiyou flexures provide the ultimate in stability even in challenging environments. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. The monolithic construction results in substantially better heat conduction from one side of the component to the other for quicker response to changes in temperature. (Patent # 8 925 409)
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Top adjustable design
- 100TPI lockable adjustment screws
- Stainless Steel
- One-piece construction
- UV and vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 5.0°(±2.5°)
- Yaw: 4.0°(±2.0°)
- Minimum controllable motion*:
- Pitch: 6.5 arc sec.
- Yaw: 5.3 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF1.0SQa M [65590000M]
Product Details
The IXF.SQa series monolithic flexure mounts are a line of mounts that are specifically designed for OEM applications. They have mounting options including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. In addition these versions incorporate friction locks on the adjustment screws.
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Lockable 100TPI adjustment screws
- Aluminum
- One-piece construction
- UV and vacuum compatible
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 4.0°(±2.0°)
- Yaw: 3.5°(±1.75°)
- Minimum controllable motion*:
- Pitch: 3.9 arc sec.
- Yaw: 3.1 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF1.0SQss M [65520000M]
Variant Images

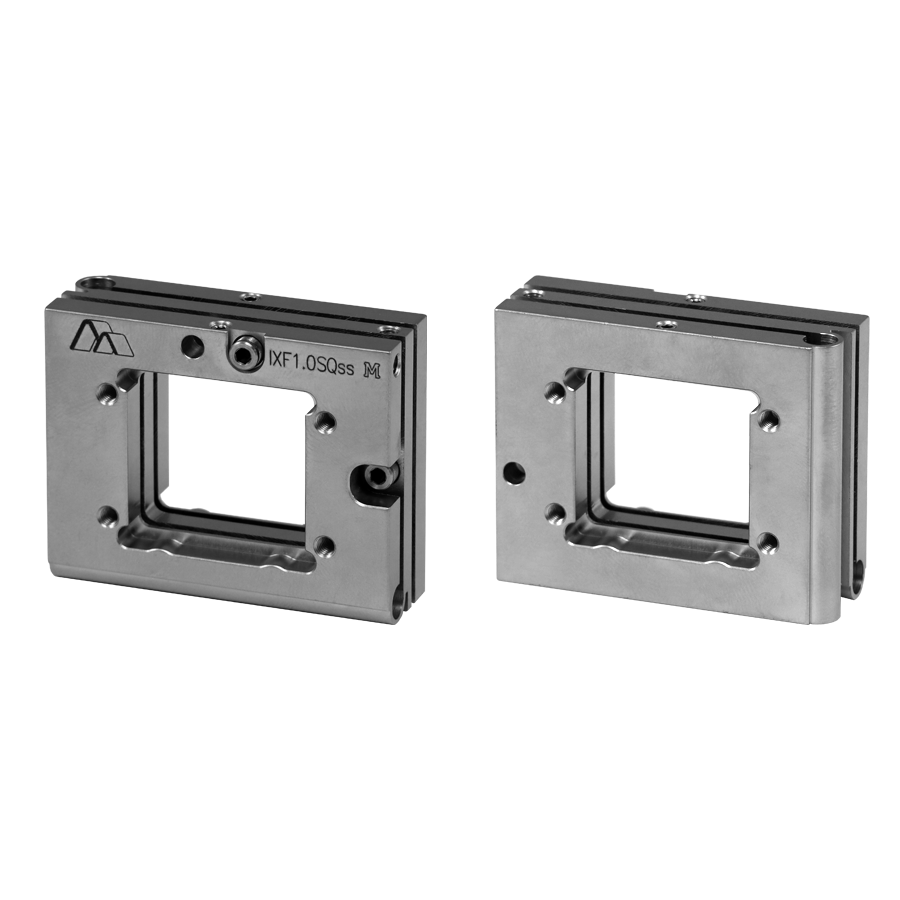

![IXF1.0SQss M [65520000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65520000M.png)
![IXF1.0SQss M [65520000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65520000M_1.png)
Product Details
The IXF.SQss series monolithic flexure mounts are a line of mounts that are specifically designed for OEM applications. They have mounting options including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. In addition these versions incorporate friction locks on the adjustment screws.
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Lockable 100TPI adjustment screws
- Stainlesss Steel
- One-piece construction
- UV and vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 4.0°(±2.0°)
- Yaw: 3.5°(±1.75°)
- Minimum controllable motion*:
- Pitch: 3.9 arc sec.
- Yaw: 3.1 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF1.0SQta M [65600000M]
Product Details
The IXF.SQta series top-adjust monolithic flexure mounts are specifically designed for OEM applications. Top-adjust versions have a novel actuating mechanism to eliminate rotational torque being applied to the axis under adjustment. Designed to be either panel or bracket-mounted; Siskiyou flexures provide the ultimate in stability even in challenging environments. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. The monolithic construction results in substantially better heat conduction from one side of the component to the other for quicker response to changes in temperature. (Patent # 8 925 409)
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Top adjustable design
- 100TPI lockable adjustment screws
- Aluminum
- One-piece construction
- UV and vacuum compatible
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 4.0°(±2.0°)
- Yaw: 3.5°(±1.75°)
- Minimum controllable motion*:
- Pitch: 3.9 arc sec.
- Yaw: 3.5 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF1.0SQtss M [65530000M]
Variant Images

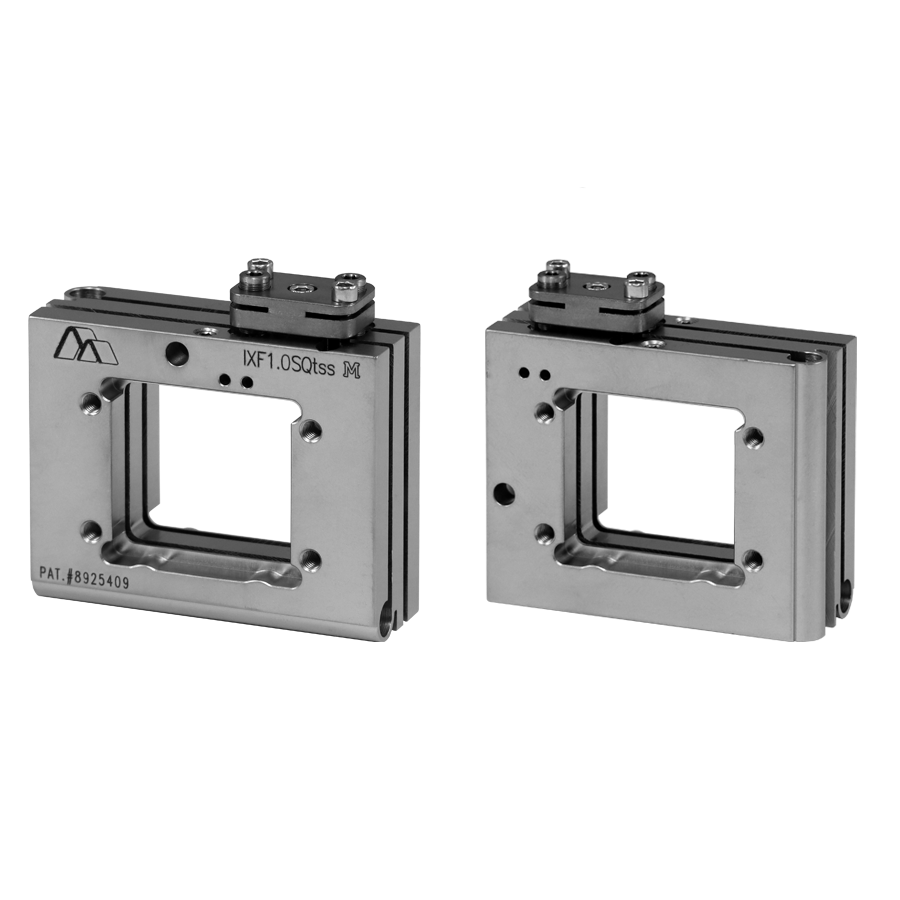

![IXF1.0SQtss M [65530000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65530000M.png)
![IXF1.0SQtss M [65530000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65530000M_1.PNG)

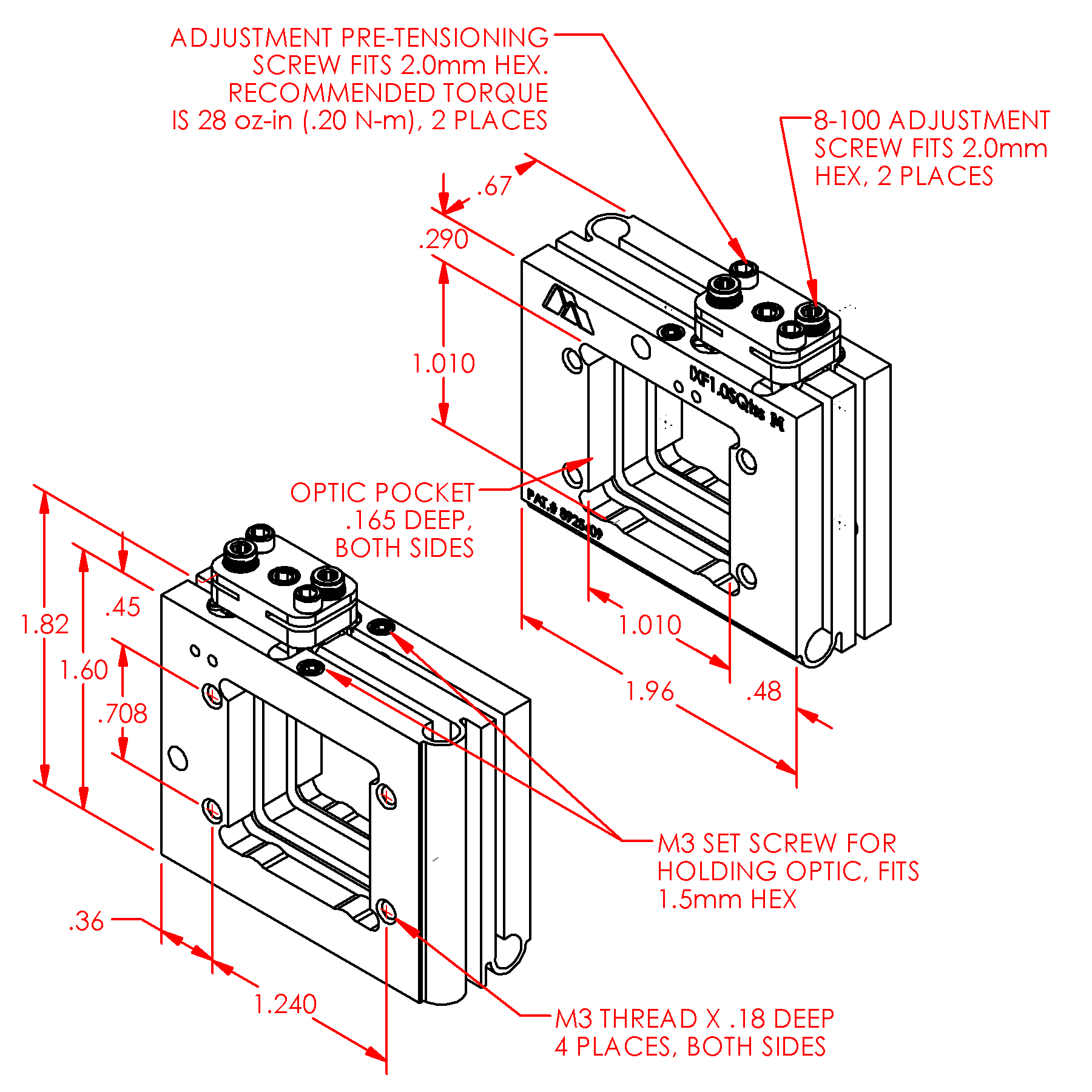

Product Details
The IXF.SQtss series top-adjust monolithic flexure mounts are specifically designed for OEM applications. Top-adjust versions have a novel actuating mechanism to eliminate rotational torque being applied to the axis under adjustment. Designed to be either panel or bracket-mounted; Siskiyou flexures provide the ultimate in stability even in challenging environments. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. The monolithic construction results in substantially better heat conduction from one side of the component to the other for quicker response to changes in temperature. (Patent # 8 925 409)
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Top adjustable design
- 100TPI lockable adjustment screws
- Stainless Steel
- One-piece construction
- UV and vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 4.0°(±2.0°)
- Yaw: 3.5°(±1.75°)
- Minimum controllable motion*:
- Pitch: 3.9 arc sec.
- Yaw: 3.5 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF2.0SQa M [65610000M]
Product Details
The IXF.SQa series monolithic flexure mounts are a line of mounts that are specifically designed for OEM applications. They have mounting options including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. In addition these versions incorporate friction locks on the adjustment screws.
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Lockable 100TPI adjustment screws
- Aluminum
- One-piece construction
- UV and vacuum compatible
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 5.0°(±2.5°)
- Yaw: 4.5°(±2.25°)
- Minimum controllable motion*:
- Pitch: 2.2 arc sec.
- Yaw: 2.0 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF2.0SQss M [65540000M]
Variant Images
![IXF2.0SQss M [65540000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65540000M_1.PNG)

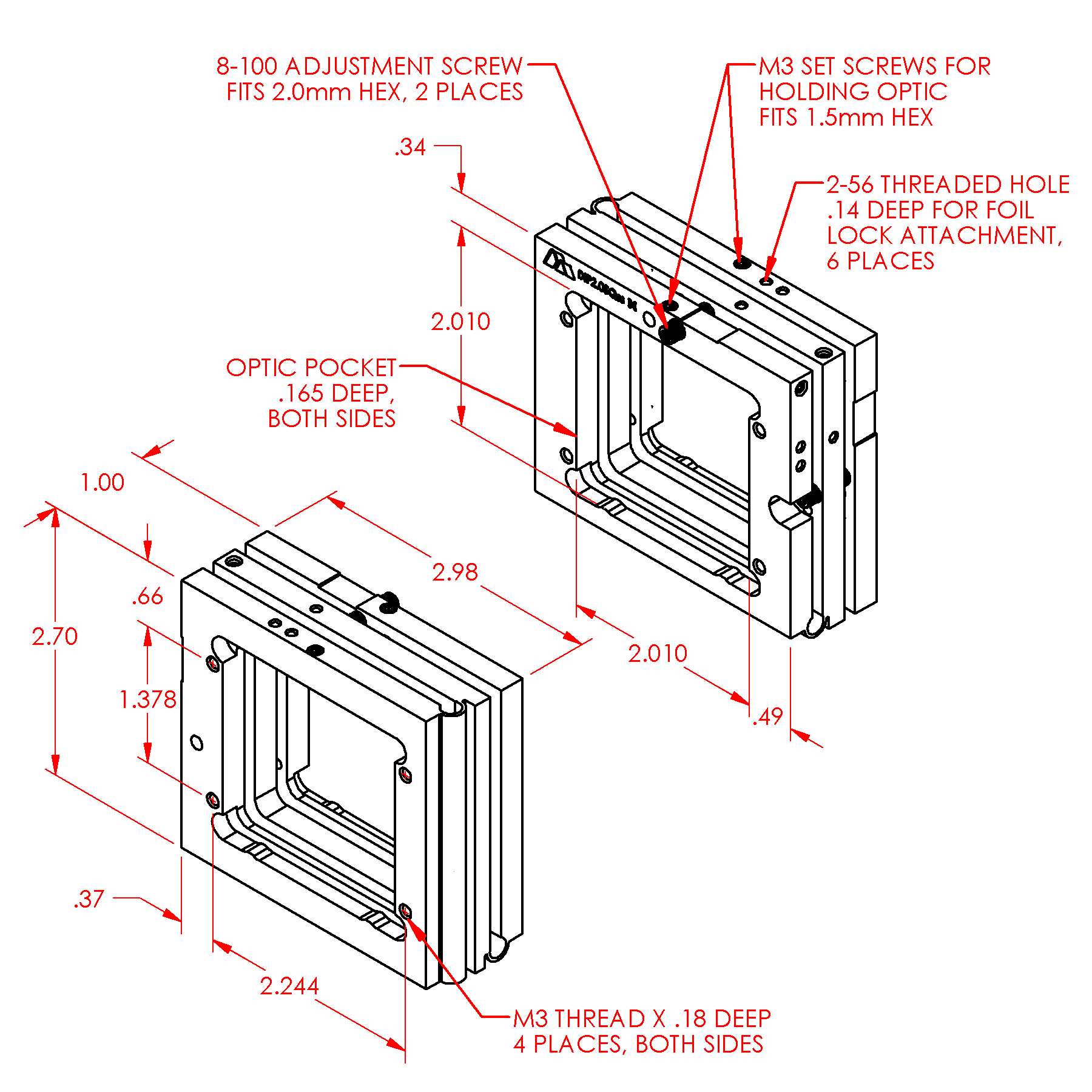

Product Details
The IXF.SQss series monolithic flexure mounts are a line of mounts that are specifically designed for OEM applications. They have mounting options including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. In addition these versions incorporate friction locks on the adjustment screws.
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Lockable 100TPI adjustment screws
- Stainlesss Steel
- One-piece construction
- UV and vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 5.0°(±2.5°)
- Yaw: 4.5°(±2.25°)
- Minimum controllable motion*:
- Pitch: 2.2 arc sec.
- Yaw: 2.0 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF2.0SQta M [65620000M]
Variant Images
![IXF2.0SQta M [65620000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65620000M_1.PNG)

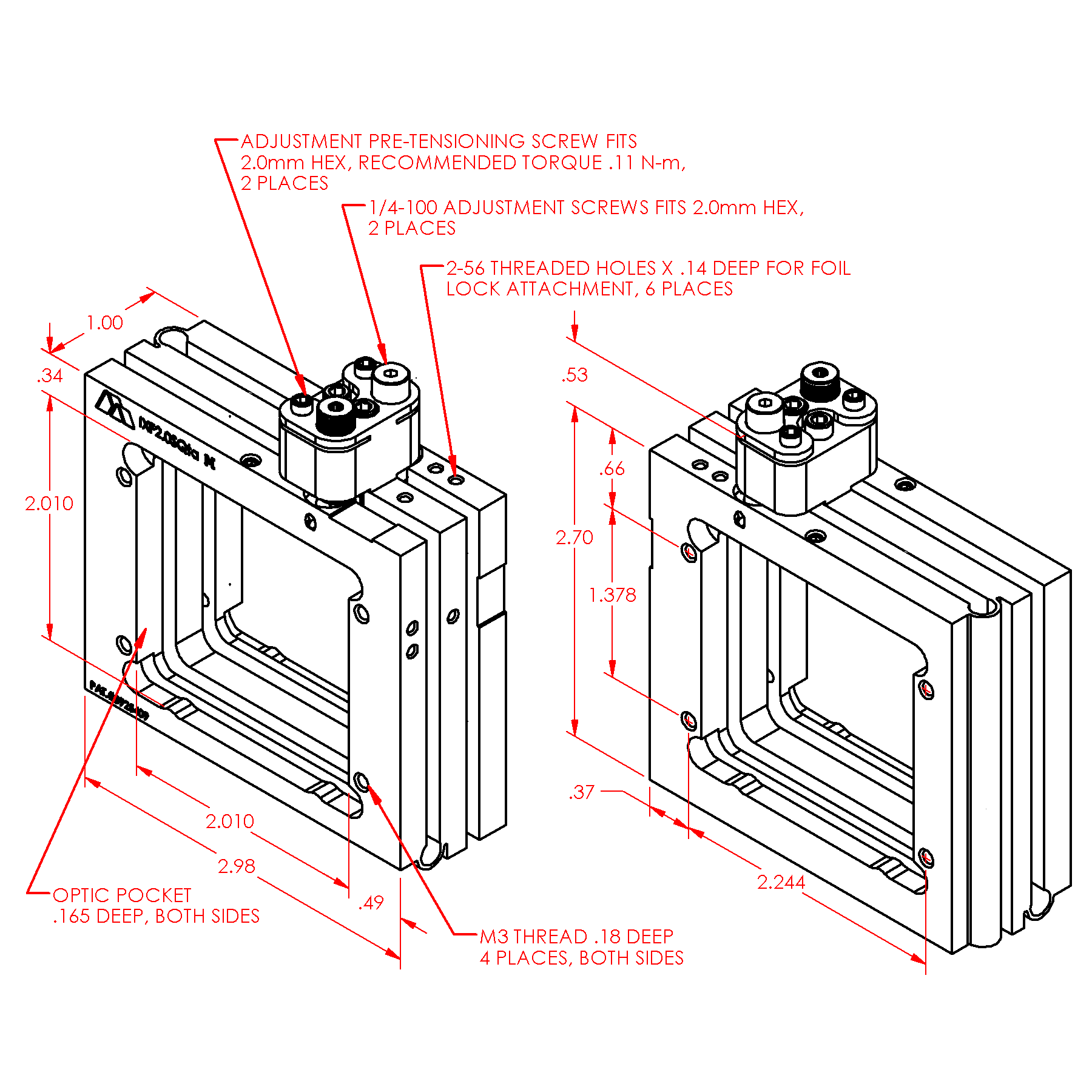

Product Details
The IXF.SQta series top-adjust monolithic flexure mounts are specifically designed for OEM applications. Top-adjust versions have a novel actuating mechanism to eliminate rotational torque being applied to the axis under adjustment. Designed to be either panel or bracket-mounted; Siskiyou flexures provide the ultimate in stability even in challenging environments. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. The monolithic construction results in substantially better heat conduction from one side of the component to the other for quicker response to changes in temperature. (Patent # 8 925 409)
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Top adjustable design
- 100TPI lockable adjustment screws
- Aluminum
- One-piece construction
- UV and vacuum compatible
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 4.0°(±2.0°)
- Yaw: 4.0°(±2.0°)
- Minimum controllable motion*:
- Pitch: 2.2 arc sec.
- Yaw: 2.7 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IXF2.0SQtss M [65550000M]
Variant Images
![IXF2.0SQtss M [65550000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/65550000M_1.PNG)

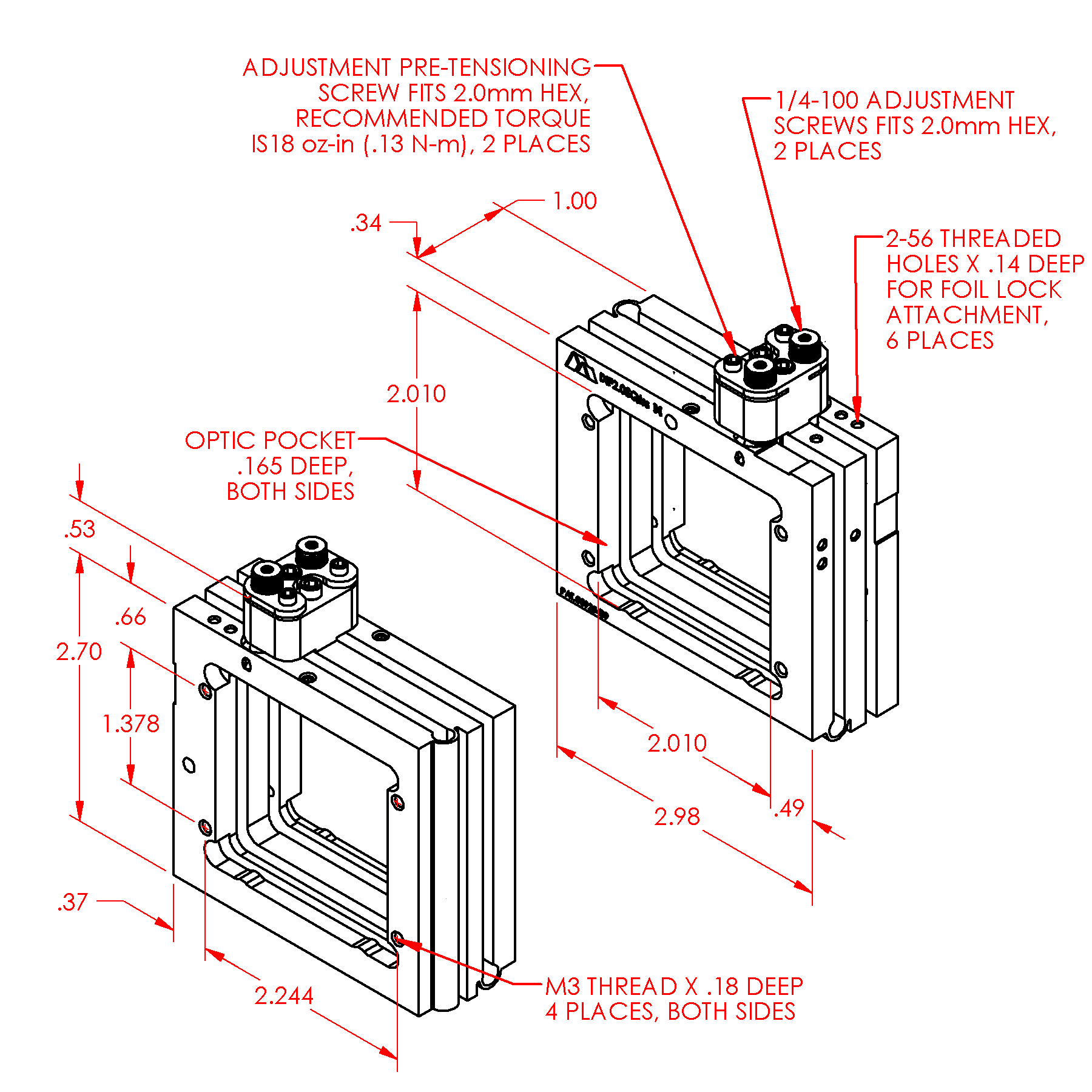

Product Details
The IXF.SQtss series top-adjust monolithic flexure mounts are specifically designed for OEM applications. Top-adjust versions have a novel actuating mechanism to eliminate rotational torque being applied to the axis under adjustment. Designed to be either panel or bracket-mounted; Siskiyou flexures provide the ultimate in stability even in challenging environments. IXF mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion. The monolithic construction results in substantially better heat conduction from one side of the component to the other for quicker response to changes in temperature. (Patent # 8 925 409)
IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.
Product Features:
- Top adjustable design
- 100TPI lockable adjustment screws
- Stainless Steel
- One-piece construction
- UV and vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Adjustment range:
- Pitch: 4.0°(±2.0°)
- Yaw: 4.0°(±2.0°)
- Minimum controllable motion*:
- Pitch: 2.2 arc sec.
- Yaw: 2.7 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
