MC500

0 review Write a Review
SKU: 71110000E
Name:
MANUAL MOTORIZED: MOTORIZED
OPEN CLOSED: OPEN LOOP
VOLUME: 0.000000
WEIGHT UOM: LB
$587.00

MC500

$587.00
Choose Options

MC500

$587.00

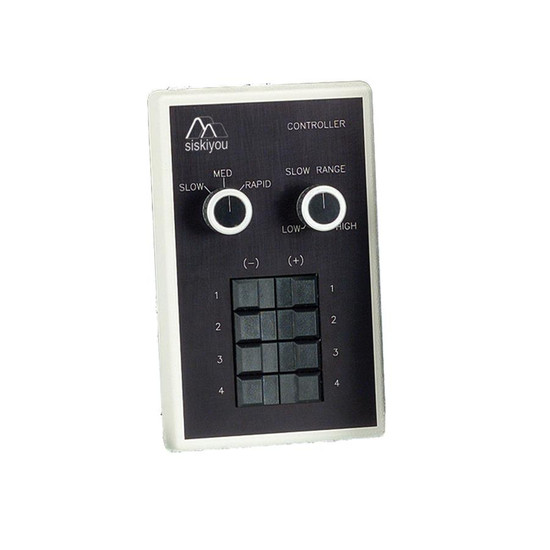

MC500 and MC501 open-loop DC controllers are specifically designed to drive series 500 and 500MM actuators. The 4-axis MC500 controller allows a user to operate as many as four series 500 actuators of any travel length. It has two preset speed settings: rapid (300µm/second) and medium (100 µm/second). The third speed selector (slow) has a variable 330 degrees potentiometer that enables settings from high speed (30µm/second) to low speed (10µm/second). With the speed selector set at the slowest settings, consistent 1.0 µm moves are easily made by the simple bump of an axis button. The MC500 controller uses a wall mounted DC power supply as its source. This noise-free DC controller, along with our 500 series drives, can be used in proximity to electrophysiology experiments.

Product Features

  • Economical DC controller
  • Variable, high-resolution speed control
  • Preset rapid and medium speed settings
  • Variable, slow speed range

Performance Specifications

Maximum speed

  • Rapid: 300 µm/second
  • Medium: 100 µm/second
  • Slow Range / High: 30 µm/second
  • Slow Range / Low: 10 µm/second
Power requirements: 110 VAC, 50/60


Spec Sheet: Click here to download
3D Model: Click here to download
