MS Series Magnetic Strip

0 review Write a Review
SKU: MS SERIES
Name:
LENGTH: 4.0IN
LENGTH: 6.0IN
VOLUME: 0.000000
WEIGHT UOM: LB
$44.00

MS Series Magnetic Strip

$44.00
Choose Options

MS Series Magnetic Strip

$44.00

MS Series Magnetic Strip

The MS series magnetic strips allow the user to create a magnetic interface on nonmagnetic surfaces. These magnetic strips are made from magnetic stainless steel and are a cost-effective alternative to solid steel platforms. The mounting holes accept either 1/4-20 or M6 flathead screws, included, set at 3.0- and 5.0-inch spacing. The MS series magnetic strips can be used individually or in multiples when more strength is needed.

Product Features

  • Creates a magnetic mounting surface
  • Magnetic stainless steel construction
  • Mounting hardware included


Choose options to see performance specifications and downloads.

Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

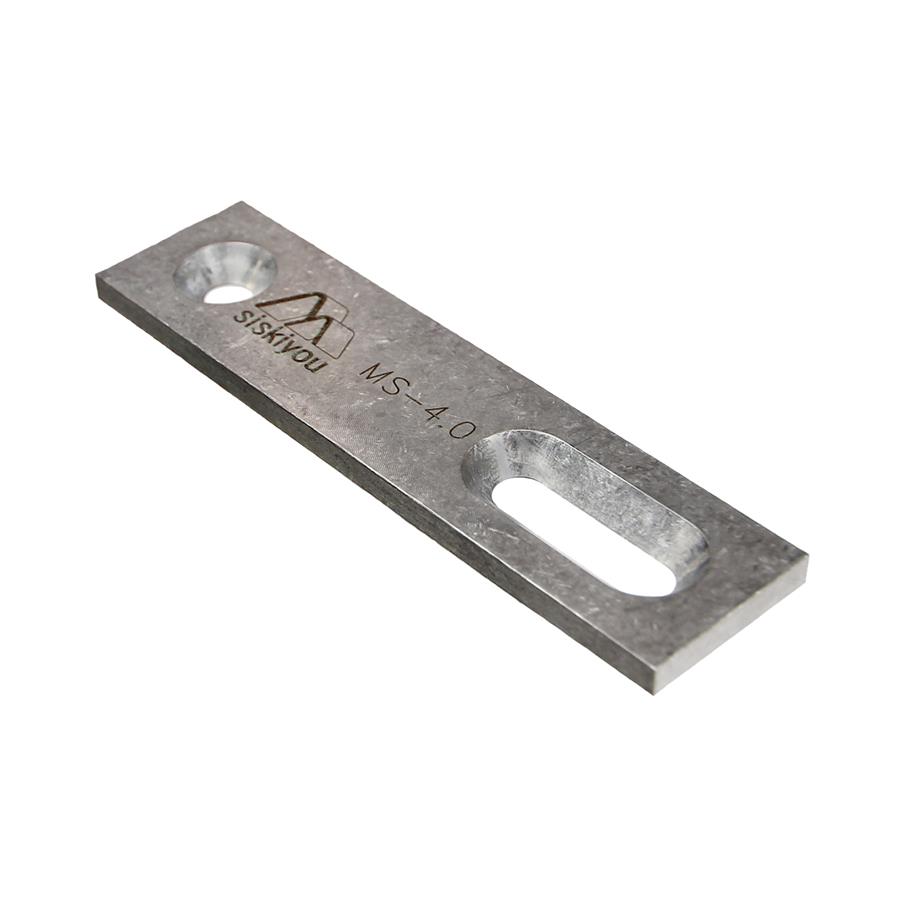

MS-4.0 [09580000E] Length: Length:4.0in
Variant Images
MS-4.0 [09580000E] product variant image view 1
MS-4.0 [09580000E] product variant image view 2
Product Details

The MS series magnetic strips allow the user to create a magnetic interface on nonmagnetic surfaces. These magnetic strips are made from magnetic stainless steel and are a cost-effective alternative to solid steel platforms. The mounting holes accept either 1/4-20 or M6 flathead screws included set at 3.0- and 5.0-inch spacing. The MS series magnetic strips can be used individually or in multiples when more strength is needed.

Product Features:

  • Creates a magnetic mounting surface
  • Magnetic stainless steel construction
  • Mounting hardware included
  • RoHS compliant
Reference Documents
DocumentViewDownload

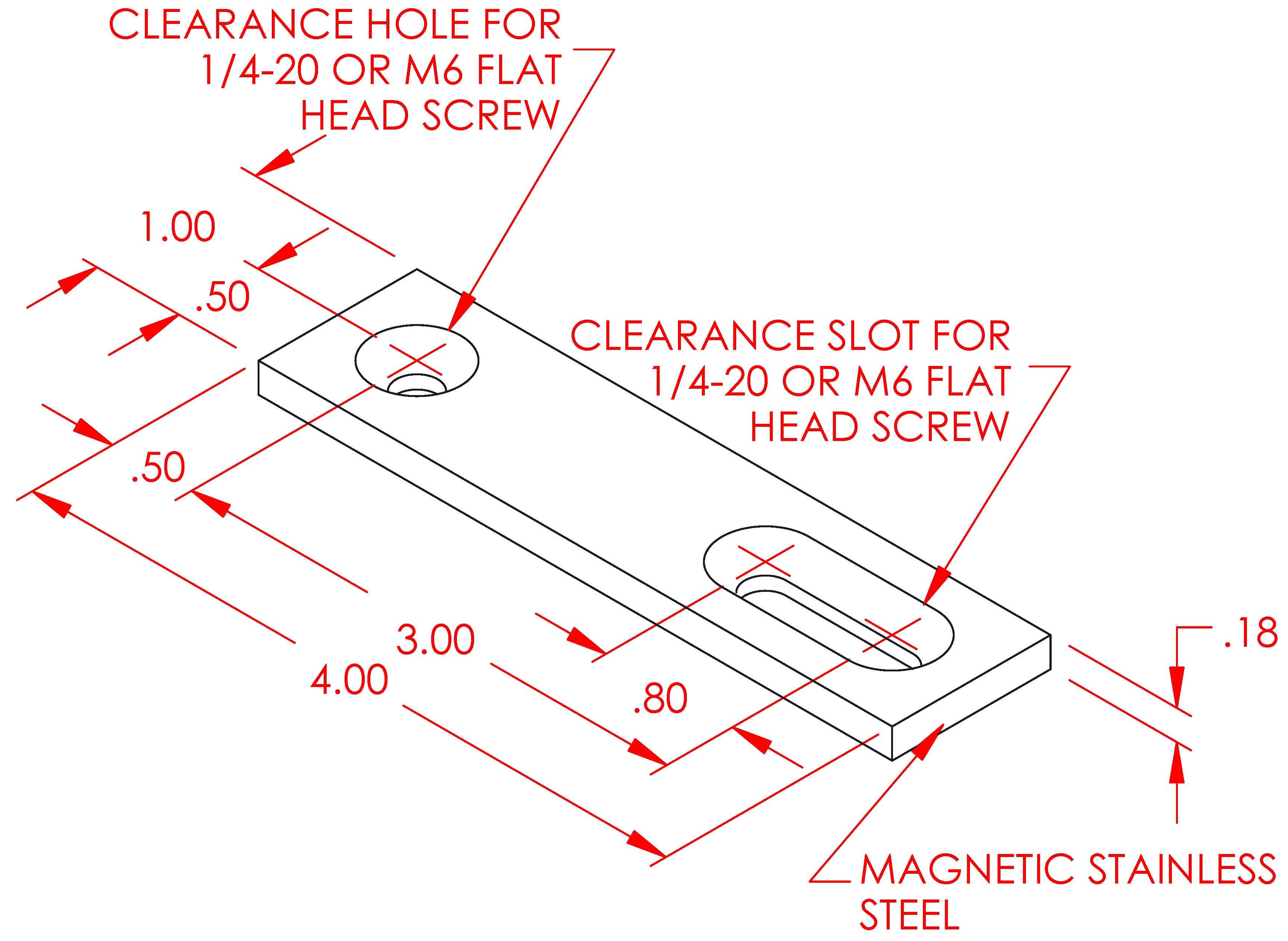

Drawing - 09580000EViewDownload
3D Model - 09580000EDownload

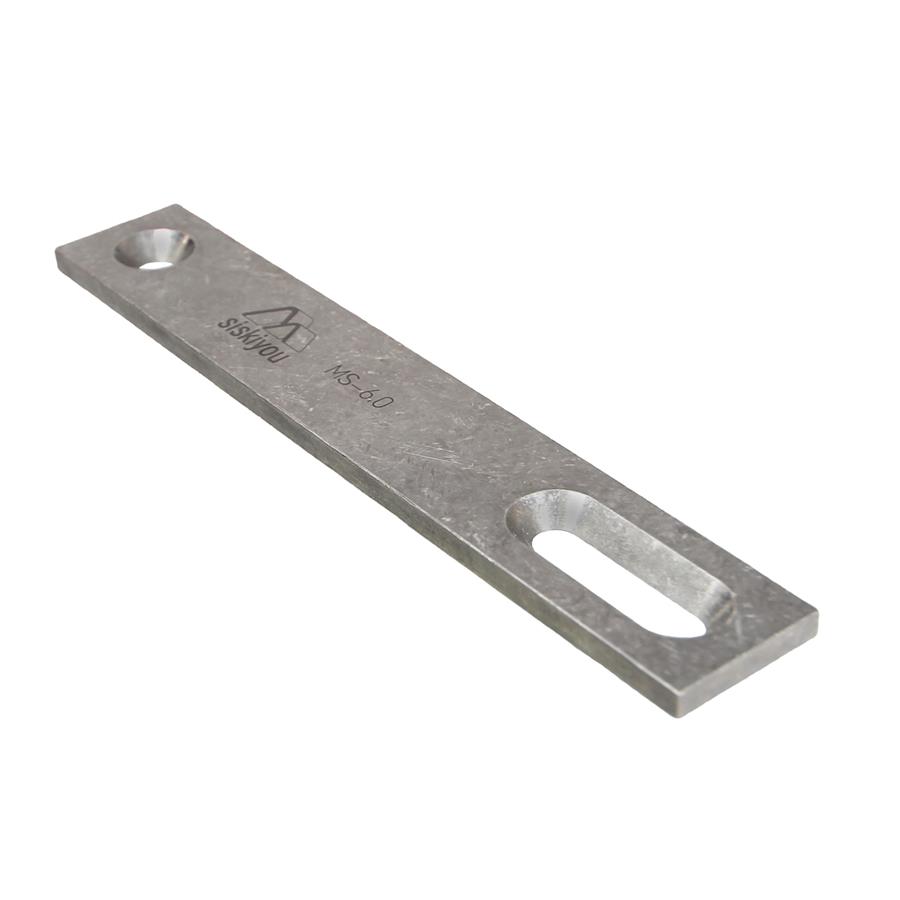

MS-6.0 [09570000E] Length: Length:6.0in
Variant Images
MS-6.0 [09570000E] product variant image view 1
MS-6.0 [09570000E] product variant image view 2
Product Details

The MS series magnetic strips allow the user to create a magnetic interface on nonmagnetic surfaces. These magnetic strips are made from magnetic stainless steel and are a cost-effective alternative to solid steel platforms. The mounting holes accept either 1/4-20 or M6 flathead screws included set at 3.0- and 5.0-inch spacing. The MS series magnetic strips can be used individually or in multiples when more strength is needed.

Product Features:

  • Creates a magnetic mounting surface
  • Magnetic stainless steel construction
  • Mounting hardware included
  • RoHS compliant
Reference Documents
DocumentViewDownload

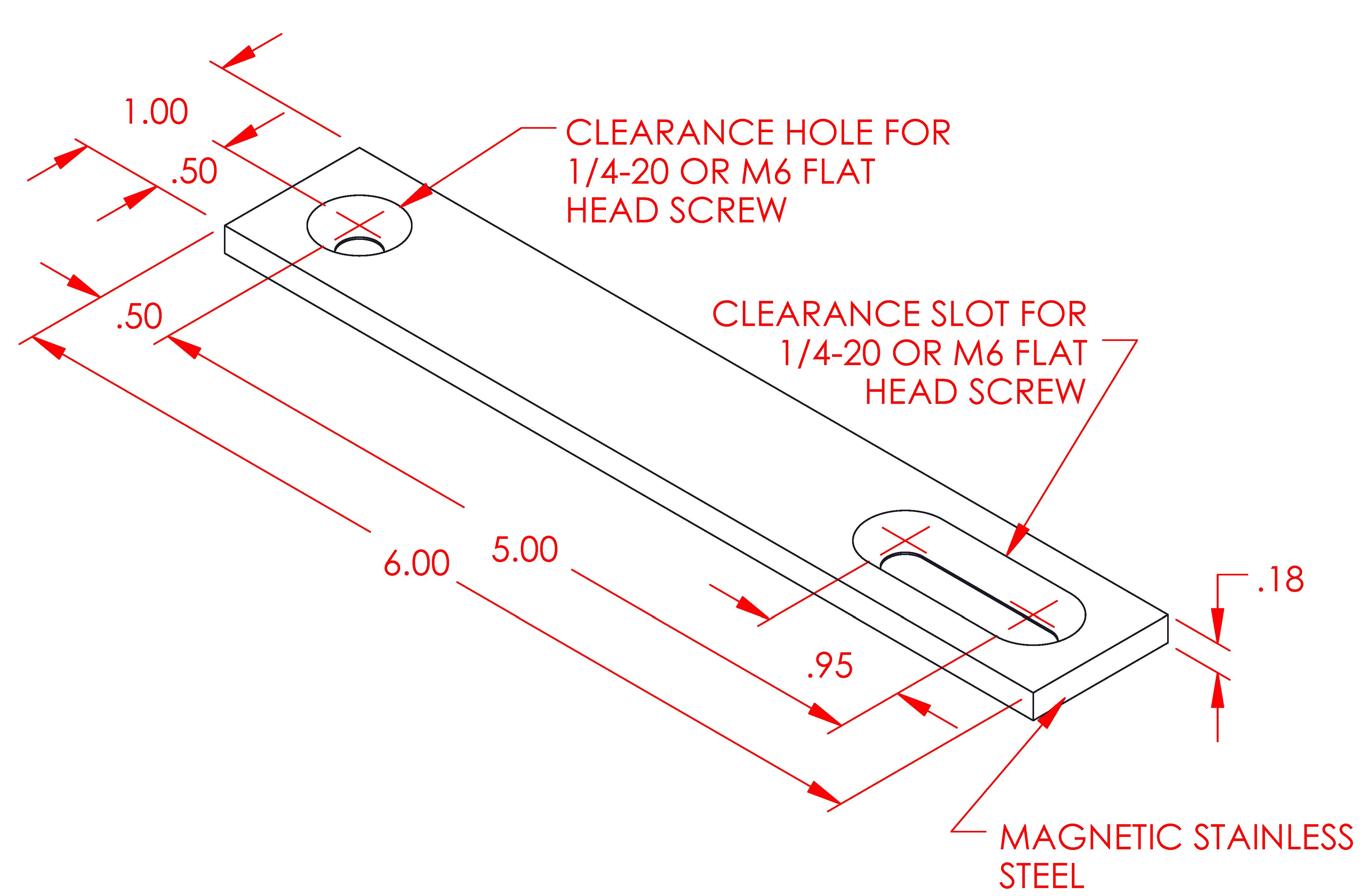

Drawing - 09570000EViewDownload
3D Model - 09570000EDownload
