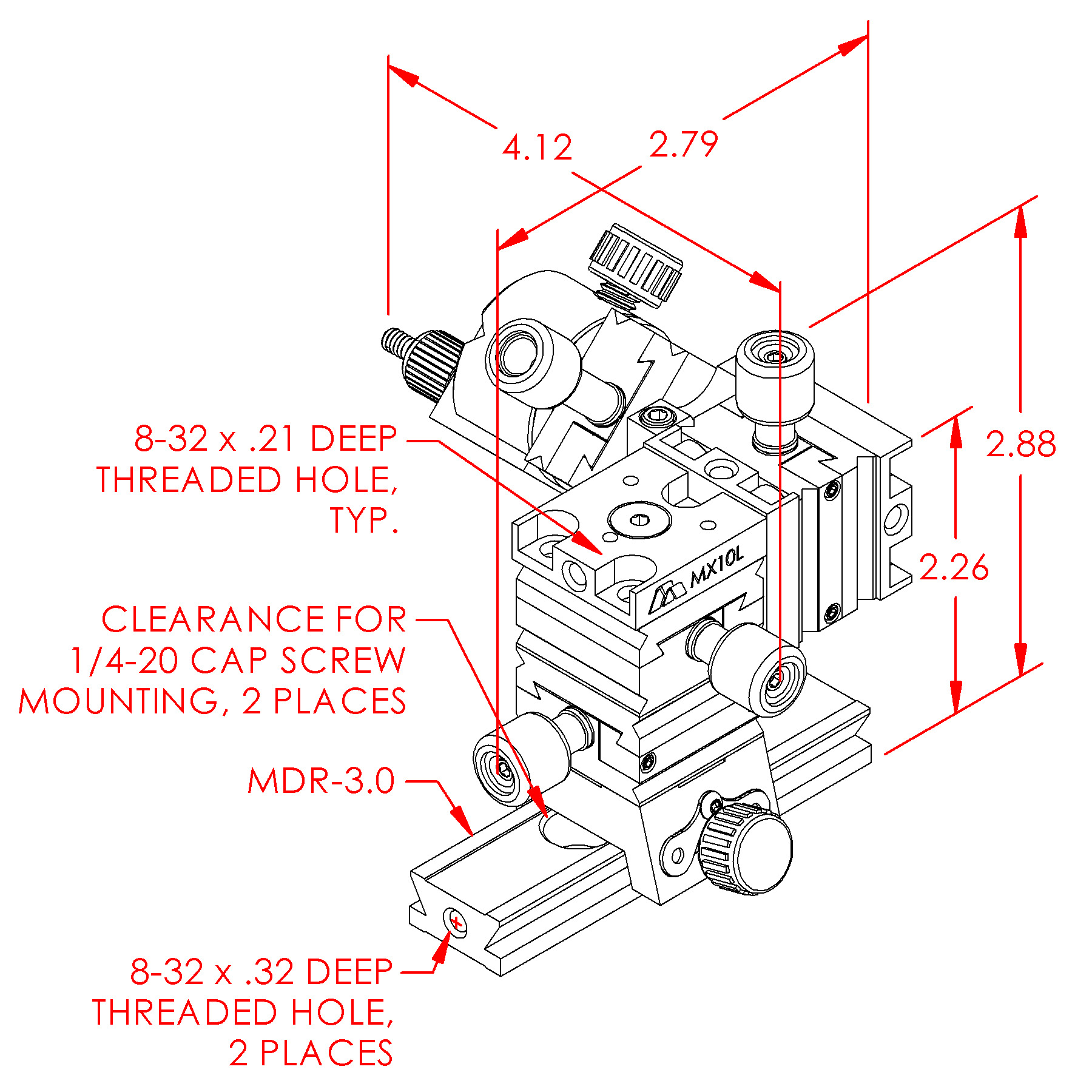

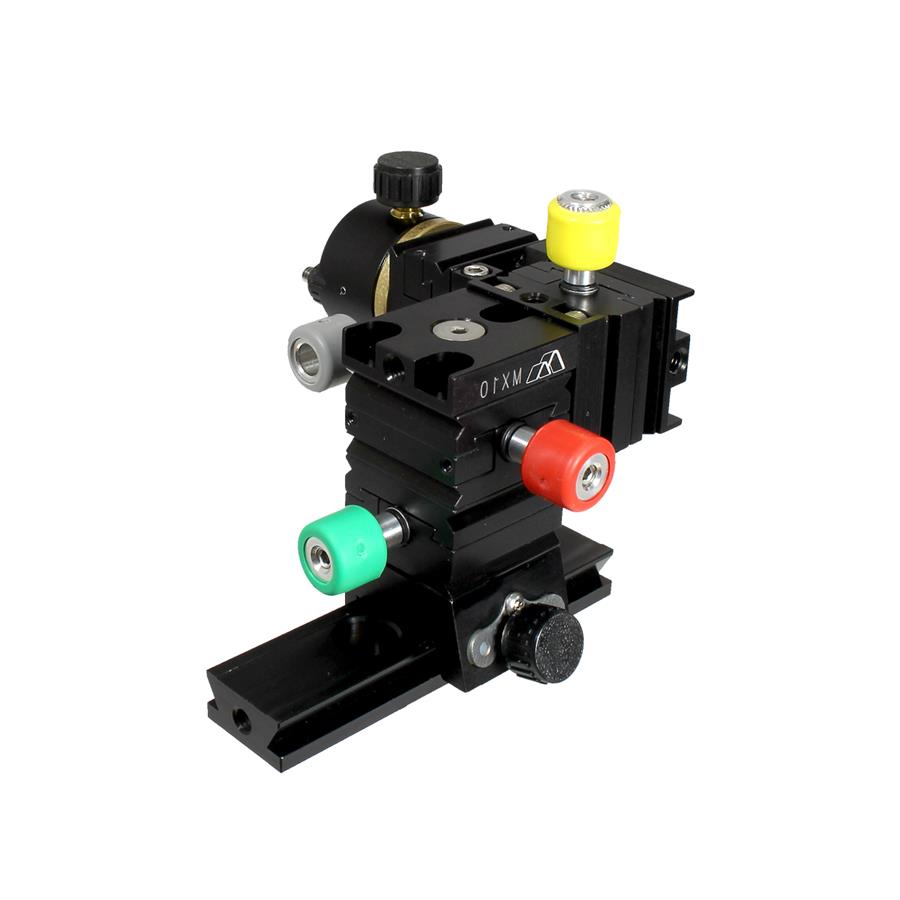

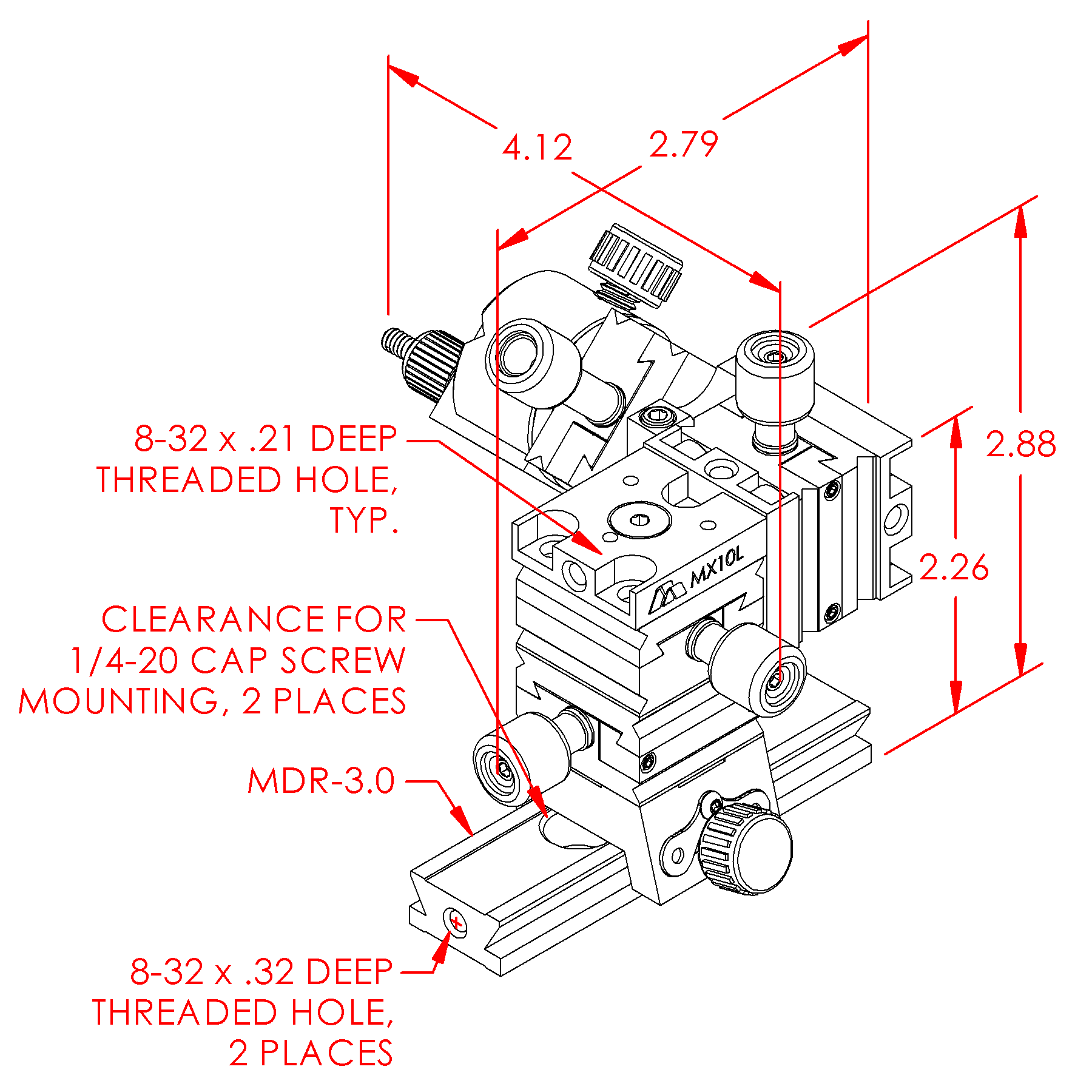

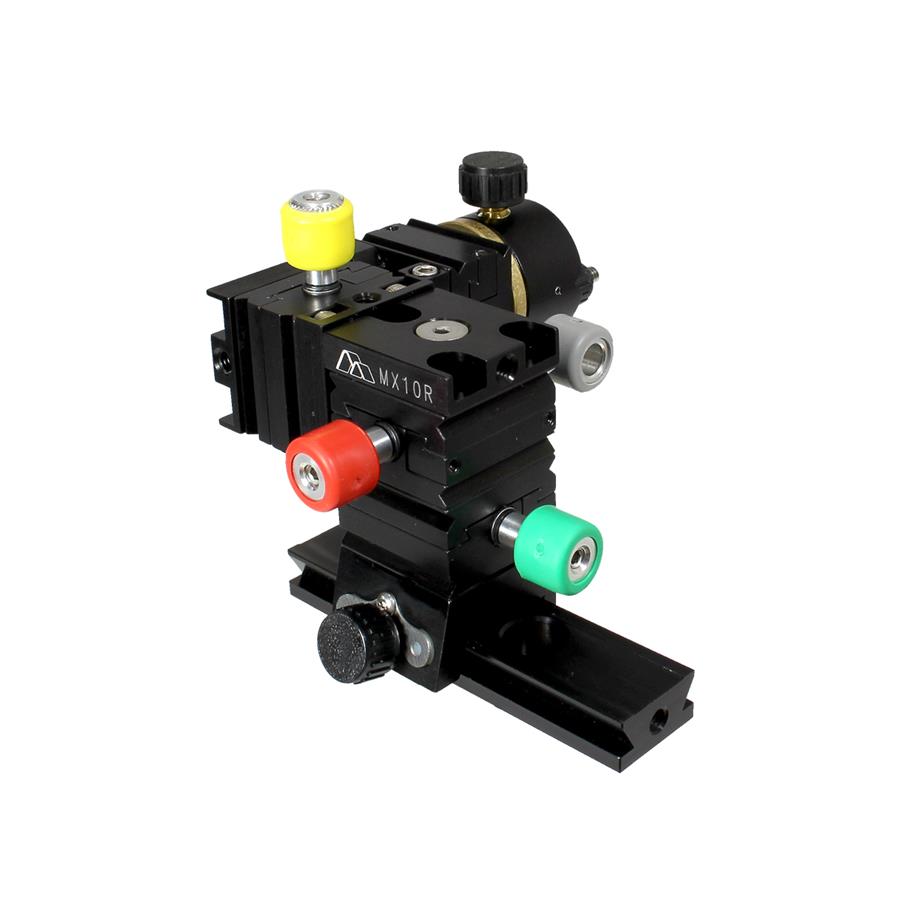

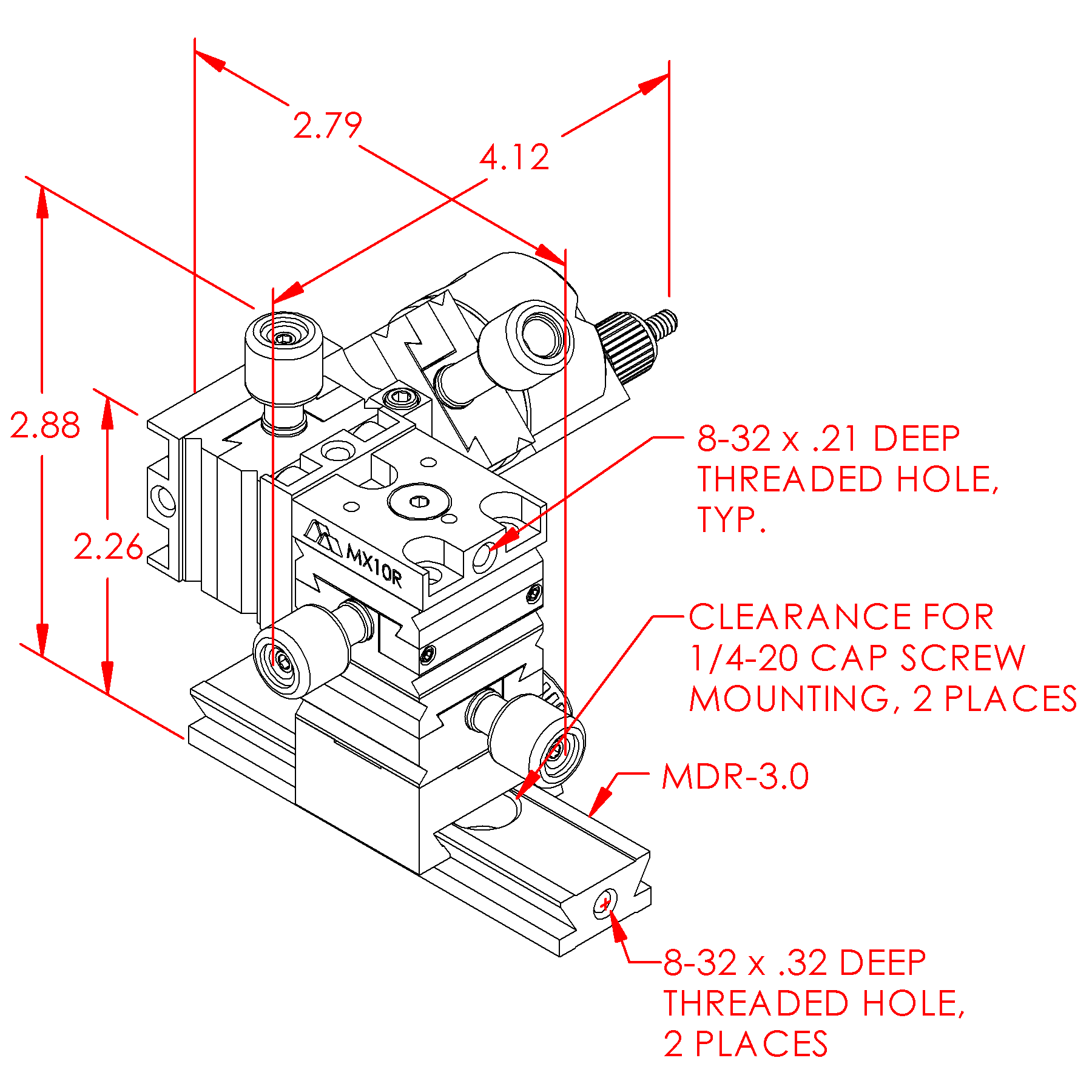

MX10 Series Manipulator

The MX10 is a miniature micromanipulator that is ideal for positioning applications that require micron-scale resolution. DT100 series stages use a precision 80TPI lead screw for smooth positioning along their entire travel. Our miniature dovetail slide uses an adjustable spring-loaded gib design. This feature ensures stability and straightness of travel. The device is equipped with a fourth axis which can be set at any angle through 360° of motion. The compact size of the MX10 makes it ideal for stimulator applications. The mounting method makes removal and replacement very straightforward. The addition of a simple stop allows repeatable placement.

Product Features

• Linear approach on probe axis
• 10-mm travel in all 4 axes
• Dovetail mounting rail for easy removal or replacement
• Holds mounting rods from 3- to 10-mm in diameter.

Performance Specifications

• Maximum load: 0.5 lbs
• Travel / axis: 0.39 inch [10 mm]

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Choose options to see performance specifications and downloads.
