MX310 Series Manipulator
SKU:
MX310 SERIES
Name:
HAND:
LEFT
HAND:
RIGHT
MANUAL MOTORIZED:
MANUAL
TRAVEL:
22MM/.86IN
VOLUME:
0.000000
WEIGHT UOM:
LB
$9,075.00
MX310 Series Manipulator
$9,075.00
MX310 Series Manipulator
The time-tested MX310 Huxley-style micromanipulator is ideal for introductory level research and training course use. This stable flexure design has proven itself over the years and has been improved with the addition of 100TPI adjustment screws for 0.1 µm fine resolution. For coarse positioning, we have incorporated our MX110 stage. The spring-loaded lead screw design in the MX110 ensures drift-free operation.
Product Features
- Classic Huxley flexure design
- 100 TPI ultrafine adjustment
- 20 TPI coarse adjustment
- Holds mounting rods from 3- to 10-mm in diameter.
Performance Specifications
- Maximum load 2 lbs
Travel / axis
- Coarse: 0.86 inch [22 mm]
- Fine: 0.08 inch [2 mm]
Minimum controllable motion
- Coarse: 10 µm
- Fine: 0.1 µm
- Probe angle adjustment: 0 - 90°
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

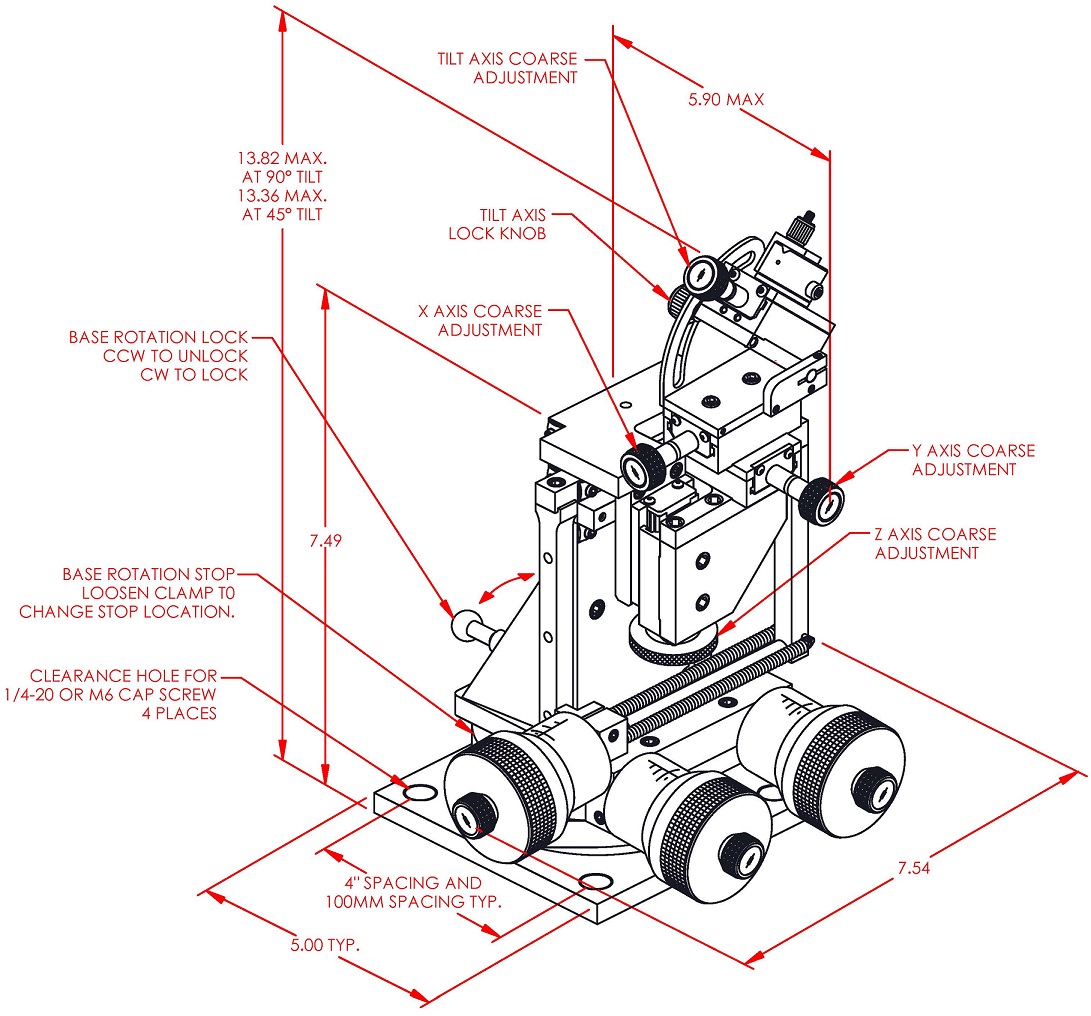

MX310L [38020000E]
Variant Images
![MX310L [38020000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/38020000E.jpg)
![MX310L [38020000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/38020000E_1.jpg)
Product Details
The time-tested MX310 Huxley-style micromanipulator is ideal for introductory level research and training course use. This stable flexure design has proven itself over the years and has been improved with the addition of 100TPI adjustment screws for 0.1 µm fine resolution. For coarse positioning we have incorporated our MX110 stage. The spring-loaded lead screw design in the MX110 ensures drift-free operation.
Product Features:
- Classic Huxley flexure design
- 100TPI ultrafine adjustment
- 20 TPI coarse adjustment
- Holds mounting rods from 3- to 10-mm in diameter.
- RoHS compliant
Performance Specifications:
- Maximum load: 2 lbs
Travel / axis:
- Coarse: 0.86 inch [22 mm]
- Fine: 0.08 inch [2 mm]
Minimum controllable motion*:
- Coarse: 10 µm
- Fine: 0.1 µm
- Probe angle adjustment 0° - 90°
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

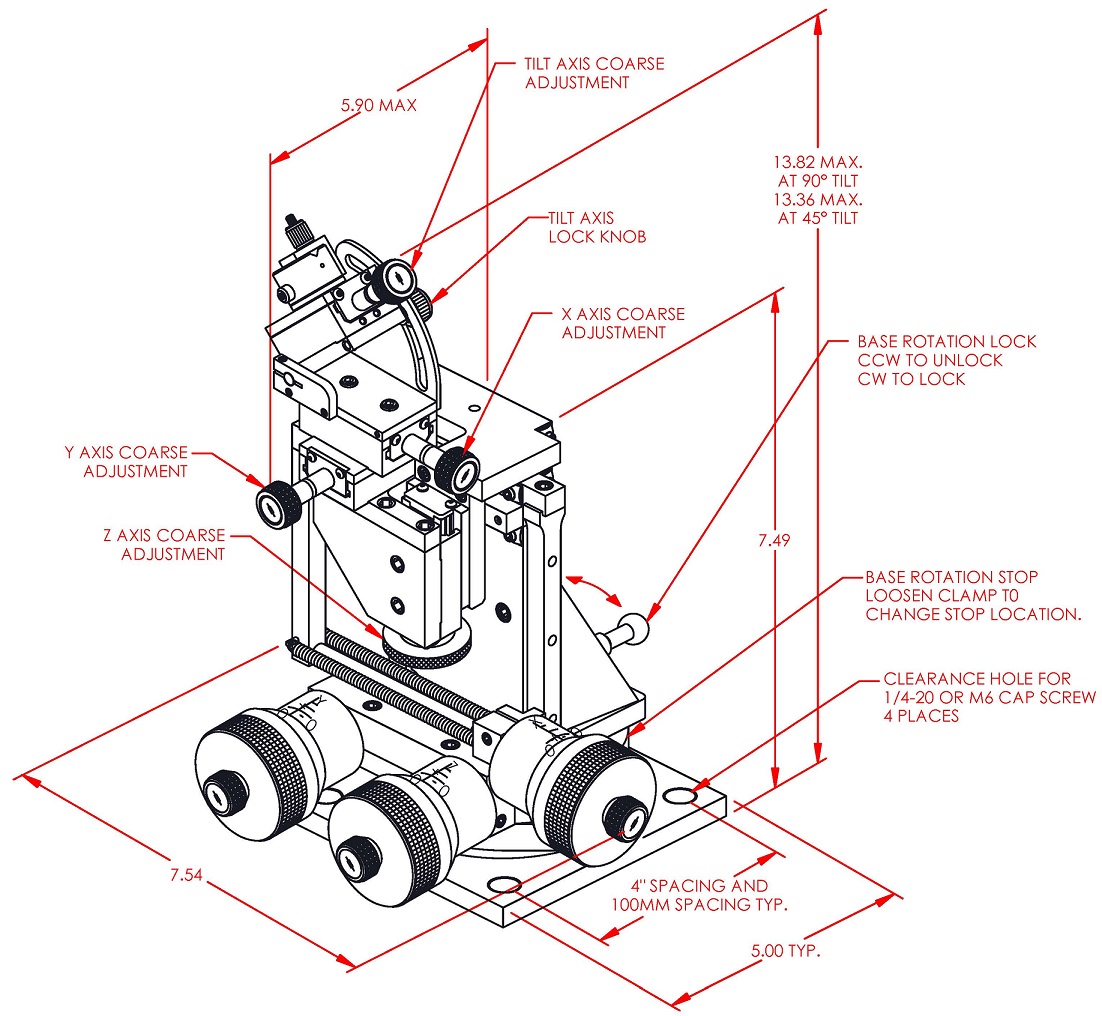

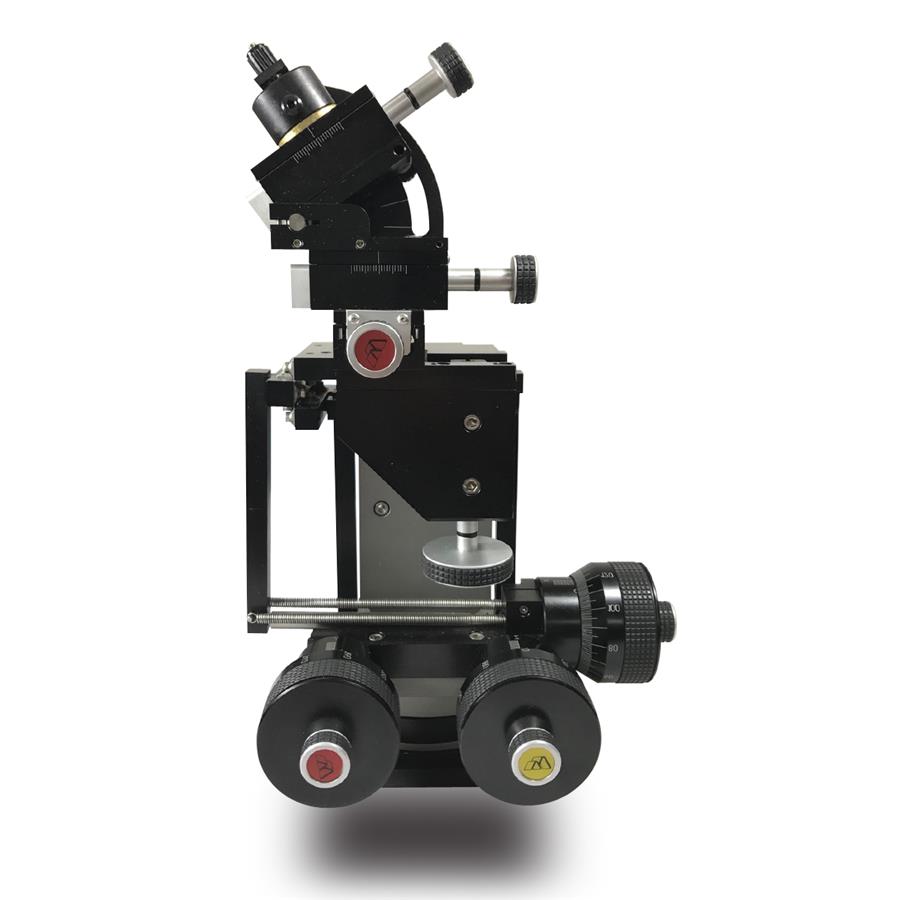

MX310R [38010000E]
Variant Images
![MX310R [38010000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/38010000E.jpg)
![MX310R [38010000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/38010000E_1.jpg)
Product Details
The time-tested MX310 Huxley-style micromanipulator is ideal for introductory level research and training course use. This stable flexure design has proven itself over the years and has been improved with the addition of 100TPI adjustment screws for 0.1 µm fine resolution. For coarse positioning we have incorporated our MX110 stage. The spring-loaded lead screw design in the MX110 ensures drift-free operation.
Product Features:
- Classic Huxley flexure design
- 100TPI ultrafine adjustment
- 20 TPI coarse adjustment
- Holds mounting rods from 3- to 10-mm in diameter.
- RoHS compliant
Performance Specifications:
- Maximum load 2 lbs
Travel / axis:
- Coarse: 0.86 inch [22 mm]
- Fine: 0.08 inch [2 mm]
Minimum controllable motion*:
- Coarse: 10 µm
- Fine: 0.1 µm
- Probe angle adjustment 0° - 90°
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
