MXTa Series Platform
SKU:
MXTA SERIES
Name:
SIZE:
LARGE
SIZE:
MEDIUM
SIZE:
SMALL
UOM:
IMPERIAL
UOM:
METRIC
VOLUME:
0.000000
WEIGHT UOM:
LB
$88.00 - $110.00
MXTa Series Platform
$88.00 - $110.00
MXTa Series Platform
These adjustable angle platforms are easy to use and come in three convenient sizes. They are attached to the table top or bread board with a single 1/4-20 cap screw through a recessed slot for maximum positioning flexibility. Angular locking is done with a single cap screw that can be removed and relocated 180 to the opposite side to accommodate adjustment in limited space locations. These adjustable angle platforms are shipped in a "positive" vertical configuration (as shown in the photo), but they can also be reassembled to be used in a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.
Product Features
- Unlimited angular adjustment
- Solid aluminum construction
- Flexible mounting design
- Vacuum compatible versions available upon request
Performance Specifications
- Maximum load: 5 lbs
- Angular adjustment: Unlimited
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

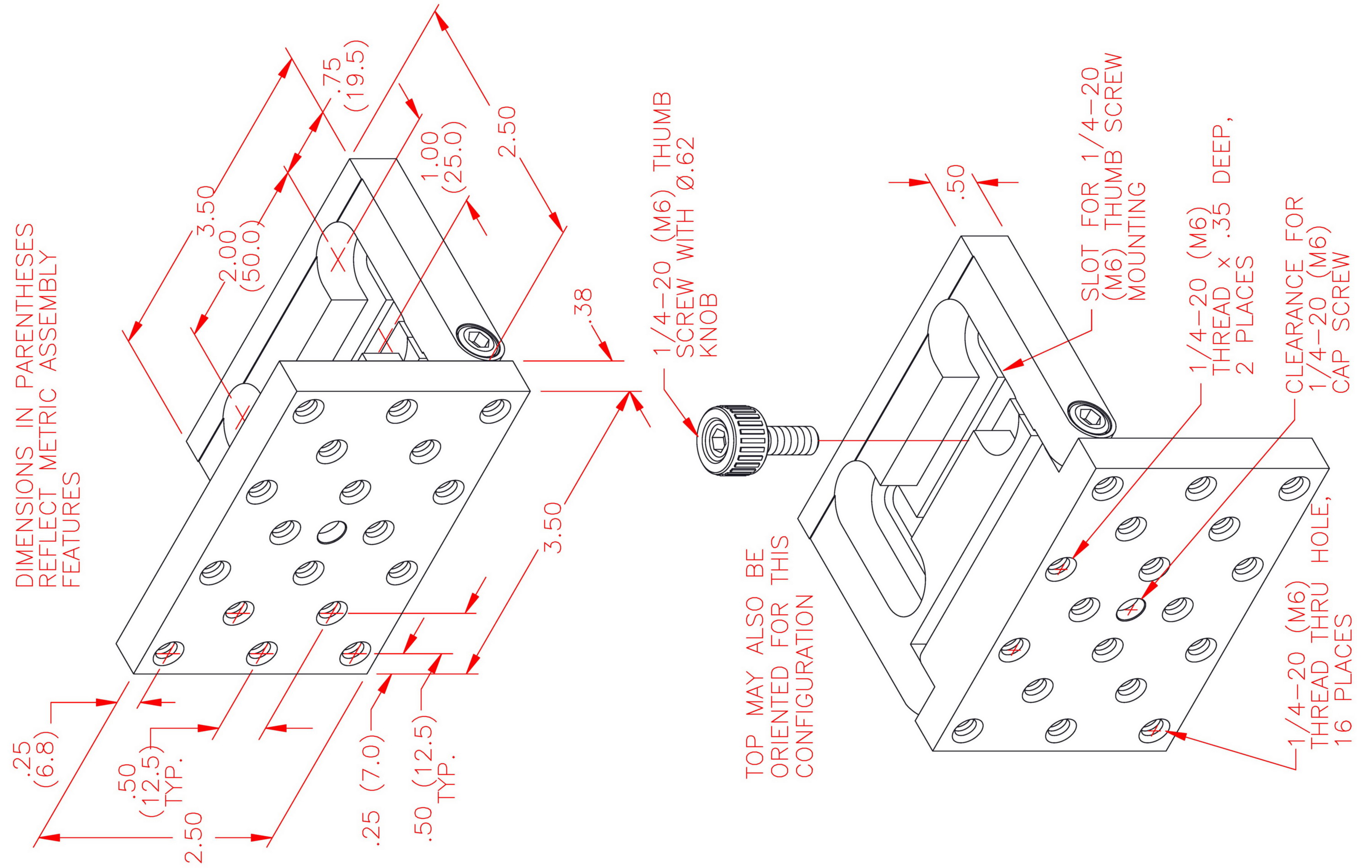

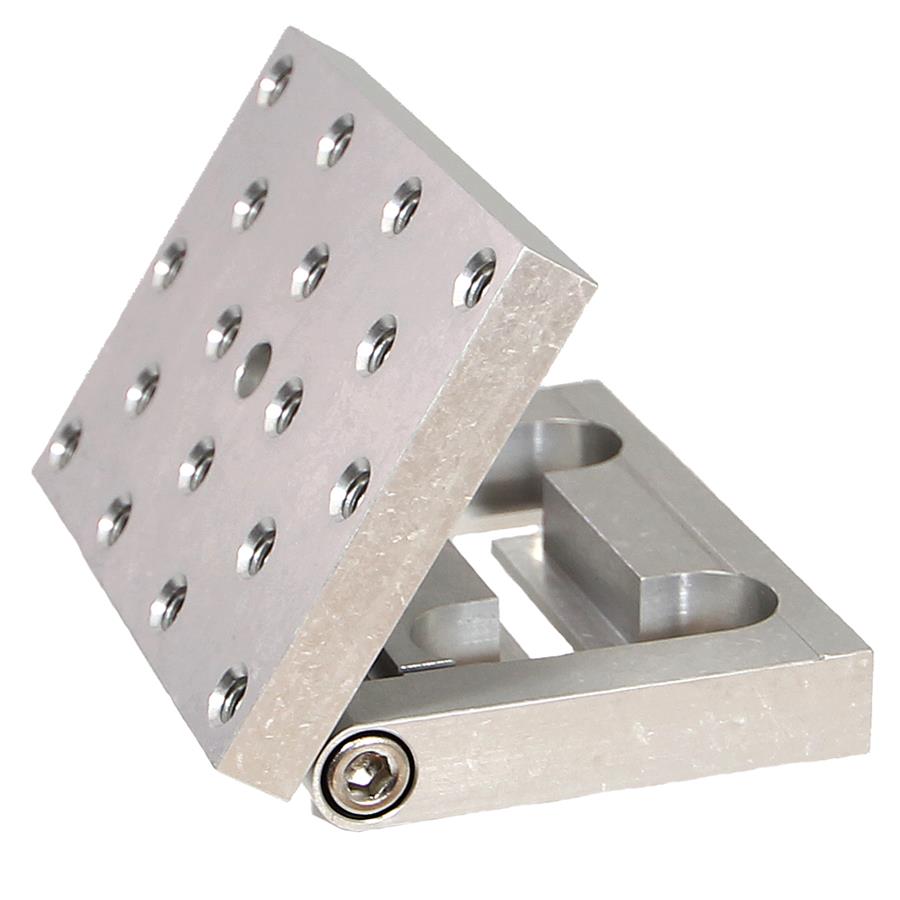

MX3Ta [09700000E]
Variant Images
![MX3Ta [09700000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09700000E.jpg)
![MX3Ta [09700000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09700000E_1.jpg)
Product Details
These adjustable angle platforms are easy to use and come in three convenient sizes. They are attached to the table top or bread board with a single 1/4-20 cap screw through a recessed slot for maximum positioning flexibility. Angular locking is done with a single cap screw that can be removed and relocated 180° to the opposite side to accommodate adjustment in limited space locations. These adjustable angle platforms are shipped in a "positive" vertical configuration (as shown in the photo) but they can also be reassembled to be used in a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.
Product Features
- Unlimited angular adjustment
- Solid aluminum construction
- Flexible mounting design
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum load: 5 lbs
- Angular adjustment: Unlimited
- 3.5-inch x 2.5-inch
- 18 tapped 1/4-20 holes
MX3Ta M [09700000M]
Variant Images
![MX3Ta M [09700000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09700000M.jpg)
![MX3Ta M [09700000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09700000M_1.jpg)
Product Details
These adjustable angle platforms are easy to use and come in three convenient sizes. They are attached to the table top or bread board with a single M6 cap screw through a recessed slot for maximum positioning flexibility. Angular locking is done with a single cap screw that can be removed and relocated 180° to the opposite side to accommodate adjustment in limited space locations. These adjustable angle platforms are shipped in a "positive" vertical configuration (as shown in the photo) but they can also be reassembled to be used in a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.
Product Features
- Unlimited angular adjustment
- Solid aluminum construction
- Flexible mounting design
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum load: 5 lbs
- Angular adjustment: Unlimited
- 3.5-inch x 2.5-inch
- 18 tapped M6 holes

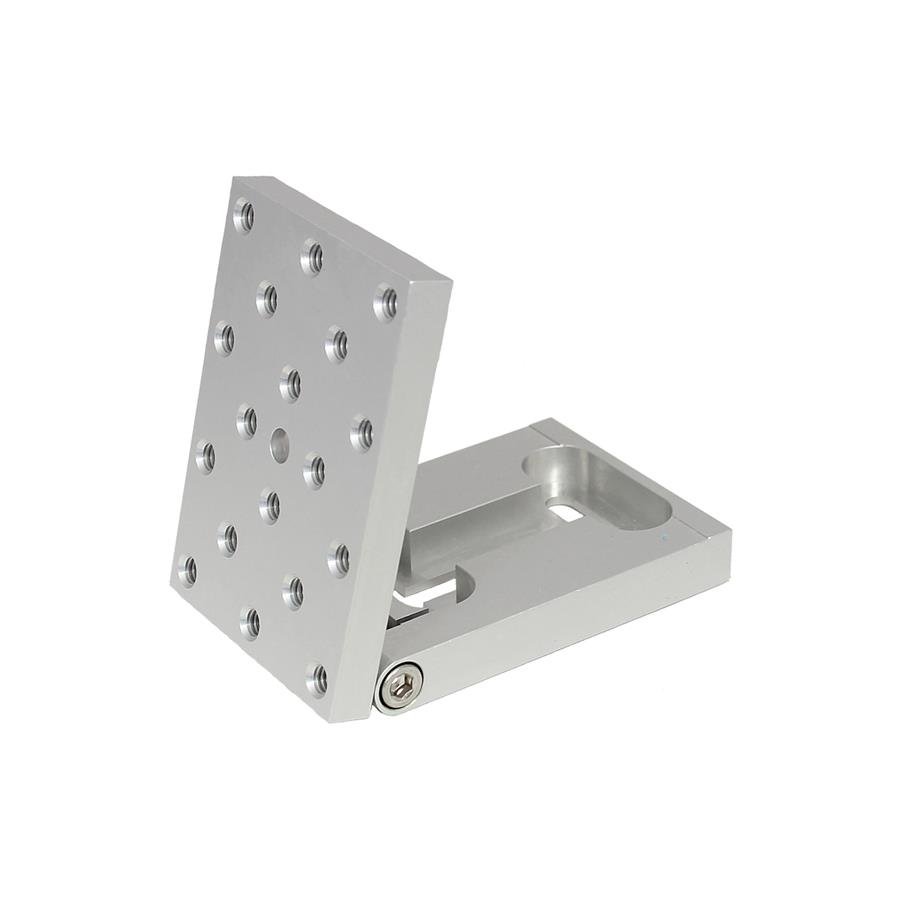

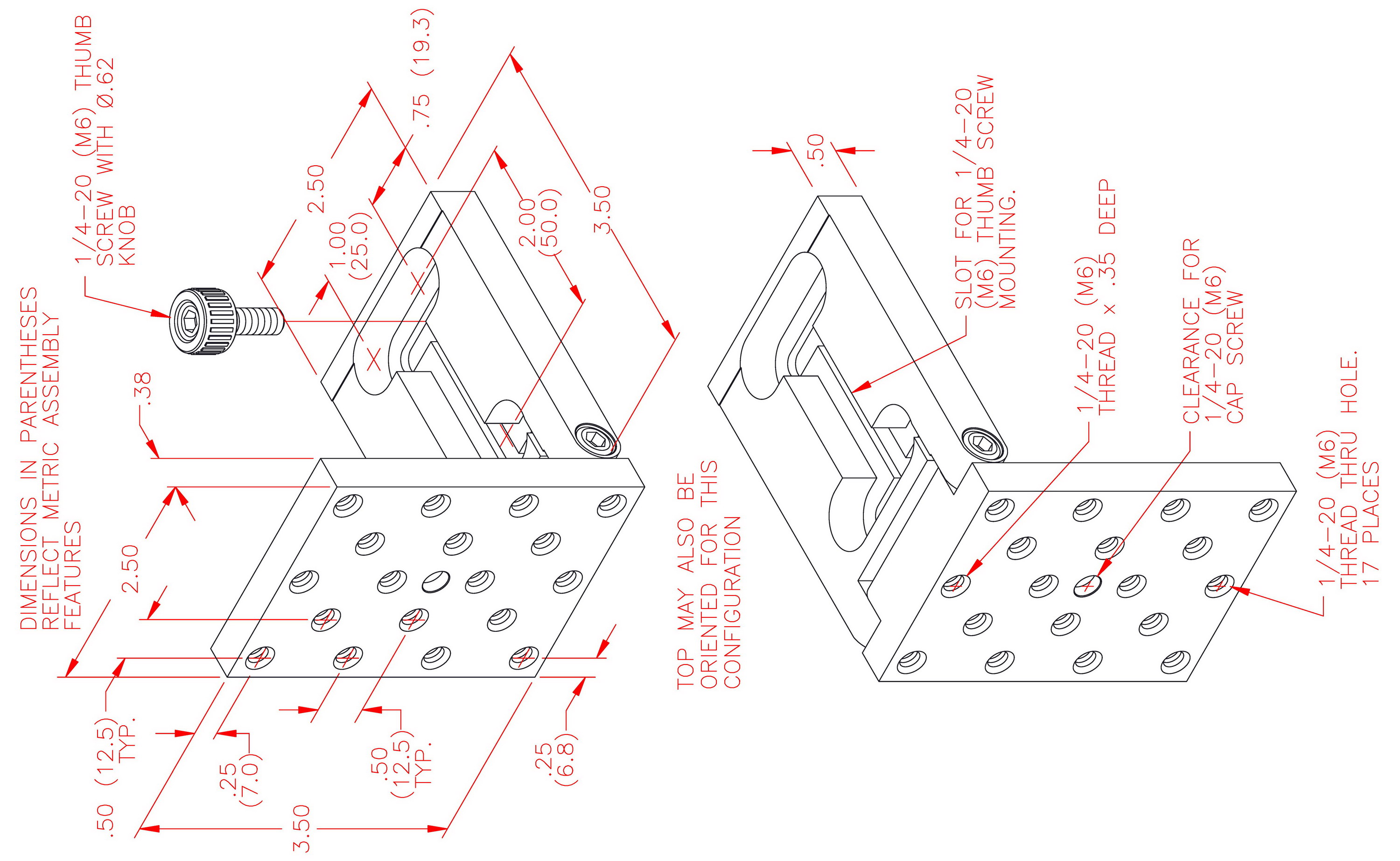

MX2Ta [09690000E]
Variant Images
![MX2Ta [09690000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09690000E.jpg)
![MX2Ta [09690000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09690000E_1.jpg)
Product Details
These adjustable angle platforms are easy to use and come in three convenient sizes. They are attached to the table top or bread board with a single 1/4-20 cap screw through a recessed slot for maximum positioning flexibility. Angular locking is done with a single cap screw that can be removed and relocated 180° to the opposite side to accommodate adjustment in limited space locations. These adjustable angle platforms are shipped in a "positive" vertical configuration (as shown in the photo) but they can also be reassembled to be used in a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.
Product Features
- Unlimited angular adjustment
- Solid aluminum construction
- Flexible mounting design
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum load: 5 lbs
- Angular adjustment: Unlimited
- 2.5-inch x 3.5-inch
- 18 tapped 1/4-20 holes

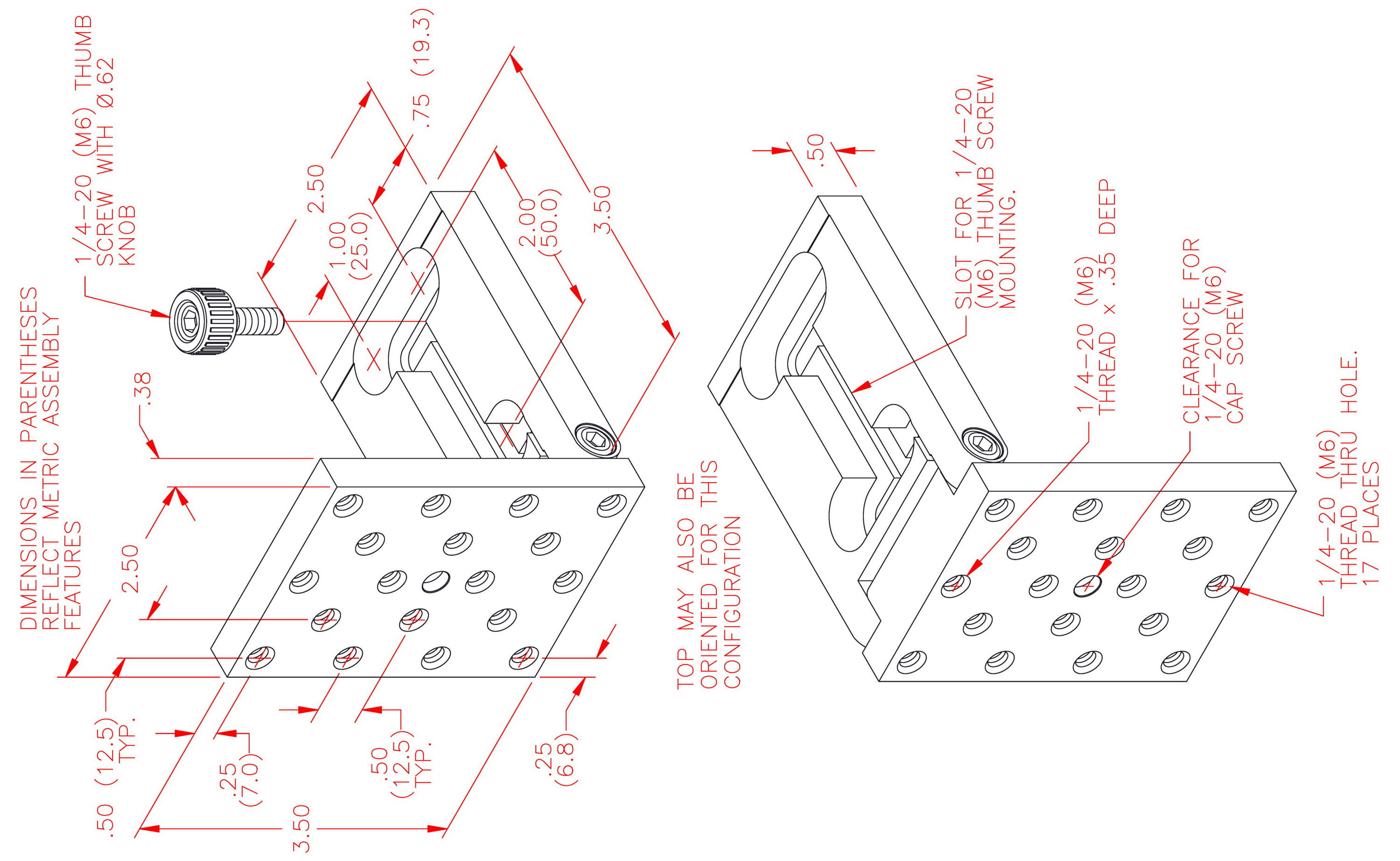

MX2Ta M [09690000M]
Variant Images
![MX2Ta M [09690000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09690000M.jpg)
![MX2Ta M [09690000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09690000M_1.jpg)
Product Details
These adjustable angle platforms are easy to use and come in three convenient sizes. They are attached to the table top or bread board with a single M6 cap screw through a recessed slot for maximum positioning flexibility. Angular locking is done with a single cap screw that can be removed and relocated 180° to the opposite side to accommodate adjustment in limited space locations. These adjustable angle platforms are shipped in a "positive" vertical configuration (as shown in the photo) but they can also be reassembled to be used in a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.
Product Features
- Unlimited angular adjustment
- Solid aluminum construction
- Flexible mounting design
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum load: 5 lbs
- Angular adjustment: Unlimited
- 2.5-inch x 3.5-inch
- 18 tapped M6 holes
MX1Ta [09680000E]
Variant Images
![MX1Ta [09680000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09680000E.jpg)
![MX1Ta [09680000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09680000E_1.jpg)
Product Details
These adjustable angle platforms are easy to use and come in three convenient sizes. They are attached to the table top or bread board with a single 1/4-20 cap screw through a recessed slot for maximum positioning flexibility. Angular locking is done with a single cap screw that can be removed and relocated 180° to the opposite side to accommodate adjustment in limited space locations. These adjustable angle platforms are shipped in a "positive" vertical configuration (as shown in the photo) but they can also be reassembled to be used in a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.
Product Features
- Unlimited angular adjustment
- Solid aluminum construction
- Flexible mounting design
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum load: 5 lbs
- Angular adjustment Unlimited
- 1.5-inch x 1.75-inch
- 8 tapped 8-32 holes

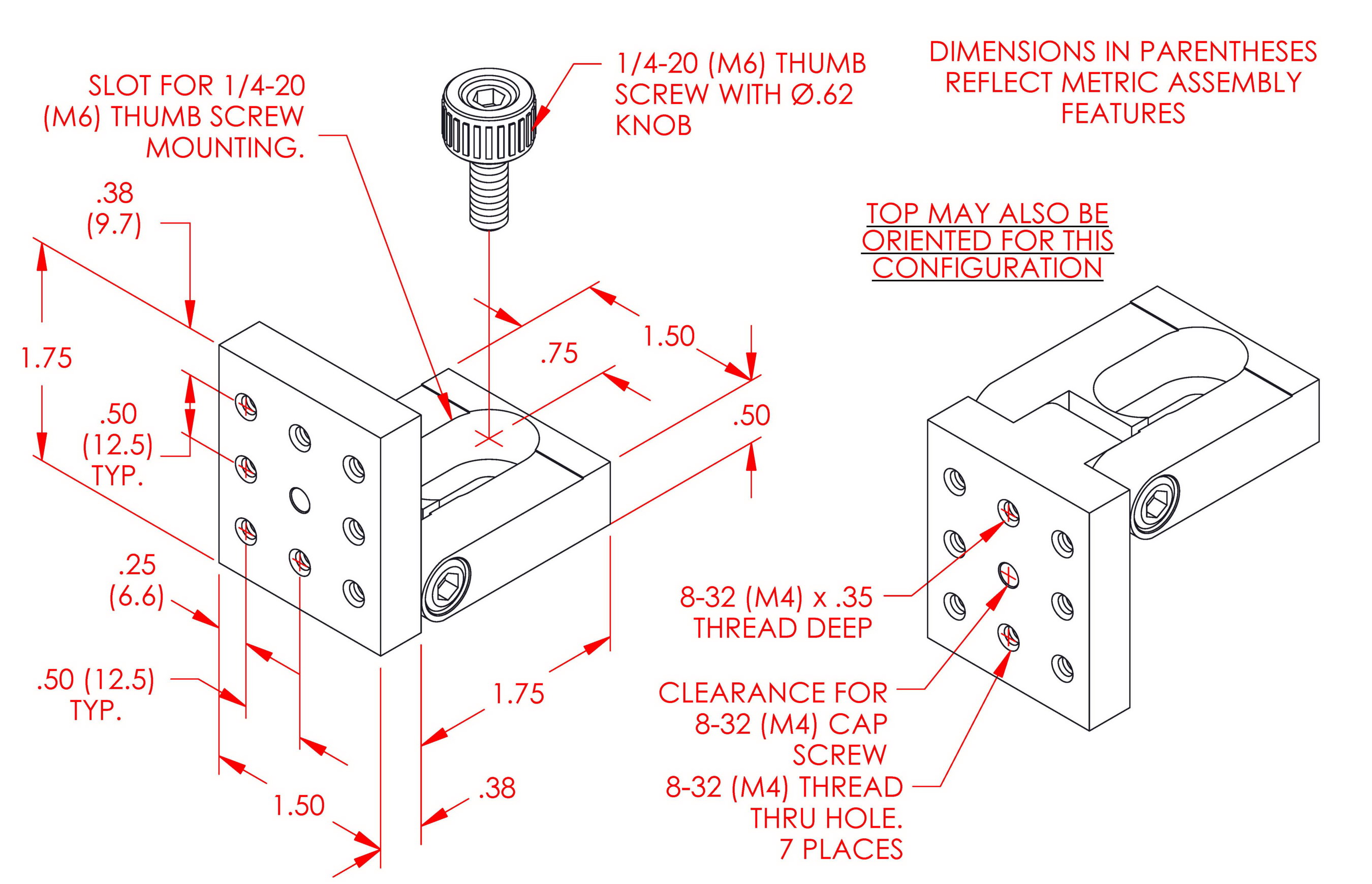

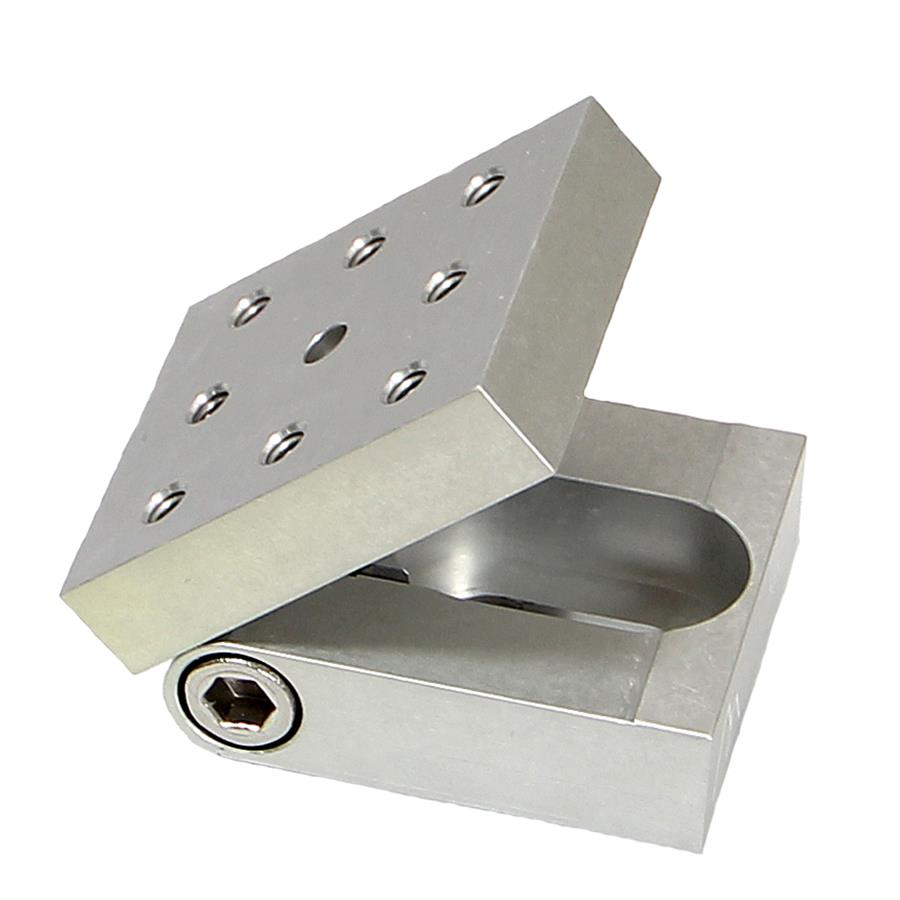

MX1Ta M [09680000M]
Variant Images
![MX1Ta M [09680000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09680000M.jpg)
![MX1Ta M [09680000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/09680000M_1.jpg)
Product Details
These adjustable angle platforms are easy to use and come in three convenient sizes. They are attached to the table top or bread board with a single M6 cap screw through a recessed slot for maximum positioning flexibility. Angular locking is done with a single cap screw that can be removed and relocated 180° to the opposite side to accommodate adjustment in limited space locations. These adjustable angle platforms are shipped in a "positive" vertical configuration (as shown in the photo) but they can also be reassembled to be used in a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.
Product Features:
- Unlimited angular adjustment
- Solid aluminum construction
- Flexible mounting design
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum load: 5 lbs
- Angular adjustment Unlimited
- 1.5-inch x 1.75-inch
- 8 tapped M4 holes
