OFT Series Translator

Name: OFT Series Translator
SKU: 55010000
Price: 275 USD
Availability: InStock

0 review Write a Review

SKU: 55010000

Name:

$275.00

Current Stock:

Quantity:

OFT Series Translator

$275.00

Choose Options

OFT Series Translator

$275.00

UOM *

Product Details

Product Details

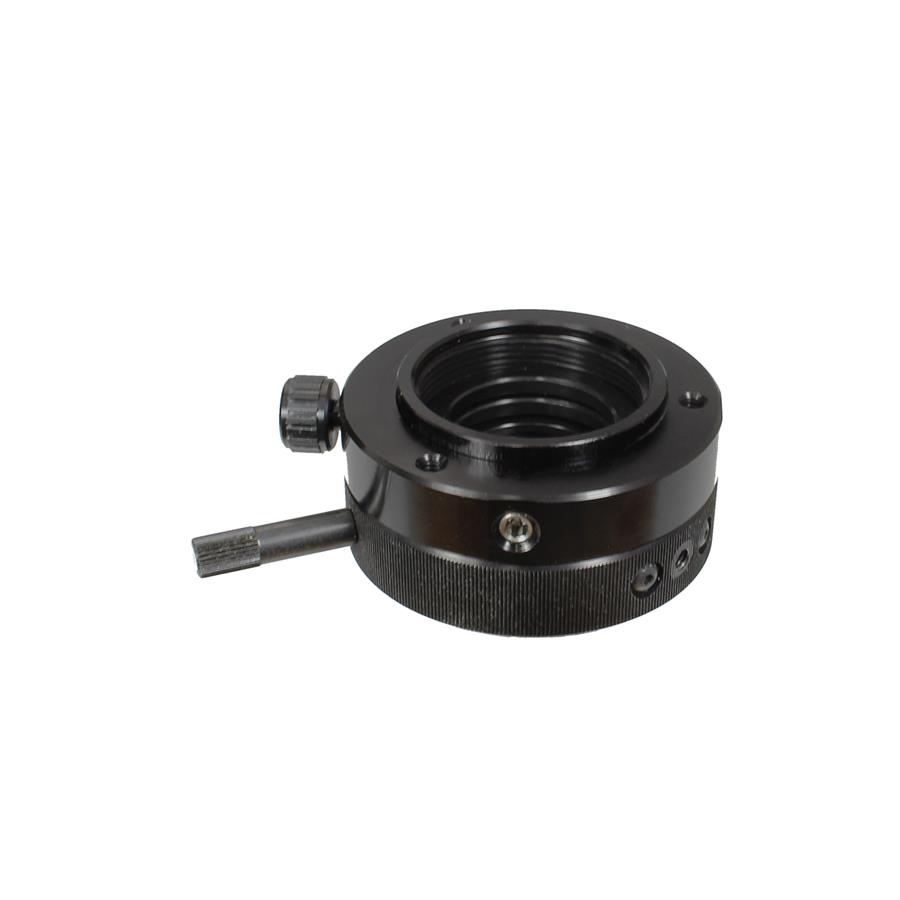

OFT Series Translator

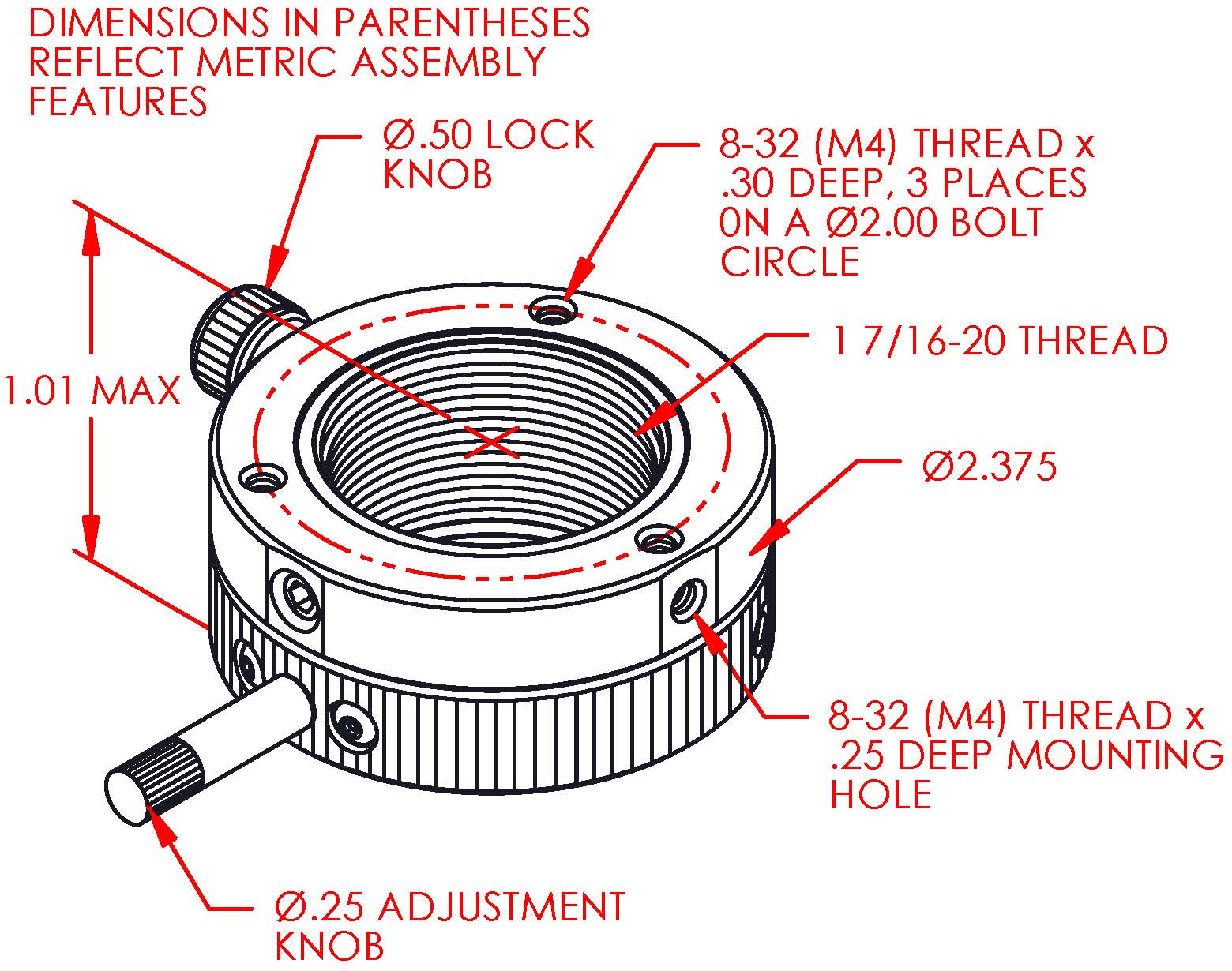

The OFT optical focus translator allows the user to simply adjust the focus of an optic along the optical axis. The simple cam design is able to translate 0.25-inch in 30¬∞ of rotation of the focusing lever. Once in position the OFT can be locked with a Delrin¬Æ knob. Adjustment of the Z (focus) axis does not rotate the optical element when the lever is turned. The inner sleeve, in which the optical element is held, does not rotate, so optical axis height is constant and polarization orientation is maintained. Vertical or horizontal mounting of the OFT is made simple with multiple 8-32(M4) and 1/4-20(M6) tapped holes on its diameter and back face. The OFT is compatible with our OH1.0 series of optic holders.

Product Features

1/4-20(M6) and 8-32(M4) mounting
0.2-inch focus range
Vacuum compatible versions available upon request

Performance Specifications

Travel: 0.25 inch (6 mm)
Minimum controllable motion: 10 ¬µm

*Minimum controllable motion*: BASED ON 1¬∞ OF ADJUSTMENT SCREW ROTATION

Choose options to see performance specifications and downloads.

Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

OFT [55010000E] UOM: UOM:IMPERIAL

Variant Images

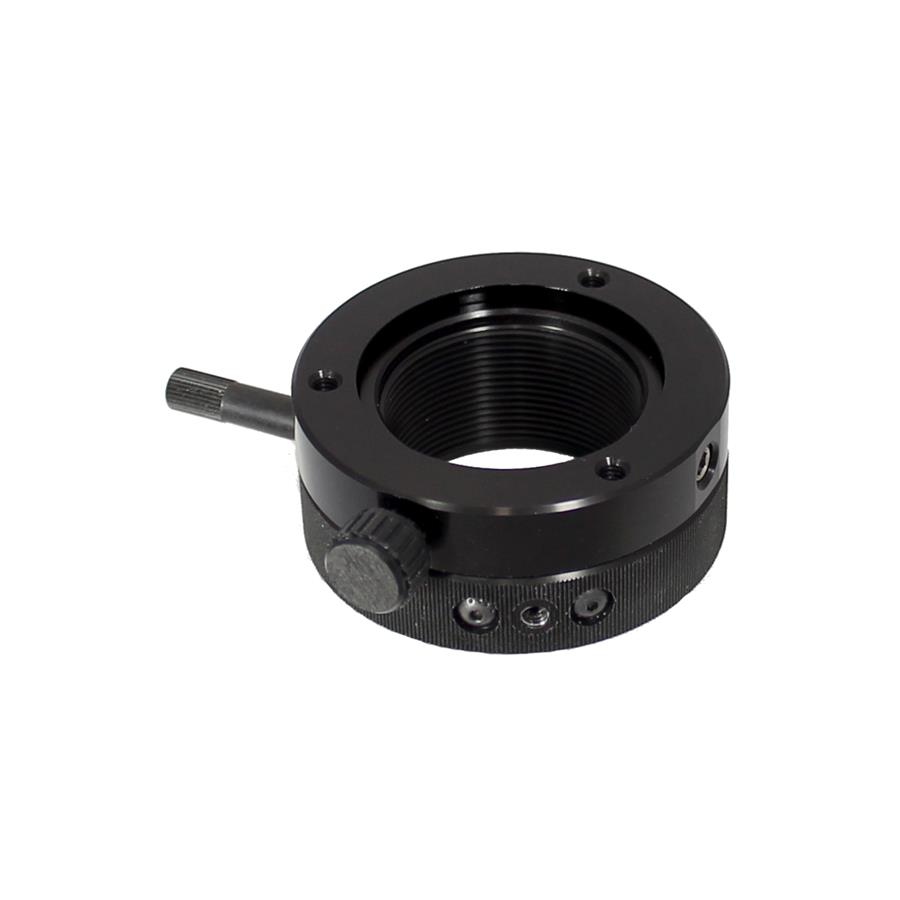

OFT [55010000E] product variant image view 1

OFT [55010000E] product variant image view 2

Product Details

The OFT optical focus translator allows the user to simply adjust the focus of an optic along the optical axis. The simple cam design is able to translate 0.25-inch in 30° of rotation of the focusing lever. Once in position the OFT can be locked with a Delrin®knob. Adjustment of the Z (focus) axis does not rotate the optical element when the lever is turned. The inner sleeve in which the optical element is held does not rotate so optical axis height is constant and polarization orientation is maintained. Vertical or horizontal mounting of the OFT is made simple with multiple 8-32 and 1/4-20 tapped holes on its diameter and back face. The OFT is compatible with our OH1.0 series of optic holders.
