OGX Series Mount

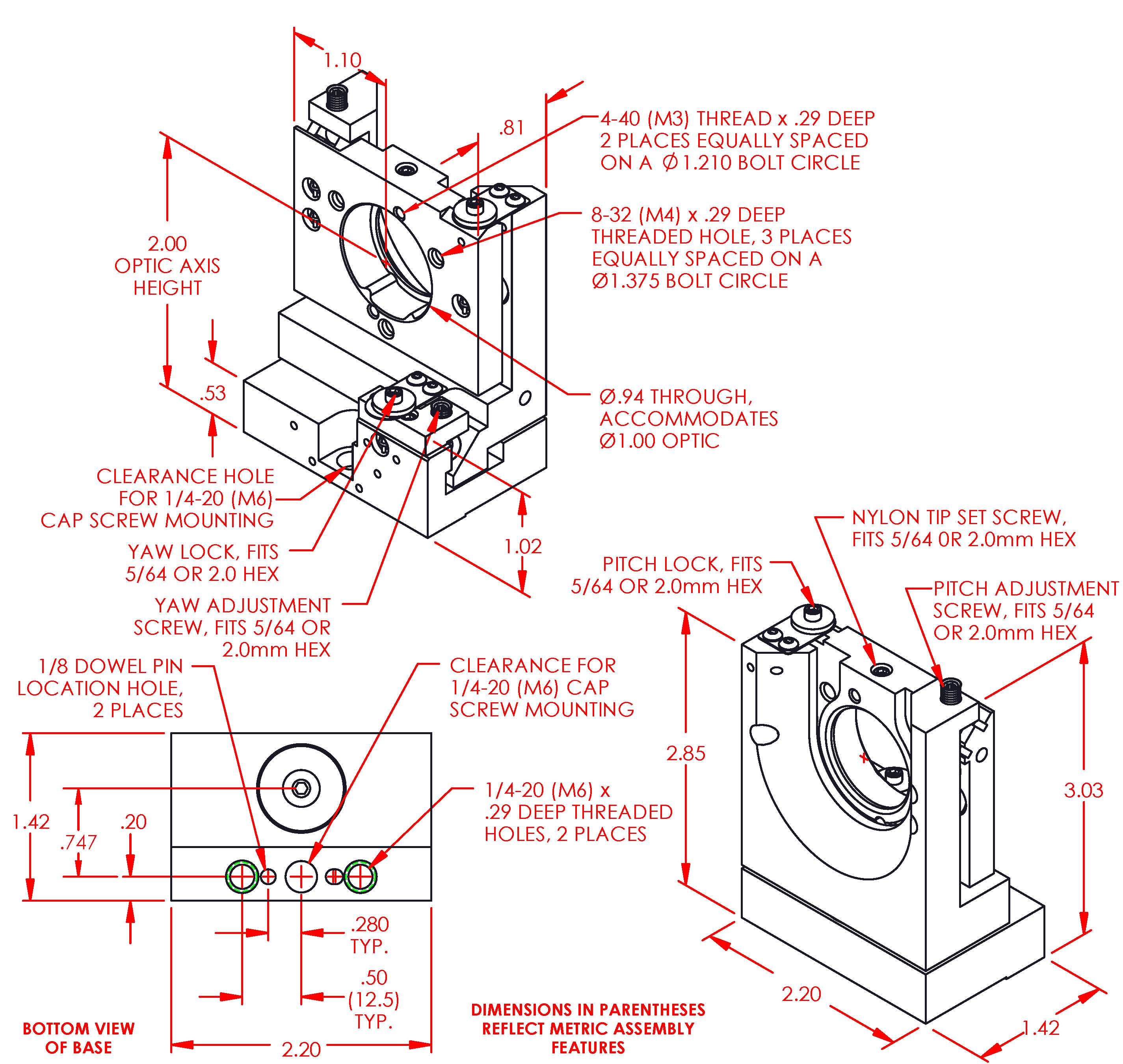

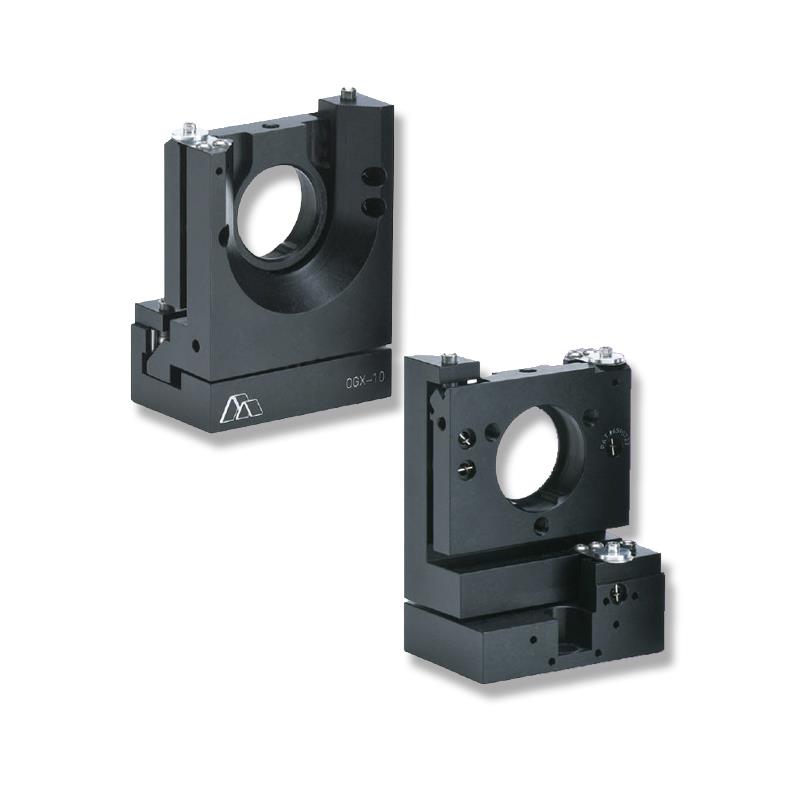

The OGX-1.0 gimbal mount offers the ultimate in stability and ease-of-adjustment in a true gimbal mount. With the reflective surface of the optic seated into the cavity the mirror surface is at the axis of rotation for pitch and yaw motion.

Adjustable and lockable from above this new series of mount provides the maximum clear aperture in a gimbal mount and allows mounting in a component crowded setup. Based on the lock architecture of our OTX optical translators these mounts can take a 4G jolt without moving 5 µm & you can design them into applications where long-term stability is specified. Siskiyou eXtreme gimbal mounts & optimized for eXtreme conditions!

Product Features:

• 100 pitch adjustment screws
• 3-point optic mounting
• Maximized clear aperture
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

Travel / axis:

• Pitch: 7°
• Yaw: 7°

Minimum controllable motion*:

• Pitch: 8.1 arc sec.
• Yaw: 5.4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OGX-1.0 gimbal mount offers the ultimate in stability and ease-of-adjustment in a true gimbal mount. With the reflective surface of the optic seated into the cavity the mirror surface is at the axis of rotation for pitch and yaw motion.

Adjustable and lockable from above this new series of mount provides the maximum clear aperture in a gimbal mount and allows mounting in a component crowded setup. Based on the lock architecture of our OTX optical translators these mounts can take a 4G jolt without moving 5 µm & you can design them into applications where long-term stability is specified. Siskiyou eXtreme gimbal mounts & optimized for eXtreme conditions!

Product Features:

• 100 pitch adjustment screws
• 3-point optic mounting
• Maximized clear aperture
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

Travel / axis:

• Pitch: 7°
• Yaw: 7°

Minimum controllable motion*:

• Pitch: 8.1 arc sec.
• Yaw: 5.4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

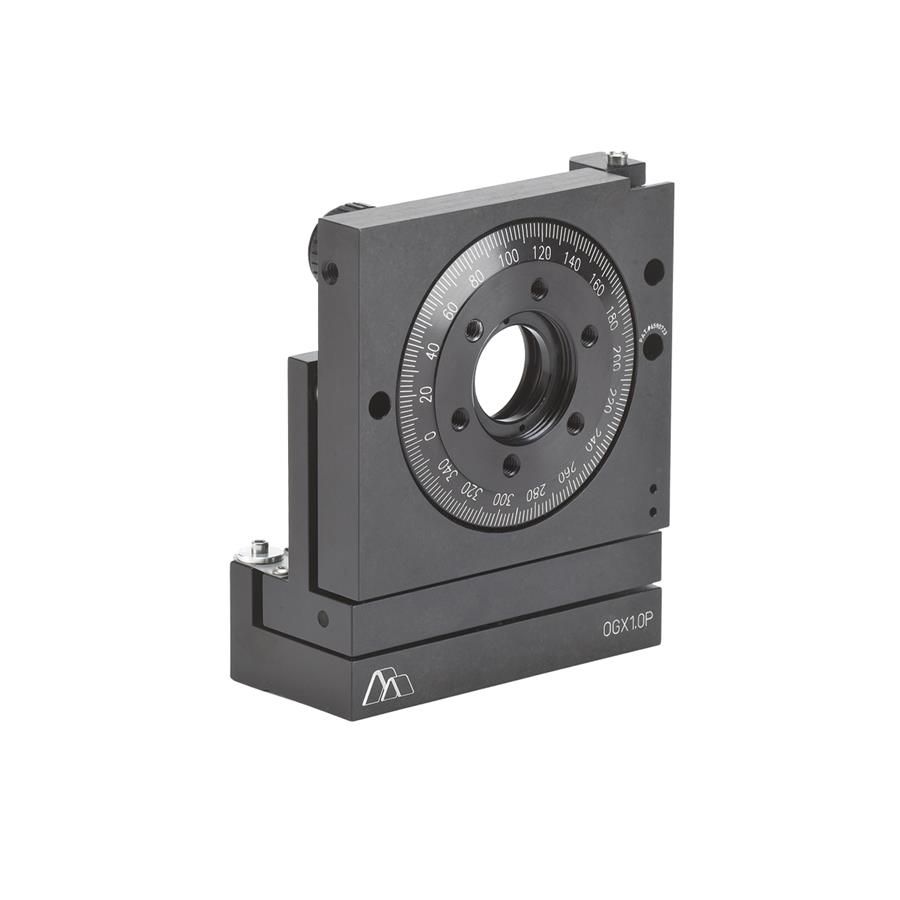

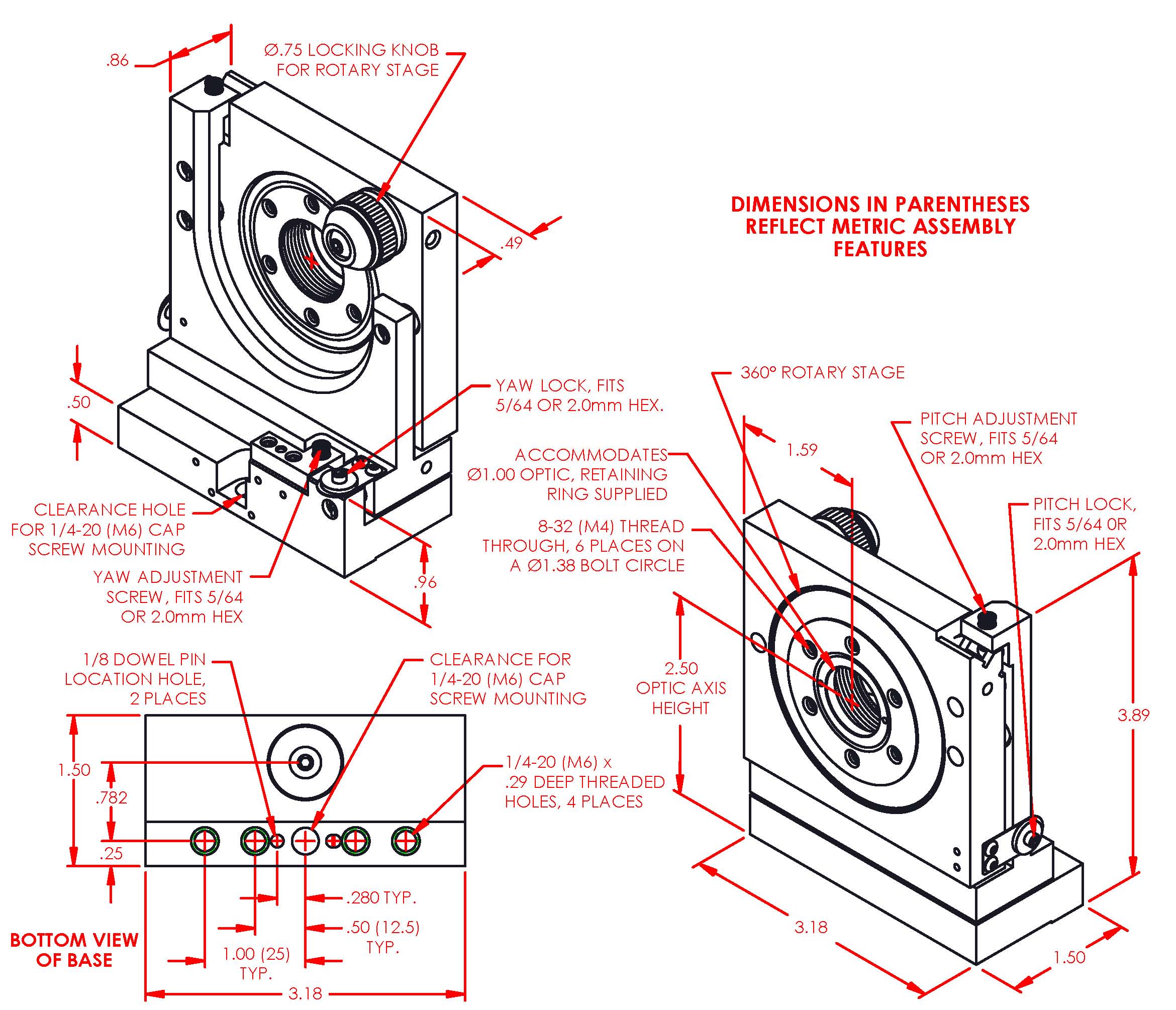

Siskiyou eXtreme polarizing mounts combine rotation on the optical axis tip and tilt adjustment into a robust package that is adjustable from the top. All 3 axes are lockable and the adjustment knob is at the top of the assembly for simple access. A variety of optical elements can be mounted in the rotating aperture with our OH series holders. Pin pockets in the base provide for rock-solid attachment to your optical chassis. Our eXtreme series is just what you need for critical applications.

Product Features:

• 100 pitch adjustment screws
• Pitch: & Yaw adjustment
• 360° lockable rotation
• Vacuum compatible versions available upon request
• RoHS compliant

Performance Specifications:

Travel / axis:

• Pitch and Yaw: 7°
• Rotation: 360°

Minimum controllable motion*:

• Pitch: 5.5 arc sec.
• Yaw: 5.1 arc sec.
• Rotation: 30 arc min.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou eXtreme polarizing mounts combine rotation on the optical axis tip and tilt adjustment into a robust package that is adjustable from the top. All 3 axes are lockable and the adjustment knob is at the top of the assembly for simple access. A variety of optical elements can be mounted in the rotating aperture with our OH series holders. Pin pockets in the base provide for rock-solid attachment to your optical chassis. Our eXtreme series is just what you need for critical applications.

Product Features:

• 100 pitch adjustment screws
• Pitch: & Yaw adjustment
• 360° lockable rotation
• Vacuum compatible versions available upon request
• RoHS compliant

Performance Specifications:

Travel / axis:

• Pitch and Yaw: 7°
• Rotation: 360°

Minimum controllable motion*:

• Pitch: 5.5 arc sec.
• Yaw: 5.1 arc sec.
• Rotation: 30 arc min.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

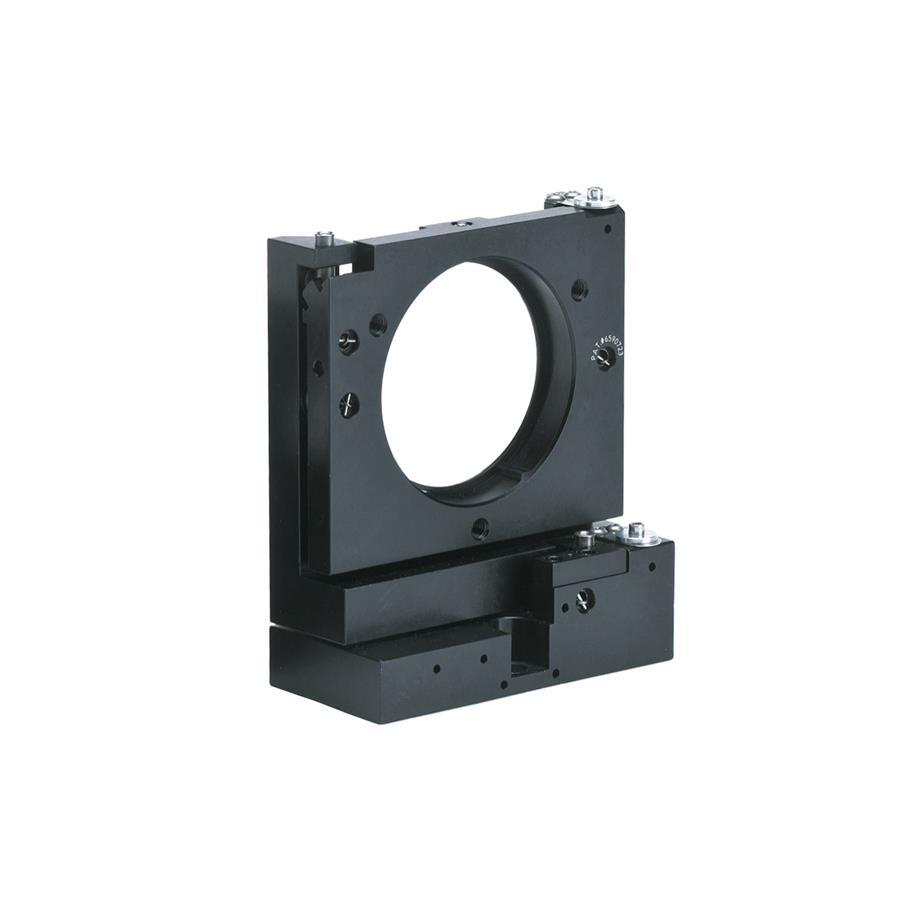

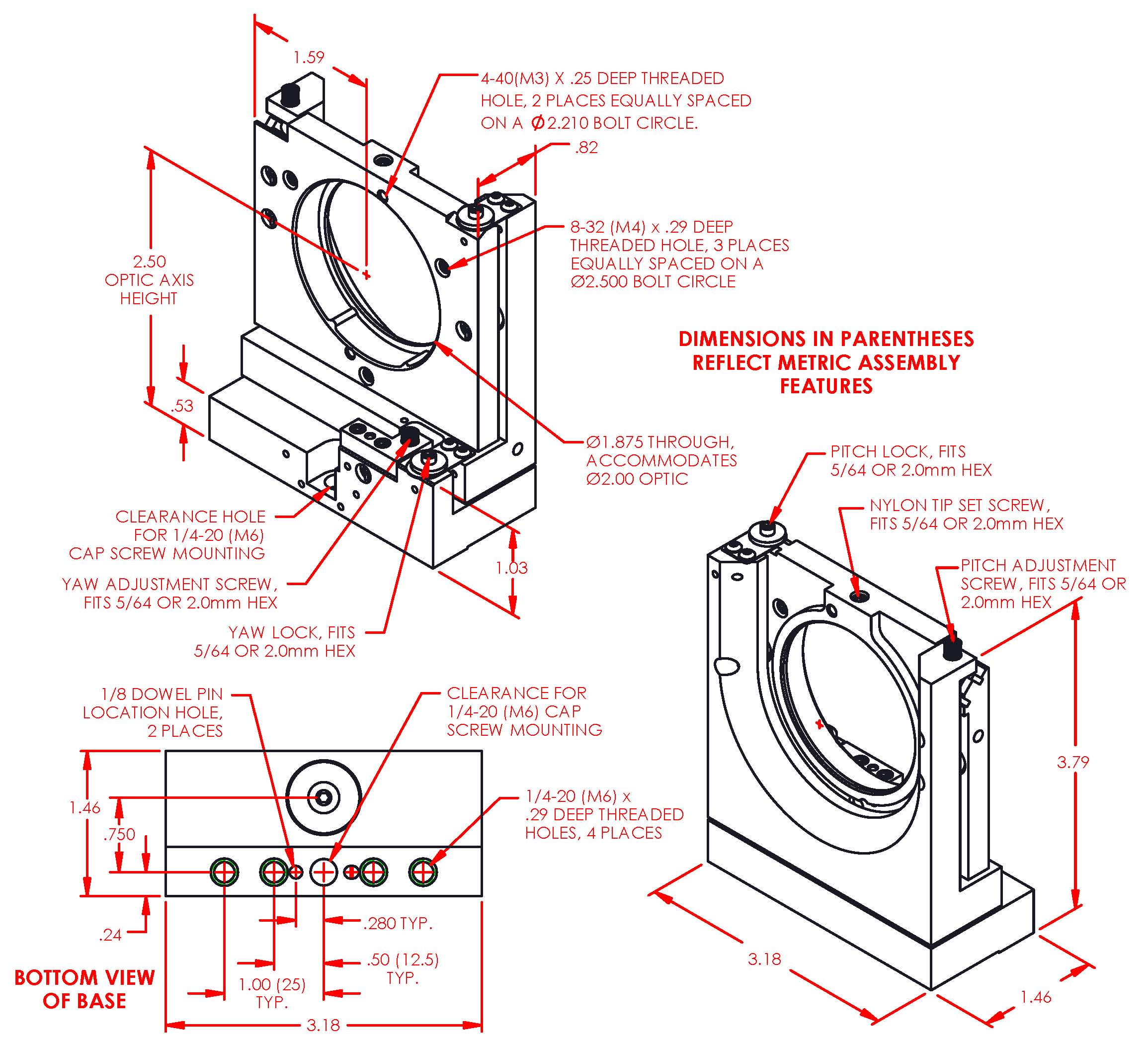

The OGX-2.0 gimbal mount offers the ultimate in stability and ease-of-adjustment in a true gimbal mount. With the reflective surface of the optic seated into the cavity the mirror surface is at the axis of rotation for pitch and yaw motion.

Adjustable and lockable from above this new series of mount provides the maximum clear aperture in a gimbal mount and allows mounting in a crowded component setup. Based on the lock architecture of our OTX optical translators these mounts can take a 4G jolt without moving 5 µm & you can design them into applications where long-term stability is specified. Siskiyou eXtreme gimbal mounts & optimized for eXtreme conditions!

Product Features:

• 100 pitch adjustment screws
• 3-point optic mounting
• Maximized clear aperture
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

Travel / axis:

• Pitch: 6°
• Yaw: 7°

Minimum controllable motion*:

• Pitch: 6.0 arc sec.
• Yaw: 5.3 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OGX-2.0 gimbal mount offers the ultimate in stability and ease-of-adjustment in a true gimbal mount. With the reflective surface of the optic seated into the cavity the mirror surface is at the axis of rotation for pitch and yaw motion.

Adjustable and lockable from above this new series of mount provides the maximum clear aperture in a gimbal mount and allows mounting in a crowded component setup. Based on the lock architecture of our OTX optical translators these mounts can take a 4G jolt without moving 5 µm & you can design them into applications where long-term stability is specified. Siskiyou eXtreme gimbal mounts & optimized for eXtreme conditions!

Product Features:

• 100 pitch adjustment screws
• 3-point optic mounting
• Maximized clear aperture
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

Travel / axis:

• Pitch: 6°
• Yaw: 7°

Minimum controllable motion*:

• Pitch: 6.0 arc sec.
• Yaw: 5.3 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
