Product Details

OT Series Translator

The compact design of our OT series optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY-, XYZ-, or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions.

Product Features

  • 80 pitch adjustment screws
  • Vacuum compatible versions available upon request


Choose options to see performance specifications and downloads.

Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

OT.5-2 [56010000E] Optic Size: .50in | Axes of Adjustment: X-Y | UOM: IMPERIAL
Variant Images
OT.5-2 [56010000E] product variant image view 1
OT.5-2 [56010000E] product variant image view 2
Product Details

The compact design of our OT.5 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT.5 optical translators are compatible with our OH.5 series of optics holders for microscope objective 0.25-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 0.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.12 inch (3.1 mm)

Minimum controllable motion*:

  • X and Y axes: 1 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

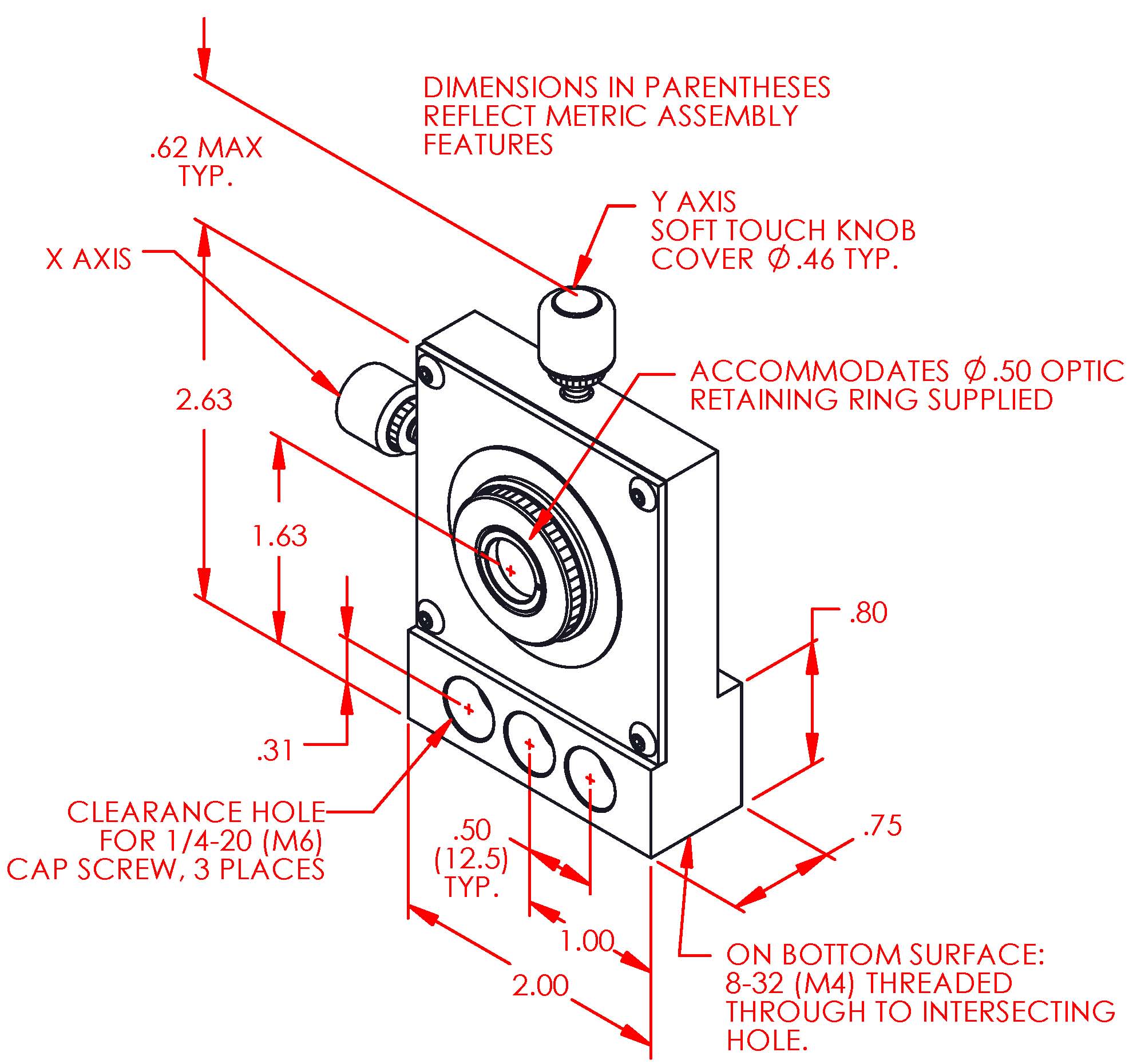

Drawing - 56010000EViewDownload
3D Model - 56010000EDownload
OT.5-2 M [56010000M] Optic Size: .50in | Axes of Adjustment: X-Y | UOM: METRIC
Variant Images

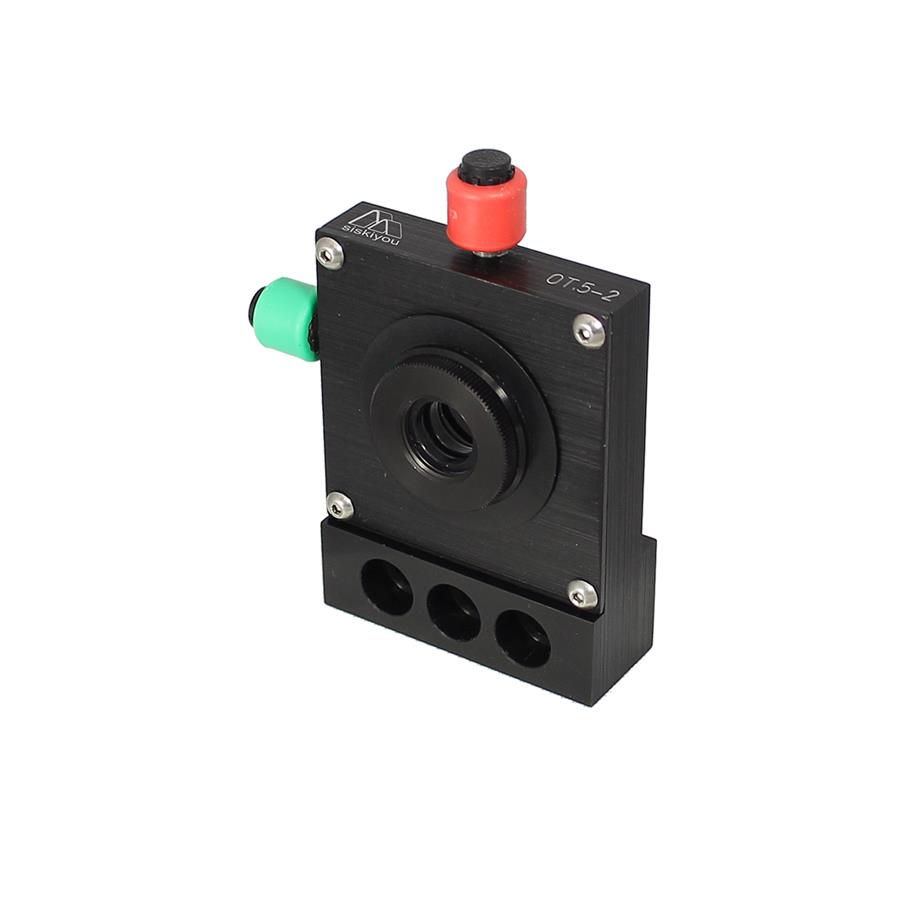

OT.5-2 M [56010000M] product variant image view 1
OT.5-2 M [56010000M] product variant image view 2
Product Details

The compact design of our OT.5 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT.5 optical translators are compatible with our OH.5 series of optics holders for microscope objective 0.25-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 0.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.12 inch (3.1 mm)

Minimum controllable motion*:

  • X and Y axes: 1 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56010000MViewDownload
3D Model - 56010000MDownload
OT.5-3 [56020000E] Optic Size: .50in | Axes of Adjustment: X-Y-Z | UOM: IMPERIAL
Variant Images
OT.5-3 [56020000E] product variant image view 1
OT.5-3 [56020000E] product variant image view 2
Product Details

The compact design of our OT.5 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT.5 optical translators are compatible with our OH.5 series of optics holders for microscope objective 0.25-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 0.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.12 inch (3.1 mm)
  • Z axis: 0.25 inch (6.3 mm)

Minimum controllable motion*:

  • X Y and Z axes: 1 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56020000EViewDownload
3D Model - 56020000EDownload
OT.5-3 M [56020000M] Optic Size: .50in | Axes of Adjustment: X-Y-Z | UOM: METRIC
Variant Images

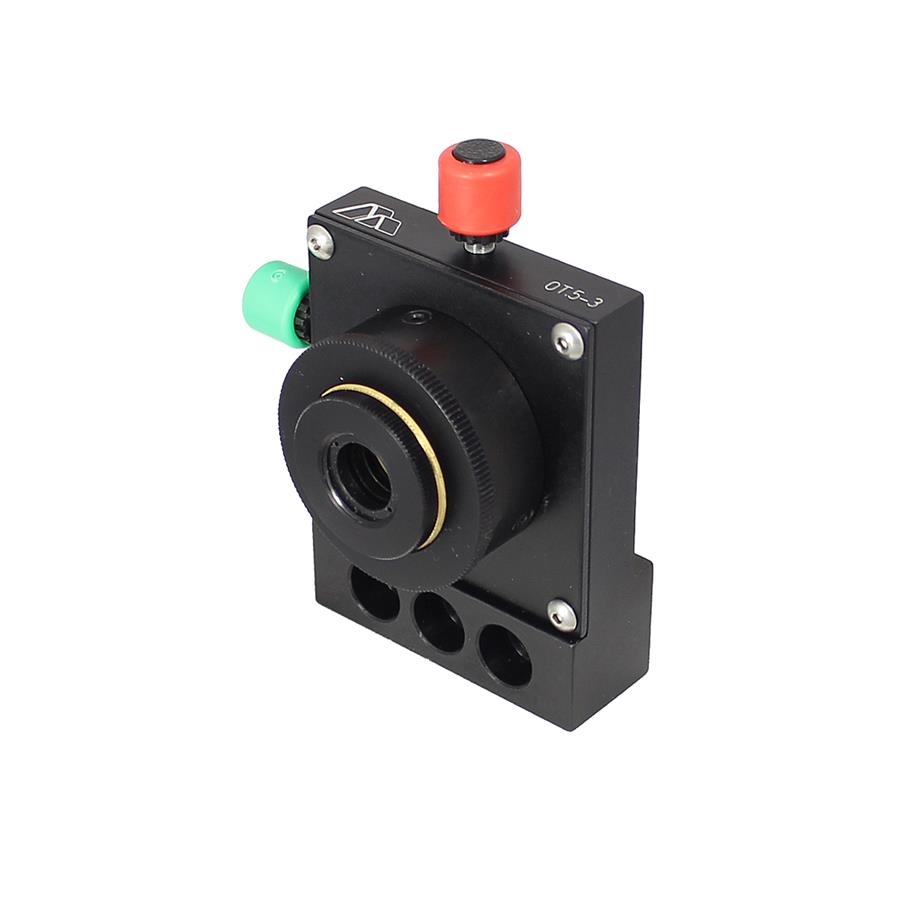

OT.5-3 M [56020000M] product variant image view 1
OT.5-3 M [56020000M] product variant image view 2
Product Details

The compact design of our OT.5 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT.5 optical translators are compatible with our OH.5 series of optics holders for microscope objective 0.25-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 0.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.12 inch (3.1 mm)
  • Z axis: 0.25 inch (6.3 mm)

Minimum controllable motion*:

  • X Y and Z axes: 1 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

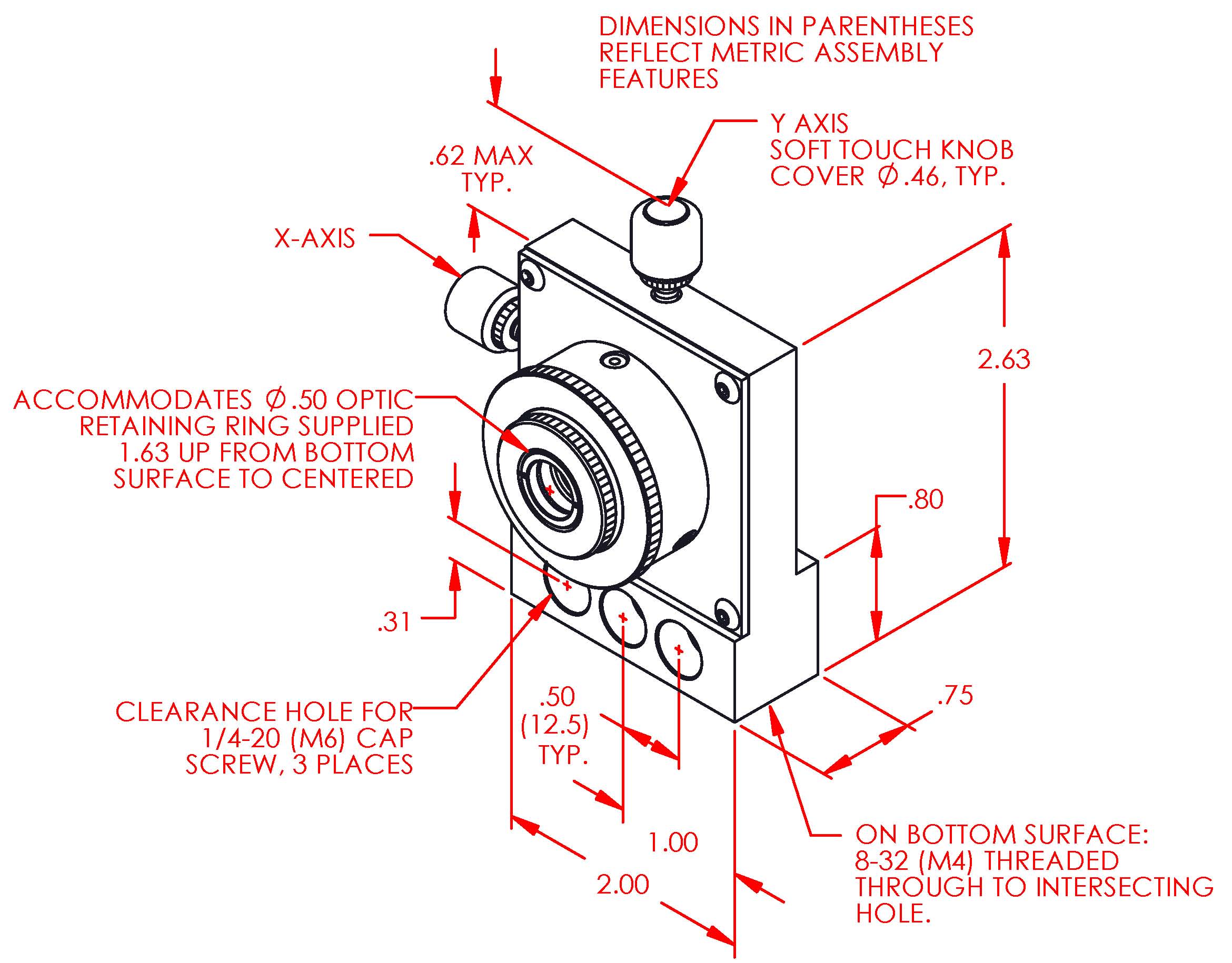

Drawing - 56020000MViewDownload
3D Model - 56020000MDownload
OT.5-5 [56080000E] Optic Size: .50in | Axes of Adjustment: X-Y-Z Tip/Tilt | UOM: IMPERIAL
Variant Images
OT.5-5 [56080000E] product variant image view 1
OT.5-5 [56080000E] product variant image view 2
Product Details

The compact design of our OT.5 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT.5 optical translators are compatible with our OH.5 series of optics holders for microscope objective 0.25-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 5-axis versions
  • 0.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.12 inch (3.1 mm)
  • Z axis: 0.25 inch (6.3 mm)
  • Pitch and Yaw: 5°

Minimum controllable motion*:

  • X Y and Z axes: 1 µm
  • Pitch and Yaw: 5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56080000EViewDownload
3D Model - 56080000EDownload

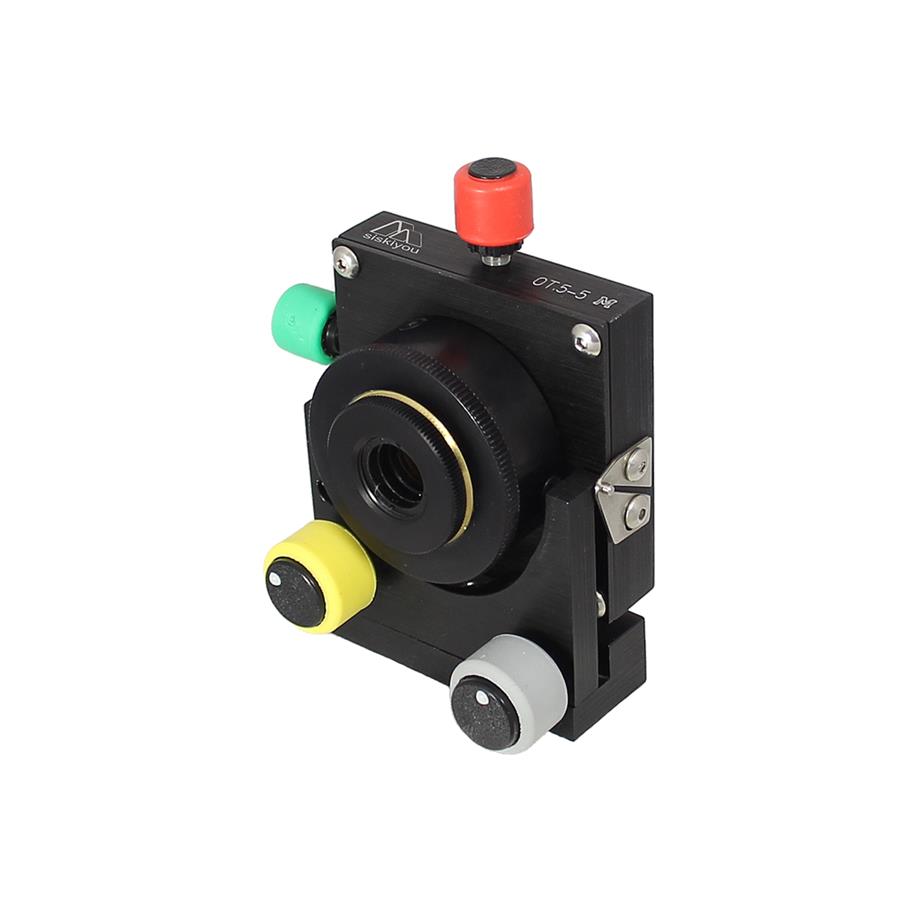

OT.5-5 M [56080000M] Optic Size: .50in | Axes of Adjustment: X-Y-Z Tip/Tilt | UOM: METRIC
Variant Images
OT.5-5 M [56080000M] product variant image view 1
OT.5-5 M [56080000M] product variant image view 2
Product Details

The compact design of our OT.5 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT.5 optical translators are compatible with our OH.5 series of optics holders for microscope objective 0.25-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 5-axis versions
  • 0.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.12 inch (3.1 mm)
  • Z axis: 0.25 inch (6.3 mm)
  • Pitch and Yaw: 5°

Minimum controllable motion*:

  • X Y and Z axes: 1 µm
  • Pitch and Yaw: 5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

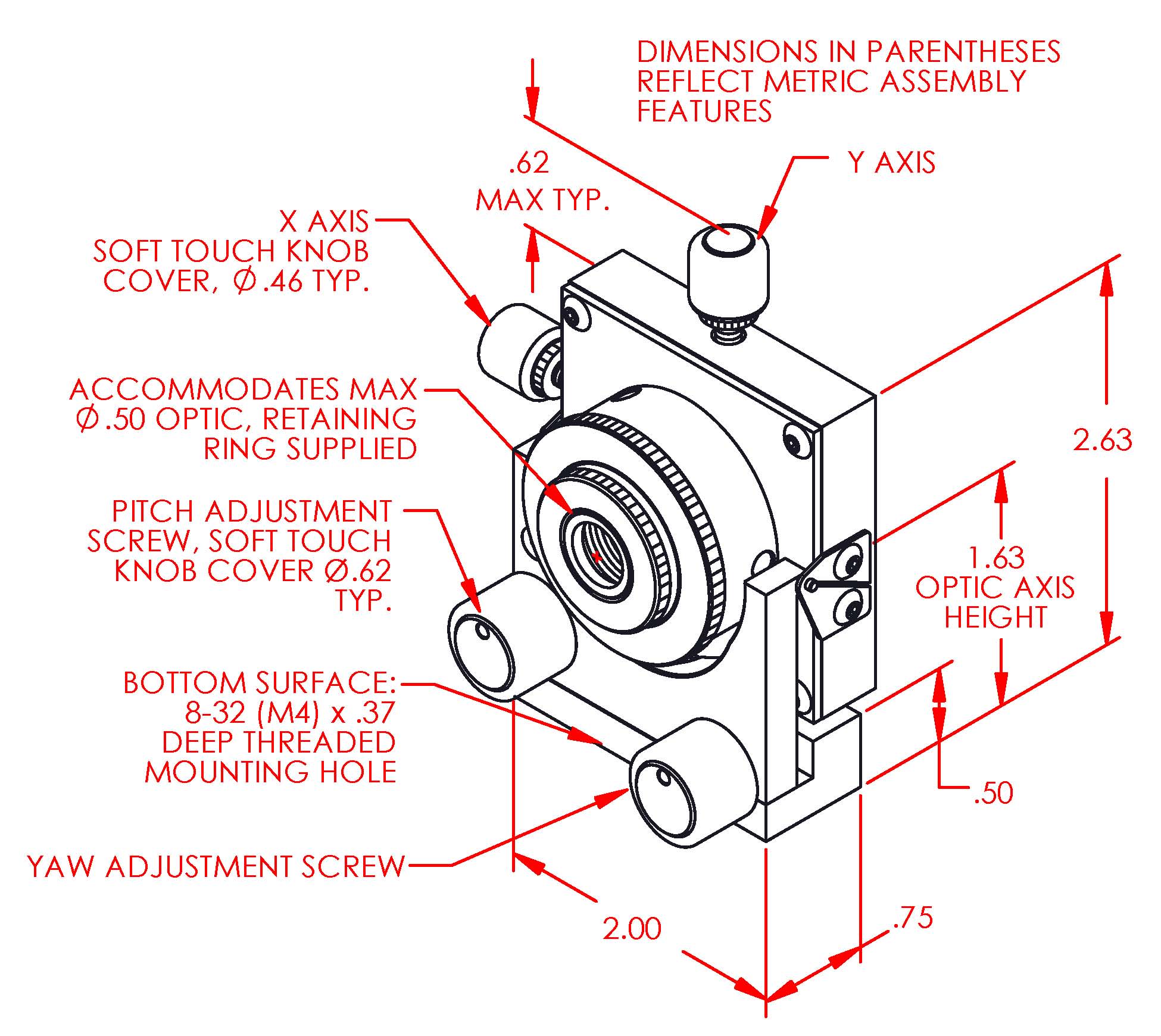

Drawing - 56080000MViewDownload
3D Model - 56080000MDownload
OT1.0-2 [56060000E] Optic Size: 1.0in | Axes of Adjustment: X-Y | UOM: IMPERIAL
Variant Images
OT1.0-2 [56060000E] product variant image view 1
OT1.0-2 [56060000E] product variant image view 2
Product Details

The thin design of our OT1.0 optical translators make them ideal for crowded beam path applications. These thin optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT1.0 optical translators are compatible with our OH1.0 series of optics holders for microscope objective and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 2-axis versions
  • 1.0-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)

Minimum controllable motion*:

  • X and Y axes: 1 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

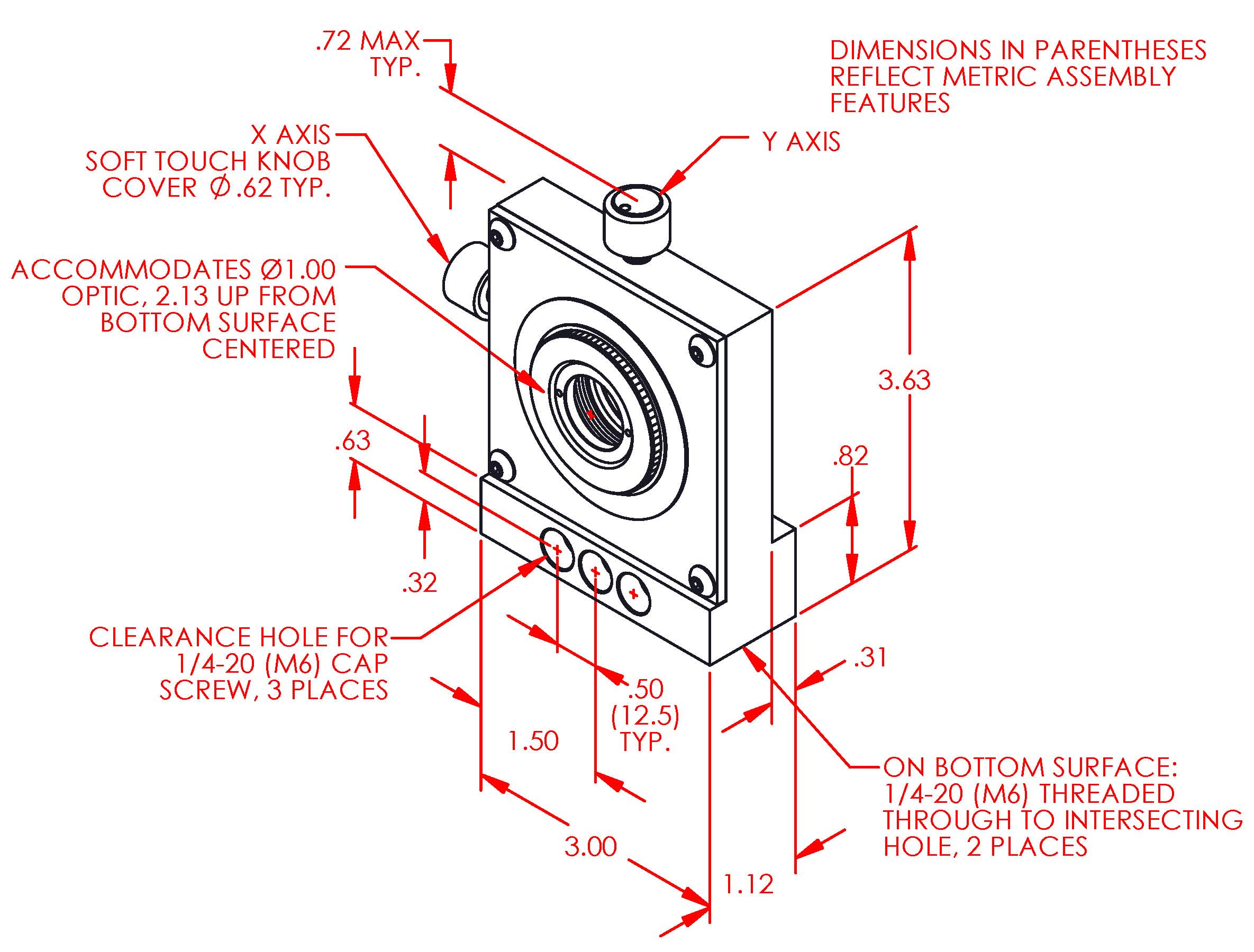

Drawing - 56060000EViewDownload
3D Model - 56060000EDownload
OT1.0-2 M [56060000M] Optic Size: 1.0in | Axes of Adjustment: X-Y | UOM: METRIC
Variant Images

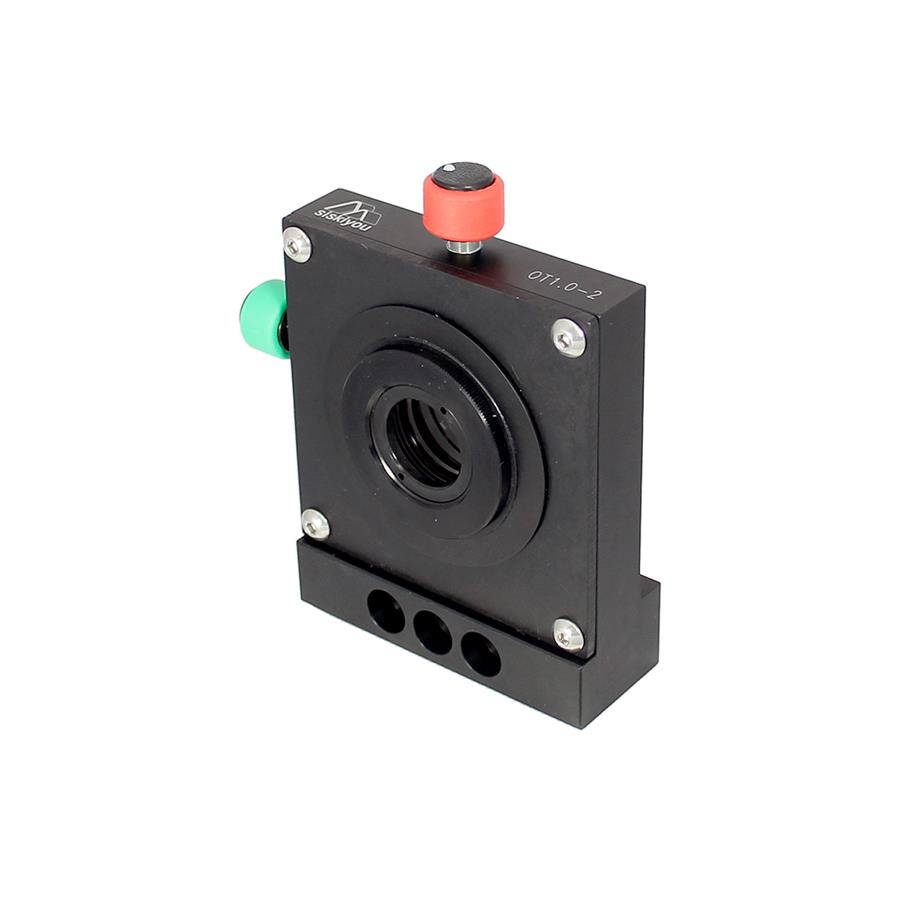

OT1.0-2 M [56060000M] product variant image view 1
OT1.0-2 M [56060000M] product variant image view 2
Product Details

The thin design of our OT1.0 optical translators make them ideal for crowded beam path applications. These thin optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT1.0 optical translators are compatible with our OH1.0 series of optics holders for microscope objective and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 2-axis versions
  • 1.0-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)

Minimum controllable motion*:

  • X and Y axes: 1 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56060000MViewDownload
3D Model - 56060000MDownload
OT1.0-3 [56070000E] Optic Size: 1.0in | Axes of Adjustment: X-Y-Z | UOM: IMPERIAL
Variant Images
OT1.0-3 [56070000E] product variant image view 1
OT1.0-3 [56070000E] product variant image view 2
Product Details

The thin design of our OT1.0 optical translators make them ideal for crowded beam path applications. These thin optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT1.0 optical translators are compatible with our OH1.0 series of optics holders for microscope objective and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 3-axis versions
  • 1.0-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)

Minimum controllable motion*:

  • X and Y axes: 1 µm
  • Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56070000EViewDownload
3D Model - 56070000EDownload

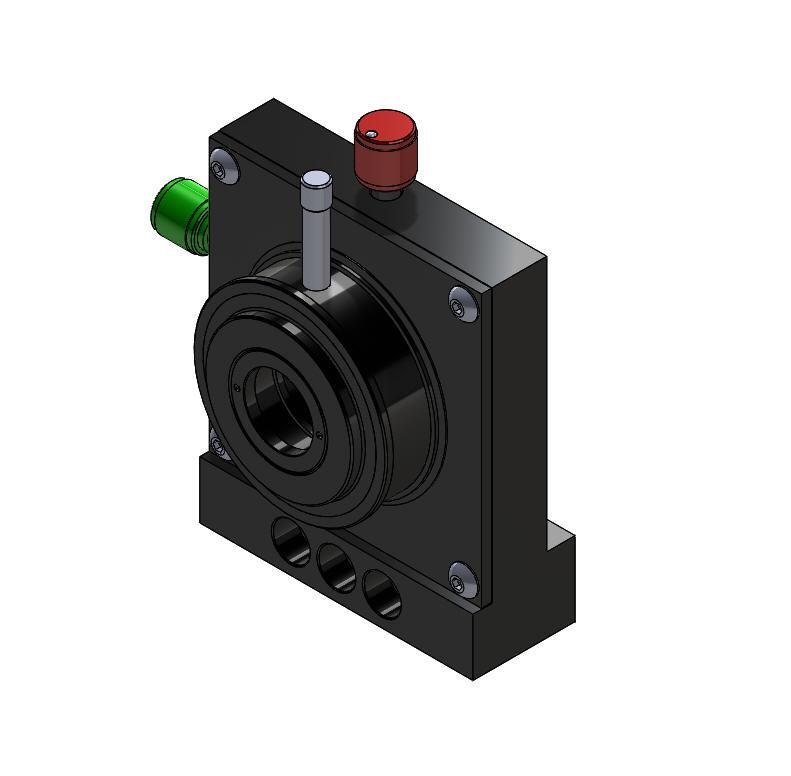

OT1.0-3 M [56070000M] Optic Size: 1.0in | Axes of Adjustment: X-Y-Z | UOM: METRIC
Variant Images
OT1.0-3 M [56070000M] product variant image view 1
OT1.0-3 M [56070000M] product variant image view 2
Product Details

The thin design of our OT1.0 optical translators make them ideal for crowded beam path applications. These thin optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT1.0 optical translators are compatible with our OH1.0 series of optics holders for microscope objective and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 3-axis versions
  • 1.0-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)

Minimum controllable motion*:

  • X and Y axes: 1 µm
  • Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

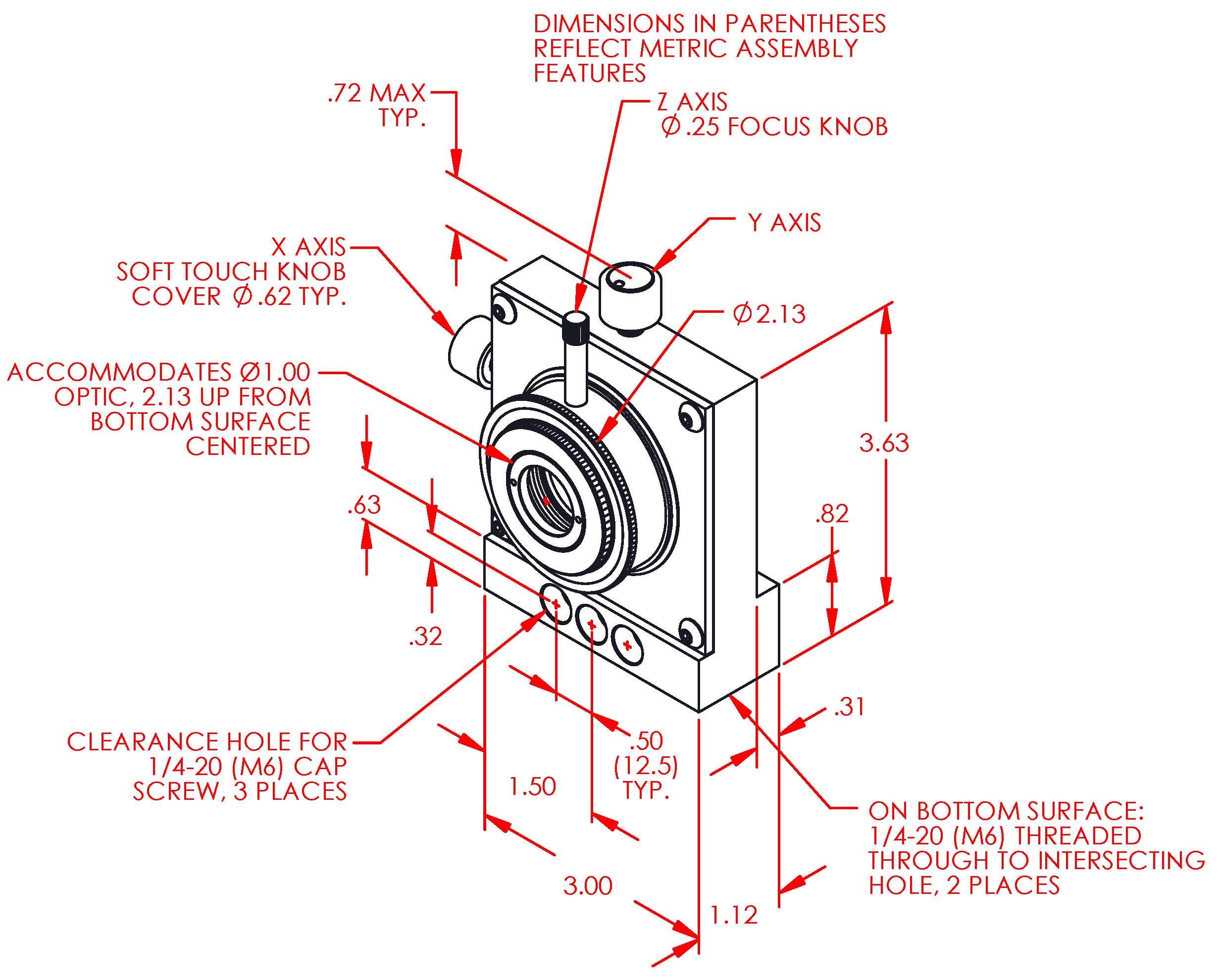

Drawing - 56070000MViewDownload
3D Model - 56070000MDownload

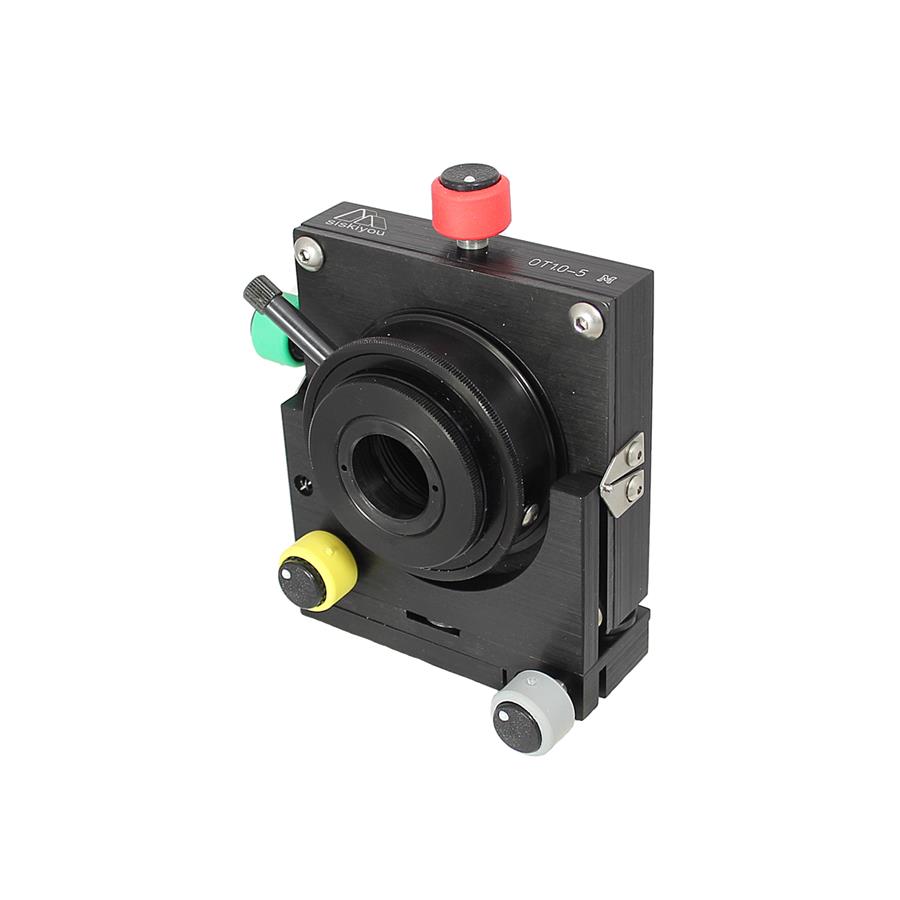

OT1.0-5 [56040000E] Optic Size: 1.0in | Axes of Adjustment: X-Y-Z Tip/Tilt | UOM: IMPERIAL
Variant Images
OT1.0-5 [56040000E] product variant image view 1
OT1.0-5 [56040000E] product variant image view 2
Product Details

The thin design of our OT1.0 optical translators make them ideal for crowded beam path applications. These thin optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT1.0 optical translators are compatible with our OH1.0 series of optics holders for microscope objective and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 1.0-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)
  • Pitch and Yaw: 11°

Minimum controllable motion*:

  • X and Y axes: 1 µm
  • Z axis: 10 µm
  • Pitch and Yaw: 4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56040000EViewDownload
OT1.0-5 M [56040000M] Optic Size: 1.0in | Axes of Adjustment: X-Y-Z Tip/Tilt | UOM: METRIC
Variant Images
OT1.0-5 M [56040000M] product variant image view 1
OT1.0-5 M [56040000M] product variant image view 2
Product Details

The thin design of our OT1.0 optical translators make them ideal for crowded beam path applications. These thin optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT1.0 optical translators are compatible with our OH1.0 series of optics holders for microscope objective and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 1.0-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)
  • Pitch and Yaw: 11°

Minimum controllable motion*:

  • X and Y axes: 1 µm
  • Z axis: 10 µm
  • Pitch and Yaw: 4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

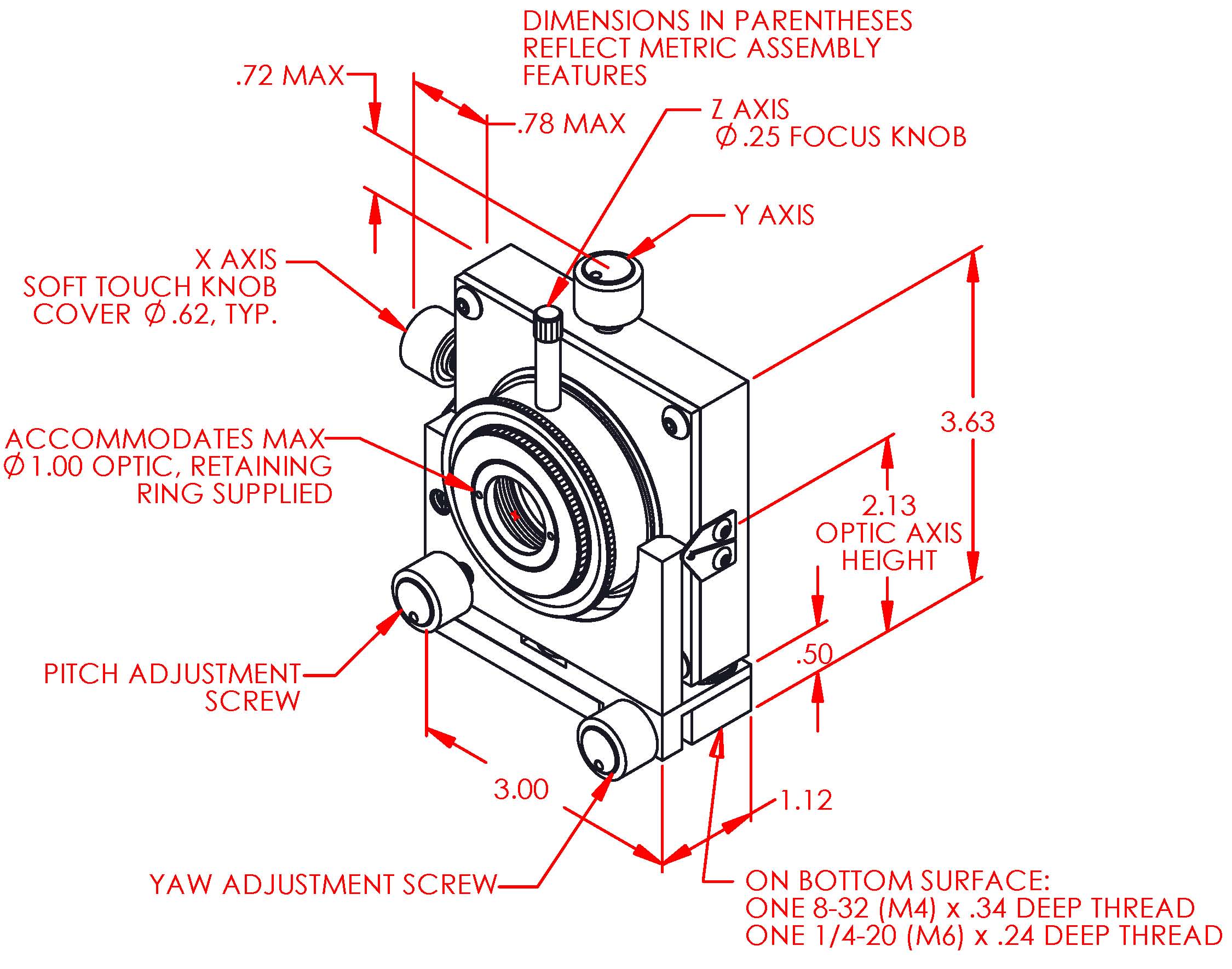

Drawing - 56040000MViewDownload
3D Model - 56040000MDownload

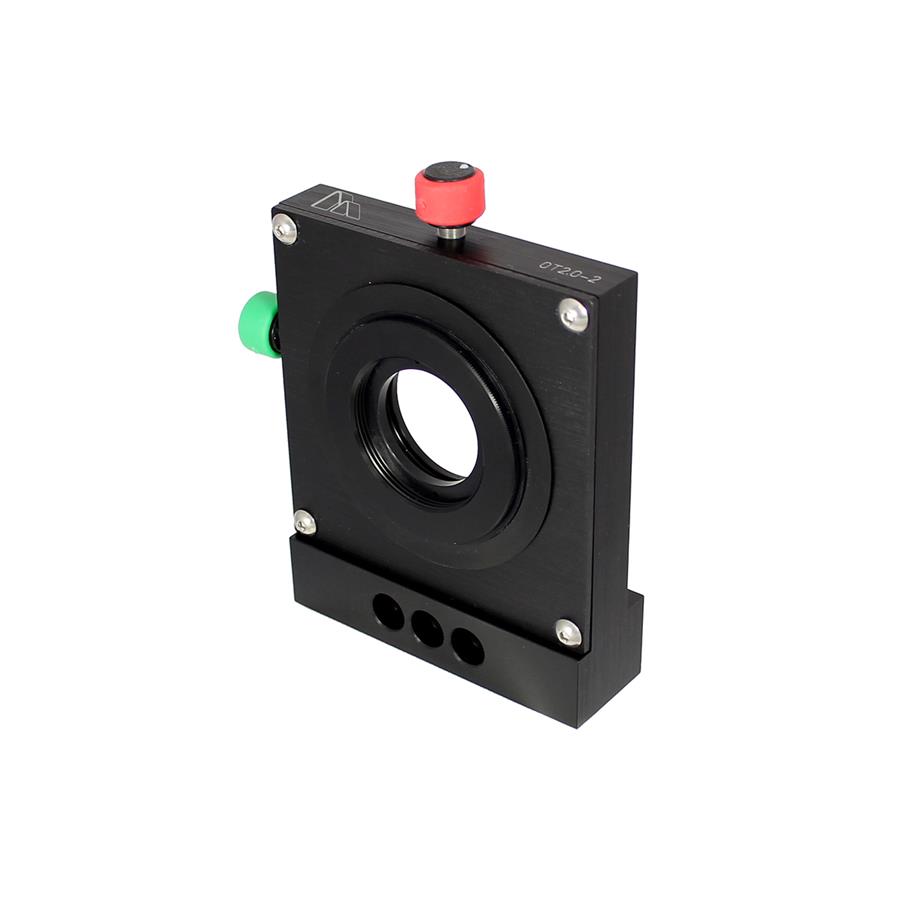

OT2.0-2 [56130000E] Optic Size: 2.0in | Axes of Adjustment: X-Y | UOM: IMPERIAL
Variant Images
OT2.0-2 [56130000E] product variant image view 1
OT2.0-2 [56130000E] product variant image view 2
Product Details

The compact design of our OT2.0 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT2.0 optical translators are compatible with our OH2.0 series of optics holders for microscope objective 1.5-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 2-axis versions
  • 1.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)

Minimum controllable motion*:

  • X and Y axes: 1 micron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

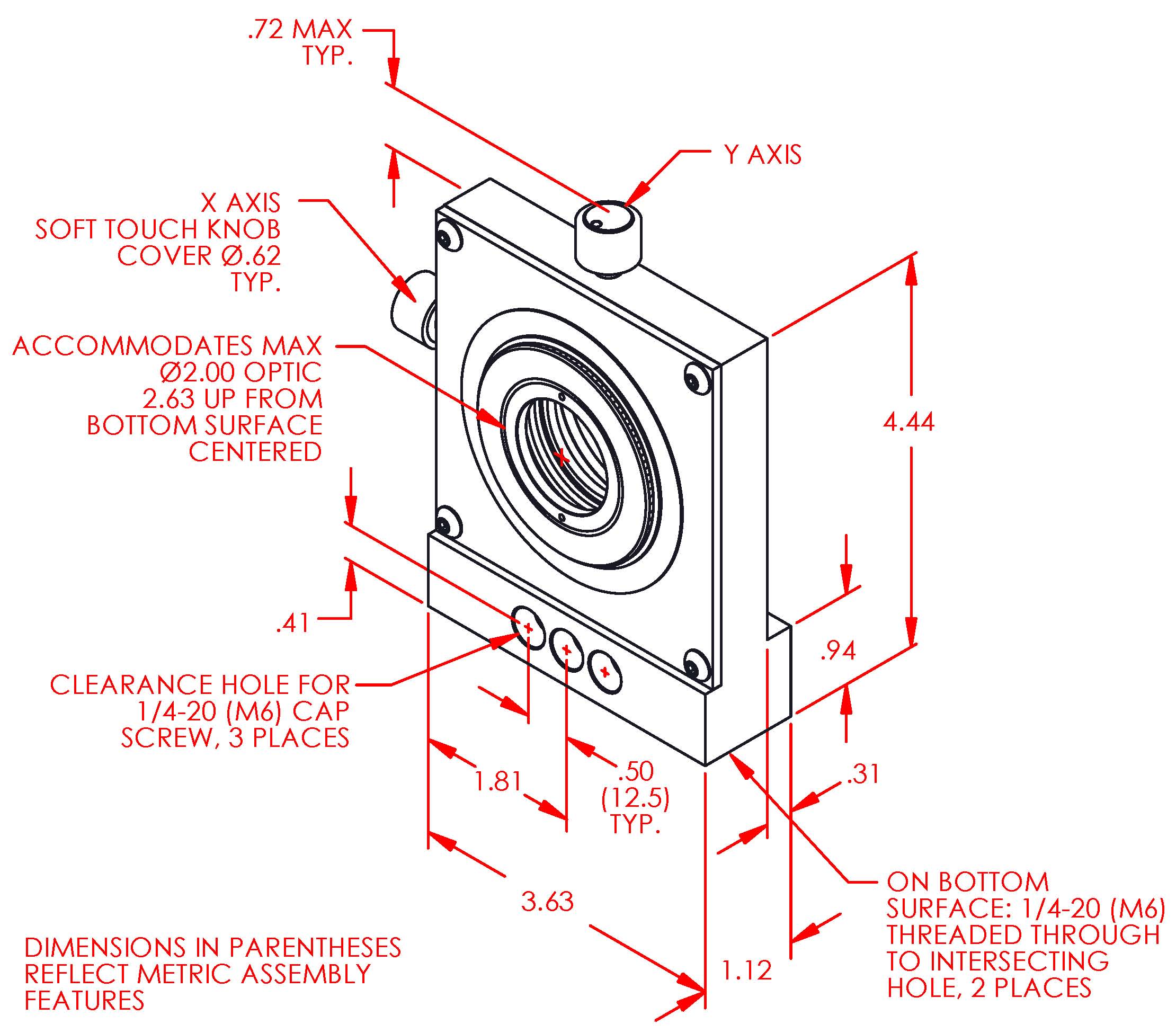

Drawing - 56130000EViewDownload
3D Model - 56130000EDownload
OT2.0-2 M [56130000M] Optic Size: 2.0in | Axes of Adjustment: X-Y | UOM: METRIC
Variant Images
OT2.0-2 M [56130000M] product variant image view 1
OT2.0-2 M [56130000M] product variant image view 2
Product Details

The compact design of our OT2.0 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT2.0 optical translators are compatible with our OH2.0 series of optics holders for microscope objective 1.5-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 2-axis versions
  • 1.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)

Minimum controllable motion*:

  • X and Y axes: 1 micron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56130000MViewDownload
3D Model - 56130000MDownload

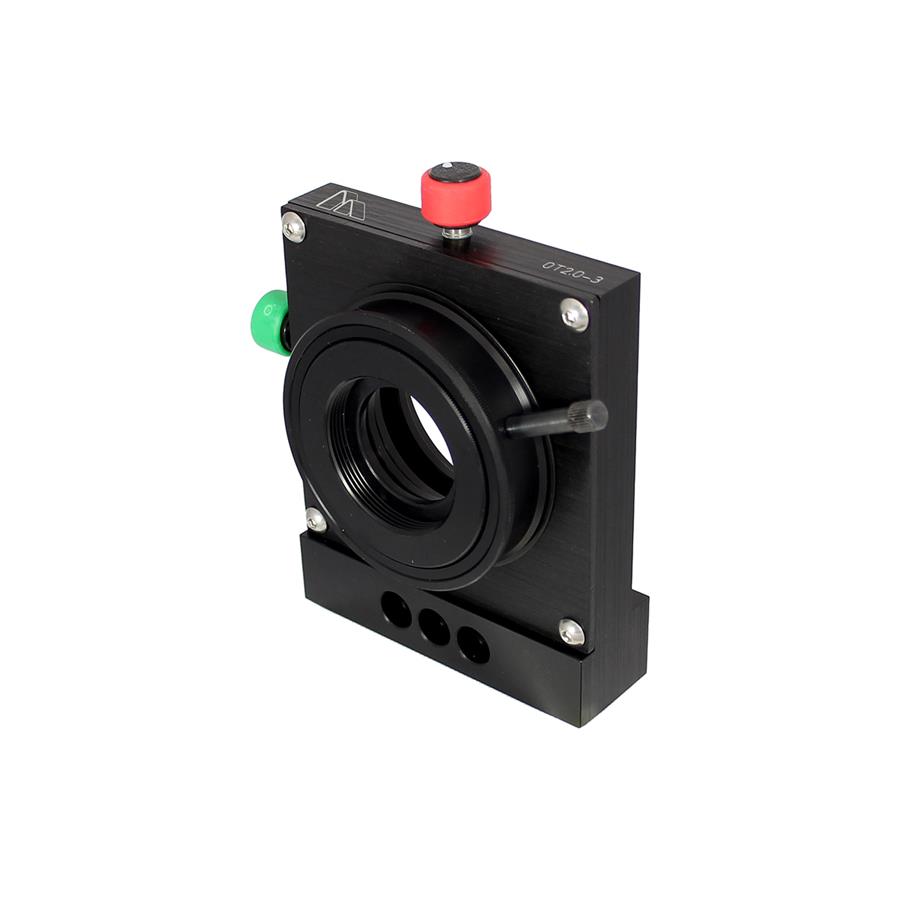

OT2.0-3 [56140000E] Optic Size: 2.0in | Axes of Adjustment: X-Y-Z | UOM: IMPERIAL
Variant Images
OT2.0-3 [56140000E] product variant image view 1
OT2.0-3 [56140000E] product variant image view 2
Product Details

The compact design of our OT2.0 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT2.0 optical translators are compatible with our OH2.0 series of optics holders for microscope objective 1.5-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 3-axis versions
  • 1.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)

Minimum controllable motion*:

  • X and Y axes: 1 micron
  • Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

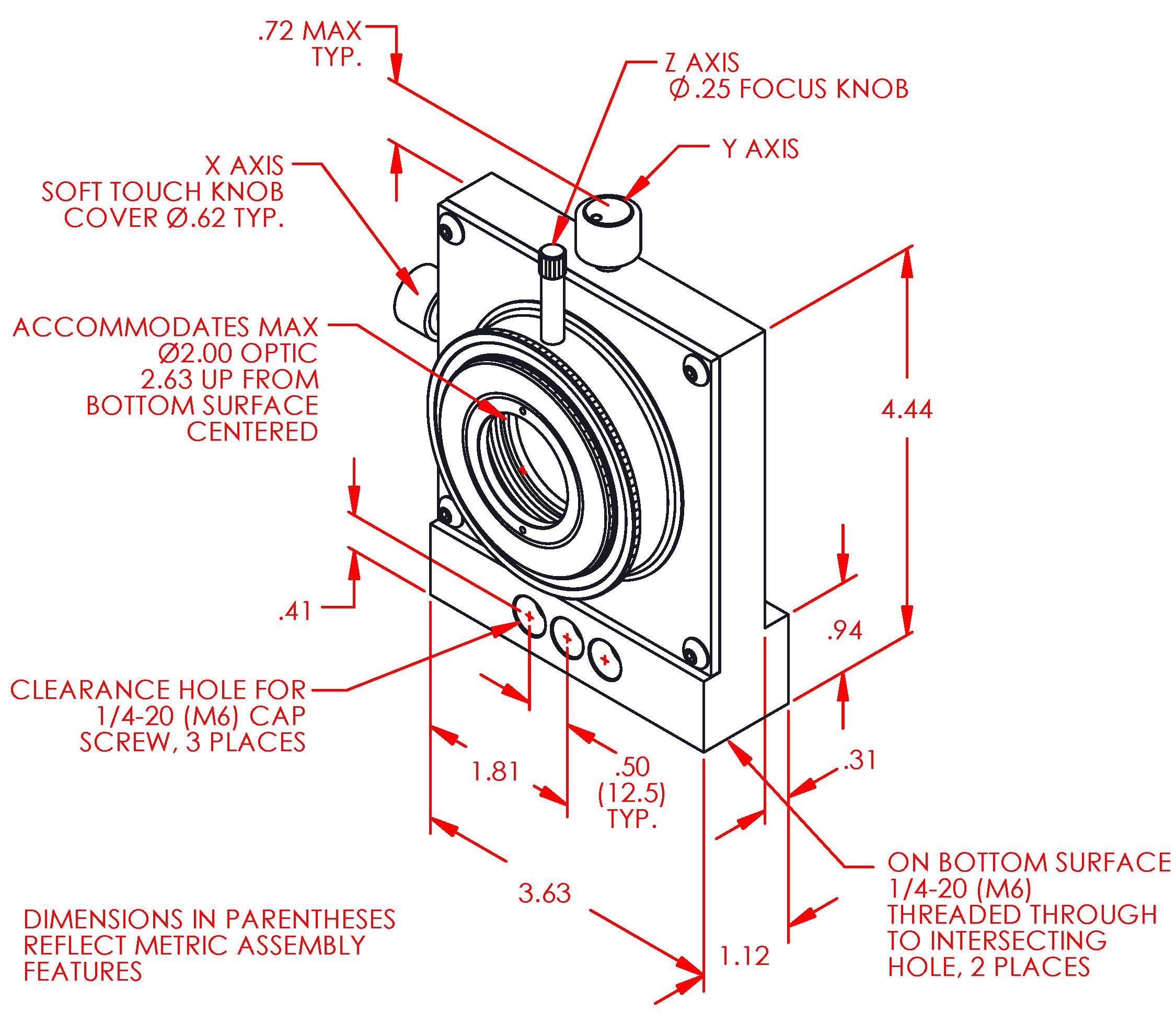

Drawing - 56140000EViewDownload
3D Model - 56140000EDownload
OT2.0-3 M [56140000M] Optic Size: 2.0in | Axes of Adjustment: X-Y-Z | UOM: METRIC
Variant Images
OT2.0-3 M [56140000M] product variant image view 1
OT2.0-3 M [56140000M] product variant image view 2
Product Details

The compact design of our OT2.0 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT2.0 optical translators are compatible with our OH2.0 series of optics holders for microscope objective 1.5-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 3-axis versions
  • 1.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)

Minimum controllable motion*:

  • X and Y axes: 1 µm
  • Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56140000MViewDownload
3D Model - 56140000MDownload

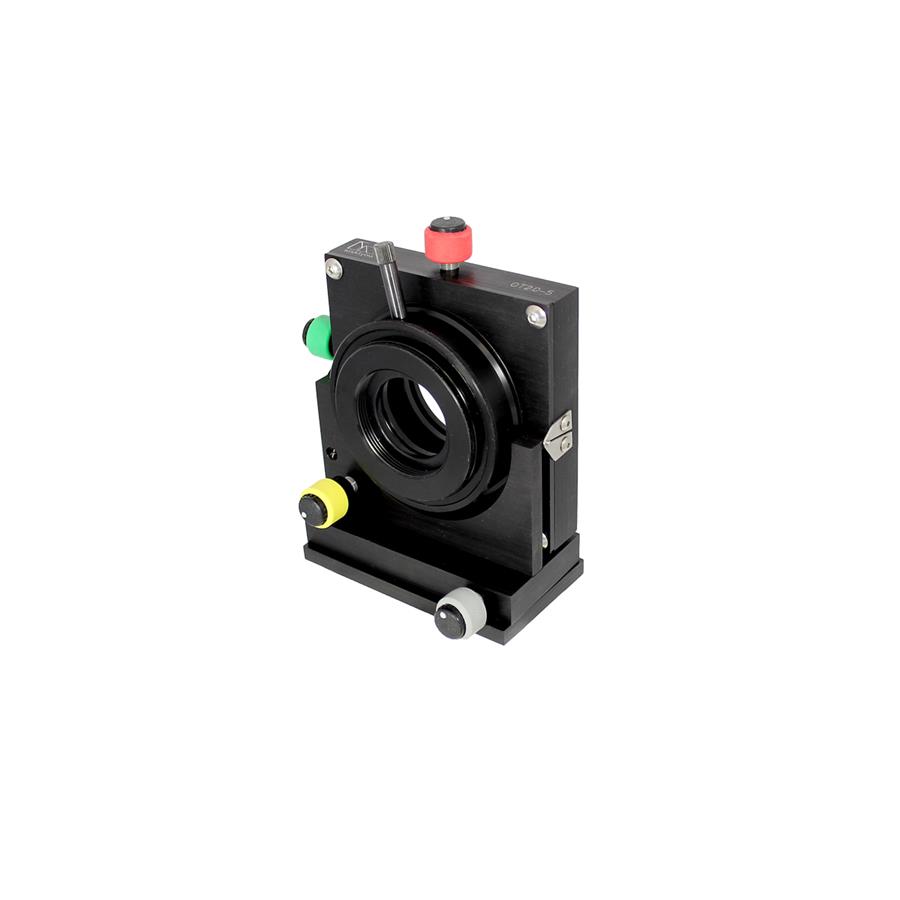

OT2.0-5 [56100000E] Optic Size: 2.0in | Axes of Adjustment: X-Y-Z Tip/Tilt | UOM: IMPERIAL
Variant Images
OT2.0-5 [56100000E] product variant image view 1
OT2.0-5 [56100000E] product variant image view 2
Product Details

The compact design of our OT2.0 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT2.0 optical translators are compatible with our OH2.0 series of optics holders for microscope objective 1.5-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 5-axis versions
  • 1.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)
  • Pitch and Yaw: 10°

Minimum controllable motion*:

  • X and Y axes: 1 micron
  • Z axis: 10 µm
  • Pitch and Yaw: 3 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload

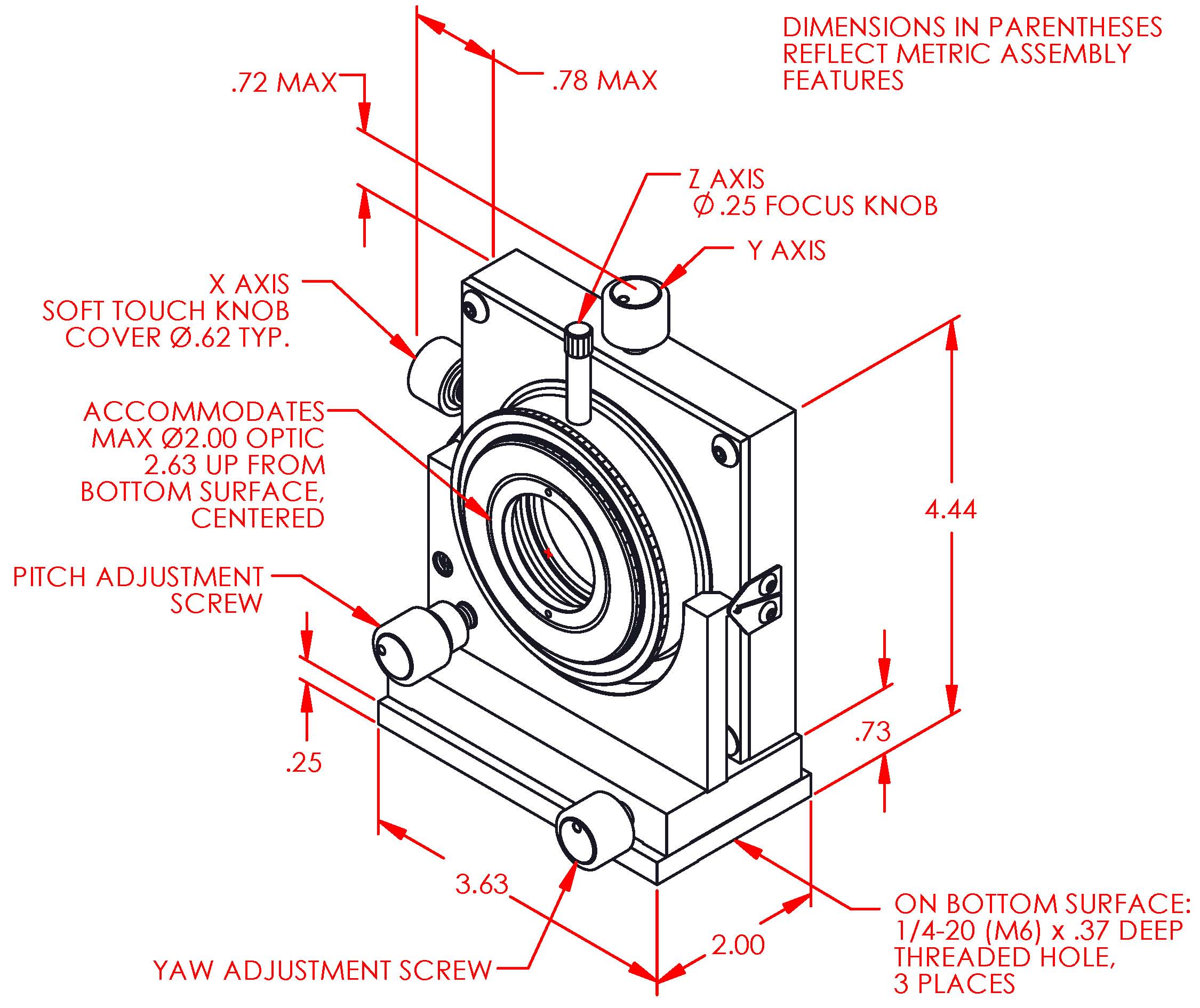

Drawing - 56100000EViewDownload
3D Model - 56100000EDownload
OT2.0-5 M [56100000M] Optic Size: 2.0in | Axes of Adjustment: X-Y-Z Tip/Tilt | UOM: METRIC
Variant Images
OT2.0-5 M [56100000M] product variant image view 1
OT2.0-5 M [56100000M] product variant image view 2
Product Details

The compact design of our OT2.0 optical translators make them ideal for crowded beam path applications. These compact optical translators use 80TPI adjustment screws for precise positioning in XY- XYZ- or 5-axis gimbaled models. The Y-axis knob in all models uses a unique capture screw design to ensure no drift due to overloading in that axis. All models use our SoftTouch® color coded knob caps for easy axis identification in low light conditions. OT2.0 optical translators are compatible with our OH2.0 series of optics holders for microscope objective 1.5-inch optic and custom optic mounting.

Product Features:

  • 80 pitch adjustment screws
  • 5-axis versions
  • 1.5-inch optic holder included
  • Vacuum compatible versions available upon request
  • RoHS compliant

Performance Specifications:

Travel

  • X and Y axes: 0.187 inch (4.7 mm)
  • Z axis: 0.25 inch (6.3 mm)
  • Pitch and Yaw: 10°

Minimum controllable motion*:

  • X and Y axes: 1 micron
  • Z axis: 10 µm
  • Pitch and Yaw: 3 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Reference Documents
DocumentViewDownload
Drawing - 56100000MViewDownload
3D Model - 56100000MDownload

Customers Also Viewed
