RC series rail carriers attach anywhere along MDR mini dovetail rails for quick and secure positioning of components. These one-piece aluminum RC rail carriers present a low profile and allow close spacing between components. Spring-loaded, hard polymer guides along the mating surface of the RC rail carriers ensure wobble-free sliding motion and dependable linear alignment along the MDR micro-dovetail rails. By backing out the clamping screw, any RC rail carrier can be positioned along the MDR micro-dovetail rail with a simple snap-on motion without removing the other carriers. Once in position, tighten the clamp screw fully for creep-free clamping.
Product Features
- Unique snap-on feature
- Smooth coarse positioning
- 8-32, threaded
- 5 arc-second repeatable mirror mount flipper
- Vacuum compatible versions available upon request
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
RC-MMF.5 [61110000E]
Variant Images
![RC-MMF.5 [61110000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/61110000E.jpg)
![RC-MMF.5 [61110000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/61110000E_1.jpg)
Product Details
RC series rail carriers attach anywhere along MDR mini dovetail rails for quick and secure positioning of components. These one-piece aluminum RC rail carriers present a low profile and allow close spacing between components. Spring-loaded hard polymer guides along the mating surface of the RC rail carriers ensure wobble-free sliding motion and dependable linear alignment along the MDR micro-dovetail rails. By backing out the clamping screw any RC rail carrier can be positioned along the MDR micro-dovetail rail with a simple snap-on motion without removing the other carriers. Once in position tighten the clamp screw fully for creep-free clamping.
Product Features:
- Unique snap-on feature
- Smooth coarse positioning
- 8-32 threaded
- 5 arc-second repeatable mirror mount flipper
- Vacuum compatible versions available upon request
- RoHS compliant

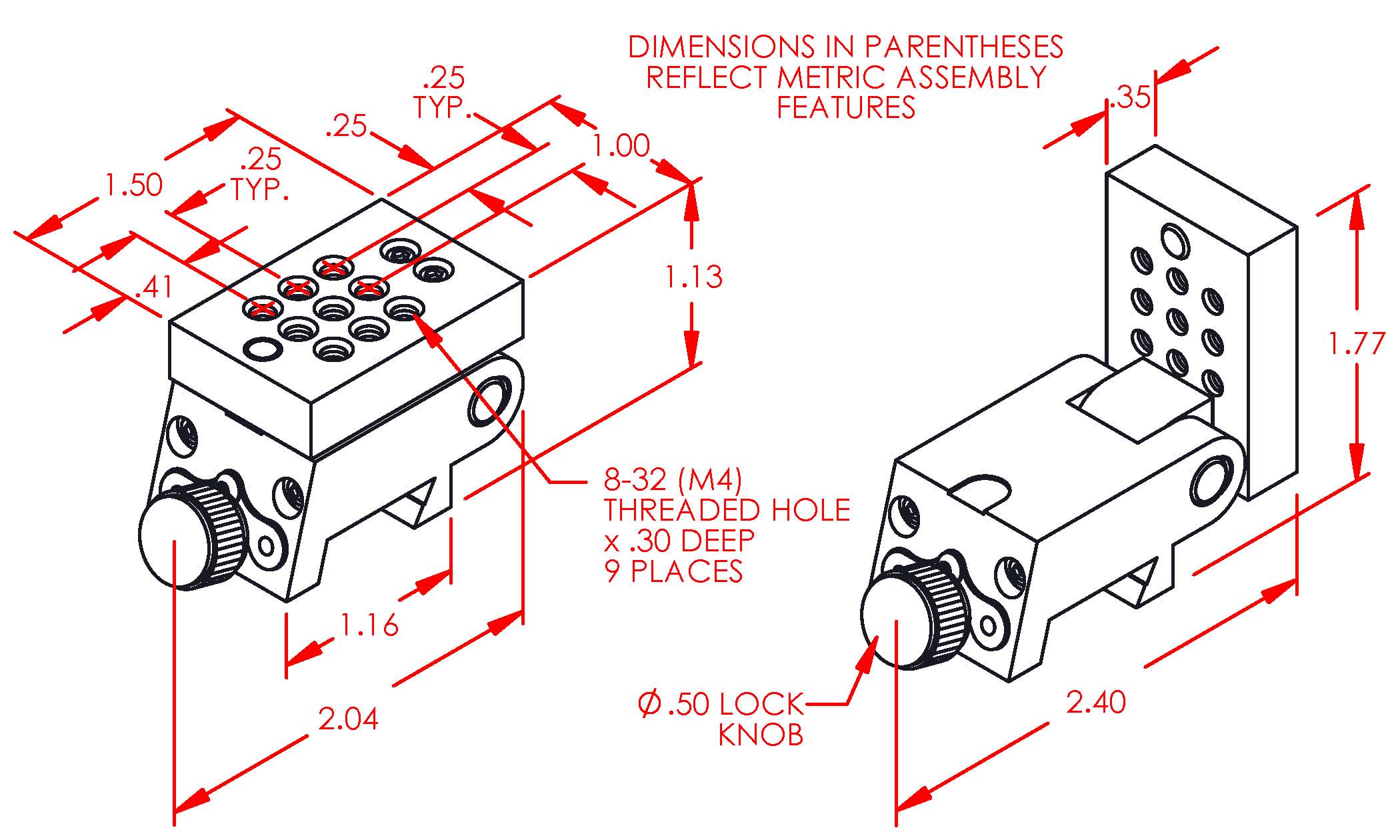

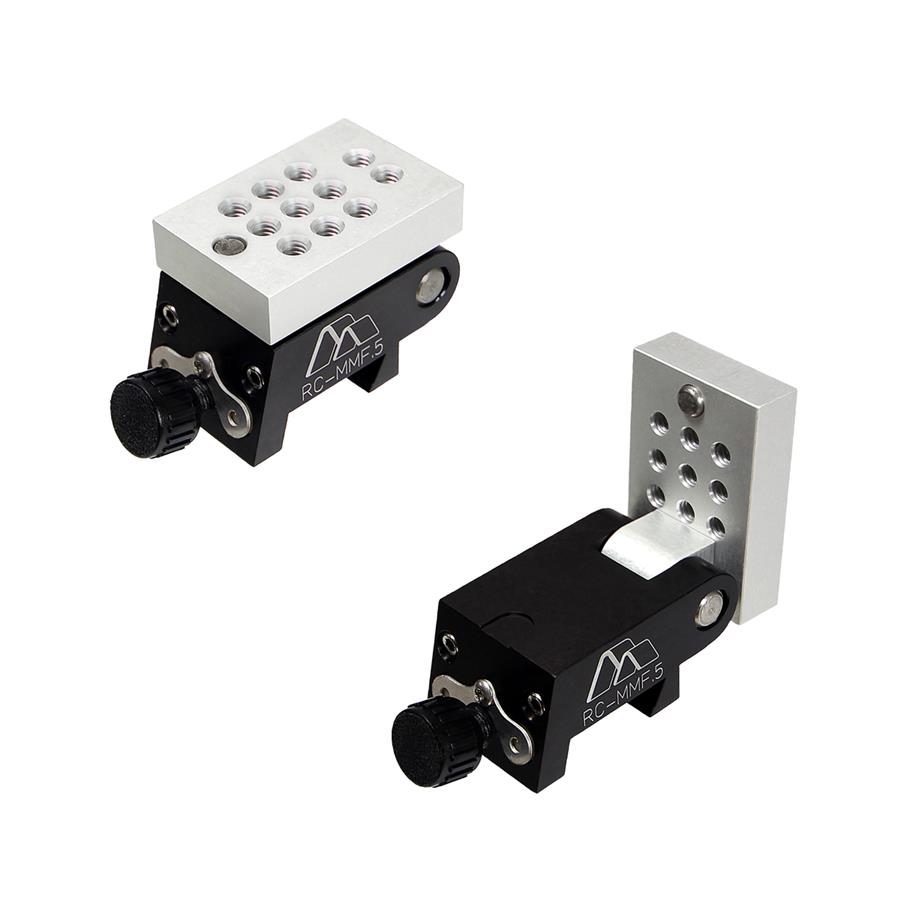

RC-MMF.5 M [61110000M]
Variant Images
![RC-MMF.5 M [61110000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/61110000M.jpg)
![RC-MMF.5 M [61110000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/61110000M_1.jpg)
Product Details
RC series rail carriers attach anywhere along MDR mini dovetail rails for quick and secure positioning of components. These one-piece aluminum RC rail carriers present a low profile and allow close spacing between components. Spring-loaded hard polymer guides along the mating surface of the RC rail carriers ensure wobble-free sliding motion and dependable linear alignment along the MDR micro-dovetail rails. By backing out the clamping screw any RC rail carrier can be positioned along the MDR micro-dovetail rail with a simple snap-on motion without removing the other carriers. Once in position tighten the clamp screw fully for creep-free clamping.
Product Features:
- Unique snap-on feature
- Smooth coarse positioning
- M4 threaded
- 5 arc-second repeatable mirror mount flipper
- Vacuum compatible versions available upon request
- RoHS compliant
