RLJ-1.0 Series Jack
SKU:
53010000
Name:
$424.00
RLJ-1.0 Series Jack
$424.00
RLJ-1.0 Series Jack
The RLJ-10 is a simple but effective "screw" design lab jack. The simple design has been improved by using tight-tolerance guide rods to minimize rotation of the upper platform during linear vertical translation. The upper platform has a built-in 360° rotation and is useful for positioning cube beamsplitters. Our unique vertical adjustment design virtually eliminates all backlash and provides a rock-solid, wobble-free platform at any height.
Product Features
- 360 rotating platform, lockable
- 1.0-inch (25-mm) travel range, lockable
Performance Specifications
- Maximum static load: 200 lbs
- Maximum operational load: 50 lbs
- Rotational resolution: 2°
- Vertical resolution: 10 µm
- Parallelism over full travel: .001-inch (.5 milliradians)
- Platform runout / wobble: .001-inch (.5 milliradians)
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
RLJ-1.0 [53010000E]
Variant Images
![RLJ-1.0 [53010000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/53010000E.jpg)

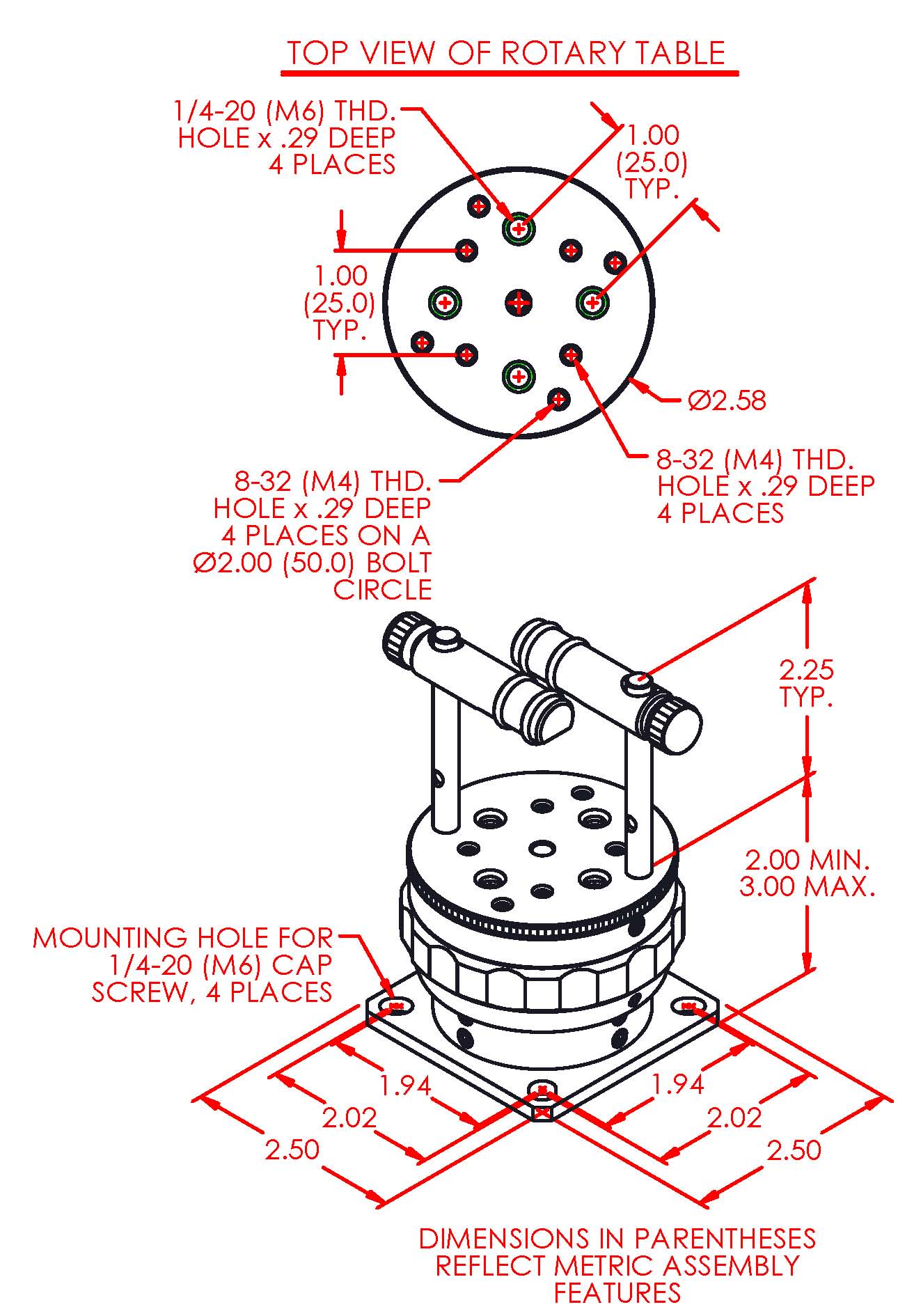

![RLJ-1.0 [53010000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/53010000E_1.jpg)
Product Details
The RLJ-10 is a simple but effective screw design lab jack. The simple design has been improved by using tight-tolerance guide rods to minimize rotation of the upper platform during linear vertical translation. The upper platform has a built-in 360° rotation and is useful for positioning cube beamsplitters. Our unique vertical adjustment design virtually eliminates all backlash and provides a rock-solid wobble-free platform at any height.
Product Features:
- 360° rotating platform lockable
- 1.0-inch (25-mm) travel range lockable
- RoHS compliant
Performance Specifications:
- Maximum static load 200 lbs
- Maximum operational load 50 lbs
- Rotational resolution: 2°
- Vertical resolution: 10 µm
- Parallelism over full travel: .001-inch (.5 milliradians)
- Platform runout / wobble: .001-inch (.5 milliradians)
RLJ-1.0 M [53010000M]
Variant Images

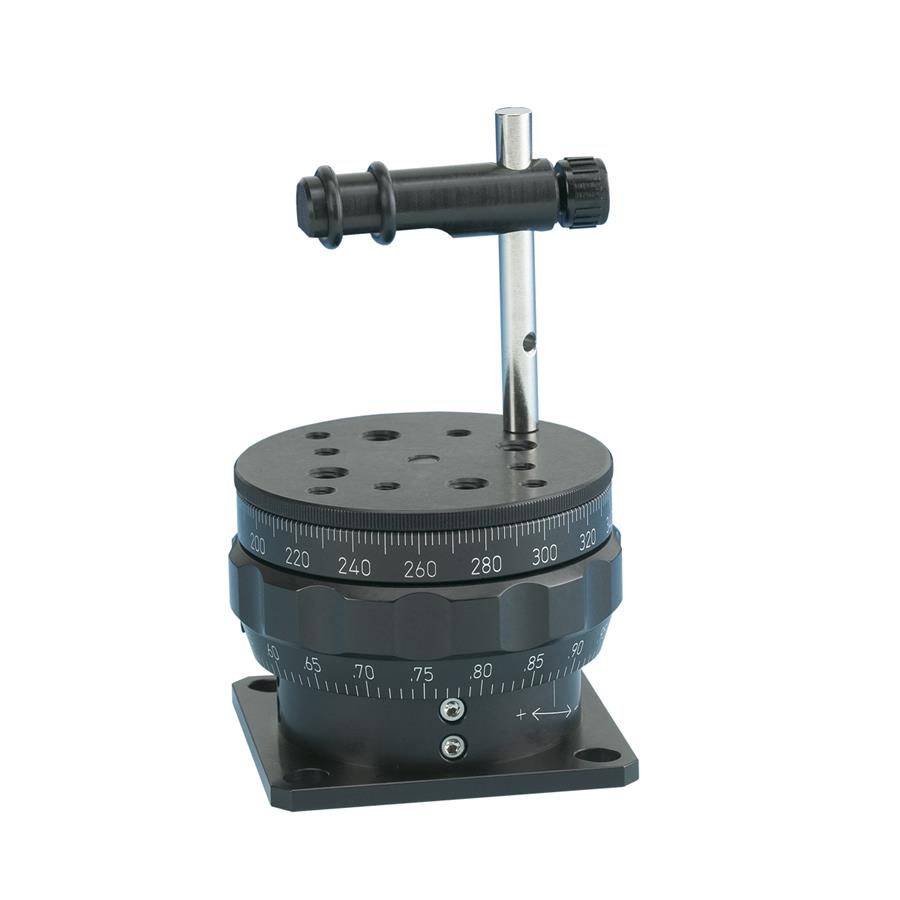

![RLJ-1.0 M [53010000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/53010000M.jpg)
![RLJ-1.0 M [53010000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/53010000M_1.jpg)
Product Details
The RLJ-10 is a simple but effective screw design lab jack. The simple design has been improved by using tight-tolerance guide rods to minimize rotation of the upper platform during linear vertical translation. The upper platform has a built-in 360° rotation and is useful for positioning cube beamsplitters. Our unique vertical adjustment design virtually eliminates all backlash and provides a rock-solid wobble-free platform at any height.
Product Features:
- 360° rotating platform lockable
- 1.0-inch (25-mm) travel range lockable
- RoHS compliant
Performance Specifications:
- Maximum static load 200 lbs
- Maximum operational load 50 lbs
- Rotational resolution: 2°
- Vertical resolution: 10 µm
- Parallelism over full travel: .001-inch (.5 milliradians)
- Platform runout / wobble: .001-inch (.5 milliradians)
