RM80 Series Mount
SKU:
RM80 SERIES
Name:
$141.22
RM80 Series Mount
$141.22
RM80 Series Mount
This is an ultra-stable miniature version of our RM series mirror mounts. These 0.75- and 0.50-inch models of our RM use the same precision 80TPI adjustment screws for stable movement. A 5/64 hex wrench is used to adjust the hex drive screws on both models, which minimizes inadvertent movement from having two finger-adjusted control knobs in close proximity.
Product Features
- 80 pitch adjustment screws
- Hex adjustment
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
Performance Specifications
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
RM80-0.5H [67040000E]
Variant Images
![RM80-0.5H [67040000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67040000E.jpg)

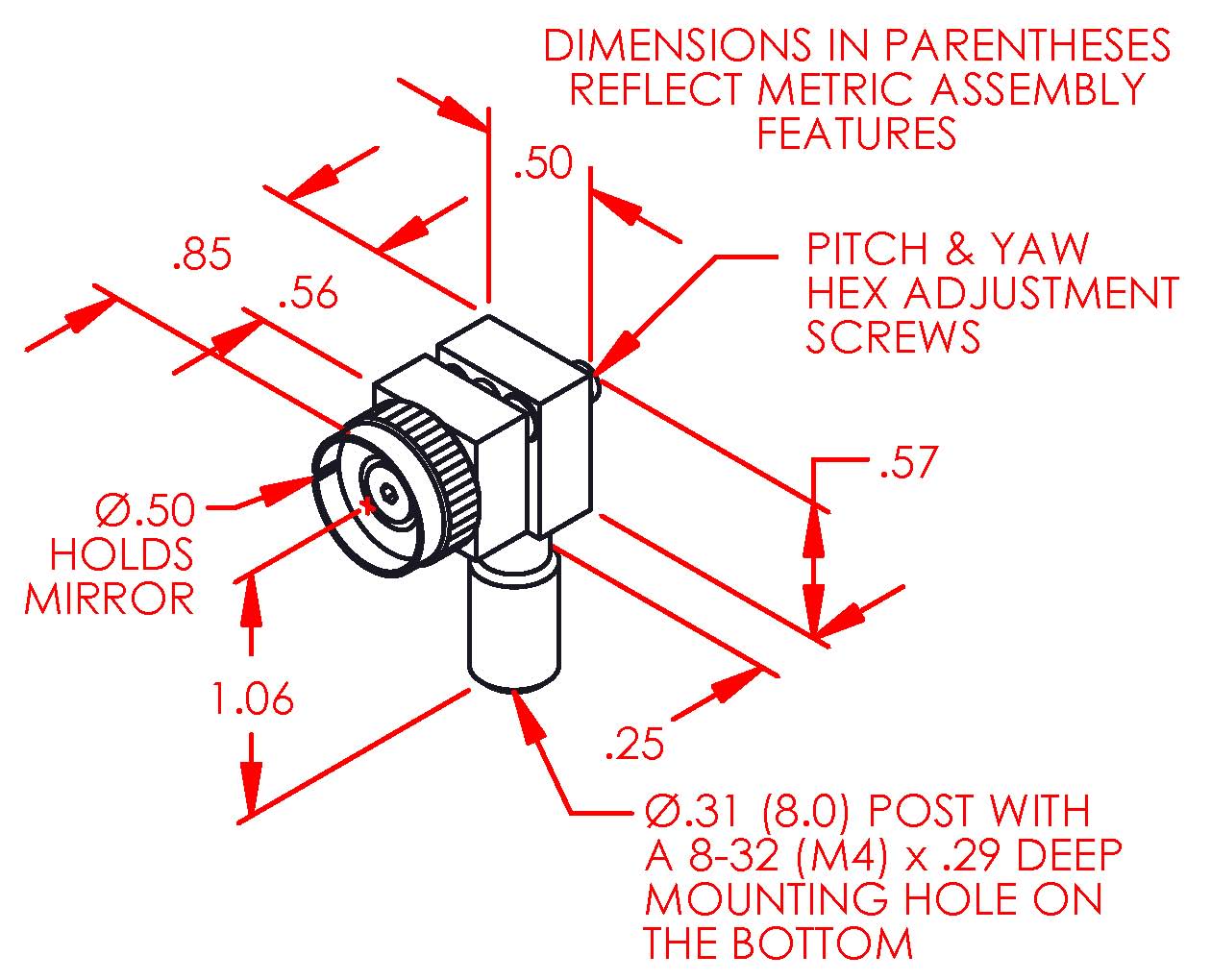

![RM80-0.5H [67040000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67040000E_1.jpg)
Product Details
This is an ultra-stable miniature version of our RM series mirror mounts. These 0.75- and 0.50-inch models of our RM use the same precision 80TPI adjustment screws for stable movement. A 5/64 hex wrench is used to adjust the hex drive screws on both models which minimizes inadvertent movement from having two finger-adjusted control knobs in close proximity.
Product Features
- Holds .50 diameter optic
- 80 pitch adjustment screws
- Imperial threaded interfaces
- Hex adjustment
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications
- Travel/axis: 16°
- Minimum controllable motion*: 22.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
RM80-0.5H M [67040000M]
Variant Images

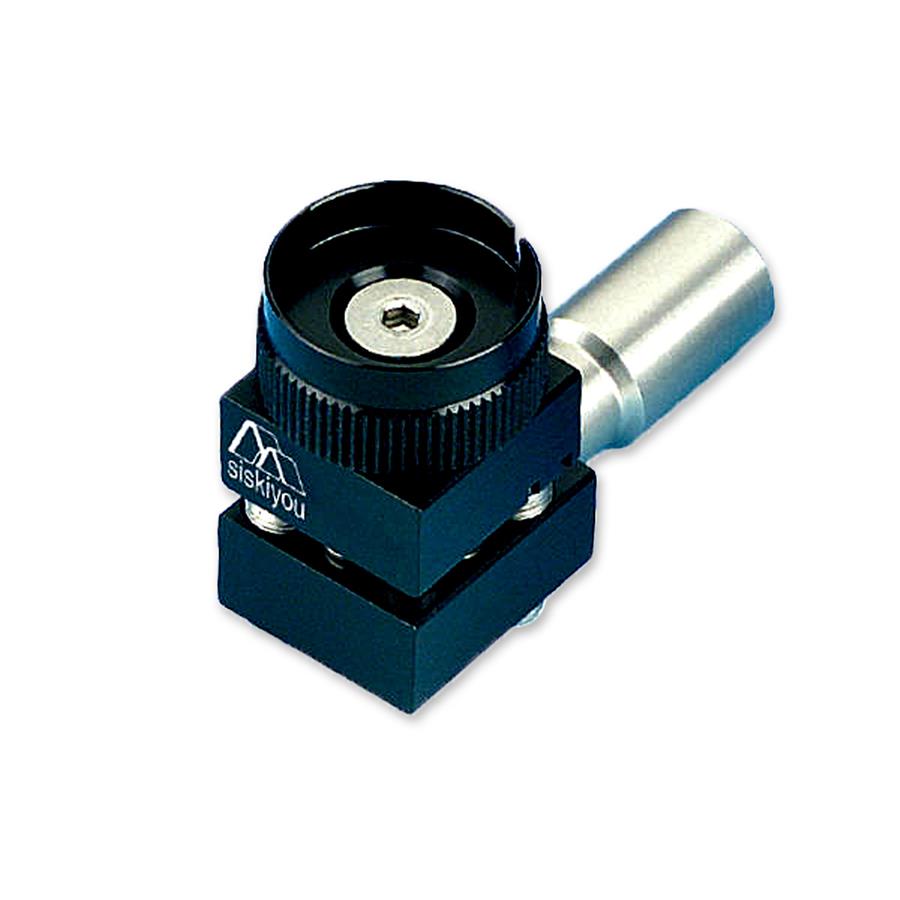

![RM80-0.5H M [67040000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67040000M.jpg)
![RM80-0.5H M [67040000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67040000M_1.jpg)
Product Details
This is an ultra-stable miniature version of our RM series mirror mounts. These 0.75- and 0.50-inch models of our RM use the same precision 80TPI adjustment screws for stable movement. A 5/64 hex wrench is used to adjust the hex drive screws on both models which minimizes inadvertent movement from having two finger-adjusted control knobs in close proximity.
Product Features
- Holds .50 diameter optic
- 80 pitch adjustment screws
- Metric threaded interfaces
- Hex adjustment
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications
- Travel/axis: 16°
- Minimum controllable motion*: 22.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
RM80-0.75H [67480000E]
Variant Images

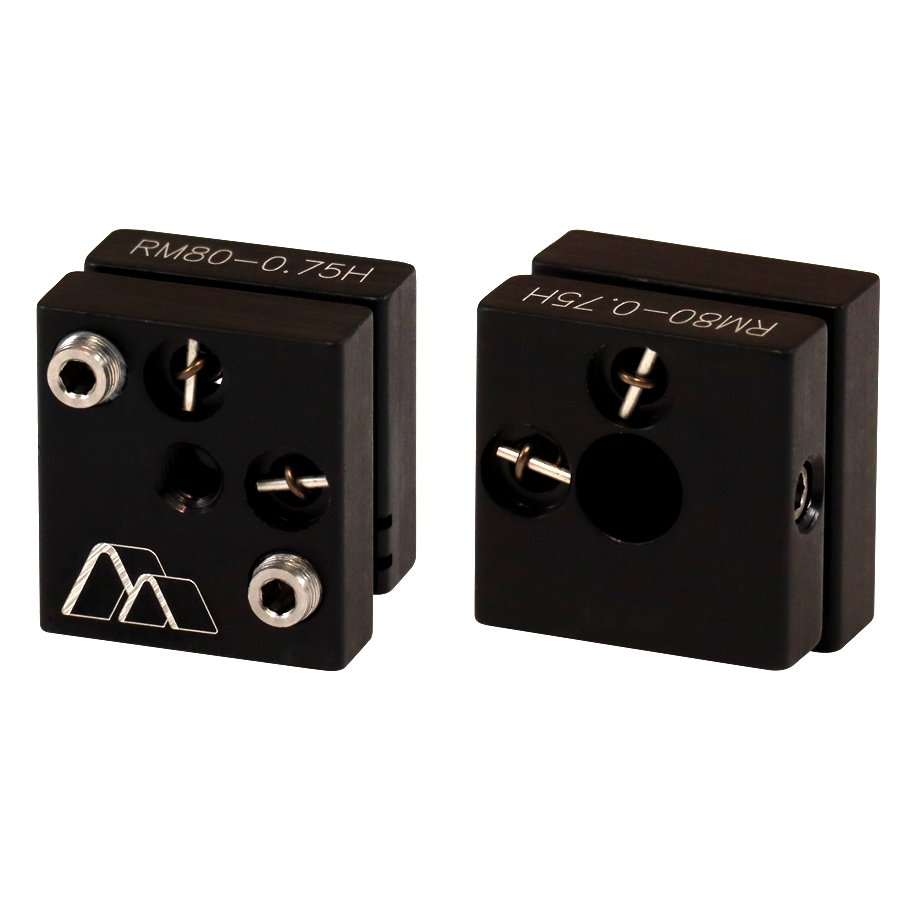

![RM80-0.75H [67480000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67480000E.png)

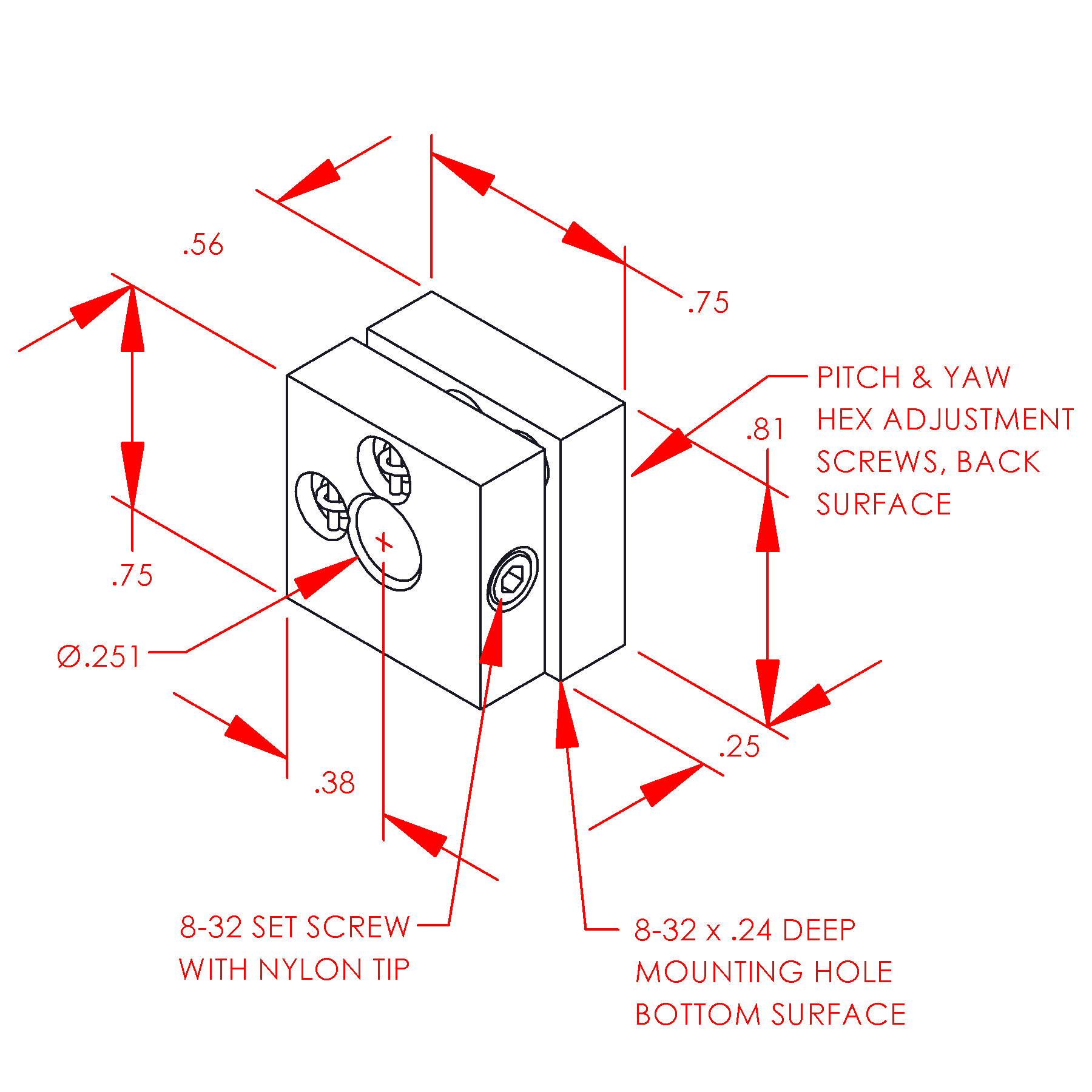

![RM80-0.75H [67480000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67480000E_1.JPG)
Product Details
This is an ultra-stable miniature version of our RM series mirror mounts. These 0.75- and 0.50-inch models of our RM use the same precision 80TPI adjustment screws for stable movement. A 5/64 hex wrench is used to adjust the hex drive screws on both models which minimizes inadvertent movement from having two finger-adjusted control knobs in close proximity.
Product Features
- Holds .75 diameter optic
- 80 pitch adjustment screws
- Imperial threaded interfaces
- Hex adjustment
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications
- Travel/axis: 11
- Minimum controllable motion*: 14.8 arc sec.
*Minimum controllable motion*: BASED ON 1 OF ADJUSTMENT SCREW ROTATION
RM80-0.75H M [67480000M]
Variant Images

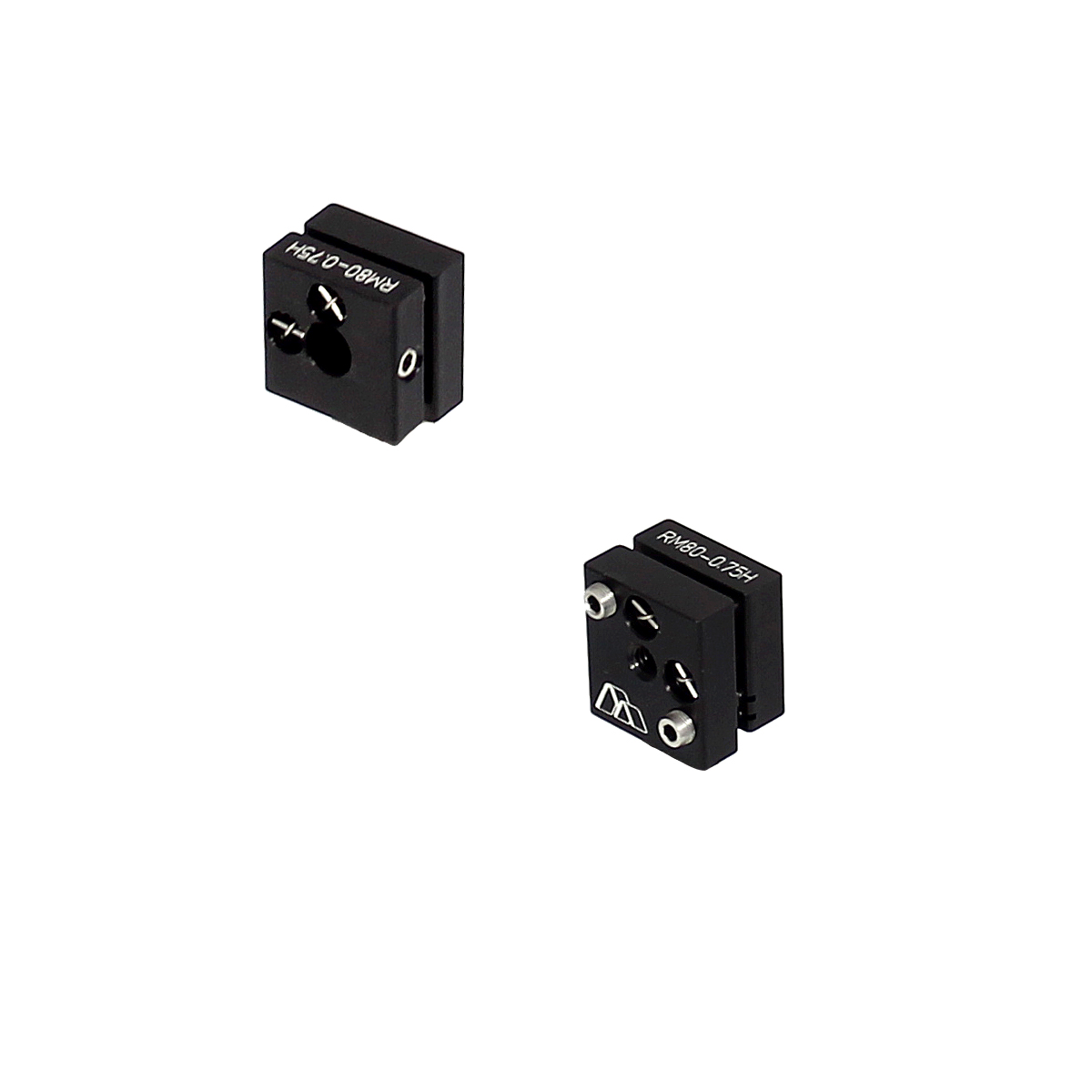

![RM80-0.75H M [67480000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67480000M.jpg)
![RM80-0.75H M [67480000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/67480000M_1.JPG)
Product Details
This is an ultra-stable miniature version of our RM series mirror mounts. These 0.75- and 0.50-inch models of our RM use the same precision 80TPI adjustment screws for stable movement. A 5/64 hex wrench is used to adjust the hex drive screws on both models which minimizes inadvertent movement from having two finger-adjusted control knobs in close proximity.
Product Features
- Holds .75 diameter optic
- 80 pitch adjustment screws
- Metric threaded interfaces
- Hex adjustment
- Vertical or horizontal mounting
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications
- Travel/axis: 11°
- Minimum controllable motion*: 14.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
