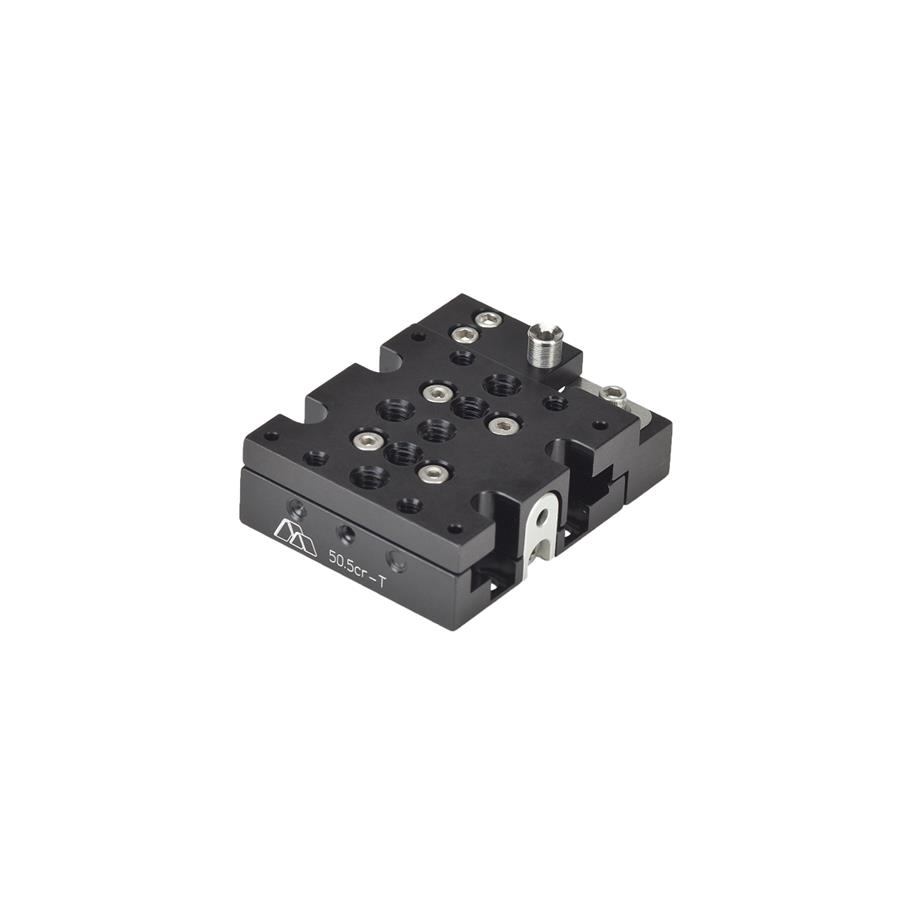

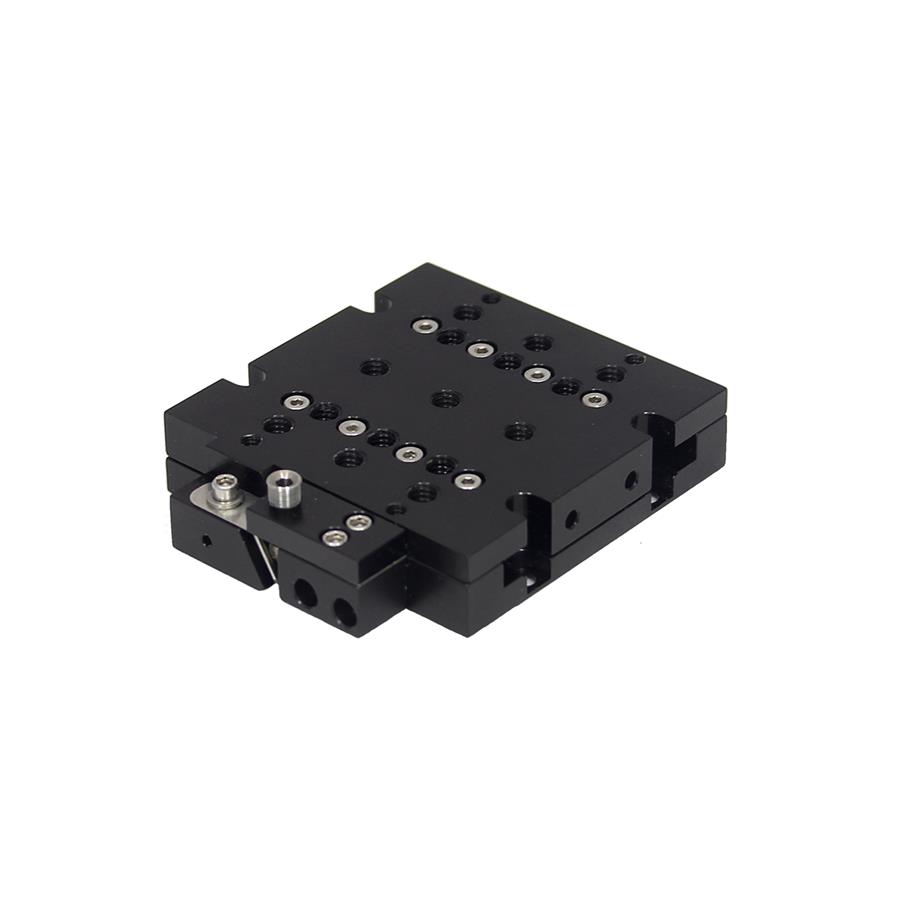

The 50.5cr-T brings top adjust capability to the thinnest line of crossed roller translation stages available. With a 100 pitch screw bearing upon a 60° angle block, the effective thread pitch is 170, giving you the most precise adjustment available from a non-differential adjuster. Perfect for tight spaces, many components can be mounted to the top adjust stages to help you get many degrees-of-freedom in a small volume. (Patent No. 8,925,409)
Product Features
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
Performance Specifications
- Maximum horizontal axis load: 3 lbs
- Travel range: 0.078 inch (2 mm)
- Resolution: 100TPI submicron,150 µm/revolution
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
