500 Series Linear Drive
SKU:
500 SERIES
Name:
MANUAL MOTORIZED:
MOTORIZED
OPEN CLOSED:
OPEN LOOP
TRAVEL:
12MM/.50IN
TRAVEL:
25MM/1.0IN
VOLUME:
0.000000
WEIGHT UOM:
LB
﷼2,176.72 - ﷼2,595.32
500 Series Linear Drive
﷼2,176.72 - ﷼2,595.32
500 Series Linear Drive
The 500 series open-loop actuators are designed to be used with our 50.5cr, 100.5cr or 150.5cr low profile crossed roller linear stages. They use 80TPI threads for high-resolution positioning and have built-in travel limit switches to ensure they won't over-travel the stage and damage it. Versions with 12mm and 25mm of travel are available and both versions have "Quick Reference" scales on two sides of the actuators.
Product Features
- Quick reference scale
- Microswitch travel limits
- .30 mm/second high speed
- UV, vacuum compatible, or stepper versions available upon request
Performance Specifications
- Maximum axial load: 10 lbs
- Backlash: < 20 µm
Minimum controllable motion/speed setting:
- Rapid: 15 µm
- Medium: 8 µm
- Slow/max.: 3 µm
- Slow/min.: 1 µm
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
512 [71060000E]
Variant Images

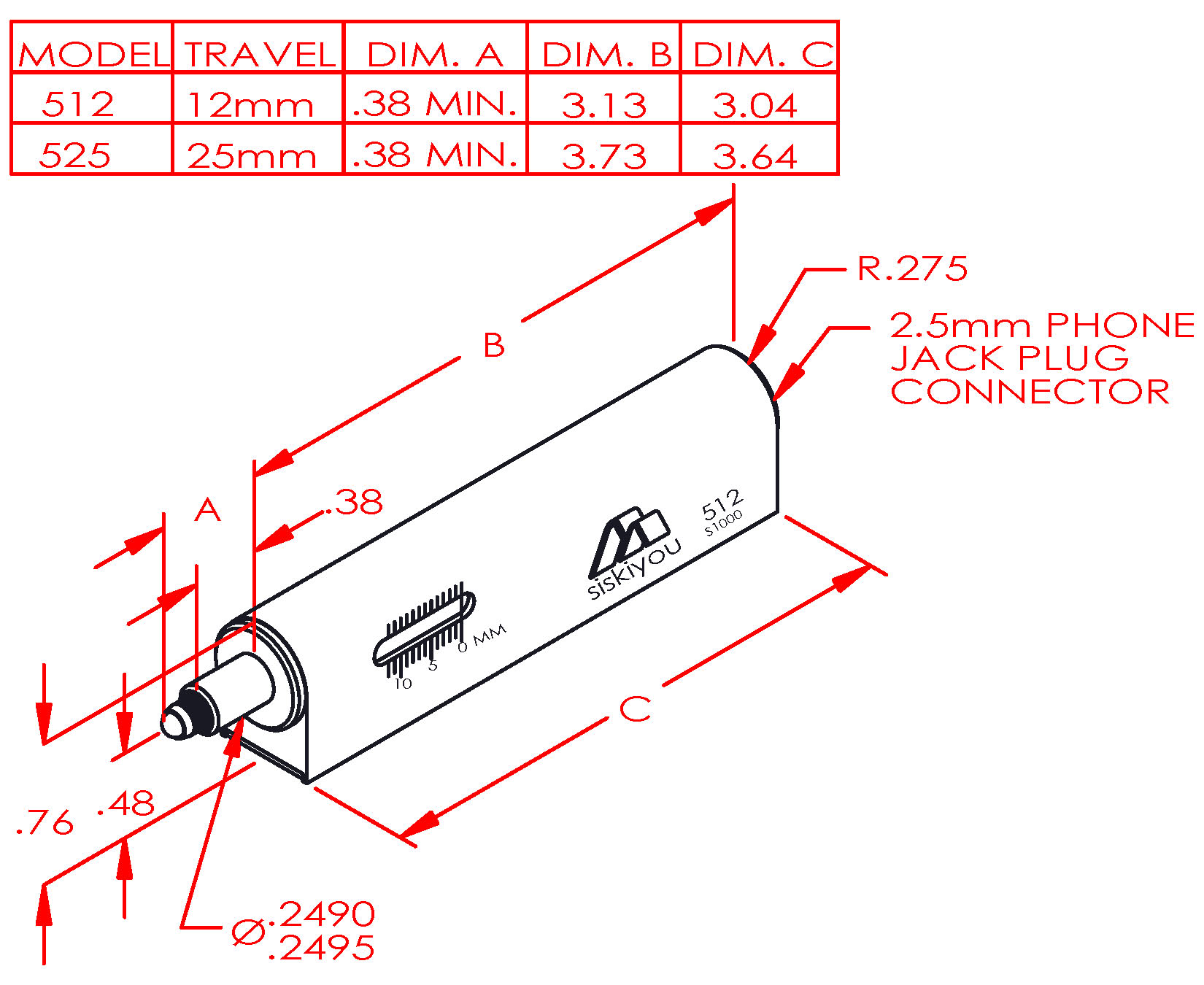

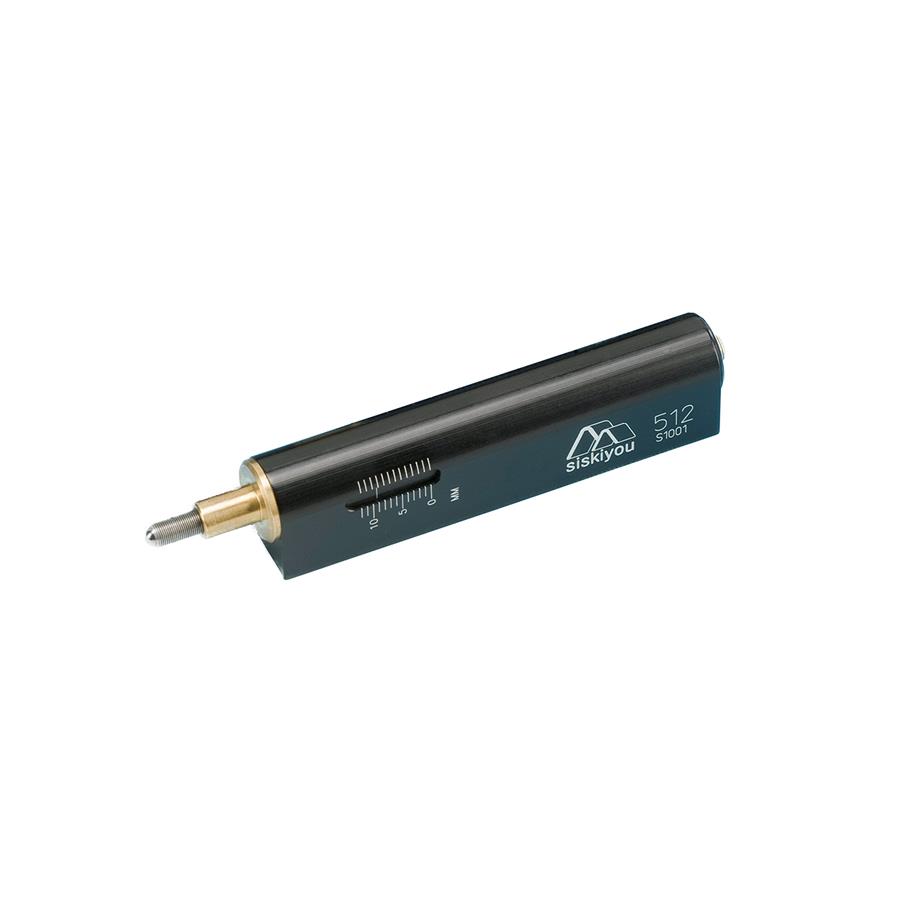

![512 [71060000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/71060000E.jpg)
![512 [71060000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/71060000E_1.jpg)
Product Details
The 500 series open-loop actuators are designed to be used with our 50.5cr 100.5cr or 150.5cr low profile crossed roller linear stages. They use 80TPI threads for high-resolution positioning and have built-in travel limit switches to ensure they won't over-travel the stage and damage it. 12mm and 25mm versions are available and both versions have "Quick Reference" scales on two sides of the actuators.
Product Features:
- Quick reference scale
- Microswitch travel limits
- .30 mm/second high speed
- UV vacuum compatible or stepper versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum axial load: 10 lbs
- Backlash: < 20 µm
Minimum controllable motion*:
- Rapid: 15 µm
- Medium: 8 µm
- Slow/max.: 3 µm
- Slow/min.: 1 µm
Setting
525 [71070000E]
Variant Images

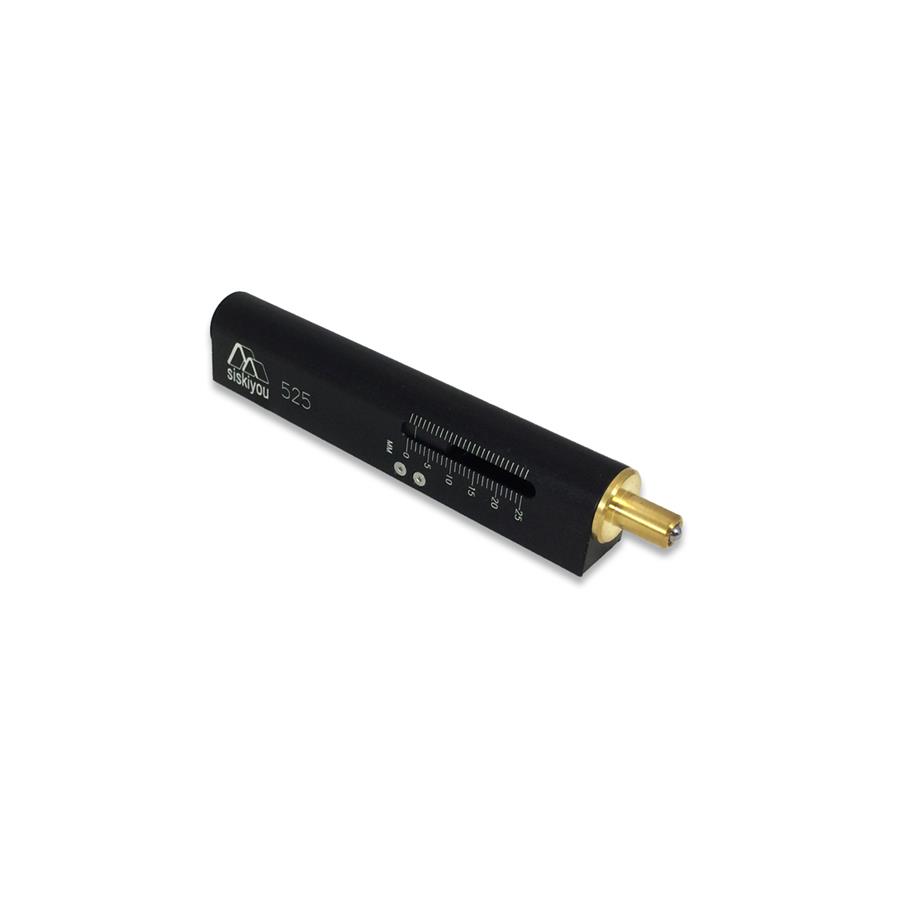

![525 [71070000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/71070000E.jpg)
![525 [71070000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/71070000E_1.jpg)
Product Details
The 500 series open-loop actuators are designed to be used with our 50.5cr 100.5cr or 150.5cr low profile crossed roller linear stages. They use 80TPI threads for high-resolution positioning and have built-in travel limit switches to ensure they won't over-travel the stage and damage it. 12mm and 25mm versions are available and both versions have "Quick Reference" scales on two sides of the actuators.
Product Features:
- Quick reference scale
- Microswitch travel limits
- .30 mm/second high speed
- UV vacuum compatible or stepper versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum axial load: 10 lbs
- Backlash: < 20 µm
Minimum controllable motion*:
- Rapid: 15 µm
- Medium: 8 µm
- Slow/max.: 3 µm
- Slow/min.: 1 µm
Setting
