DT-130 Series Stage

0 review Write a Review
SKU: DT-130 SERIES
Name:
$275.00 - $775.00

DT-130 Series Stage

$275.00 - $775.00
Choose Options

DT-130 Series Stage

$275.00 - $775.00

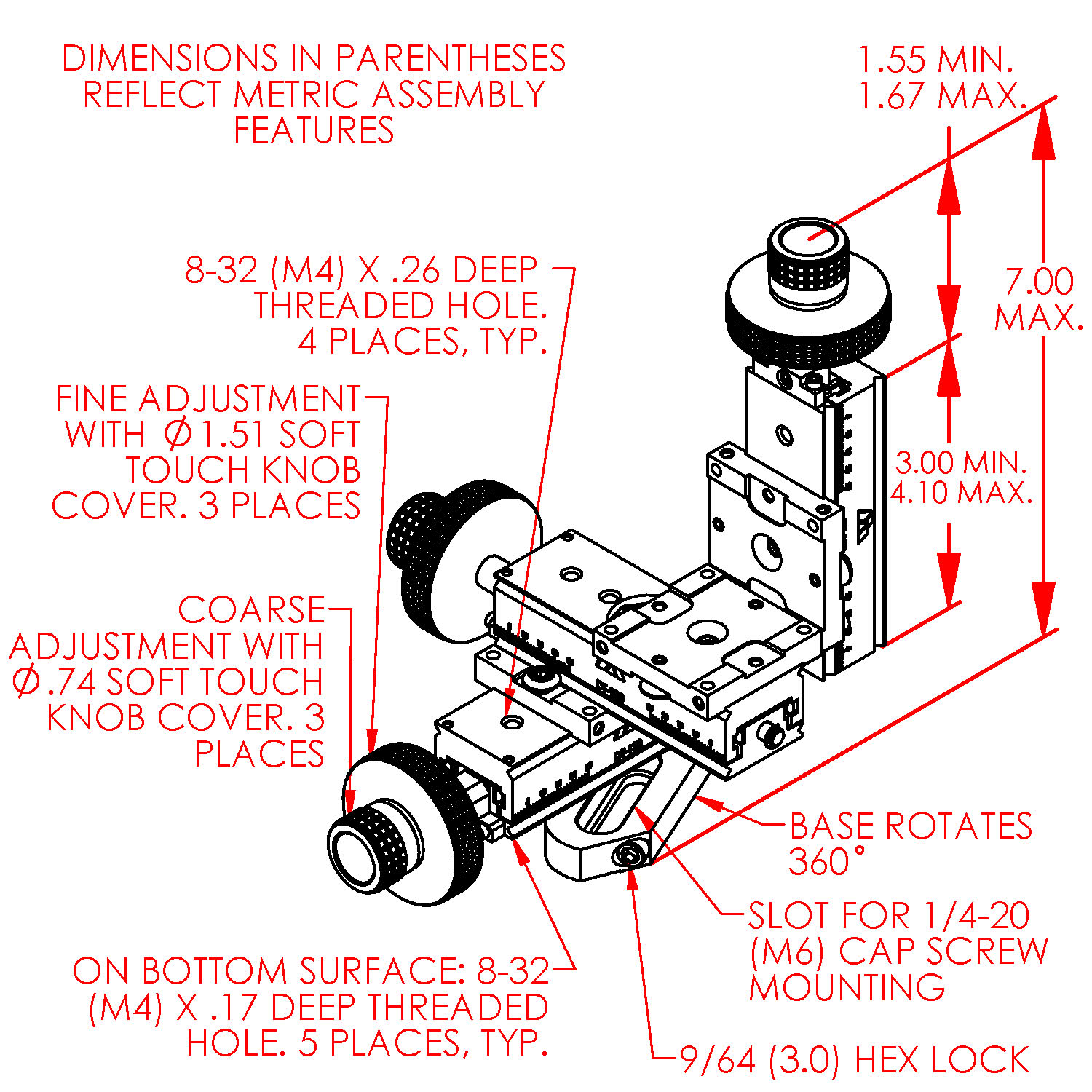

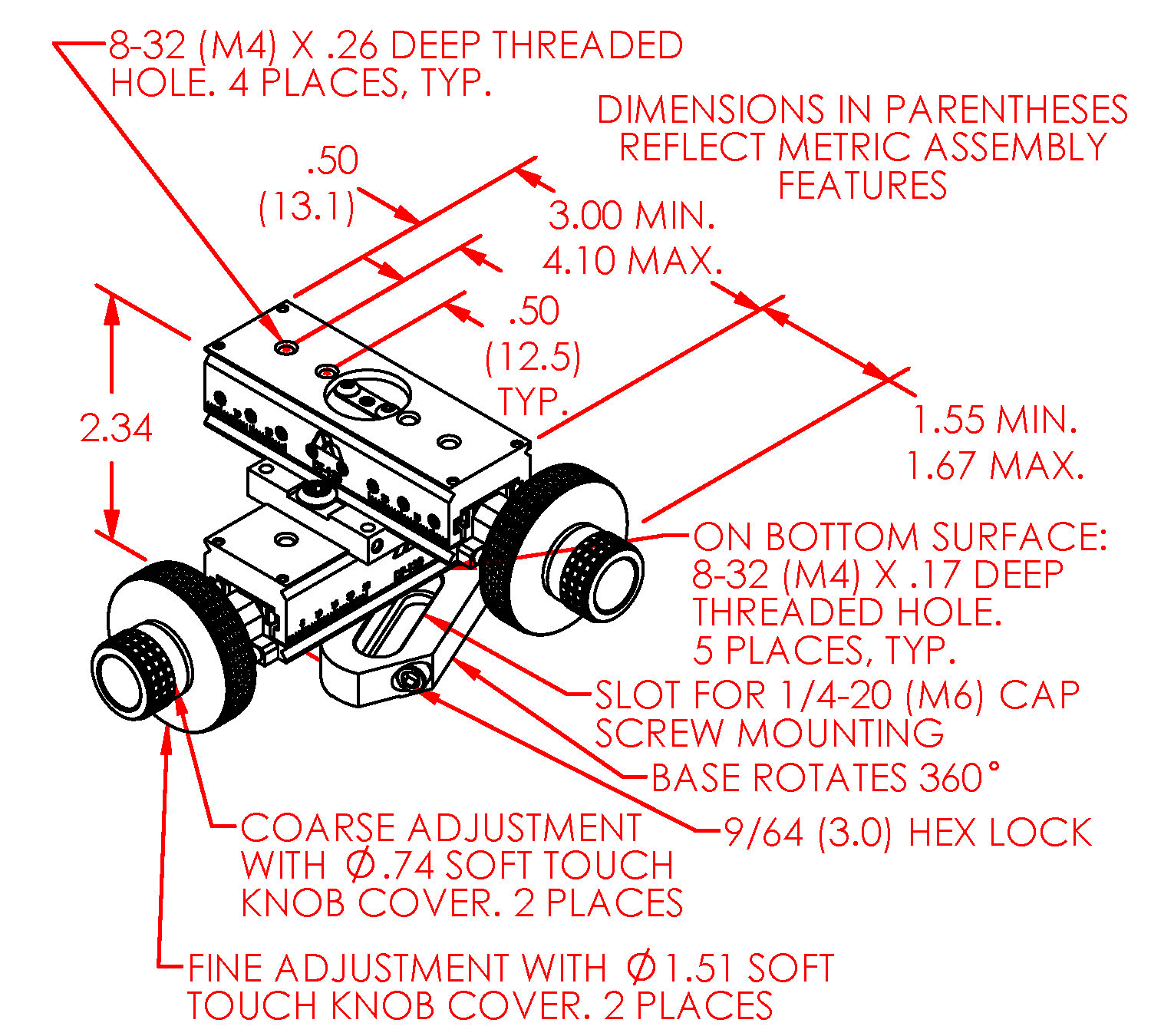

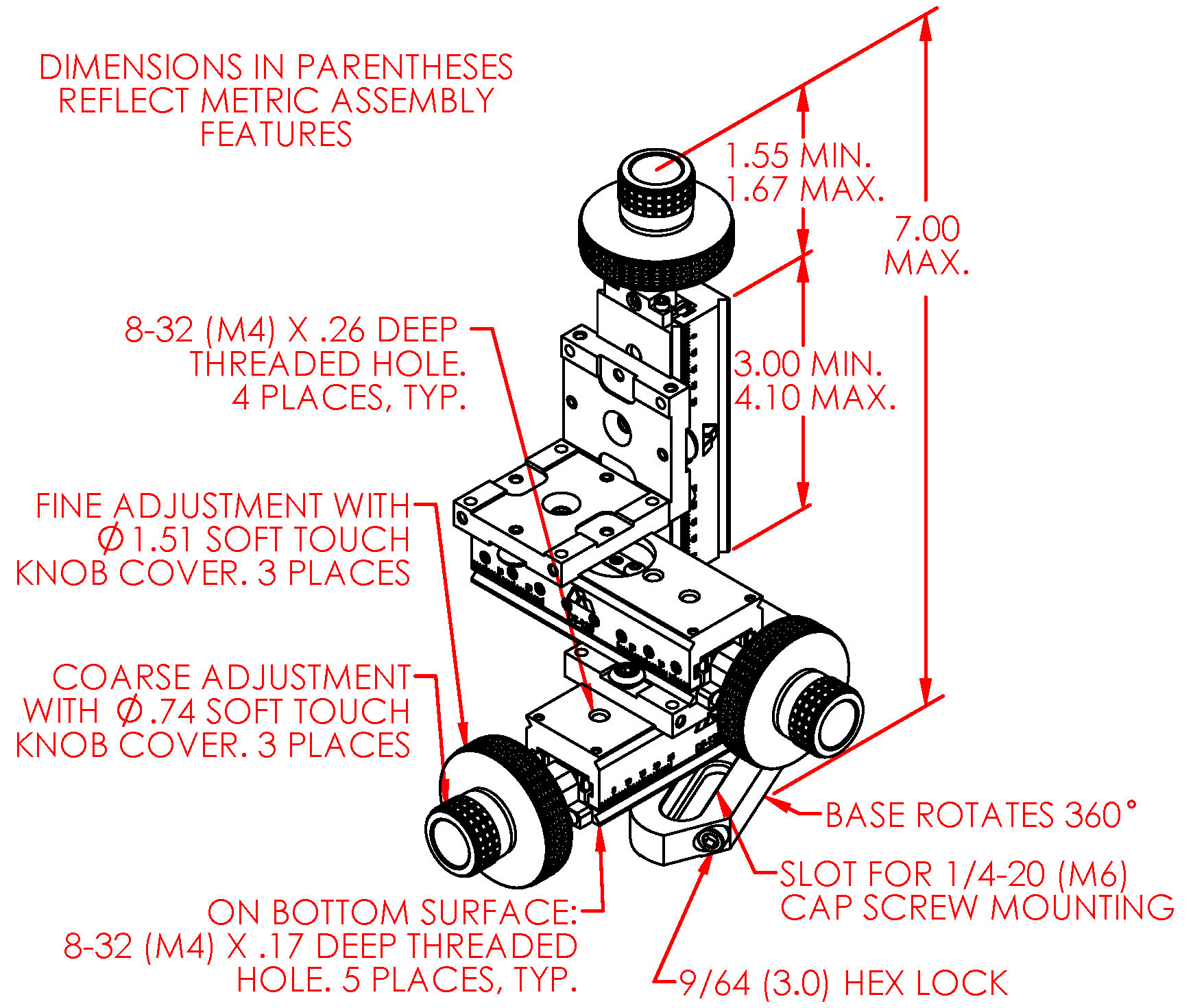

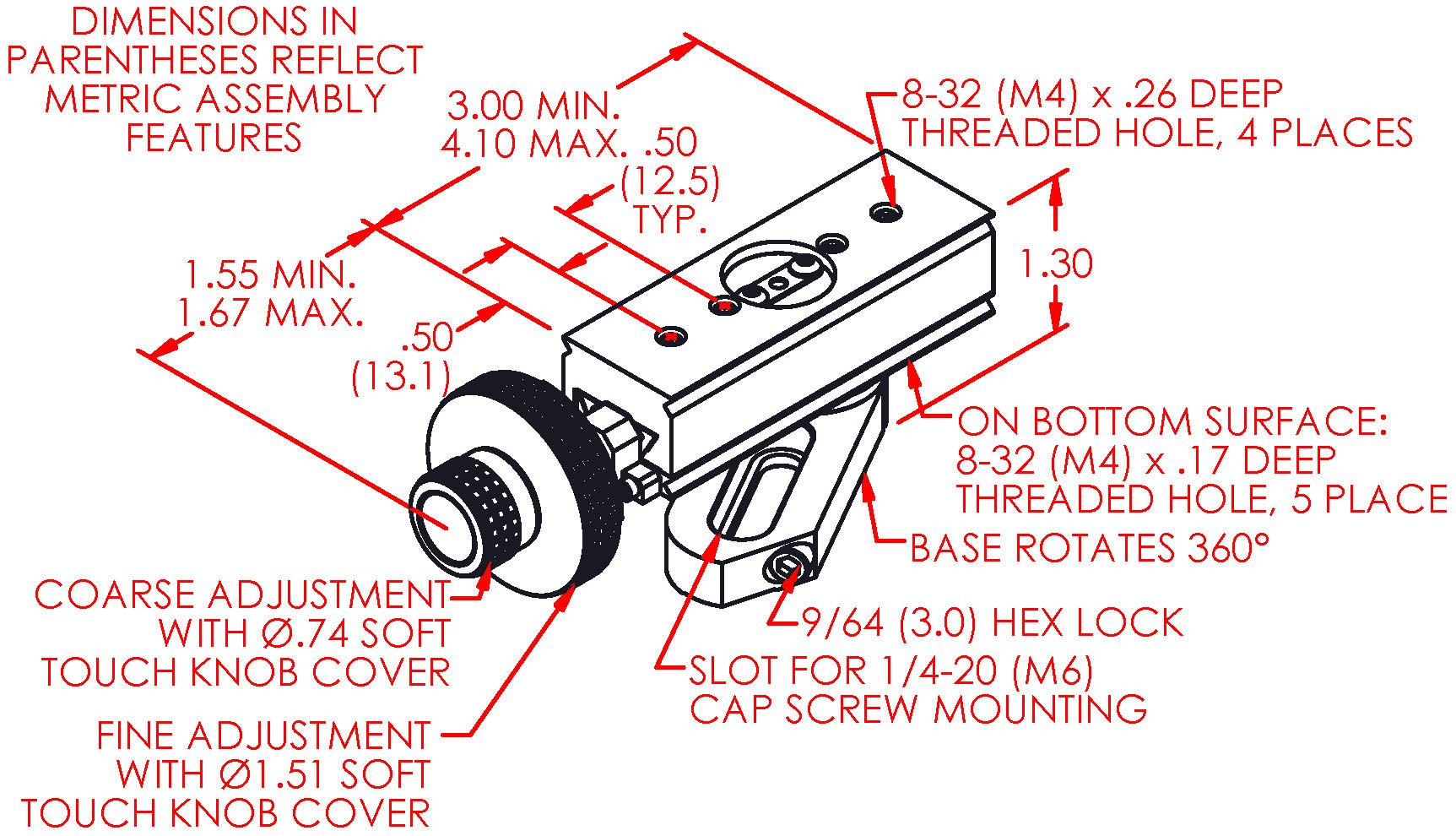

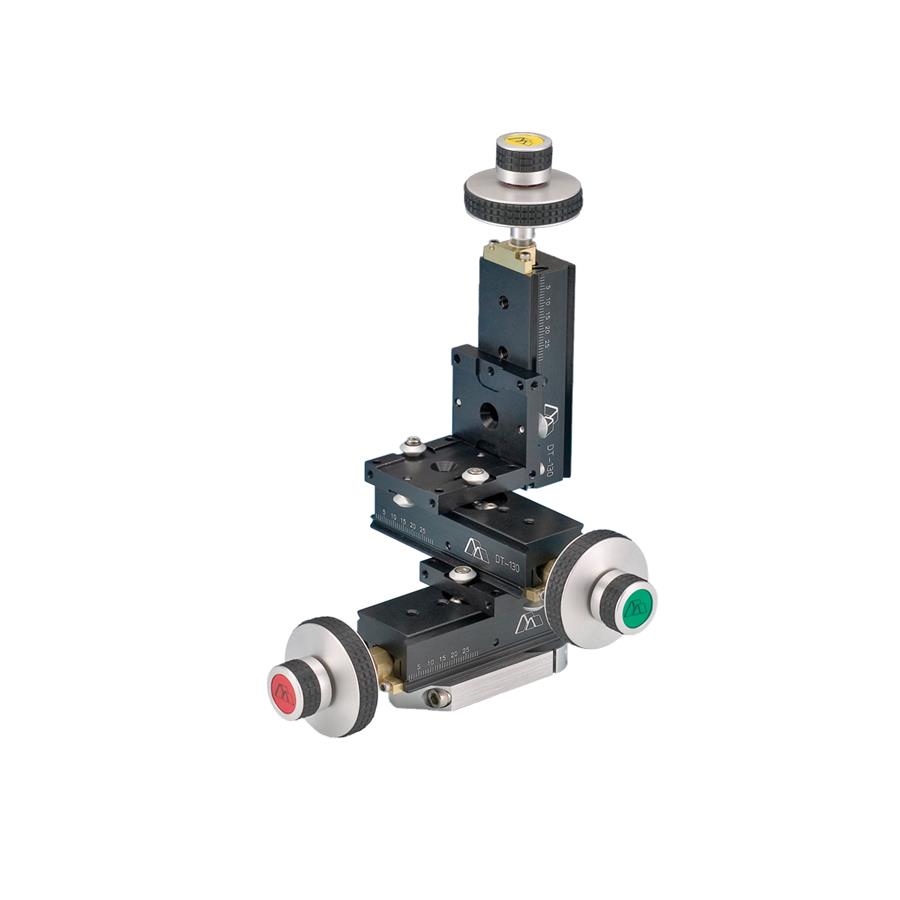

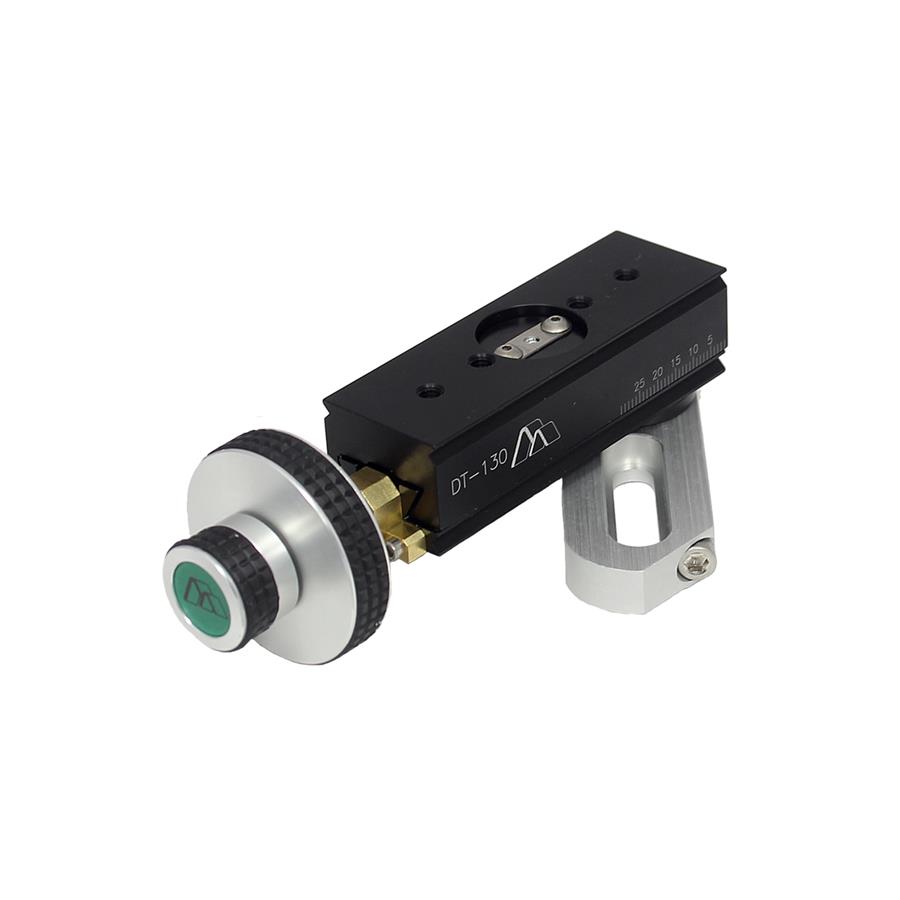

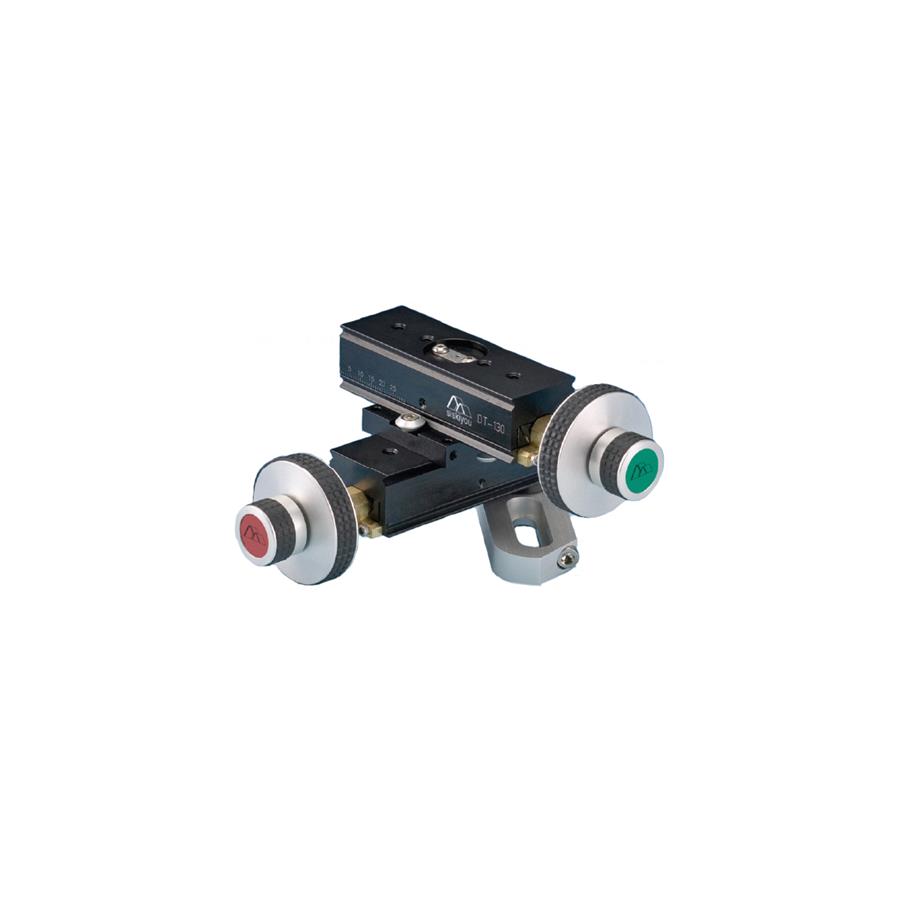

The DT-130 series of dovetail stages integrates a coarse fast travel stage and a fine adjustable stage in one simple device. The coarse fast action is controlled by a 0.74-inch diameter knob that is attached to a multi-lead adjustment screw that drives the stage across 42 millimeters of travel in only three revolutions. The fine adjustment is controlled by a large 1.5- inch diameter knob that is attached to a 100TPI adjustment screw which moves the stage across 3 millimeters of travel. This large knob improves leverage and control of any fine adjustments so that movement approaching submicron accuracies can be achieved.

Product Features

  • Integrated 3mm fine adjustment and 42mm coarse fast adjustment
  • Unique sliding XY assembly clamp
  • Submicron fine resolution

Performance Specifications

  • Maximum load 1 lb
  • Travel range:
    • Fine: 3 mm
    • Coarse / fast: 42 mm
  • Minimum controllable motion:
    • Fine: 5 µm
    • Coarse / fast: 100 µm
