DT-300 Series Stage
TT$1,384.63
DT-300 Series Stage
The DT-300 dovetail translation stage offers rapid 1.0 inch (25 mm) linear positioning for a variety of components. Adjustment of the 20 pitch lead screw can be made from either side of the DT-300. The drive mechanism is spring-loaded to minimize backlash. Smooth travel is obtained with a rugged dovetail slide track.
Product Features
- Rapid: positioning
- Stable dovetail design
- Lockable
- Vacuum compatible versions available upon request
Performance Specifications
- Maximum horizontal axis load: 20 lbs
- Maximum vertical axis load: 5 lbs
- Travel: 1.0 inch (25 mm)
- Minimum controllable motion: 10 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
DT-300 [90140000E]
Variant Images
![DT-300 [90140000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90140000E.jpg)

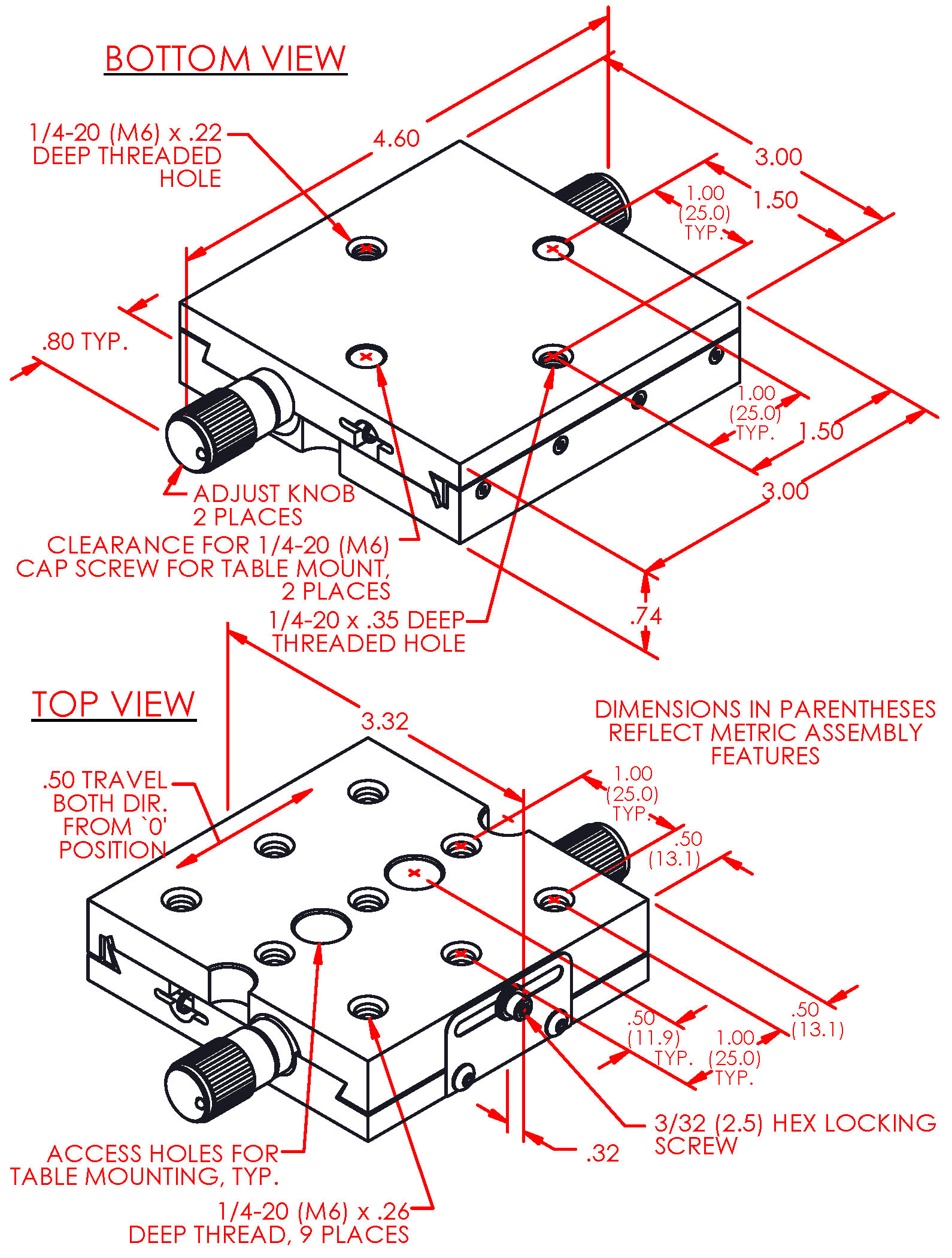

![DT-300 [90140000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90140000E_1.jpg)
Product Details
The DT-300 dovetail translation stage offers rapid 1.0 inch (25 mm) linear positioning for a variety of components. Adjustment of the 20 pitch lead screw can be made from either side of the DT-300. The drive mechanism is spring-loaded to minimize backlash. Smooth travel is obtained with a rugged dovetail slide track.
Product Features:
- Rapid positioning
- Stable dovetail design
- Lockable
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 20 lbs
- Maximum vertical axis load: 5 lbs
- Travel: 1.0 inch (25 mm)
- Minimum controllable motion*: 10 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
DT-300 M [90140000M]
Variant Images

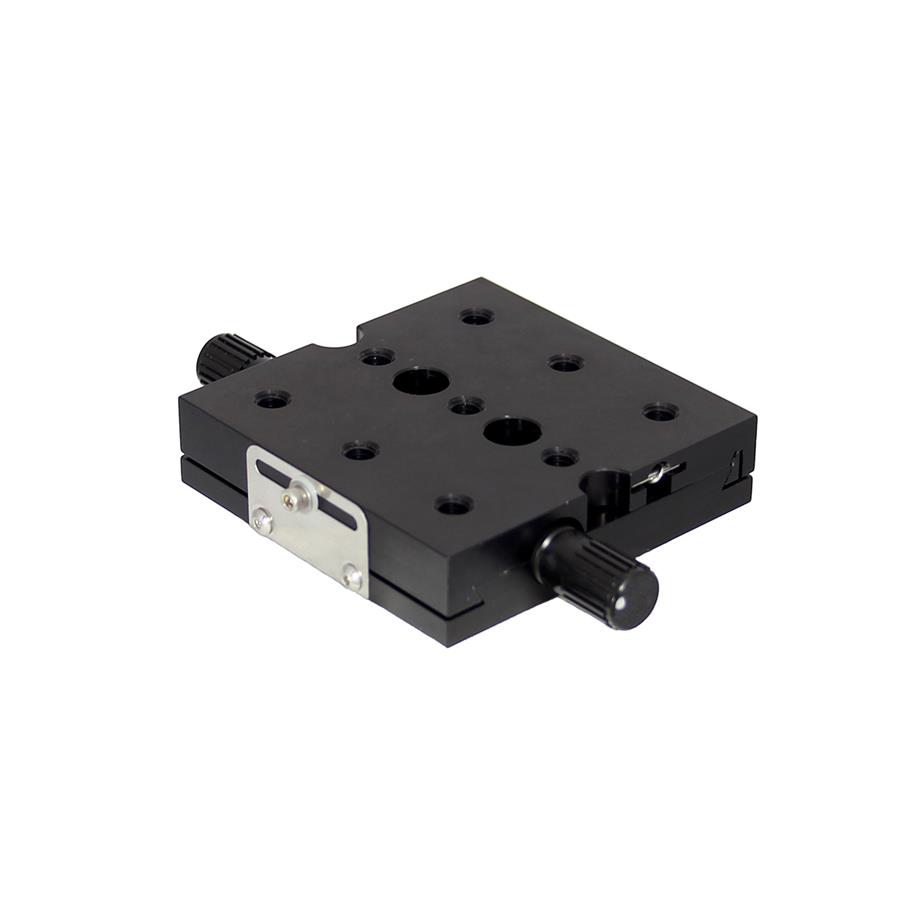

![DT-300 M [90140000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90140000M.jpg)
![DT-300 M [90140000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90140000M_1.jpg)
Product Details
The DT-300 dovetail translation stage offers rapid 1.0 inch (25 mm) linear positioning for a variety of components. Adjustment of the 20 pitch lead screw can be made from either side of the DT-300. The drive mechanism is spring-loaded to minimize backlash. Smooth travel is obtained with a rugged dovetail slide track.
Product Features:
- Rapid positioning
- Stable dovetail design
- Lockable
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 20 lbs
- Maximum vertical axis load: 5 lbs
- Travel: 1.0 inch (25 mm)
- Minimum controllable motion*: 10 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
