100cr-A Series Stage

0 review Write a Review
SKU: 90060000

100cr-A Series Stage

Choose Options

100cr-A Series Stage

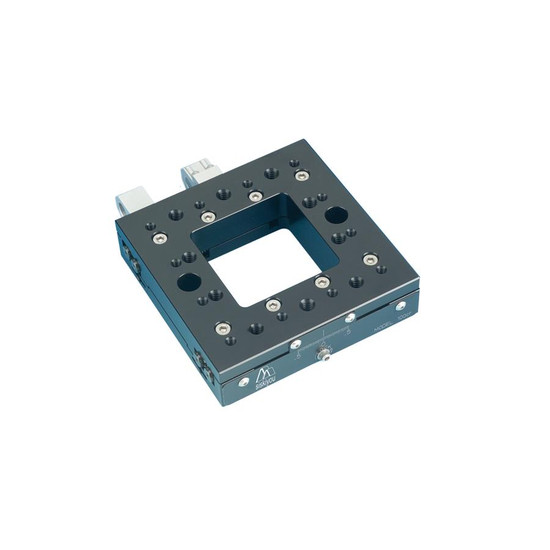

The 100cr-A precision crossed roller bearing translation stage offers exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions, and maximizes linearity towards the end of travel. This aperture version of our 100cr stage is ideal for laser and microscopy applications where a light path through the stage is necessary.

The 100cr-A has a side located non-influencing lock that is integrated with a graduated scale for position readout of 0.04 inches (1 mm). The actuator mounting block and stop block are designed to enable either right or left-hand mounting of the drive device. The actuator mounting block is compatible with our TPI series adjustment screws, 400 and 800 series actuators, as well as standard micrometers.

The spring-loaded 100cr-A stage is stackable for XY positioning requirements and is compatible with our MX-AB for Z-axis applications.

Product Features

  • Integrated scale / lock
  • Right and left hand drive adjustable
  • Compatible with standard micrometers
  • Vacuum compatible versions available upon request

Performance Specifications

  • Maximum horizontal axis load: 70 lbs, centered
  • Maximum vertical axis load: 10 lbs, centered
  • Travel: 1.0 inch (25 mm)
  • Minimum controllable motion:
    • 20TPI: 20 µm
    • 40TPI: 10 µm
    • 80TPI: submicron
    • 100TPI: submicron
    • 127TPI: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
