IAG-CL Series Positioner

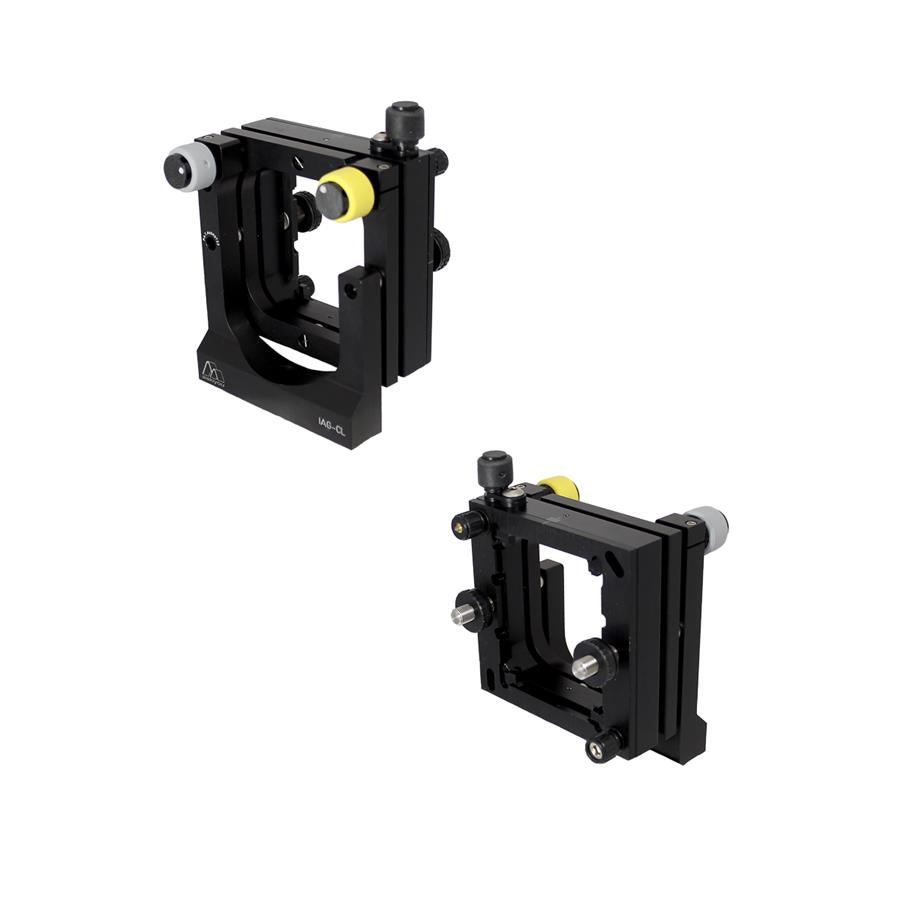

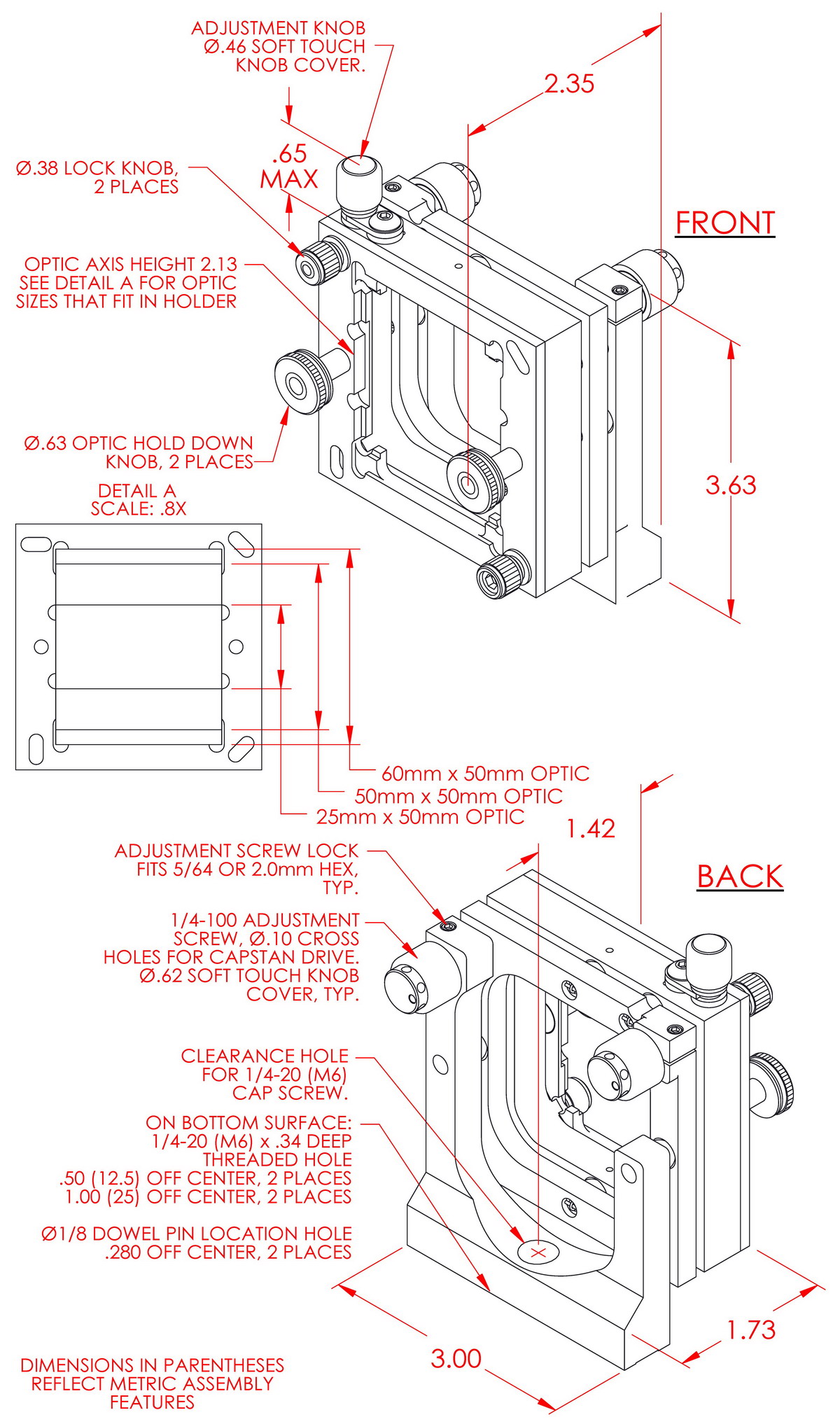

These unique mounts use our spring-loaded pivot to create a mount that is neither Kinematic or Gimbal in its positioning of the optics. Though the motion most closely resembles a gimbal design by rotation about the optical center, the real attraction of these mounts is the location of the adjustment screws above the beam path. Our IAG series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand and come with our capstan knob caps with SoftTouch® covers. Like all of our "I" series mounts the IAGs use our one wrench design. This allows the user to secure the optic, adjust the optic position, and lock the mount all with one wrench.

Product Features

• Upper adjustment screw location
• 100TPI adjustment screws
• Integrated optic polarization
• Vacuum compatible versions available upon request

Performance Specifications

Travel / axis

• Pitch and Yaw: 8°
• Roll: 6°

Minimum controllable motion:

• Pitch and Yaw: 4.7 arc sec.
• Roll: 6 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
