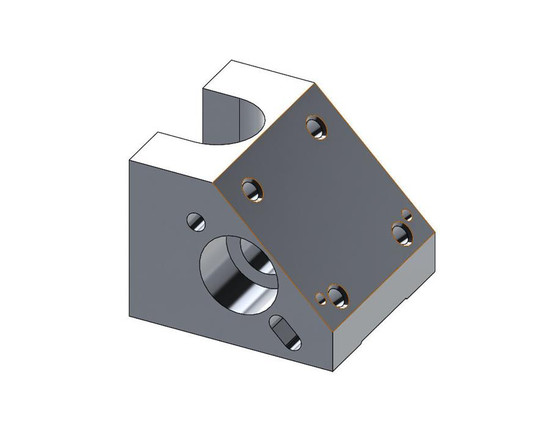

IXF mb 45 Series Mounting Block

0 review Write a Review
SKU: IXF MB45 SERIES
Name:
MATERIAL: ALUMINUM
MOUNTING ANGLE: 45 DEG
OPTIC SIZE: .50IN
OPTIC SIZE: .75/1.0IN
OPTIC SIZE: 2.0IN
UOM: METRIC
VOLUME: 0.000000
WEIGHT UOM: LB
$39.00 - $83.00

IXF mb 45 Series Mounting Block

$39.00 - $83.00
Choose Options

IXF mb 45 Series Mounting Block

$39.00 - $83.00
Product Details

IXF mb 45 Series Mounting Block

The IXF.mb/45 mounting blocks allow solid base mounting to the IXF series flexure mounts. For periscope beam steering configuration this aluminum mounting block has a fixed 45° angle. This configuration allows 1/4-20 (M6) cap screw clearance mounting from the top surface or a 1/4-20 (M6) threaded hole(s) on the bottom surface. Adapted with the top adjust IXF.t series, the adjustments are made free of the beam path.

Alternate sides of the IXF.mb/45 block allow solid base mounting for full reflective or beam splitter optics using the IXF series, and IXF.bs series mounts.

All the mounting configurations incorporate dowel pin location hole and slot features.



Choose options to see performance specifications and downloads.

Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

IXF2.0mb/45 M [80160000M] Optic Size: Optic Size:2.0in | Material: Material:ALUMINUM | UOM: UOM:METRIC
Variant Images

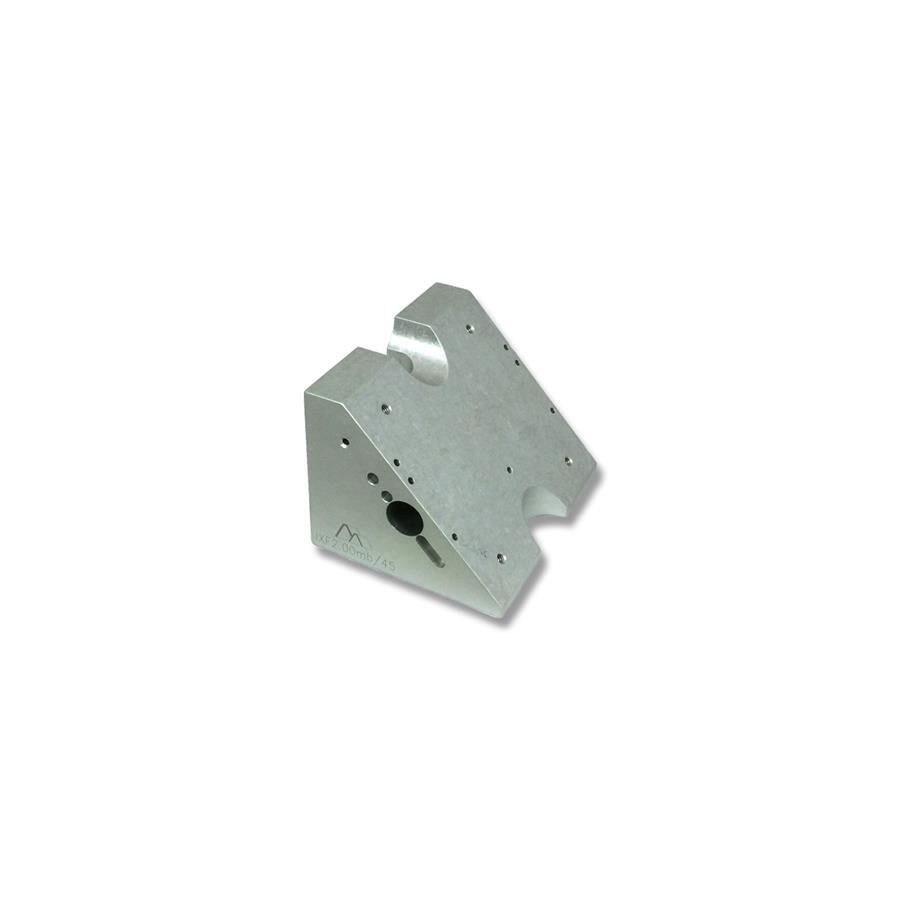

IXF2.0mb/45 M [80160000M] product variant image view 1
IXF2.0mb/45 M [80160000M] product variant image view 2
Product Details

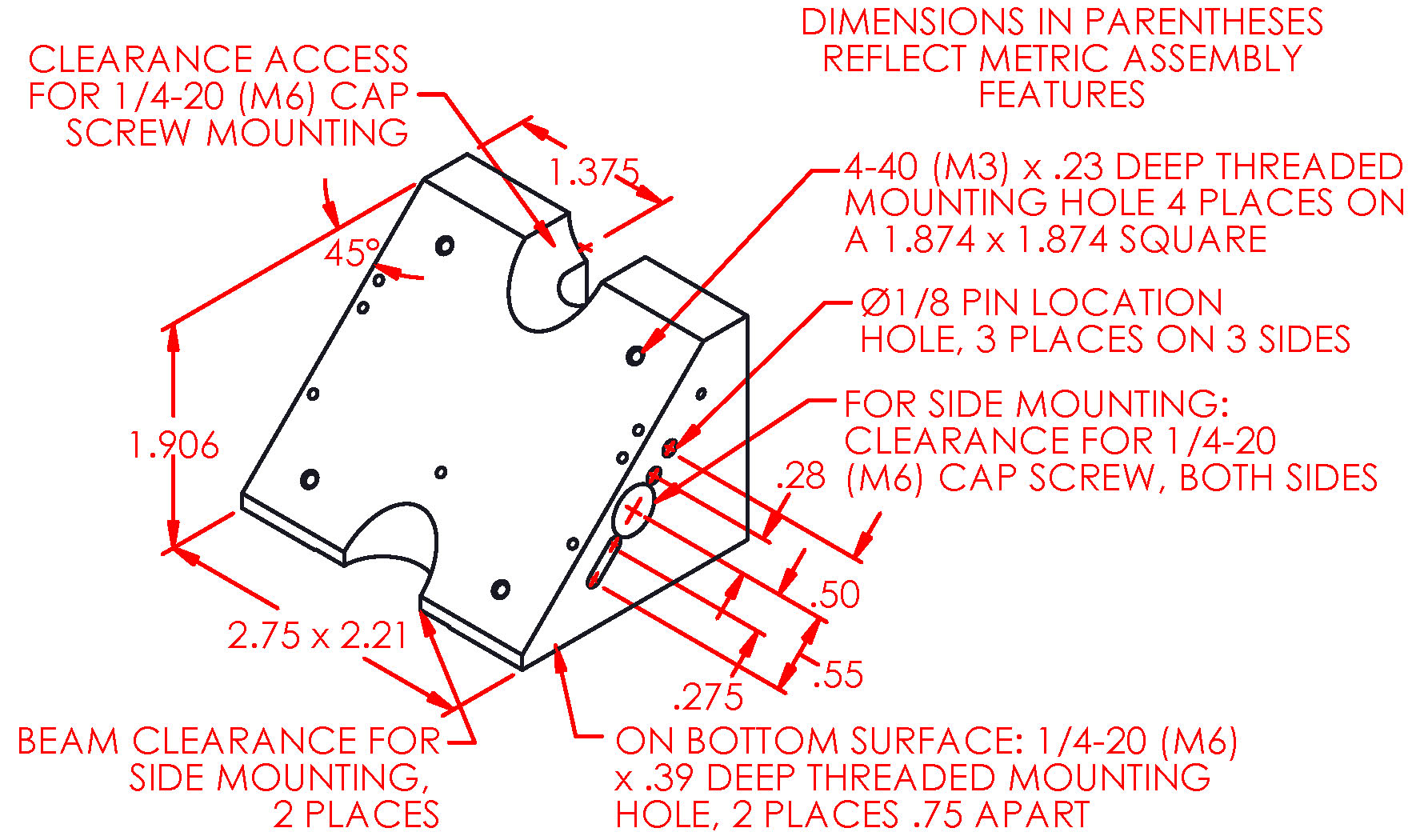

The IXF2.0mb/45 mounting block allows solid base mounting to the IXF2.0 series flexure mounts. For periscope beam steering configuration this aluminum mounting block has a fixed 45° angle. This configuration allows 1/4-20 (M6) cap screw clearance mounting from the top surface or a 1/4-20 (M6) threaded hole(2X) on the bottom surface. Adapted with the top-adjust IXF2.0t series the adjustments are made free of the beam path.

Alternate sides of the IXF2.0mb/45 block allow solid base mounting for full reflective or beam splitter optics using the IXF2.0 series and IXF2.0bs series mounts.

All the mounting configurations incorporate dowel pin location hole and slot features.

Reference Documents
DocumentViewDownload
Drawing - 80160000MViewDownload
3D Model - 80160000MDownload
IXF.50mb/45 M [80140000M] Optic Size: Optic Size:.50in | Material: Material:ALUMINUM | UOM: UOM:METRIC
Variant Images

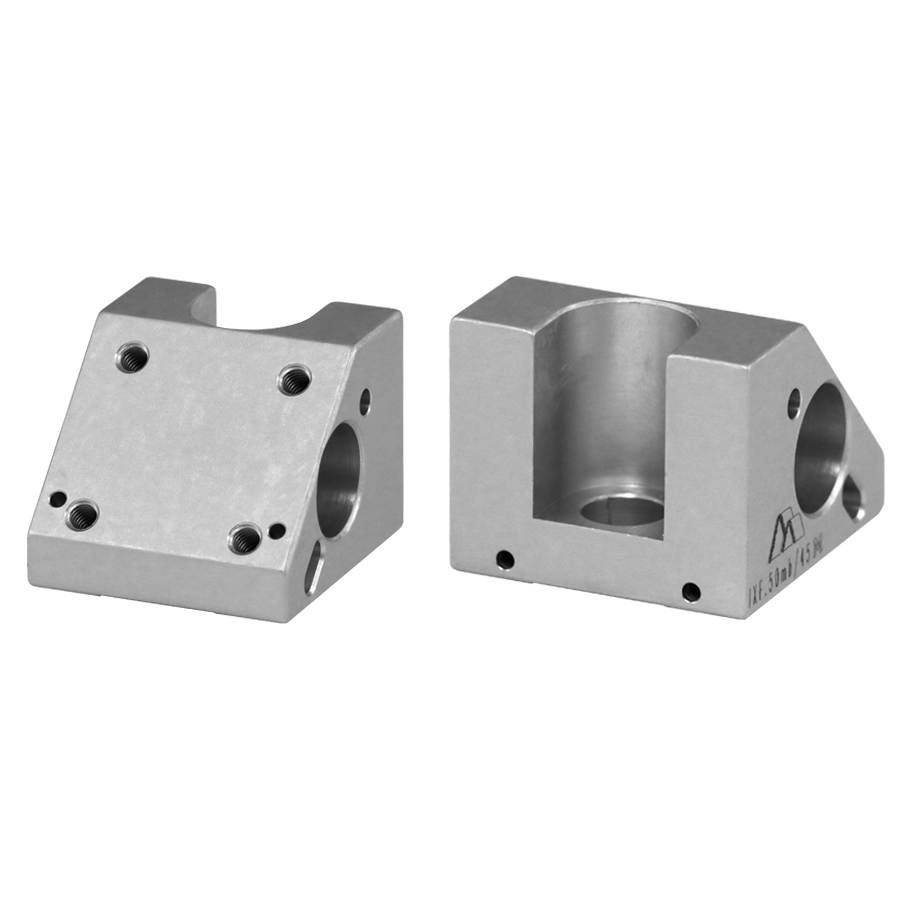

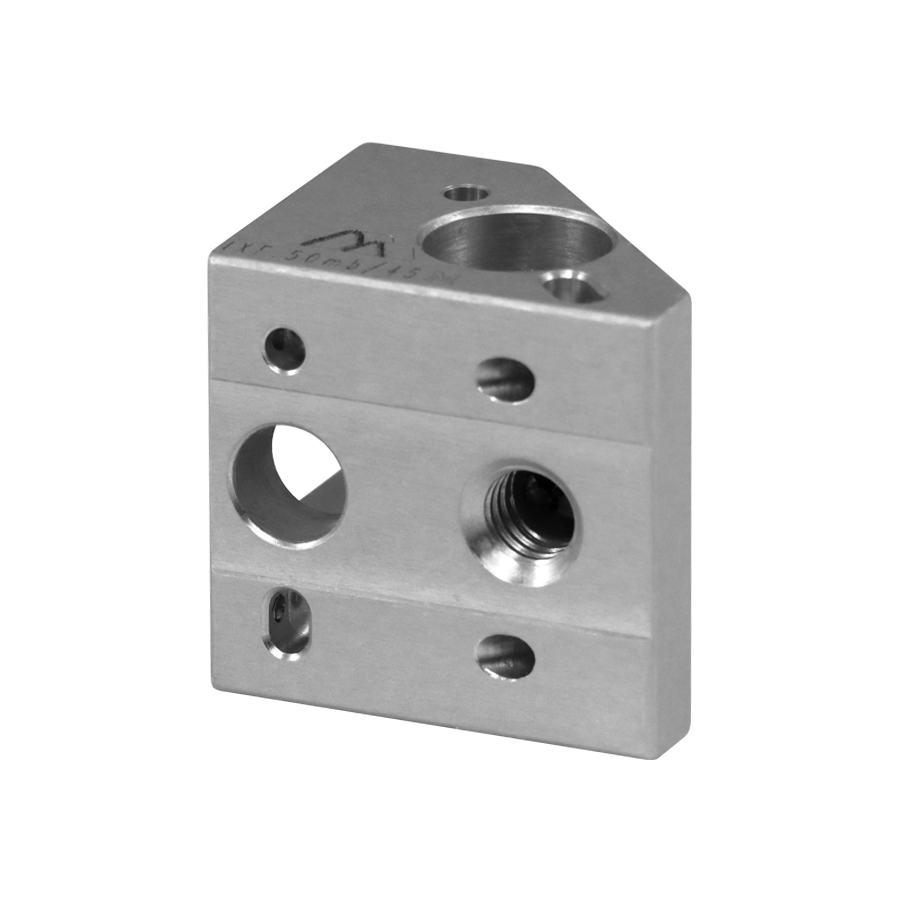

IXF.50mb/45 M [80140000M] product variant image view 1
IXF.50mb/45 M [80140000M] product variant image view 2
IXF.50mb/45 M [80140000M] product variant image view 3
IXF.50mb/45 M [80140000M] product variant image view 4
Product Details

The IXF.50mb/45 mounting block allows solid base mounting to the IXF.50i and IXF.50a series flexure mounts. For periscope beam steering configuration this aluminum mounting block has a fixed 45° angle. This configuration allows 1/4-20 (M6) cap screw clearance mounting from the top surface or a 1/4-20 (M6) threaded hole on the bottom surface. Adapted with the top-adjust IXF.50t series the adjustments are made free of the beam path.

Alternate sides of the IXF.50mb/45 block allow solid base mounting for full reflective or beam splitter optics using the IXF.50i series IXF.50a series IXF.50bs and IXF.50tbs series mounts. All the mounting configurations incorporate dowel pin location hole and slot features.

Reference Documents
DocumentViewDownload

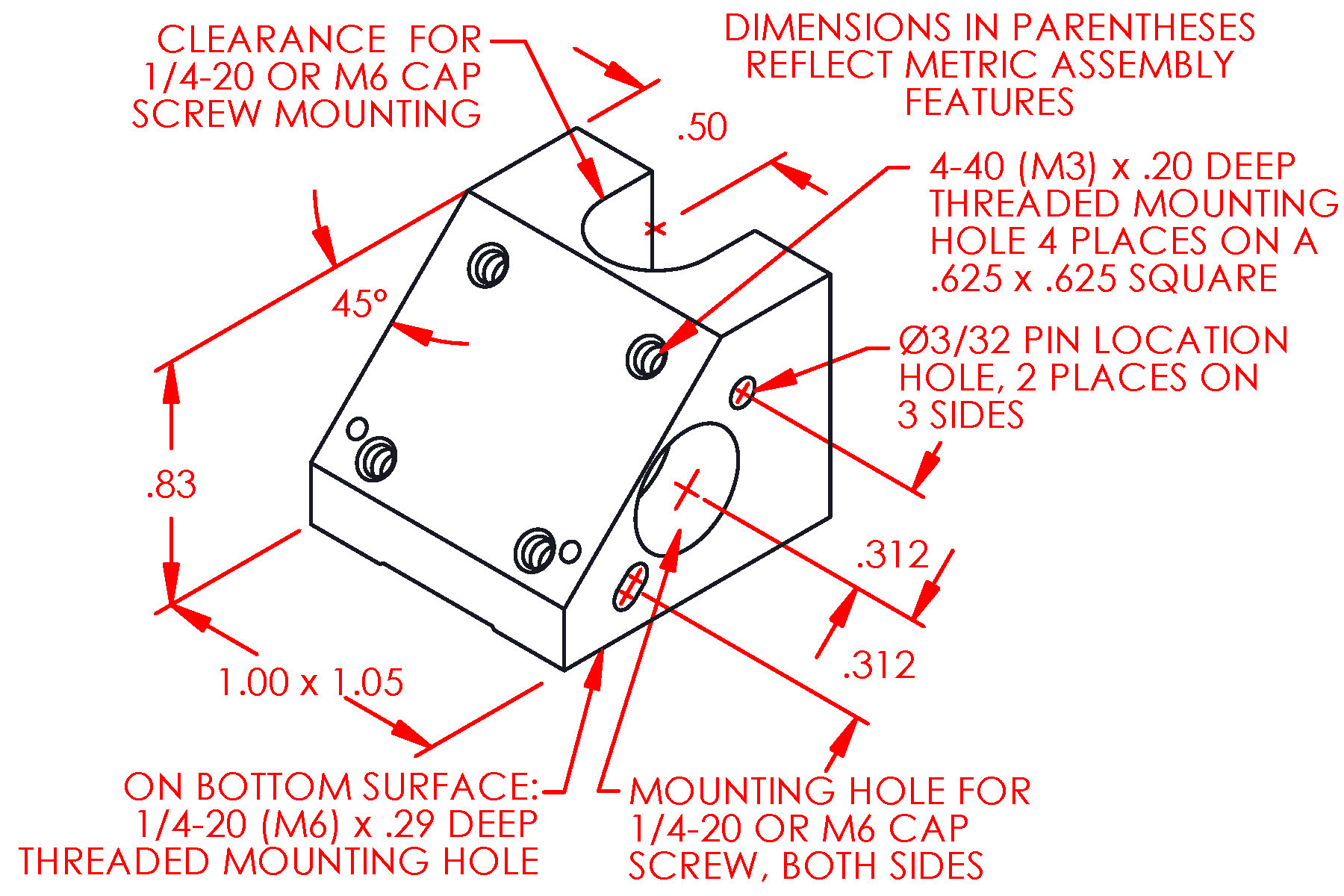

Drawing - 80140000MViewDownload
3D Model - 80140000MDownload
IXF1.75mb/45 M [80150000M] Optic Size: Optic Size:.75/1.0in | Material: Material:ALUMINUM | UOM: UOM:METRIC
Variant Images

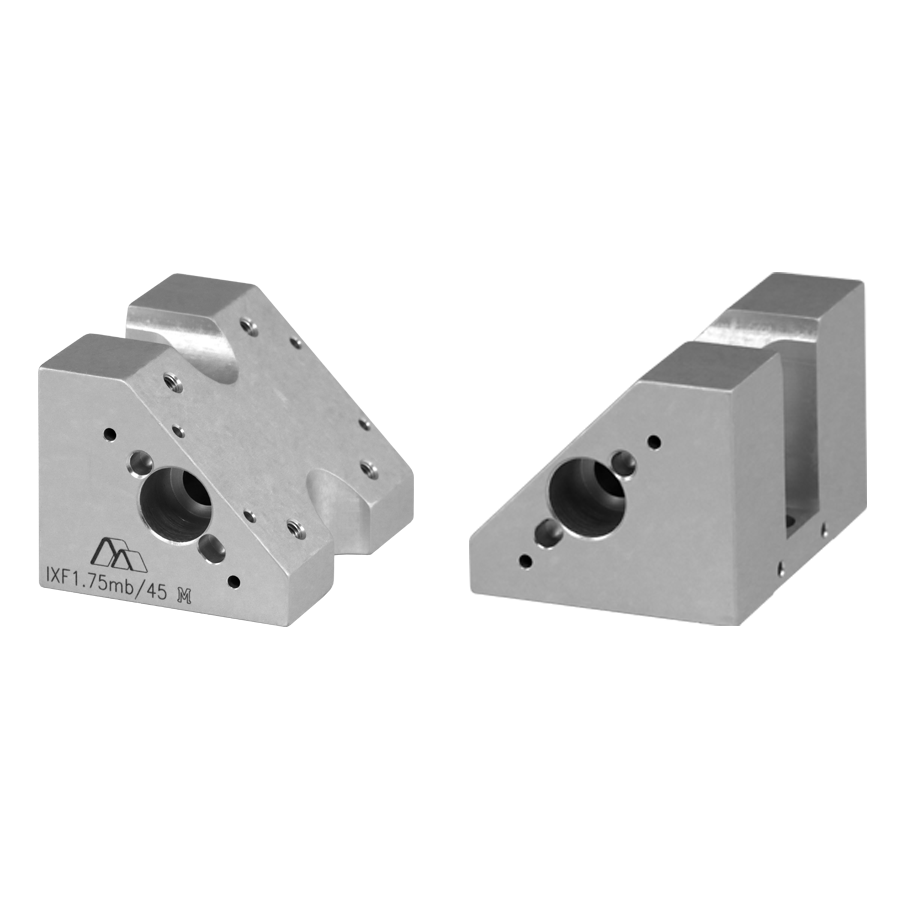

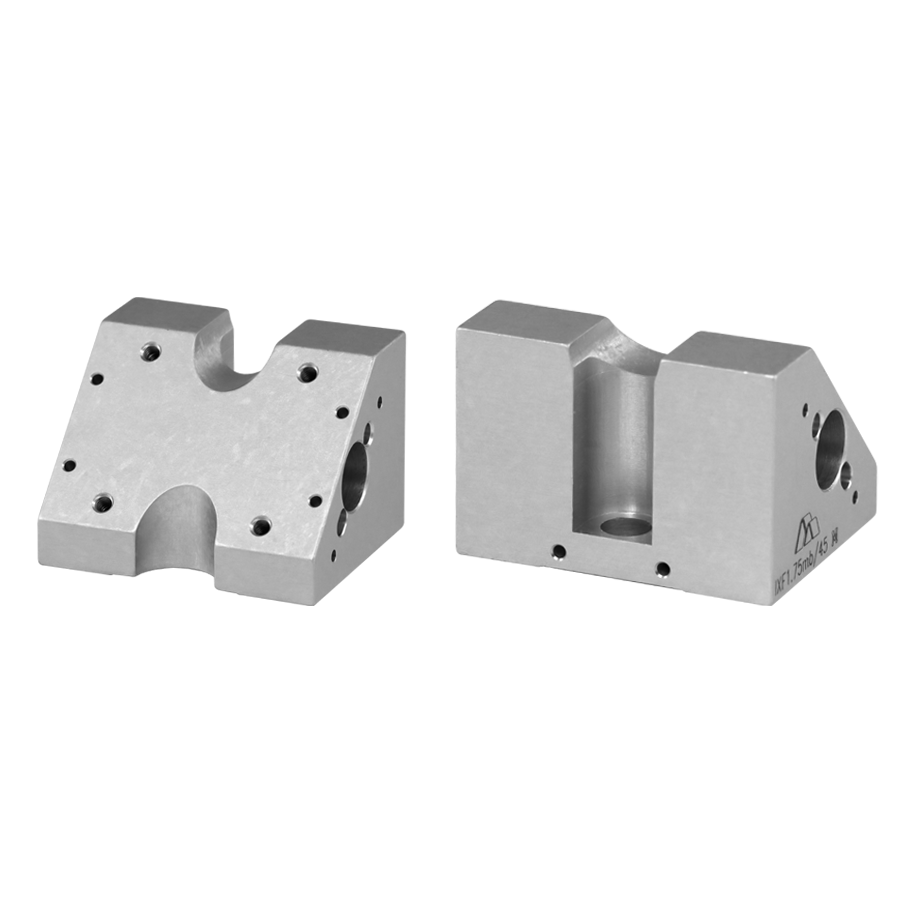

IXF1.75mb/45 M [80150000M] product variant image view 1
IXF1.75mb/45 M [80150000M] product variant image view 2
IXF1.75mb/45 M [80150000M] product variant image view 3
IXF1.75mb/45 M [80150000M] product variant image view 4
Product Details

The IXF1.75mb/45 mounting block allows solid base mounting to the IXF.75 series and IXF1.0 series flexure mounts. For periscope beam steering configuration this aluminum mounting block has a fixed 45° angle. This configuration allows 1/4-20 (M6) cap screw clearance mounting from the top surface or a 1/4-20 (M6) threaded hole on the bottom surface. Adapted with the top-adjust IXF.75t and IXF1.0t series the adjustments are made free of the beam path.

Alternate sides of the IXF1.75mb/45 block allow solid base mounting for full reflective or beam splitter optics using the IXF.75 series IXF.75bs series IXF1.0 series and IXF1.0bs series mounts.

All the mounting configurations incorporate dowel pin location hole and slot features.

Reference Documents
DocumentViewDownload

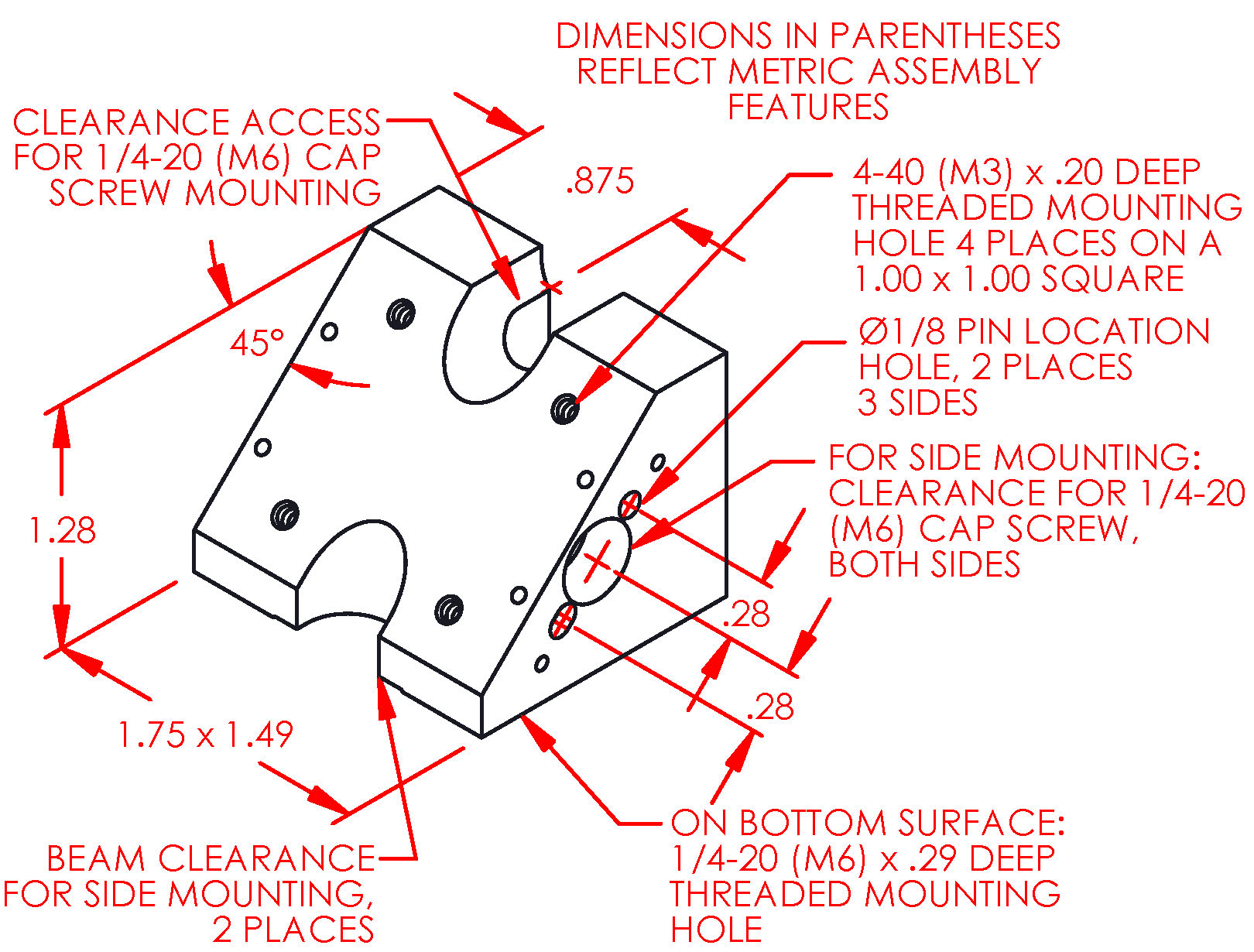

Drawing - 80150000MViewDownload
3D Model - 80150000MDownload
