LDP-1 Series Positioner
SKU:
LDP SERIES
Name:
$231.00
LDP-1 Series Positioner
$231.00
LDP-1 Series Positioner
The LDP, back adjustable laser diode positioner uses the XY & tip/tilt mechanics from our popular BFT-5 fiber positioner to create a compact 4-axis laser diode mount. The X and Y axis have 0.12-inches (3mm) of travel and are adjusted via 80TPI fine pitch screws. Tip/tilt motion uses 80TPI screws and has a total of 8-degrees of motion. Comes with 8-32 (M4) tapped holes on two edges for convenient mounting to PR series post. The LDP-1B has 4-40 clearance holes and the tip/tilt adjustments on the back side, allowing for through the bulkhead adjustments.
Product Features
- 80 pitch adjustment screws
- 4 axes of adjustment
- Safety shutter
- Vacuum compatible versions available upon request
Performance Specifications
Travel
- X and Y axis: 0.12 inch (3.1 mm)
- Pitch and Yaw: 8°
Minimum controllable motion
- X and Y axis: 1 µm
- Pitch and Yaw: 4.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
LDP-1B [59030000E]
Variant Images
![LDP-1B [59030000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59030000E.jpg)
![LDP-1B [59030000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59030000E_1.jpg)
Product Details
The LDP back adjustable laser diode positioner uses the XY & tip/tilt mechanics from our popular BFT-5 fiber positioner to create a compact 4-axis laser diode mount. The X and Y axis have 0.12-inches (3mm) of travel and are adjusted via 80TPI fine pitch screws. Tip/tilt motion uses 80TPI screws and has a total of 8-° of motion. Comes with 8-32 (M4) tapped holes on two edges for convenient mounting to PR series post. The LDP-1B has 4-40 clearance holes and the tip/tilt adjustments on the back side allowing for through the bulkhead adjustments.
Product Features:
- 80 pitch adjustment screws
- 4 axes of adjustment
- Safety shutter
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
Travel
- X and Y axis: 0.12 inch (3.1 mm)
- Pitch and Yaw: 8°
Minimum controllable motion*:
- X and Y axis: 1 µm
- Pitch and Yaw: 4.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

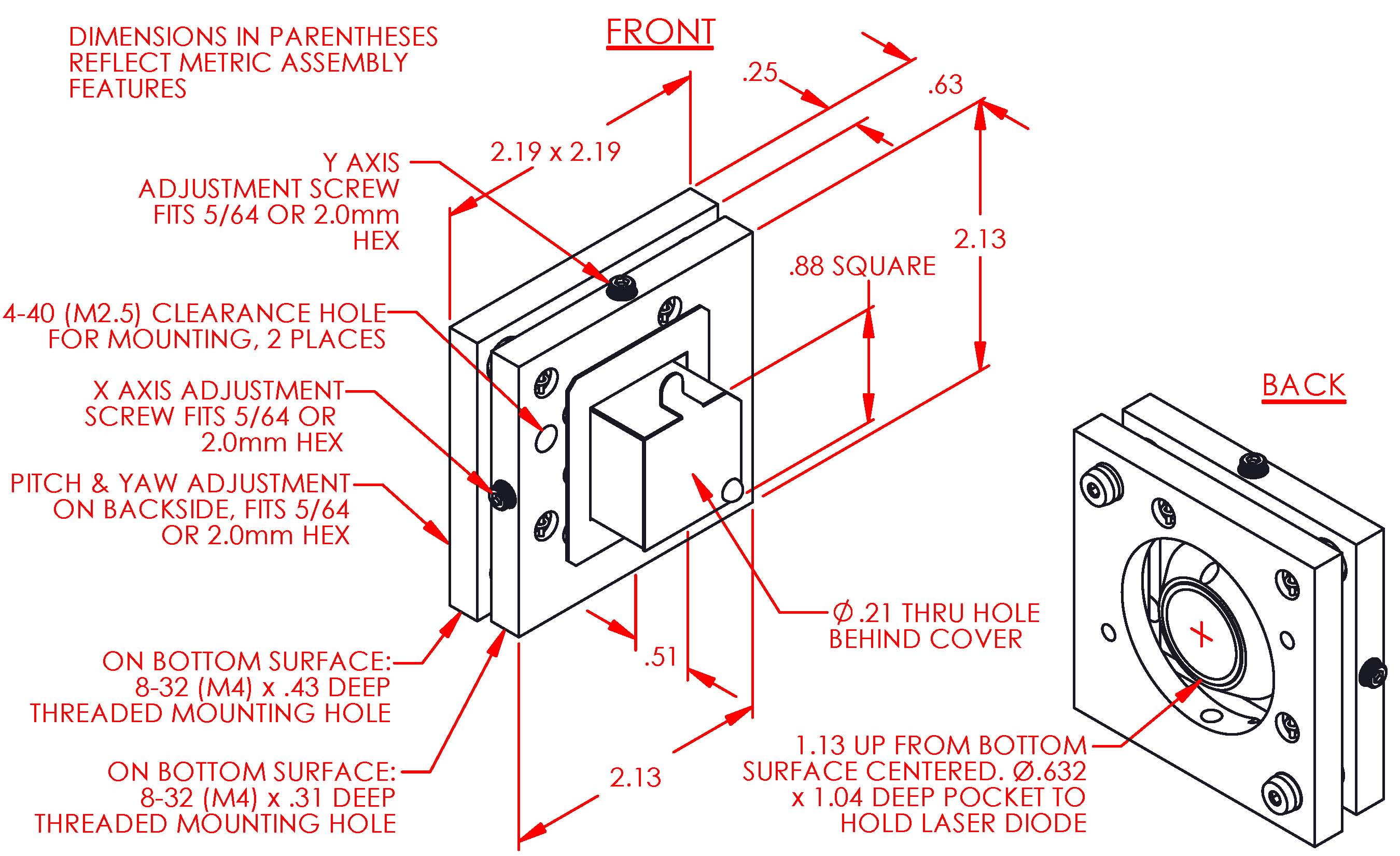

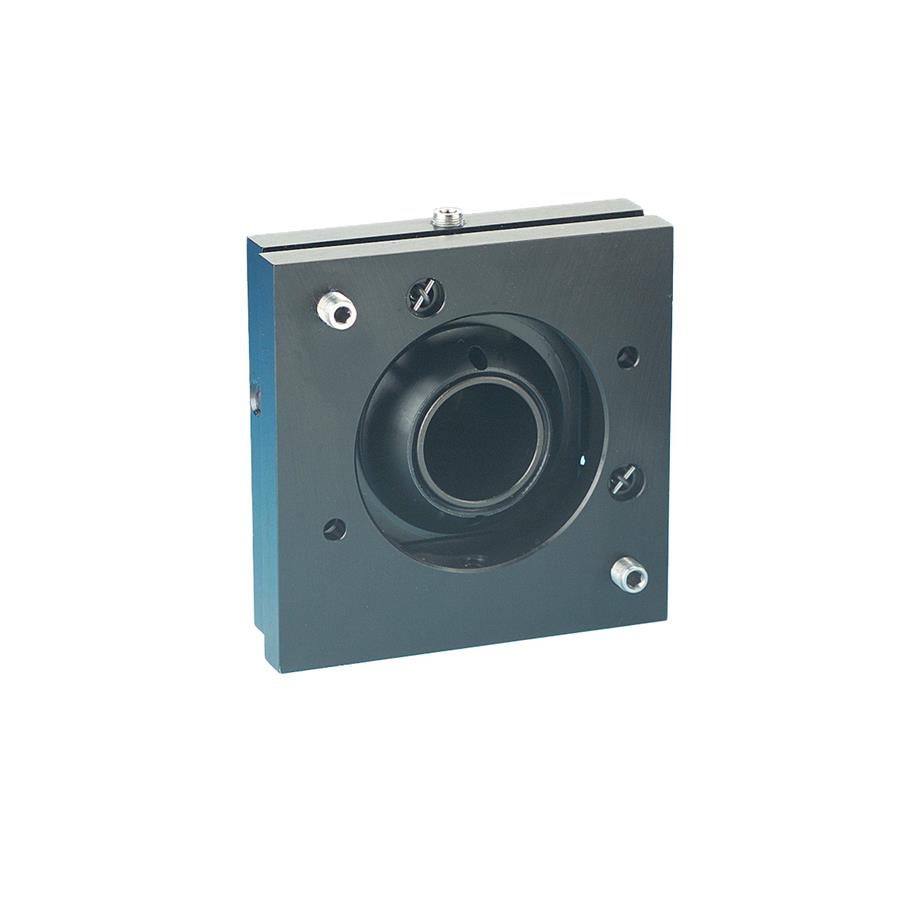

LDP-1B M [59030000M]
Variant Images
![LDP-1B M [59030000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59030000M.jpg)
![LDP-1B M [59030000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59030000M_1.jpg)
Product Details
The LDP back adjustable laser diode positioner uses the XY & tip/tilt mechanics from our popular BFT-5 fiber positioner to create a compact 4-axis laser diode mount. The X and Y axis have 0.12-inches (3mm) of travel and are adjusted via 80TPI fine pitch screws. Tip/tilt motion uses 80TPI screws and has a total of 8-° of motion. Comes with 8-32 (M4) tapped holes on two edges for convenient mounting to PR series post. The LDP-1B has 4-40 clearance holes and the tip/tilt adjustments on the back side allowing for through the bulkhead adjustments.
Product Features:
- 80 pitch adjustment screws
- 4 axes of adjustment
- Safety shutter
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
Travel
- X and Y axis: 0.12 inch (3.1 mm)
- Pitch and Yaw: 8°
Minimum controllable motion*:
- X and Y axis: 1 µm
- Pitch and Yaw: 4.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

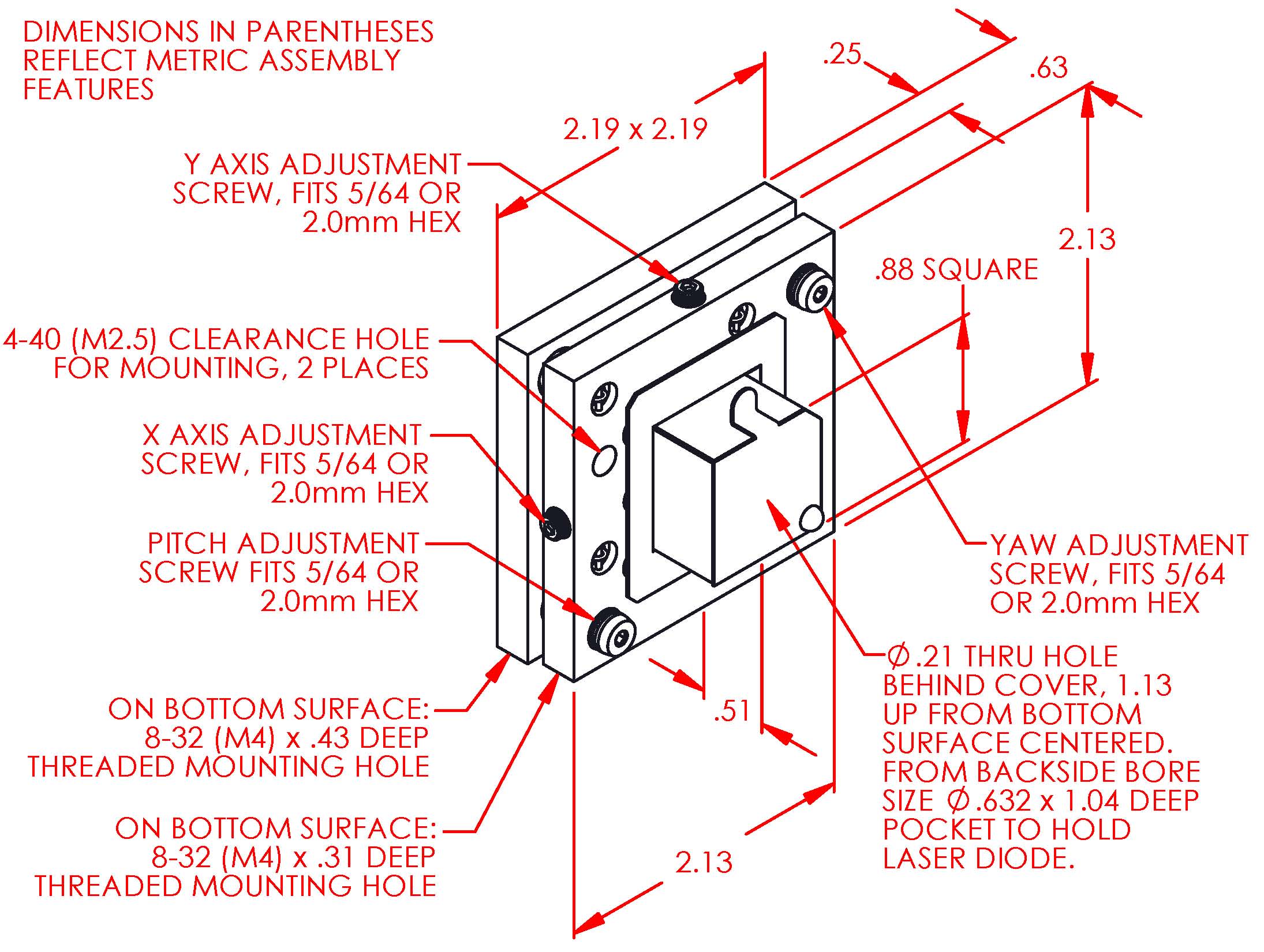

LDP-1 [59040000E]
Variant Images
![LDP-1 [59040000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59040000E.jpg)
![LDP-1 [59040000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59040000E_1.jpg)
Product Details
The LDP front adjustable laser diode positioner uses the XY & tip/tilt mechanics from our popular BFT-5 fiber positioner to create a compact 4-axis laser diode mount. The X and Y axis have 0.12-inches (3mm) of travel and are adjusted via 80TPI fine pitch screws. Tip/tilt motion uses 80TPI screws and has a total of 8-° of motion. The LDP-1 has 8-32 (M4) tapped holes on two edges for convenient mounting to PR series post. The LDP-1 also has 4-40 clearance holes accessed from the front so that it can be bulkhead mounted off its back side leaving the tip/tilt adjustment screws accessible from the front.
Product Features:
- 80 pitch adjustment screws
- 4 axes of adjustment
- Safety shutter
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
Travel
- X and Y axis: 0.12 inch (3.1 mm)
- Pitch and Yaw: 8°
Minimum controllable motion*:
- X and Y axis: 1 µm
- Pitch and Yaw: 4.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

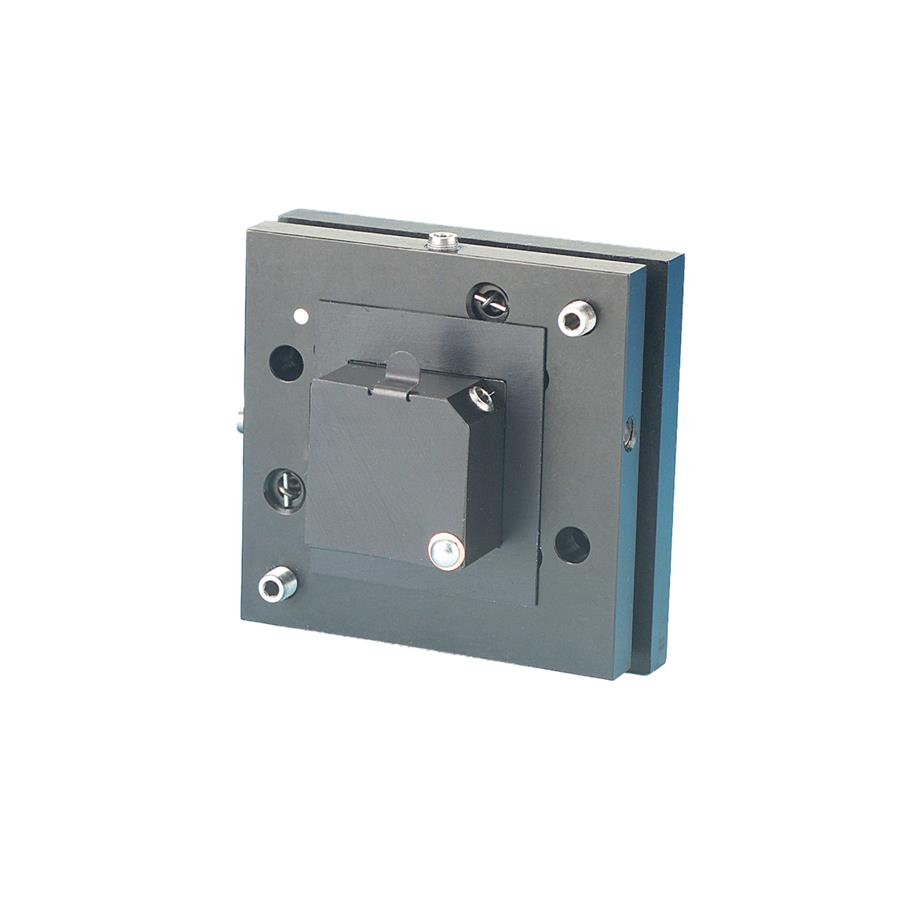

LDP-1 M [59040000M]
Variant Images
![LDP-1 M [59040000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59040000M.jpg)
![LDP-1 M [59040000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/59040000M_1.jpg)
Product Details
The LDP front adjustable laser diode positioner uses the XY & tip/tilt mechanics from our popular BFT-5 fiber positioner to create a compact 4-axis laser diode mount. The X and Y axis have 0.12-inches (3mm) of travel and are adjusted via 80TPI fine pitch screws. Tip/tilt motion uses 80TPI screws and has a total of 8-° of motion. The LDP-1 has 8-32 (M4) tapped holes on two edges for convenient mounting to PR series post. The LDP-1 also has 4-40 clearance holes accessed from the front so that it can be bulkhead mounted off its back side leaving the tip/tilt adjustment screws accessible from the front.
Product Features:
- 80 pitch adjustment screws
- 4 axes of adjustment
- Safety shutter
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
Travel
- X and Y axis: 0.12 inch (3.1 mm)
- Pitch and Yaw: 8°
Minimum controllable motion*:
- X and Y axis: 1 µm
- Pitch and Yaw: 4.8 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
