MC400
SKU:
70170000E
Name:
MANUAL MOTORIZED:
MOTORIZED
OPEN CLOSED:
OPEN LOOP
VOLUME:
0.000000
WEIGHT UOM:
LB
$705.00
MC400
$705.00
MC400

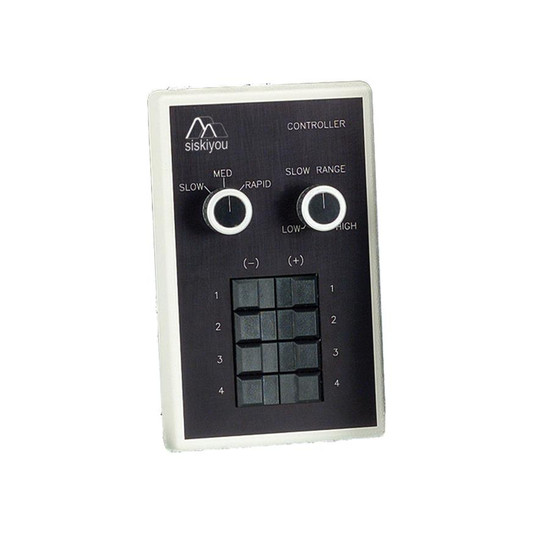

MC400 open loop DC controllers are designed to drive our 400 series actuators. These controllers allow the user to operate from one to four of our 400 series actuators of any travel length. These controllers use a wall mounted DC power supplies as their source. These noise-free DC controllers, along with our 400 series drives, can be used in proximity to electrophysiology experiments.
Product Features
- Economical DC controller
- Variable, high-resolution speed control
- Preset rapid and medium speed settings
- RoHS compliant
- CE compliant
Performance Specifications
- With 400 series actuators under 8 pounds load
- Power requirements 110 VAC, 50/60 Hz
Maximum speed:
- Rapid: 800 µm/sec
- Medium: 100 µm/sec
- Slow Range / High: 35 µm/sec
- Slow Range / Low: 5 µm/sec
| Spec Sheet: | Click here to download |

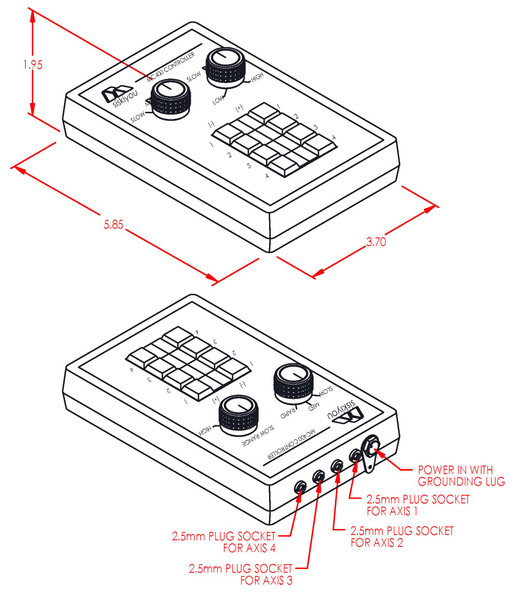

| 3D Model: | Click here to download |
