Crossed Roller Series Stage
SKU:
X00CR SERIES
Name:
Axes of Adjustment:
X
MANUAL MOTORIZED:
MANUAL
TRAVEL:
100MM/4.0IN
TRAVEL:
25MM/1.0IN
TRAVEL:
50MM/2.0IN
UOM:
IMPERIAL
UOM:
METRIC
VOLUME:
0.000000
WEIGHT UOM:
LB
$605.00 - $1,375.00
Crossed Roller Series Stage
$605.00 - $1,375.00
Crossed Roller Series Stage
The precision crossed roller bearing translation stages offer exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions, and maximizes linearity towards the end of travel. The stage has a side located non-influencing lock that is integrated with a graduated scale for position readout of 0.04 inches (1 mm). The actuator mounting block and stop block are designed to enable either right or left hand mounting of the drive device. The actuator mounting block is compatible with our TPI series adjustment screws, 400 and 800 series actuators, as well as standard micrometers. The spring-loaded 200cr stage is stackable for XY positioning requirements and is compatible with our MX-AB2 for Z-axis applications.
Product Features
- Integrated scale / lock
- Right and left-hand drive adjustable
- Compatible with standard micrometers
- Vacuum compatible versions available upon request
Performance Specifications
- Maximum horizontal axis load: 70 lbs, centered
- Maximum vertical axis load: 10 lbs, centered
- Travel: 2.0 inch (50 mm)
- Minimum controllable motion:
- 20TPI: 20 µm
- 40TPI: 10 µm
- 80TPI: submicron
- 100TPI: submicron
- 127TPI: submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
100cr [90270000E]
Variant Images
![100cr [90270000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90270000E.jpg)
![100cr [90270000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90270000E_1.jpg)
Product Details
The 100cr precision crossed roller bearing translation stage offers exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions and maximizes linearity towards the end of travel. The 100cr has a side located non-influencing lock that is integrated with a graduated scale for position readout of 0.04 inches (1 mm). The actuator mounting block and stop block are designed to enable either right or left hand mounting of the drive device. The actuator mounting block is compatible with our TPI series adjustment screws 400 and 800 series actuators as well as standard micrometers.
Product Features:
- Integrated scale / lock
- Right and left hand drive adjustable
- Compatible with standard micrometers
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 70 lbs centered
- Maximum vertical axis load: 10 lbs centered
- Travel: 1.0 inch (25 mm)
- Minimum controllable motion* (adjustment screws sold separately)
- 20TPI: 20 µm
- 40TPI: 10 µm
- 80TPI: submicron
- 100TPI: submicron
- 127TPI submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
100cr M [90270000M]
Variant Images

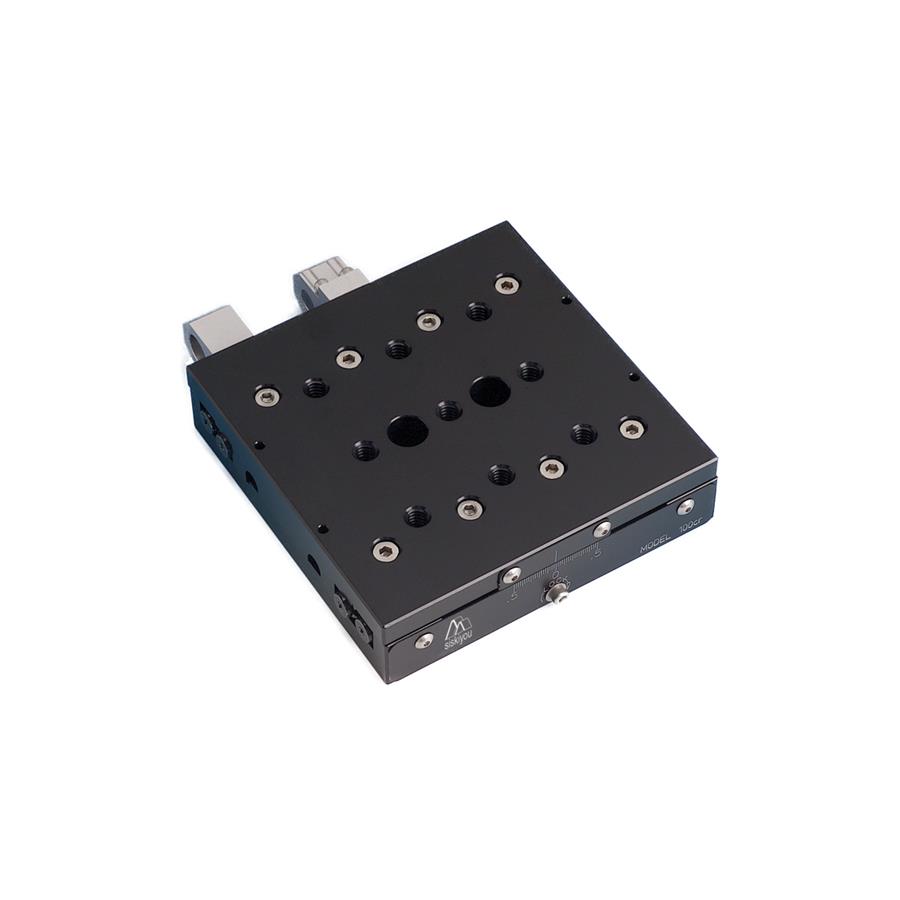

![100cr M [90270000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90270000M.jpg)
![100cr M [90270000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90270000M_1.jpg)
Product Details
The 100cr precision crossed roller bearing translation stage offers exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions and maximizes linearity towards the end of travel. The 100cr has a side located non-influencing lock that is integrated with a graduated scale for position readout of 0.04 inches (1 mm). The actuator mounting block and stop block are designed to enable either right or left hand mounting of the drive device. The actuator mounting block is compatible with our TPI series adjustment screws 400 and 800 series actuators as well as standard micrometers.
Product Features:
- Integrated scale / lock
- Right and left hand drive adjustable
- Compatible with standard micrometers
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 70 lbs centered
- Maximum vertical axis load: 10 lbs centered
- Travel: 1.0 inch (25 mm)
- Minimum controllable motion* (adjustment screws sold separately)
- 20TPI: 20 µm
- 40TPI: 10 µm
- 80TPI: submicron
- 100TPI: submicron
- 127TPI submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
200cr [90040000E]
Variant Images

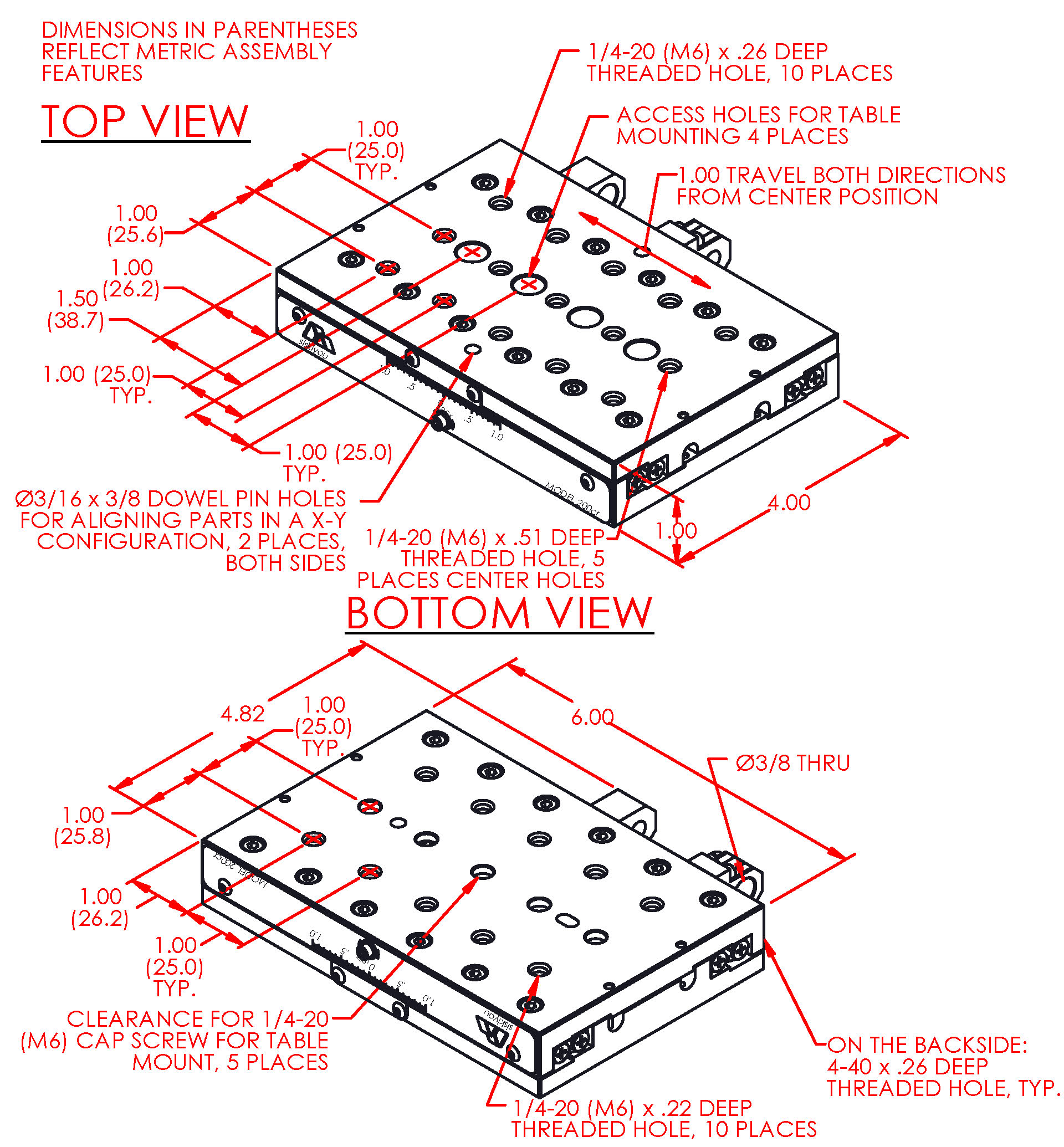

![200cr [90040000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90040000E.jpg)
![200cr [90040000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90040000E_1.jpg)
Product Details
The 200cr precision crossed roller bearing translation stage offers exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions and maximizes linearity towards the end of travel. The 200cr has a side located non-influencing lock that is integrated with a graduated scale for position readout of 0.04 inches (1 mm). The actuator mounting block and stop block are designed to enable either right or left hand mounting of the drive device. The actuator mounting block is compatible with our TPI series adjustment screws 400 and 800 series actuators as well as standard micrometers. The spring-loaded 200cr stage is stackable for XY positioning requirements and is compatible with our MX-AB2 for Z-axis applications.
Product Features:
- Integrated scale / lock
- Right and left-hand drive adjustable
- Compatible with standard micrometers
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 70 lbs centered
- Maximum vertical axis load: 10 lbs centered
- Travel: 2.0 inch (50 mm)
- Minimum controllable motion*
- 20TPI: 20 µm
- 40TPI: 10 µm
- 80TPI: submicron
- 100TPI: submicron
- 127TPI: submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
200cr M [90040000M]
Variant Images

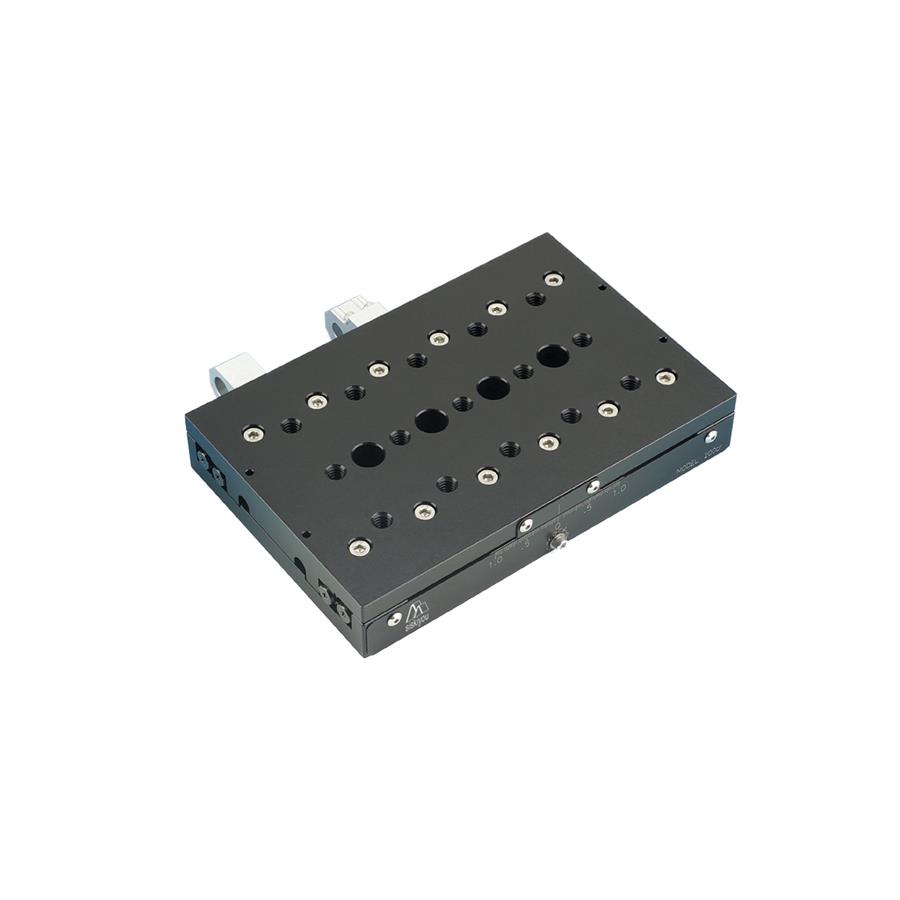

![200cr M [90040000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90040000M.jpg)
![200cr M [90040000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90040000M_1.jpg)
Product Details
The 200cr precision crossed roller bearing translation stage offers exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions and maximizes linearity towards the end of travel. The 200cr has a side located non-influencing lock that is integrated with a graduated scale for position readout of 0.04 inches (1 mm). The actuator mounting block and stop block are designed to enable either right or left hand mounting of the drive device. The actuator mounting block is compatible with our TPI series adjustment screws 400 and 800 series actuators as well as standard micrometers. The spring-loaded 200cr stage is stackable for XY positioning requirements and is compatible with our MX-AB2 for Z-axis applications.
Product Features:
- Integrated scale / lock
- Right and left-hand drive adjustable
- Compatible with standard micrometers
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 70 lbs centered
- Maximum vertical axis load: 10 lbs centered
- Travel: 2.0 inch (50 mm)
- Minimum controllable motion*
- 20TPI: 20 µm
- 40TPI: 10 µm
- 80TPI: submicron
- 100TPI: submicron
- 127TPI: submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
400cr [90910000E]
Variant Images

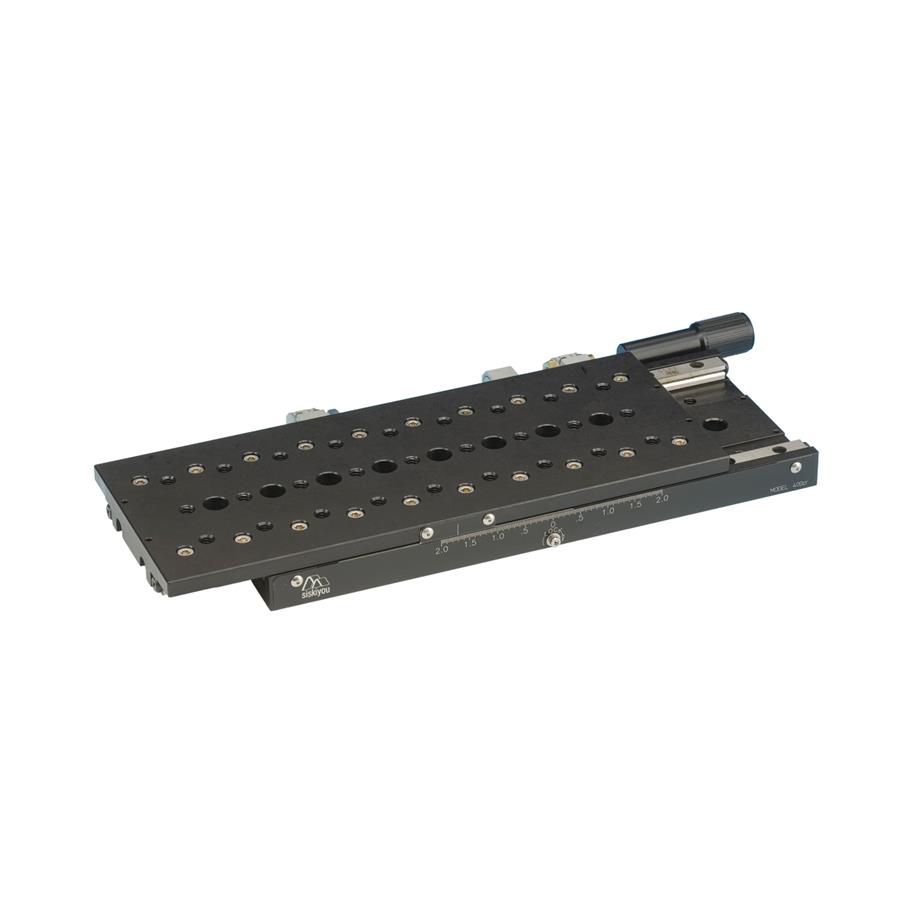

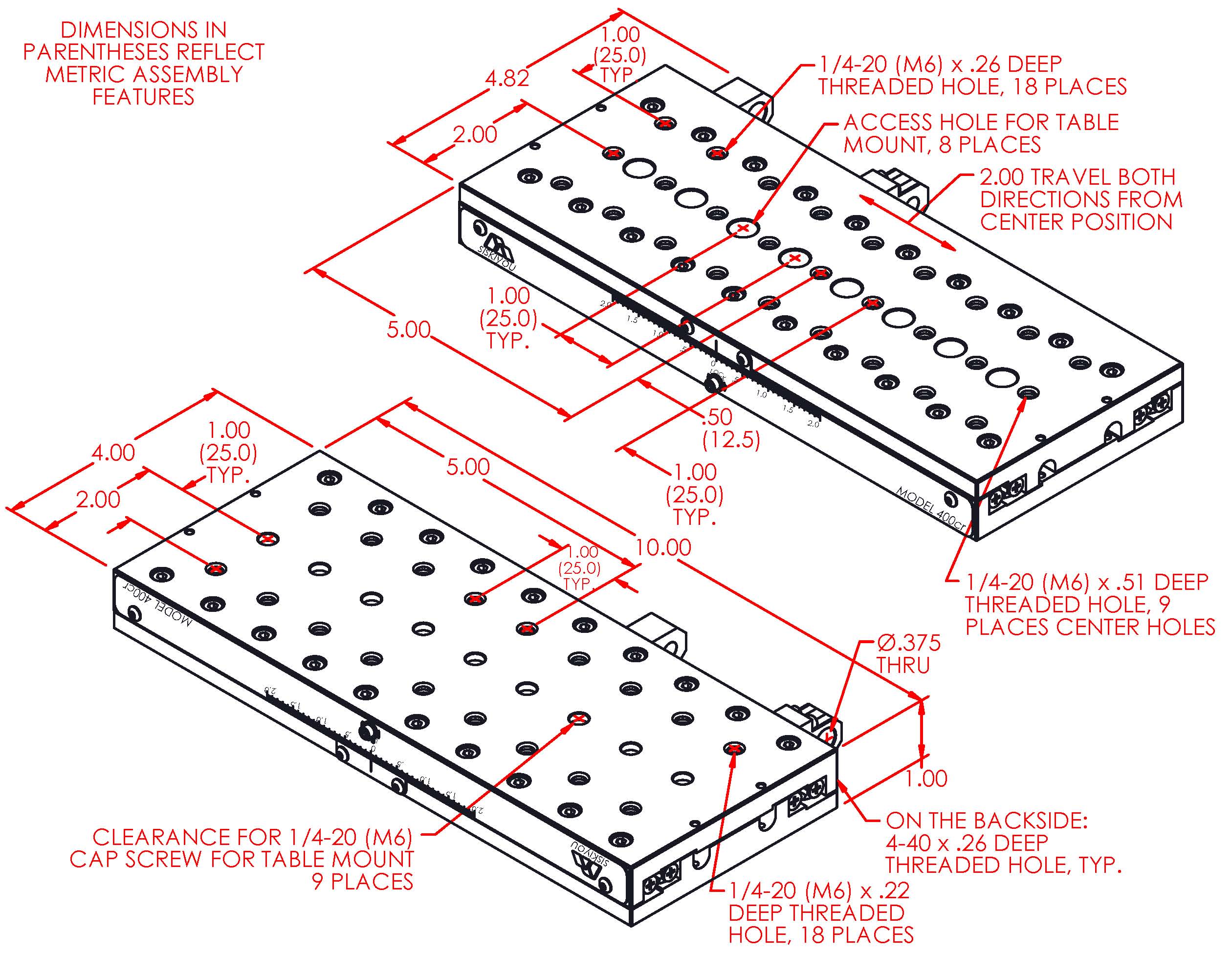

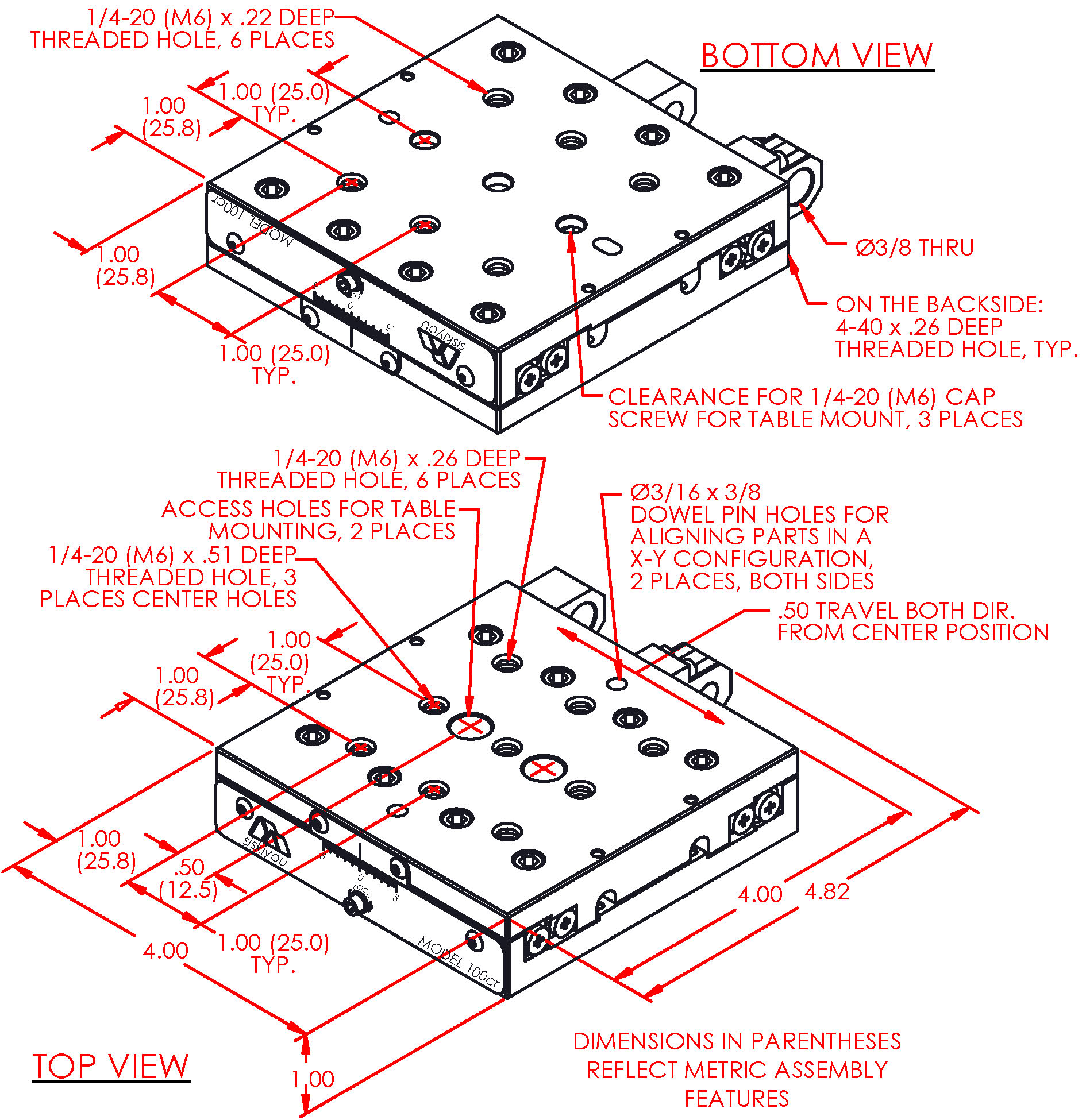

![400cr [90910000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90910000E.jpg)
![400cr [90910000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90910000E_1.jpg)
Product Details
The 400cr precision crossed roller bearing translation stage offers exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions and maximizes linearity towards the end of travel.
Product Features:
- Integrated scale / lock
- Right and left hand drive adjustable
- Compatible with Lt series long travel adjustment screws
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 90 lbs centered
- Maximum vertical axis load: 20 lbs centered
- Travel: 4.0 inch (100 mm)
- Minimum controllable motion*: (adjustment screws sold separately)
- 40TPI: 10 µm
- 80TPI: submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
400cr M [90910000M]
Variant Images
![400cr M [90910000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90910000M.jpg)
![400cr M [90910000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90910000M_1.jpg)
Product Details
The 400cr precision crossed roller bearing translation stage offers exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions and maximizes linearity towards the end of travel.
Product Features:
- Integrated scale / lock
- Right and left hand drive adjustable
- Compatible with Lt series long travel adjustment screws
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 90 lbs centered
- Maximum vertical axis load: 20 lbs centered
- Travel: 4.0 inch (100 mm)
- Minimum controllable motion*: (adjustment screws sold separately)
- 40TPI: 10 µm
- 80TPI: submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
