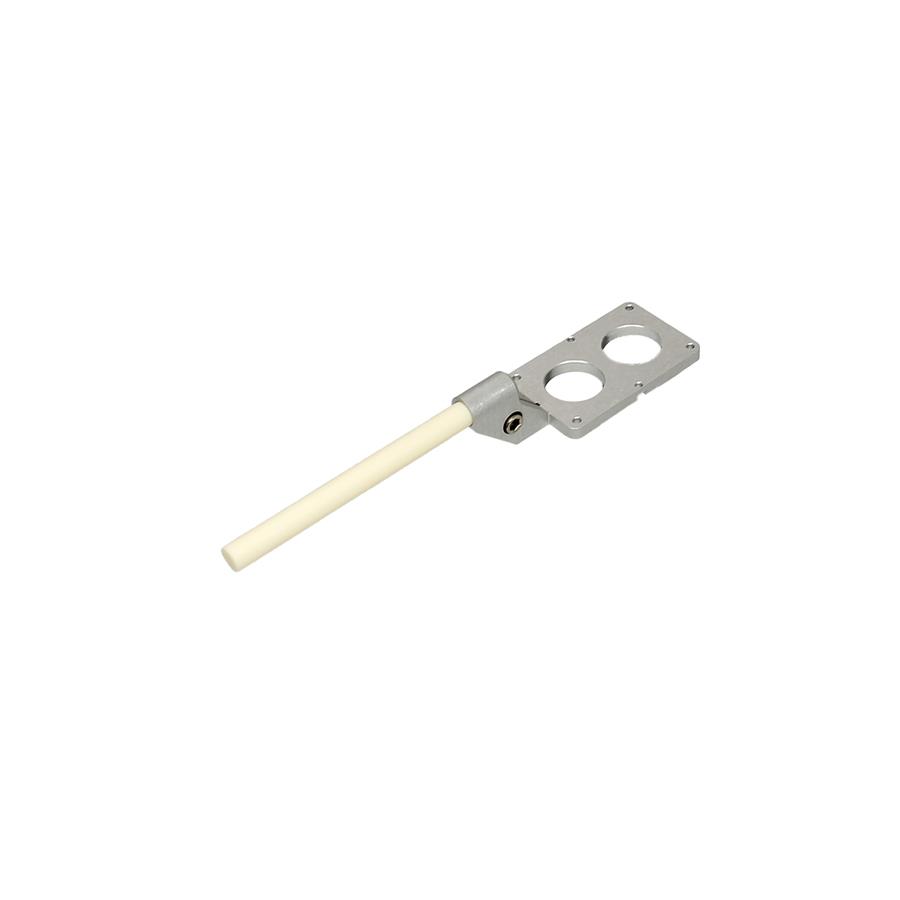

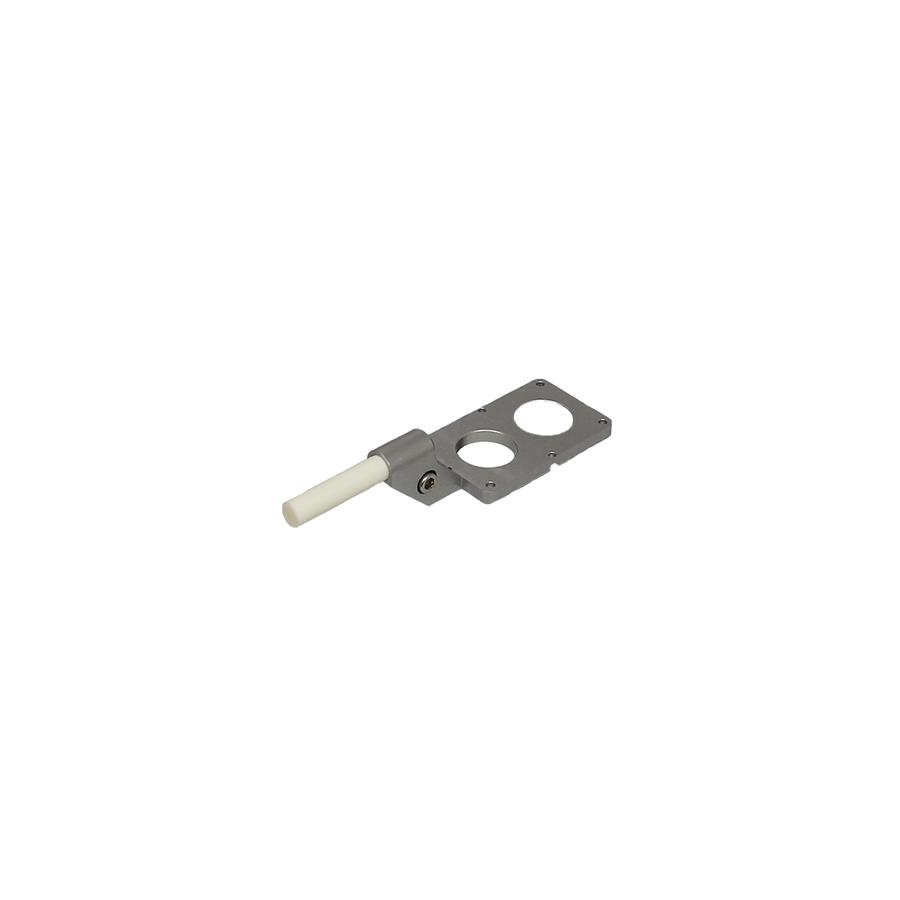

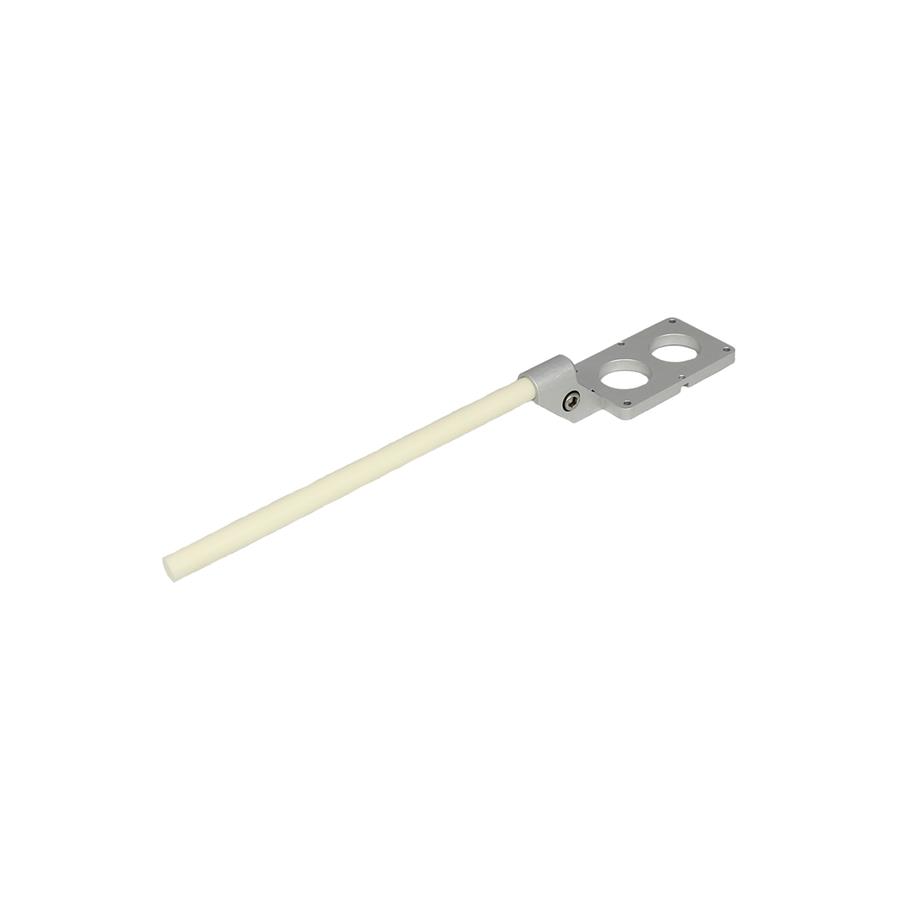

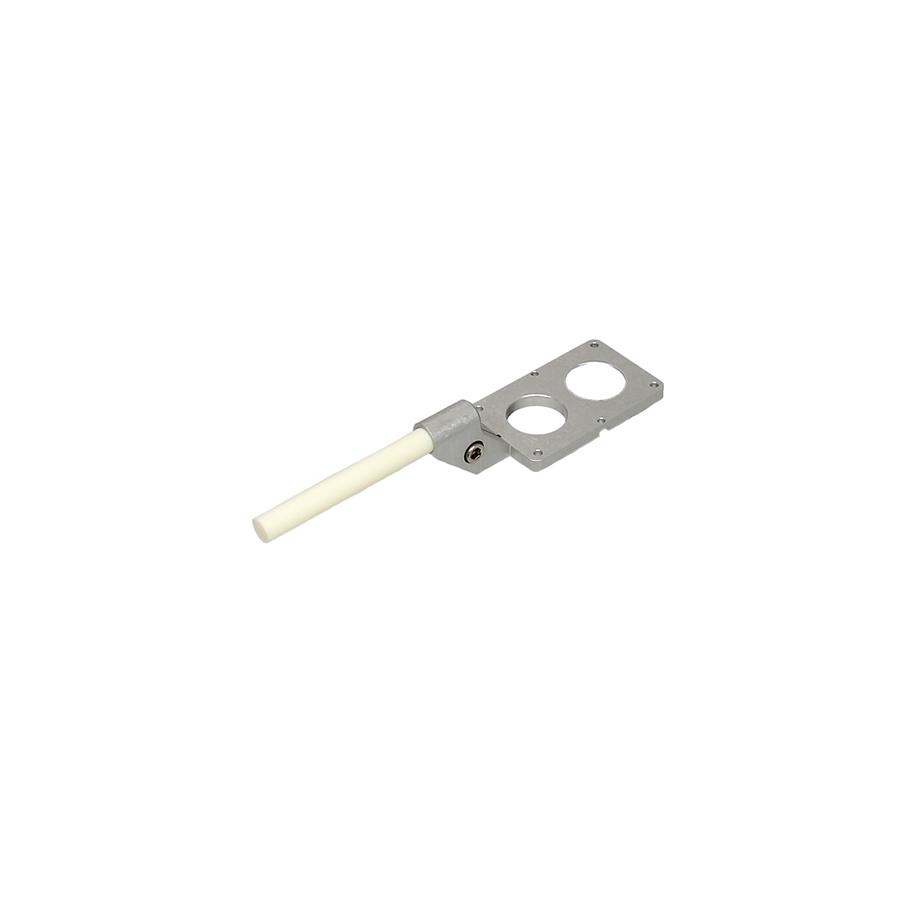

MXE Series Mount

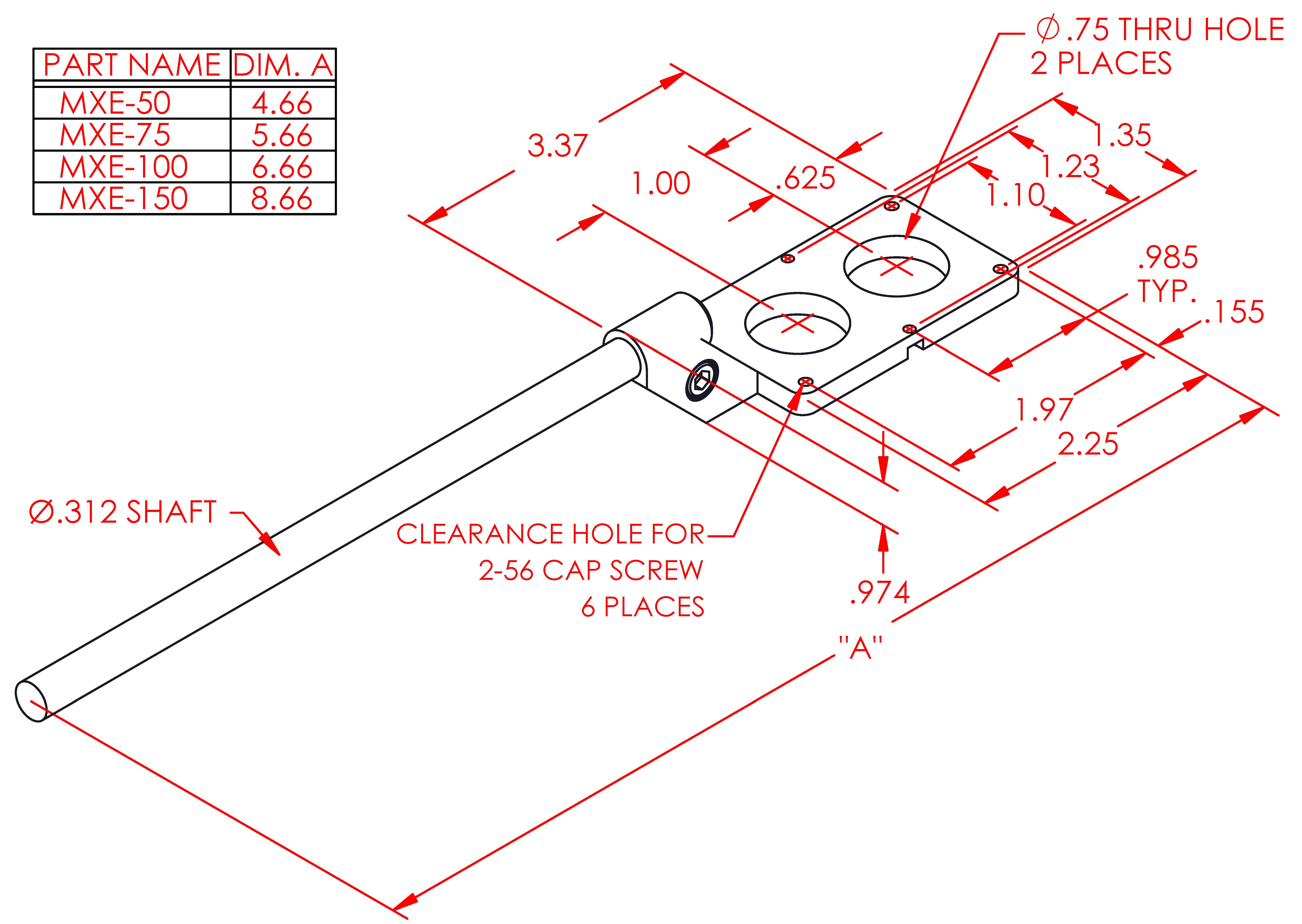

MXE headstage mounts come in a variety of lengths to accommodate a wide range of setups, and are compatible with Axopatch CV-4 headstages. MXE headstage mounts use a 5/16" diameter ceramic rod that is aligned to the mounting plate such that its axis of rotation is the same as the electrode on the amplifier headstage. Attachment of the headstage is accomplished by screwing it to the mounting platform with four cap screws, included.

Product Features

• Solid ceramic mounting rod
• Compatible with most amplifiers
• Eliminates drift

Choose options to see performance specifications and downloads.
