OMH 45 Series Mount
SKU:
OMH 45 SERIES
Name:
OPTIC SIZE:
.50IN
OPTIC SIZE:
.75IN
OPTIC SIZE:
1.0IN
UOM:
IMPERIAL
UOM:
METRIC
VOLUME:
0.000000
WEIGHT UOM:
LB
$88.00
OMH 45 Series Mount
$88.00
OMH 45 Series Mount
The OMH series of 45 optic adapters is designed to mount into our full range of mirror mounts including the IM100 and IXM100 series. Their simple design enables the experimenter to build adjustable periscope assemblies for 0.5-inch (12-mm), 0.75-inch (19-mm), or 1.0-inch (25-mm) mirrors. They use a single 8-32 (M4) nylon tipped set screw to securely hold the mirror in place without damaging it. All models incorporate our one wrench design, in which the same wrench is used to lock the optic in place and adjust the angle of the adapter via the series of capstan holes around the circumference of the adapter.
Product Features
- 0.5- adapter
- Hex screw for easy mirror replacement
- Compatible with RM and IM series mounts
- Vacuum compatible versions available upon request
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
OMH1.0/45 [54590000E]
Variant Images
![OMH1.0/45 [54590000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54590000E.jpg)
![OMH1.0/45 [54590000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54590000E_1.jpg)
Product Details
The OMH series of 45° optic adapters is designed to mount into our full range of mirror mounts including the IM100 and IXM100 series. Their simple design enables the experimenter to build adjustable periscope assemblies for 0.5-inch (12-mm) 0.75-inch (19-mm) or 1.0-inch (25-mm) mirrors. They use a single 8-32 (M4) nylon tipped set screw to securely hold the mirror in place without damaging it. All models incorporate our one wrench design in which the same wrench is used to lock the optic in place and adjust the angle of the adapter via the series of capstan holes around the circumference of the adapter.
Product Features:
- 1.0" adapter
- Hex screw for easy mirror replacement
- Compatible with RM and IM series mounts
- Vacuum compatible versions available upon request
- RoHS compliant

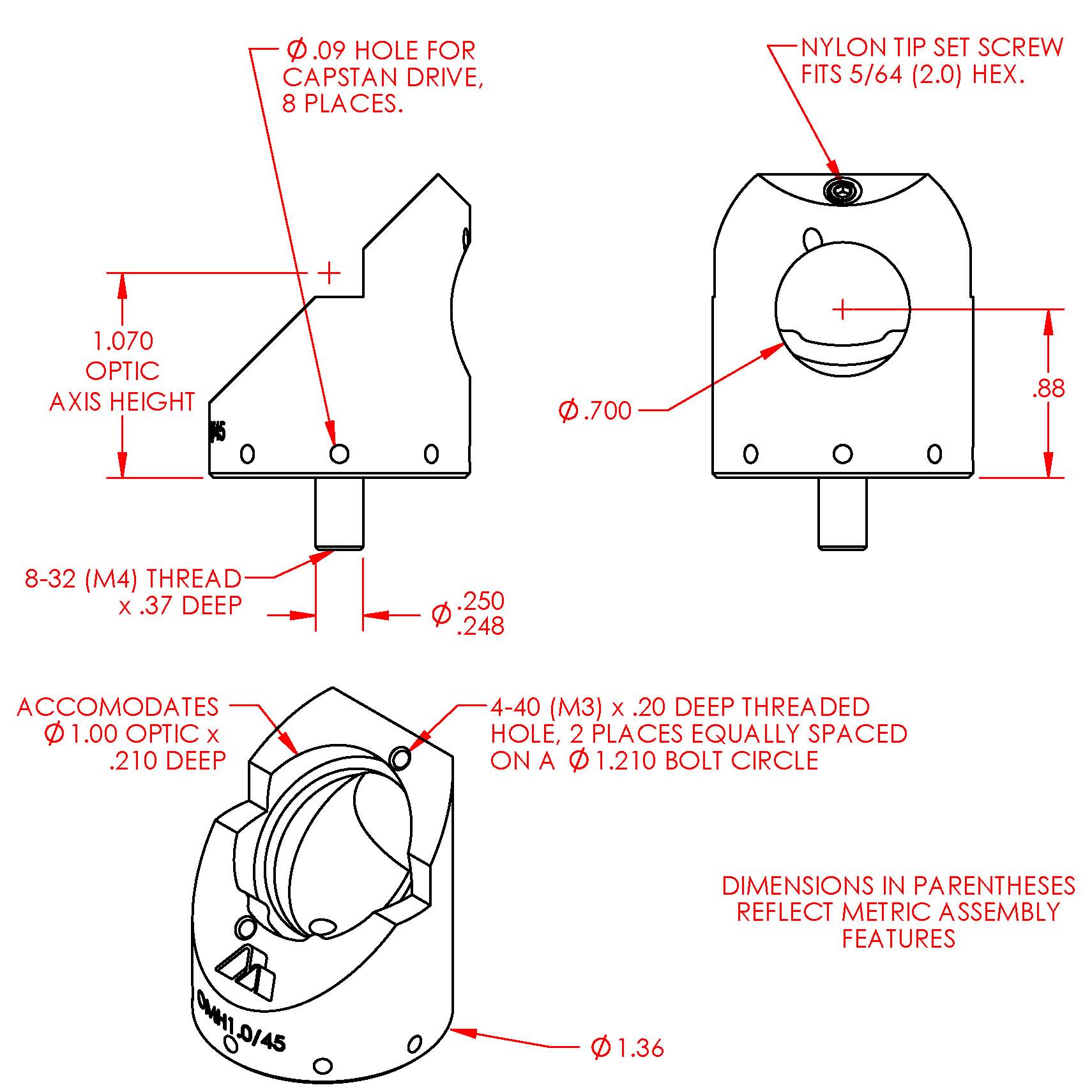

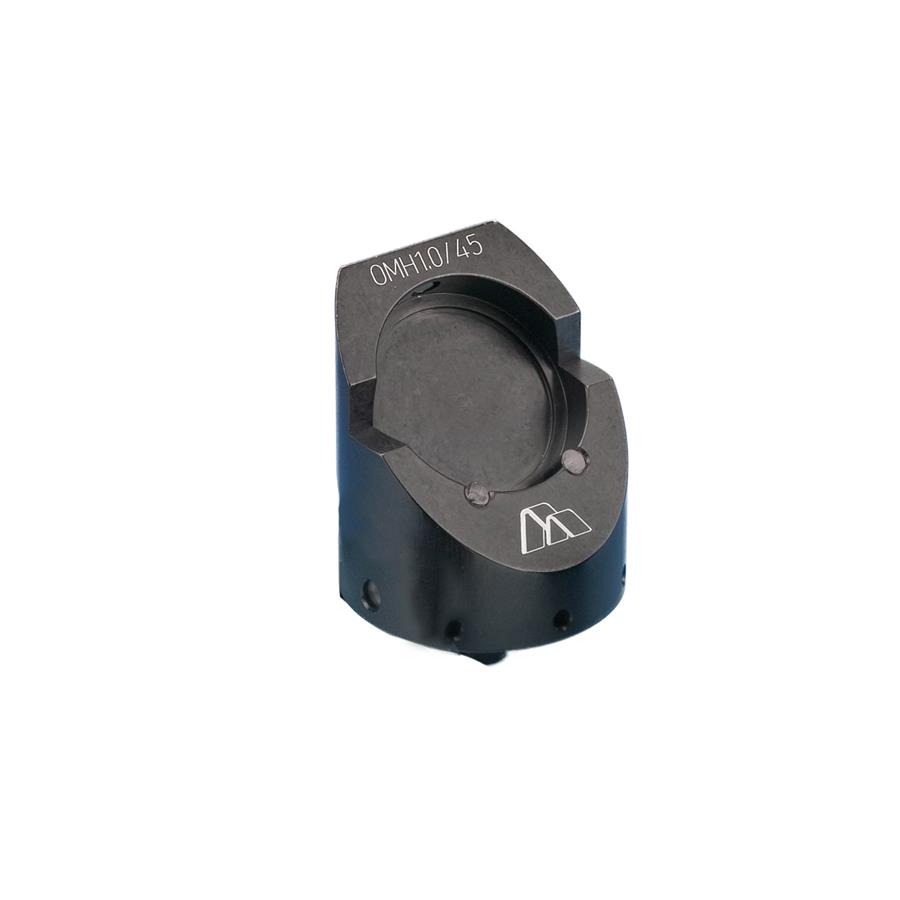

OMH1.0/45 M [54590000M]
Variant Images
![OMH1.0/45 M [54590000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54590000M.jpg)
![OMH1.0/45 M [54590000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54590000M_1.jpg)
Product Details
The OMH series of 45° optic adapters is designed to mount into our full range of mirror mounts including the IM100 and IXM100 series. Their simple design enables the experimenter to build adjustable periscope assemblies for 0.5-inch (12-mm) 0.75-inch (19-mm) or 1.0-inch (25-mm) mirrors. They use a single 8-32 (M4) nylon tipped set screw to securely hold the mirror in place without damaging it. All models incorporate our one wrench design in which the same wrench is used to lock the optic in place and adjust the angle of the adapter via the series of capstan holes around the circumference of the adapter.
Product Features:
- 25 mm adapter
- Hex screw for easy mirror replacement
- Compatible with RM and IM series mounts
- Vacuum compatible versions available upon request
- RoHS compliant

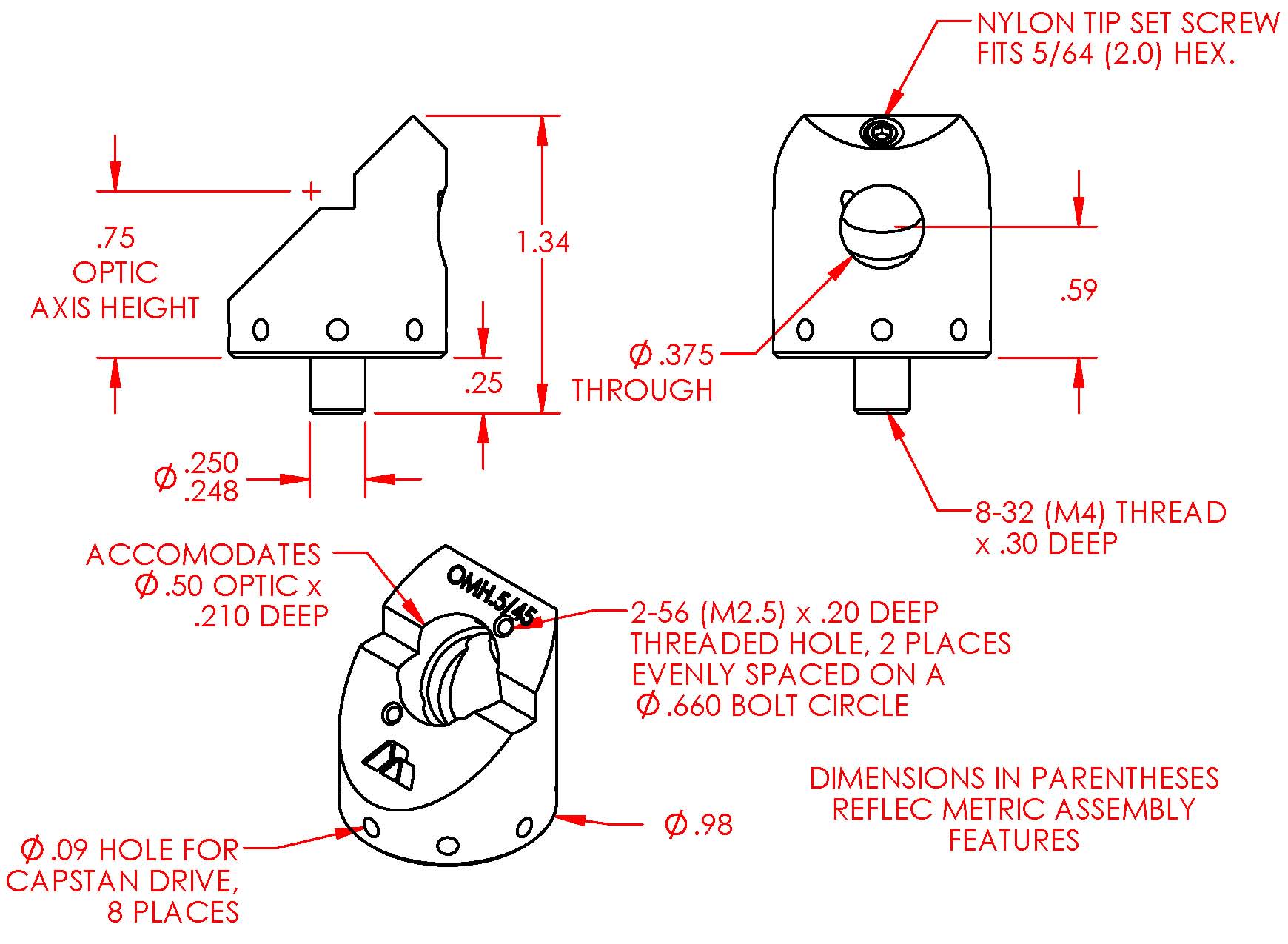

OMH.5/45 [54570000E]
Variant Images
![OMH.5/45 [54570000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54570000E.jpg)
![OMH.5/45 [54570000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54570000E_1.jpg)
Product Details
The OMH series of 45° optic adapters is designed to mount into our full range of mirror mounts including the IM100 and IXM100 series. Their simple design enables the experimenter to build adjustable periscope assemblies for 0.5-inch (12-mm) 0.75-inch (19-mm) or 1.0-inch (25-mm) mirrors. They use a single 8-32 (M4) nylon tipped set screw to securely hold the mirror in place without damaging it. All models incorporate our one wrench design in which the same wrench is used to lock the optic in place and adjust the angle of the adapter via the series of capstan holes around the circumference of the adapter.
Product Features:
- 0.5" adapter
- Hex screw for easy mirror replacement
- Compatible with RM and IM series mounts
- Vacuum compatible versions available upon request
- RoHS compliant

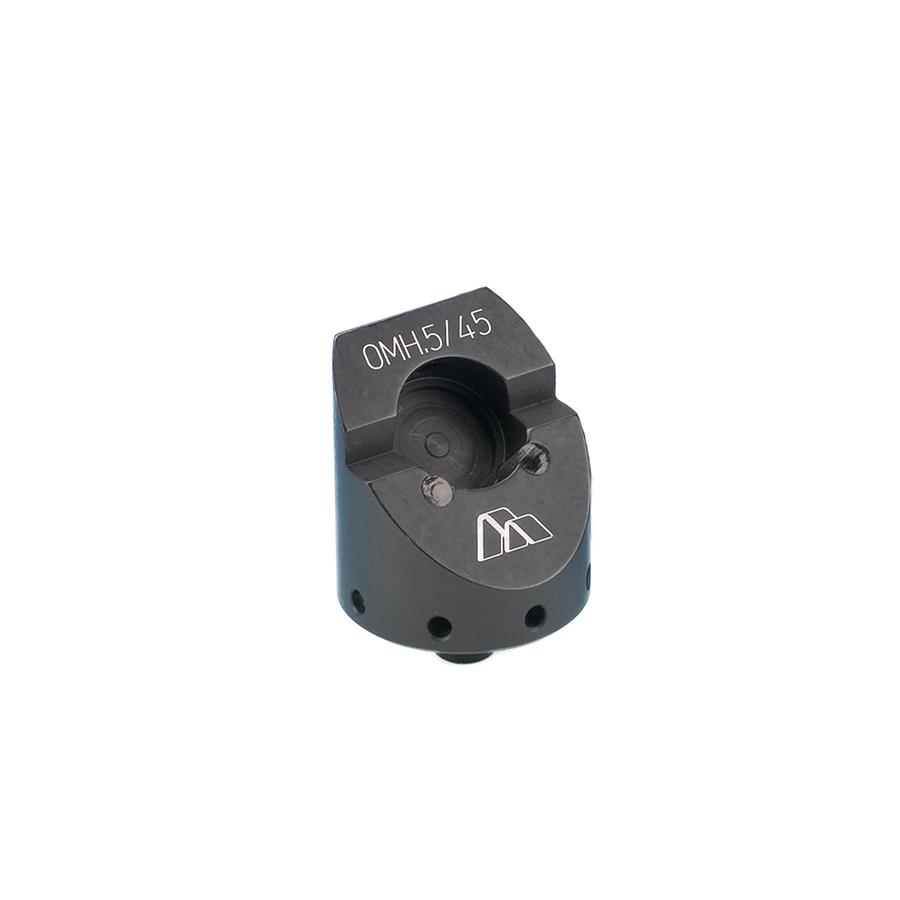

OMH.5/45 M [54570000M]
Variant Images
![OMH.5/45 M [54570000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54570000M.jpg)
![OMH.5/45 M [54570000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54570000M_1.jpg)
Product Details
The OMH series of 45° optic adapters is designed to mount into our full range of mirror mounts including the IM100 and IXM100 series. Their simple design enables the experimenter to build adjustable periscope assemblies for 0.5-inch (12-mm) 0.75-inch (19-mm) or 1.0-inch (25-mm) mirrors. They use a single 8-32 (M4) nylon tipped set screw to securely hold the mirror in place without damaging it. All models incorporate our one wrench design in which the same wrench is used to lock the optic in place and adjust the angle of the adapter via the series of capstan holes around the circumference of the adapter.
Product Features:
- 12.7mm adapter
- Hex screw for easy mirror replacement
- Compatible with RM and IM series mounts
- Vacuum compatible versions available upon request
- RoHS compliant

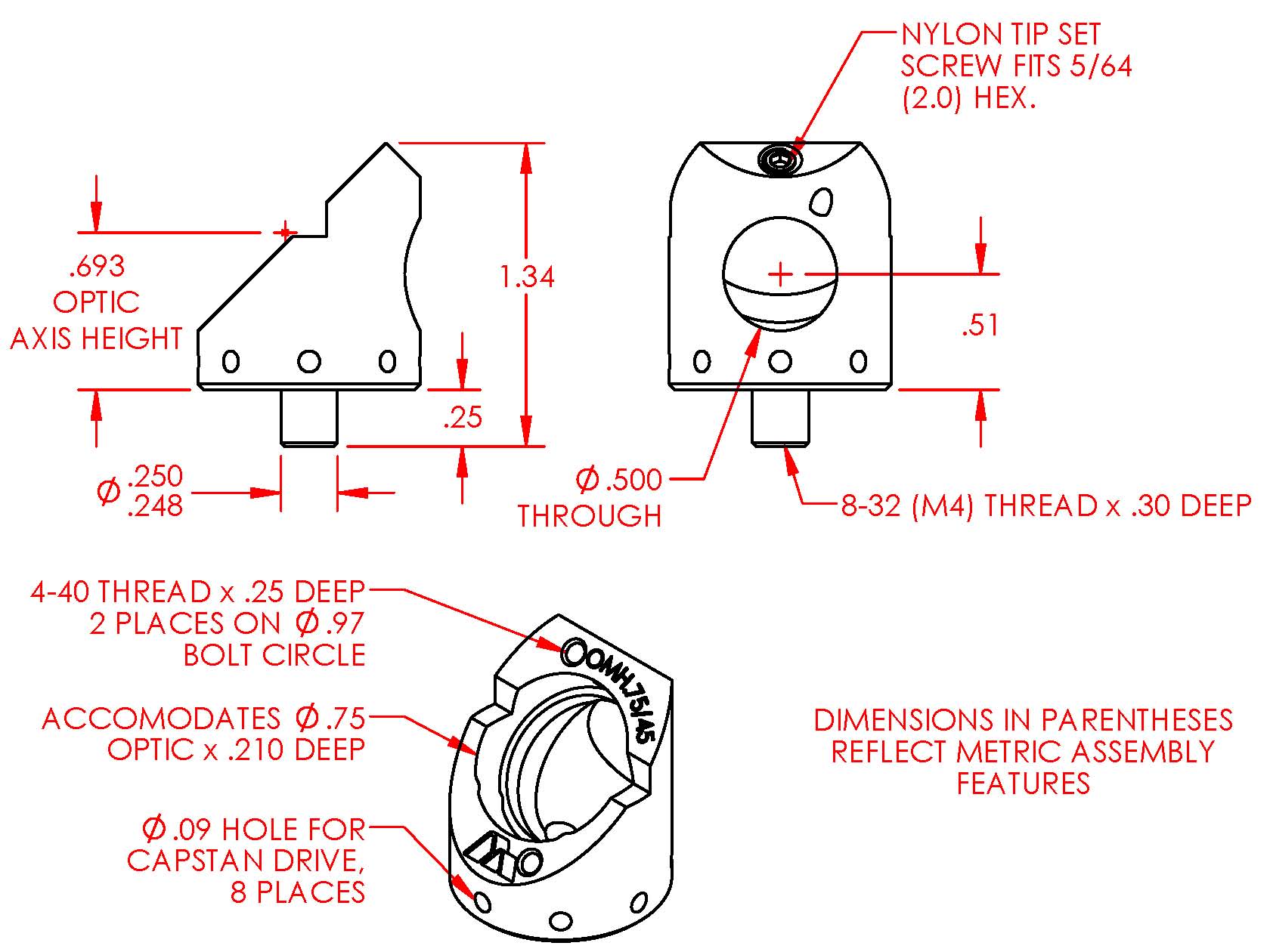

OMH.75/45 [54580000E]
Variant Images
![OMH.75/45 [54580000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54580000E.jpg)
![OMH.75/45 [54580000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54580000E_1.jpg)
Product Details
The OMH series of 45° optic adapters is designed to mount into our full range of mirror mounts including the IM100 and IXM100 series. Their simple design enables the experimenter to build adjustable periscope assemblies for 0.5-inch (12-mm) 0.75-inch (19-mm) or 1.0-inch (25-mm) mirrors. They use a single 8-32 (M4) nylon tipped set screw to securely hold the mirror in place without damaging it. All models incorporate our one wrench design in which the same wrench is used to lock the optic in place and adjust the angle of the adapter via the series of capstan holes around the circumference of the adapter.
Product Features:
- 0.75" adapter
- Hex screw for easy mirror replacement
- Compatible with RM and IM series mounts
- Vacuum compatible versions available upon request
- RoHS compliant

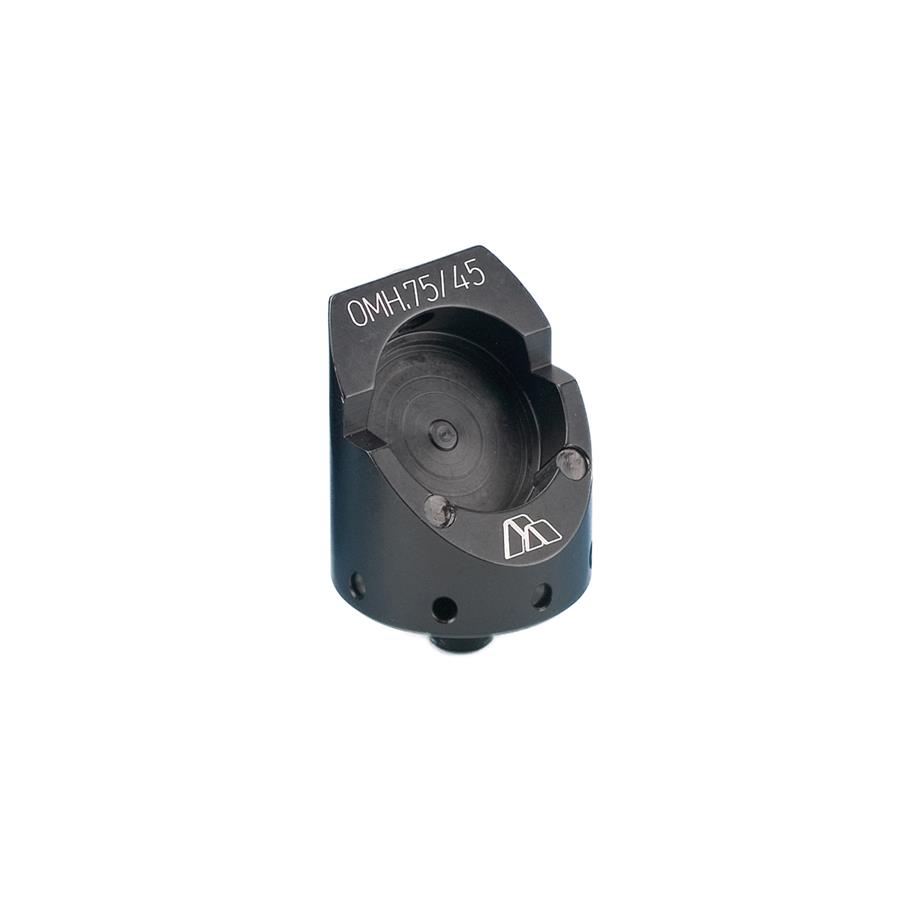

OMH.75/45 M [54580000M]
Variant Images
![OMH.75/45 M [54580000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54580000M.jpg)
![OMH.75/45 M [54580000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/54580000M_1.jpg)
Product Details
The OMH series of 45° optic adapters is designed to mount into our full range of mirror mounts including the IM100 and IXM100 series. Their simple design enables the experimenter to build adjustable periscope assemblies for 0.5-inch (12-mm) 0.75-inch (19-mm) or 1.0-inch (25-mm) mirrors. They use a single 8-32 (M4) nylon tipped set screw to securely hold the mirror in place without damaging it. All models incorporate our one wrench design in which the same wrench is used to lock the optic in place and adjust the angle of the adapter via the series of capstan holes around the circumference of the adapter.
Product Features:
- 19 mm adapter
- Hex screw for easy mirror replacement
- Compatible with RM and IM series mounts
- Vacuum compatible versions available upon request
- RoHS compliant
