IM.P2 Series Mount
SKU:
IM.P2 SERIES
Name:
DRIVE TYPE:
HEX DRIVE
OPTIC SIZE:
.50IN
OPTIC SIZE:
.75IN
OPTIC SIZE:
1.0IN
UOM:
IMPERIAL
UOM:
METRIC
VOLUME:
0.000000
WEIGHT UOM:
LB
$99.00 - $110.00
IM.P2 Series Mount
$99.00 - $110.00
IM.P2 Series Mount
These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM.2 series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left-hand compatibility. These mounts use a full "L" cutaway back for maximum clear aperture. The IM.C2 versions have a cutaway front face to optimize tight beam layouts and are available in right-hand or left-hand versions. The IM.P2 versions can be used with our OMH series optic holder or offer tapped holes for use as a tip/tilt platform.
Product Features
- 100 pitch lockable adjustment screws
- Right and left-hand cutaway versions
- 3/8-inch thick back plate
- Vacuum compatible versions available upon request
Performance Specifications
- Travel / axis: 8°
- Minimum controllable motion: 8.6 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
IM10.P2 [66860000E]
Variant Images

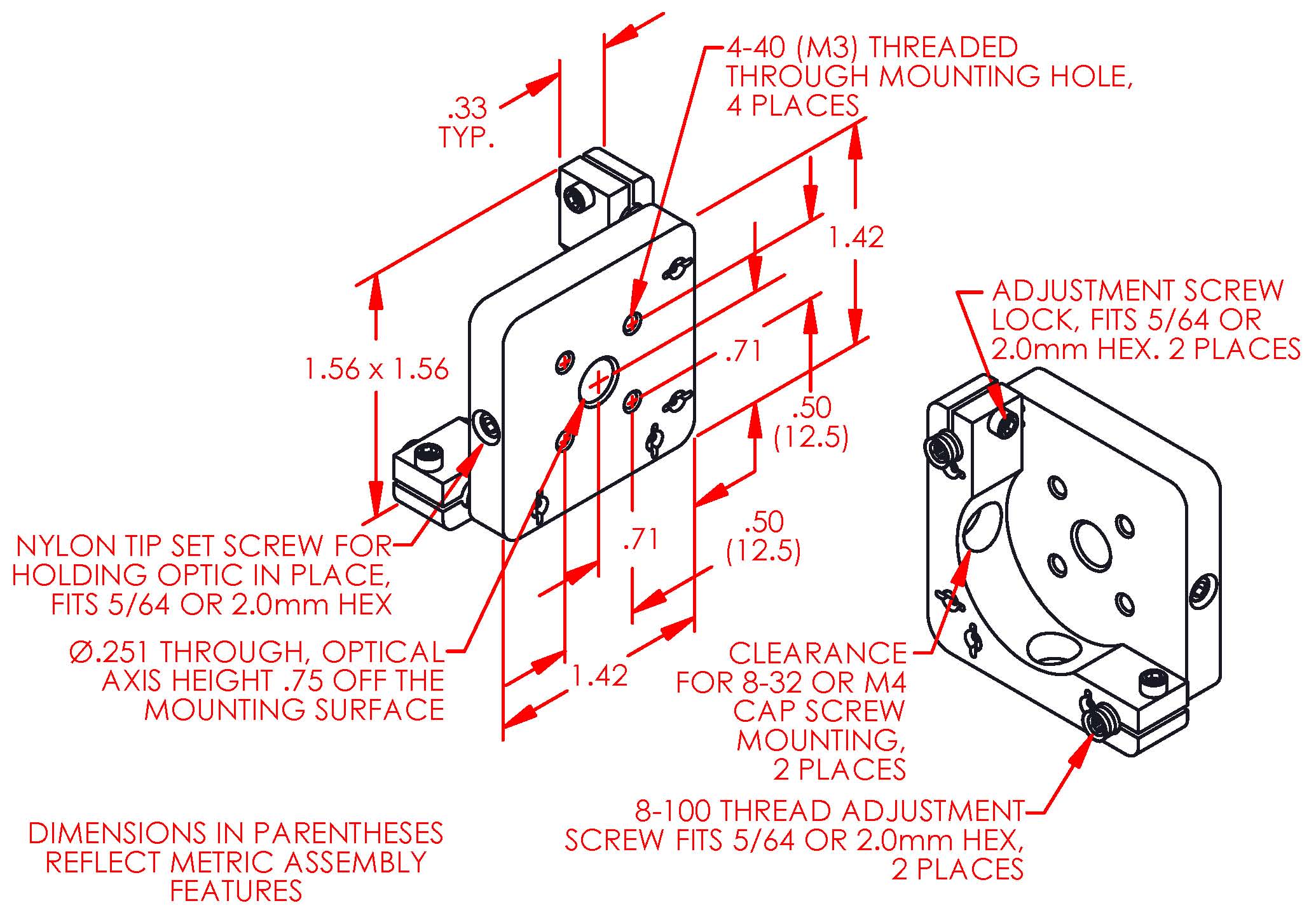

![IM10.P2 [66860000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66860000E.jpg)
![IM10.P2 [66860000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66860000E_1.jpg)
Product Details
The IM1.0 brings the rigidity of the IM05 to larger optics formats. They can be mounted on either side and come in both left and right-hand versions. A cutaway design provides a maximum clear aperture. Mount the optic adjust the mount and tighten the adjusters to eliminate backlash / secure adjuster position - all with one wrench. 8-100 pitch precision threads make adjustments smooth while compact size and low axis height makes it easy to fit these into your design.
Product Features:
- 100 pitch adjustment screws
- Right and left-hand cutaway versions
- 3/8-inch thick back plate
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 4.9 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IM10.P2 M [66860000M]
Variant Images

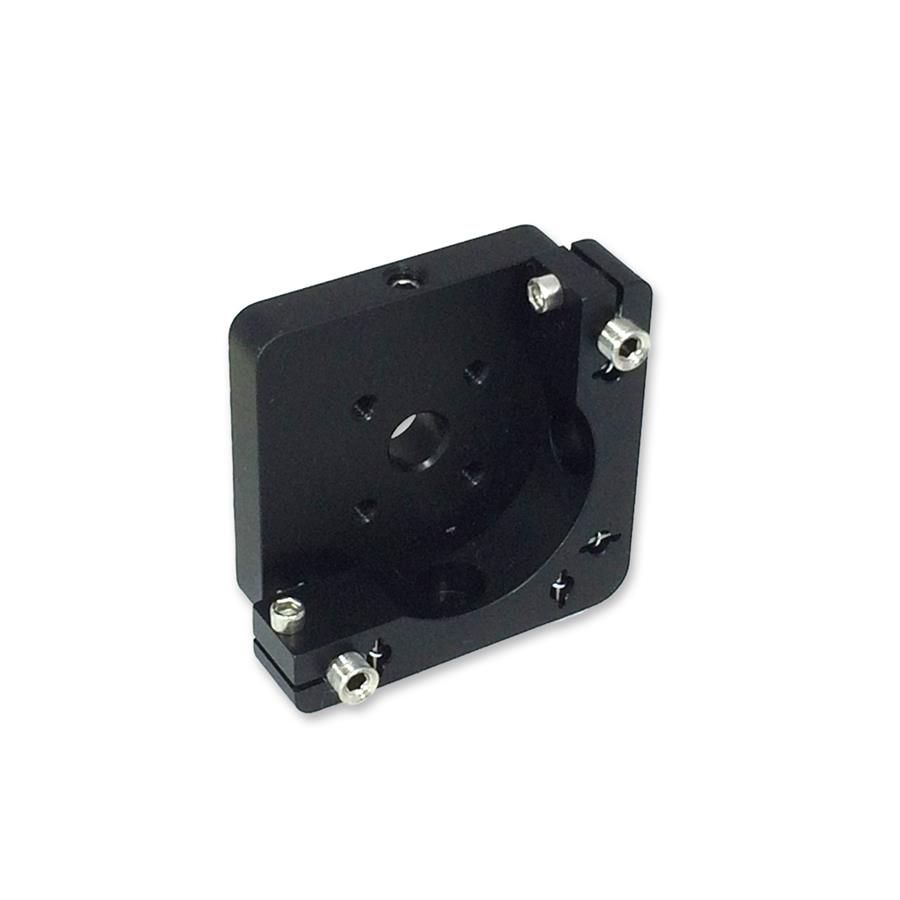

![IM10.P2 M [66860000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66860000M.jpg)
![IM10.P2 M [66860000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66860000M_1.jpg)
Product Details
The IM1.0 brings the rigidity of the IM05 to larger optics formats. They can be mounted on either side and come in both left and right-hand versions. A cutaway design provides a maximum clear aperture. Mount the optic adjust the mount and tighten the adjusters to eliminate backlash / secure adjuster position - all with one wrench. 8-100 pitch precision threads make adjustments smooth while compact size and low axis height makes it easy to fit these into your design.
Product Features:
- 100 pitch adjustment screws
- Right and left-hand cutaway versions
- 3/8-inch thick back plate
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 4.9 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IM05.P2 [66880000E]
Variant Images

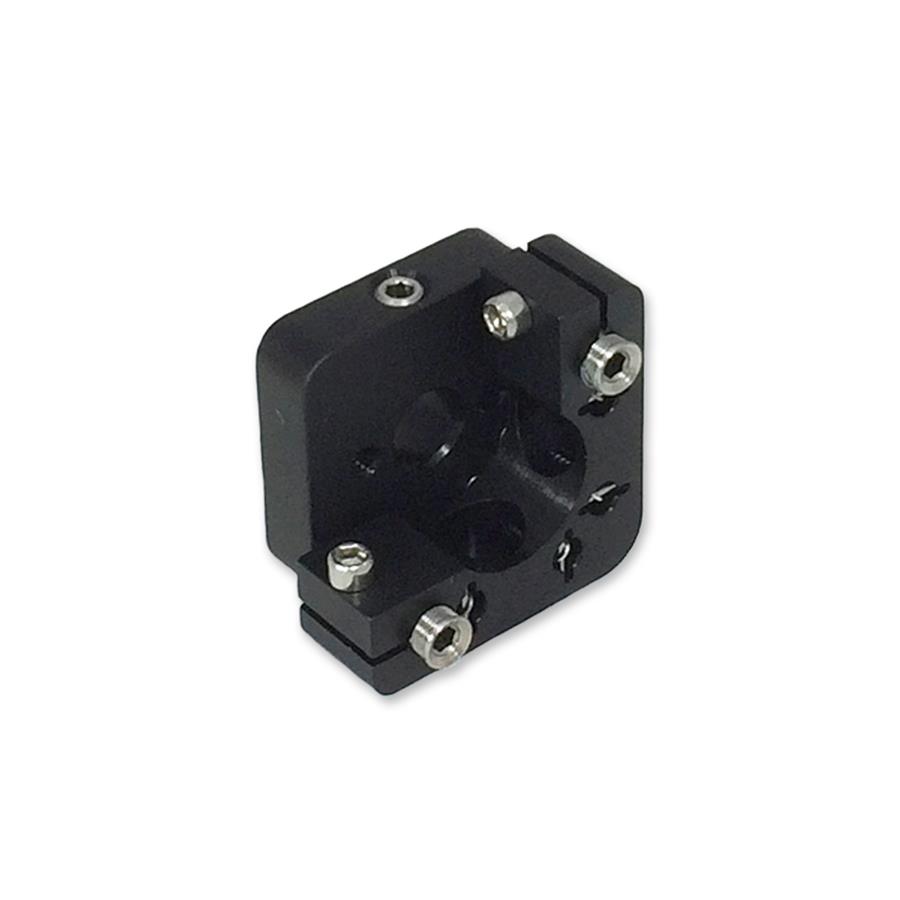

![IM05.P2 [66880000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66880000E.jpg)

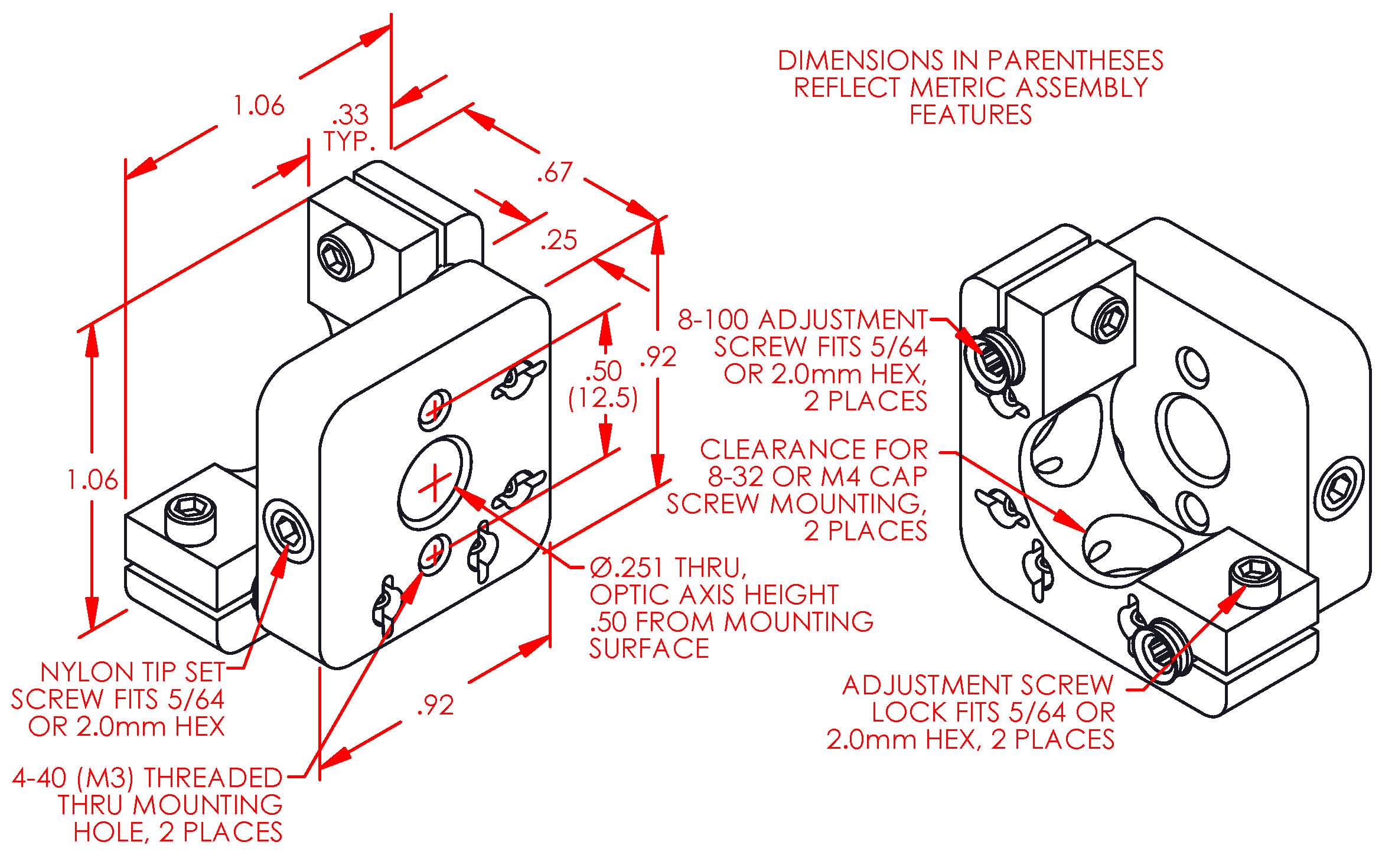

![IM05.P2 [66880000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66880000E_1.jpg)
Product Details
These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM05.2 series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left-hand compatibility. These mounts use a full "L" cutaway back for maximum clear aperture. The IM05.C2 versions have a cutaway front face to optimize tight beam layouts and are available in right-hand or left-hand versions.
Product Features
- 100 pitch lockable adjustment screws
- Right and left-hand cutaway versions
- 3/8-inch thick back plate
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 8.6 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IM05.P2 M [66880000M]
Variant Images
![IM05.P2 M [66880000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66880000M.jpg)
![IM05.P2 M [66880000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66880000M_1.jpg)
Product Details
These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Our IM05.2 series mounts use precision 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left-hand compatibility. These mounts use a full "L" cutaway back for maximum clear aperture. The IM05.C2 versions have a cutaway front face to optimize tight beam layouts and are available in right-hand or left-hand versions.
Product Features
- 100 pitch lockable adjustment screws
- Right and left-hand cutaway versions
- 3/8-inch thick back plate
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 8.6 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IM75.P2 [66820000E]
Variant Images

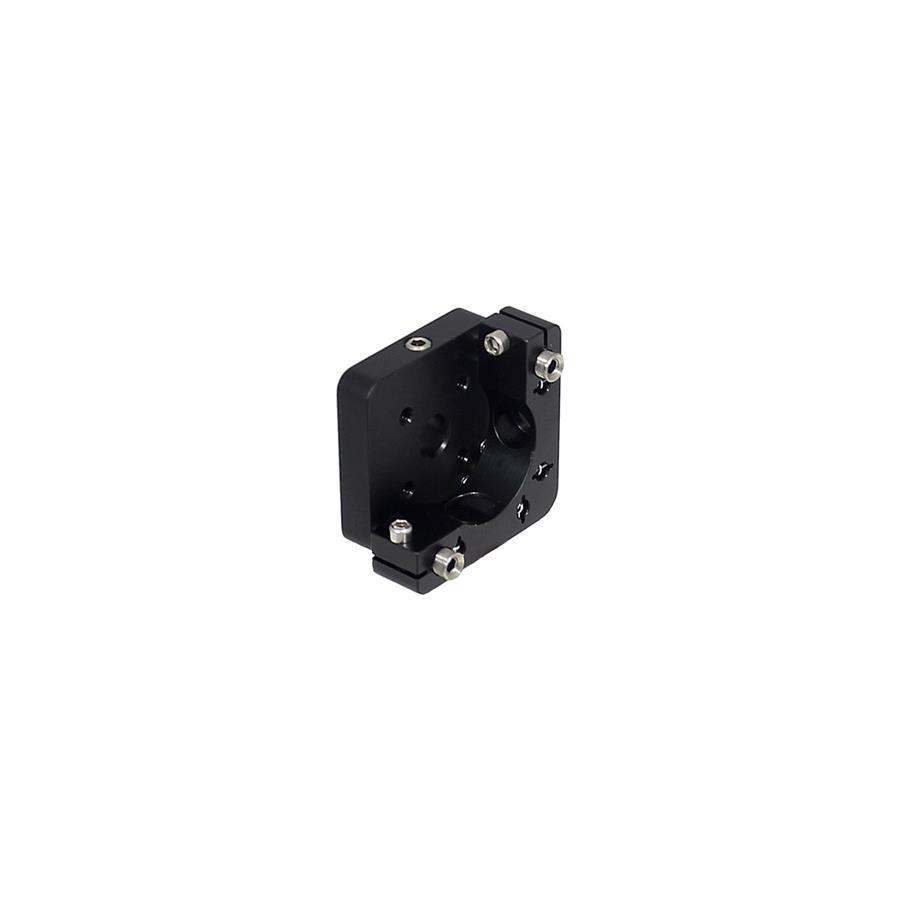

![IM75.P2 [66820000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66820000E.jpg)

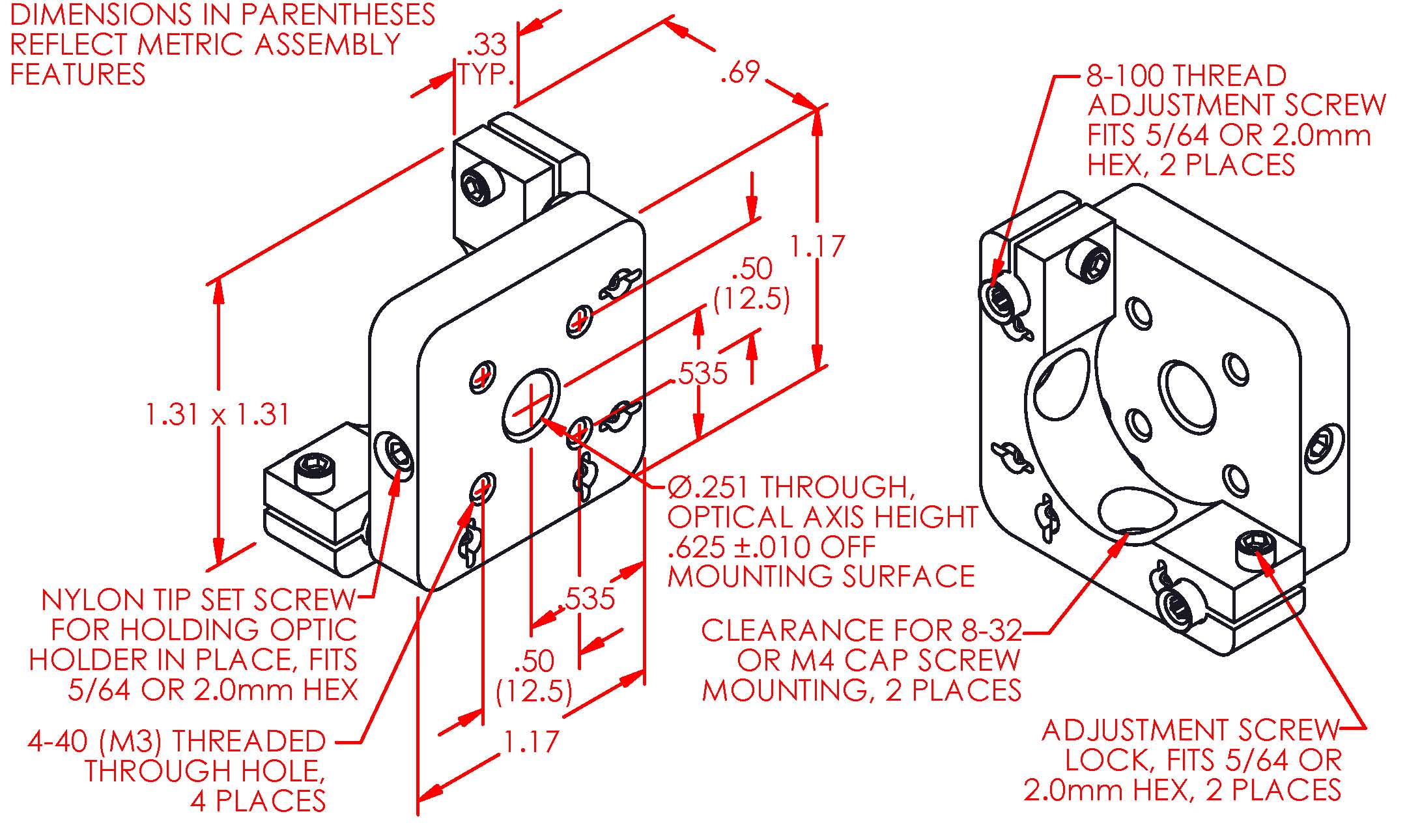

![IM75.P2 [66820000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66820000E_1.jpg)
Product Details
The IM75 brings the rigidity of the IM05 to larger optics formats. They can be mounted on either side and come in both left and right-hand versions. A cutaway design provides a maximum clear aperture. Mount the optic adjust the mount and tighten the adjusters to eliminate backlash / secure adjuster position - all with one wrench. 8-100 pitch precision threads make adjustments smooth while compact size and low axis height makes it easy to fit these into your design.
Product Features
- 100 pitch lockable adjustment screws
- Right and left-hand cutaway versions
- 3/8-inch thick back plate
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 6.2 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
IM75.P2 M [66820000M]
Variant Images
![IM75.P2 M [66820000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66820000M.jpg)
![IM75.P2 M [66820000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/66820000M_1.jpg)
Product Details
The IM75 brings the rigidity of the IM05 to larger optics formats. They can be mounted on either side and come in both left and right-hand versions. A cutaway design provides a maximum clear aperture. Mount the optic adjust the mount and tighten the adjusters to eliminate backlash / secure adjuster position - all with one wrench. 8-100 pitch precision threads make adjustments smooth while compact size and low axis height makes it easy to fit these into your design.
Product Features
- 100 pitch lockable adjustment screws
- Right and left-hand cutaway versions
- 3/8-inch thick back plate
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Travel/axis: 8°
- Minimum controllable motion*: 6.2 arc sec.
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
