FAM Series Micrometer
SKU:
FAM SERIES
Name:
TRAVEL:
12MM/.50IN
TRAVEL:
25MM/1.0IN
TRAVEL:
50MM/2.0IN
VOLUME:
0.000000
WEIGHT UOM:
LB
$94.00 - $237.00
FAM Series Micrometer
$94.00 - $237.00
FAM Series Micrometer
Siskiyou FAM series micrometers use the same 100 TPI adjustment screws as the SM series. The large diameter adjustment knob improves leverage and resolution, even with loads up to 100 pounds. The larger barrel allows laser marks every 0.0002" / 5 µm. They are available in 0.5", 1" and 2" travel version.
Product Features
- 3/8 inch collet mounts
- Standard and differential actuation
- Large adjustment knobs
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
FAM-0.5 [03330000E]
Variant Images

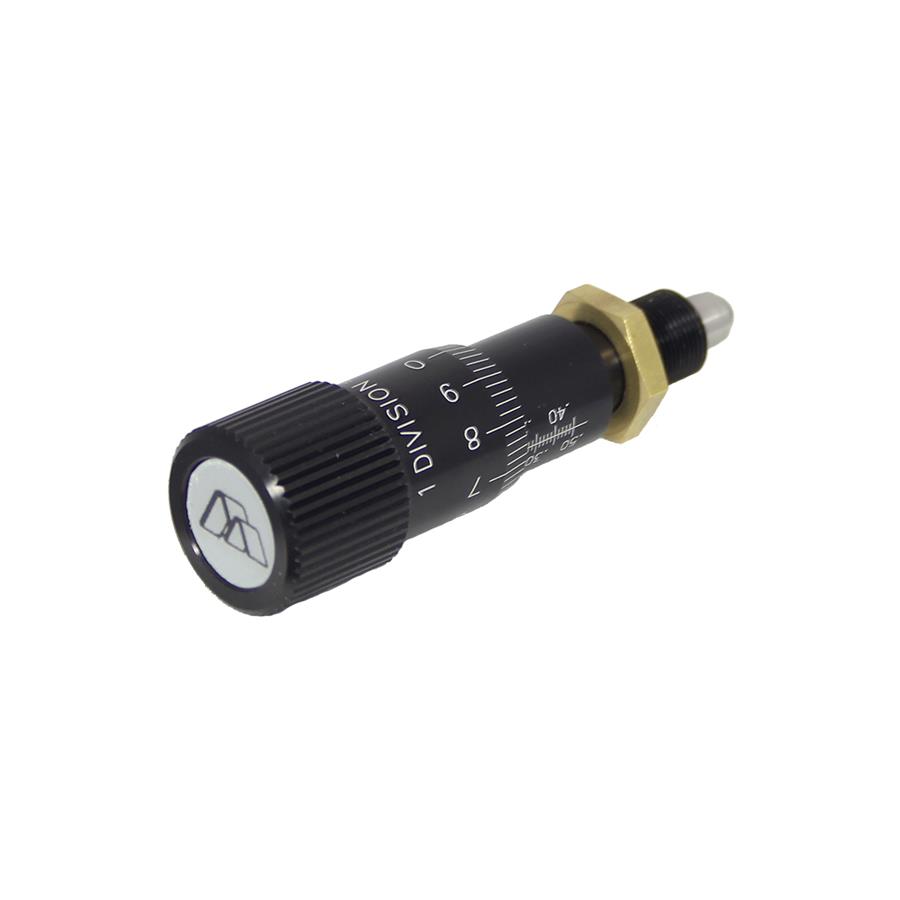

![FAM-0.5 [03330000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/03330000E.jpg)
![FAM-0.5 [03330000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/03330000E_1.jpg)
Product Details
FAM-0.5 Siskiyou FAM series micrometers use the same 100TPI adjustment screws as the SM series. The large diameter adjustment knob improves leverage and resolution even with loads up to 100 pounds. The larger barrel allows laser marks every 0.0002" / 5 µm. They are available in 0.5" 1" and 2" travel version.
Product Features:
- 3/8 inch collet mounts
- Standard and differential actuation
- Large adjustment knobs
- RoHS compliant
FAM-1.0 [03300000E]
Variant Images

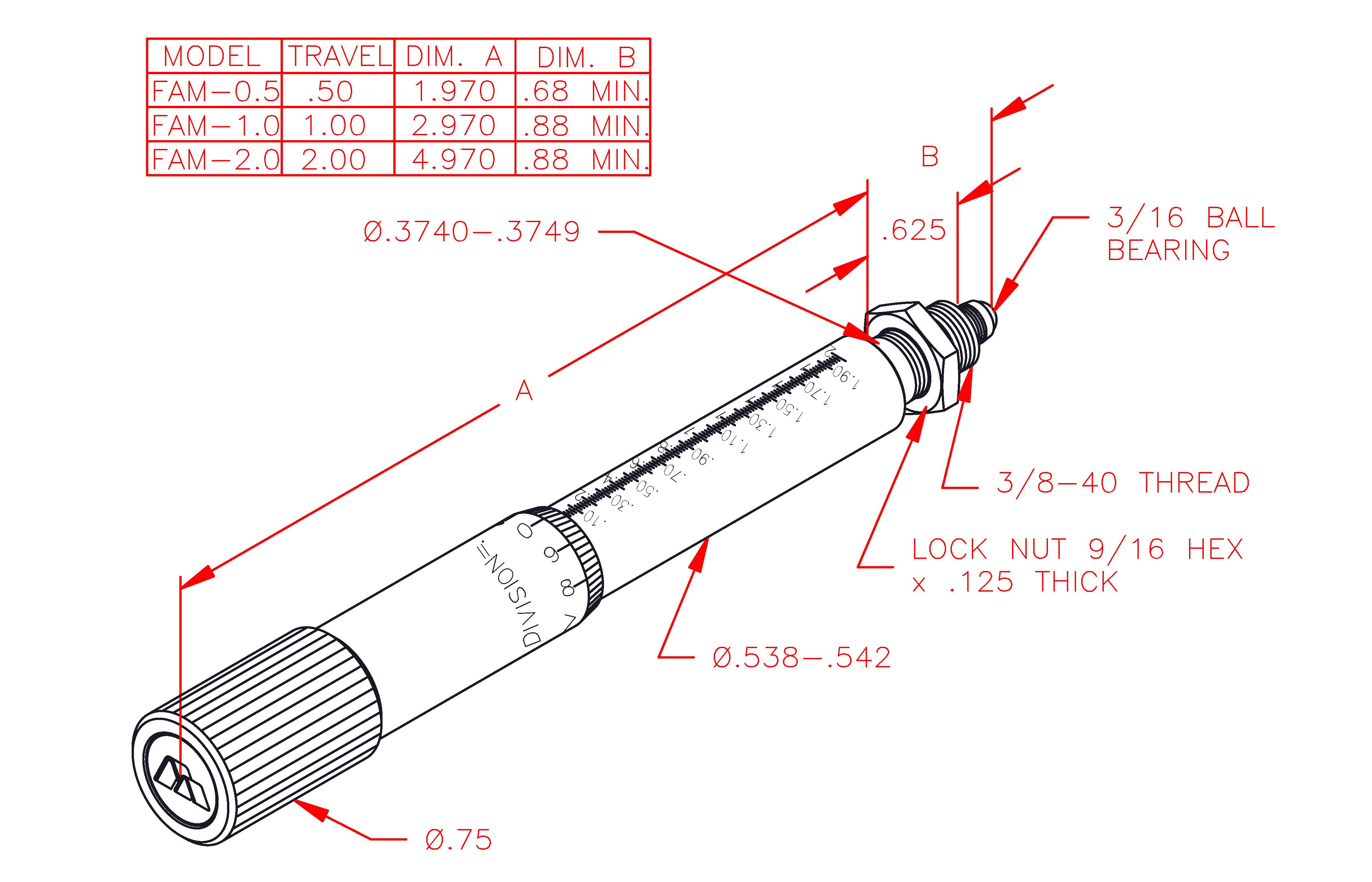

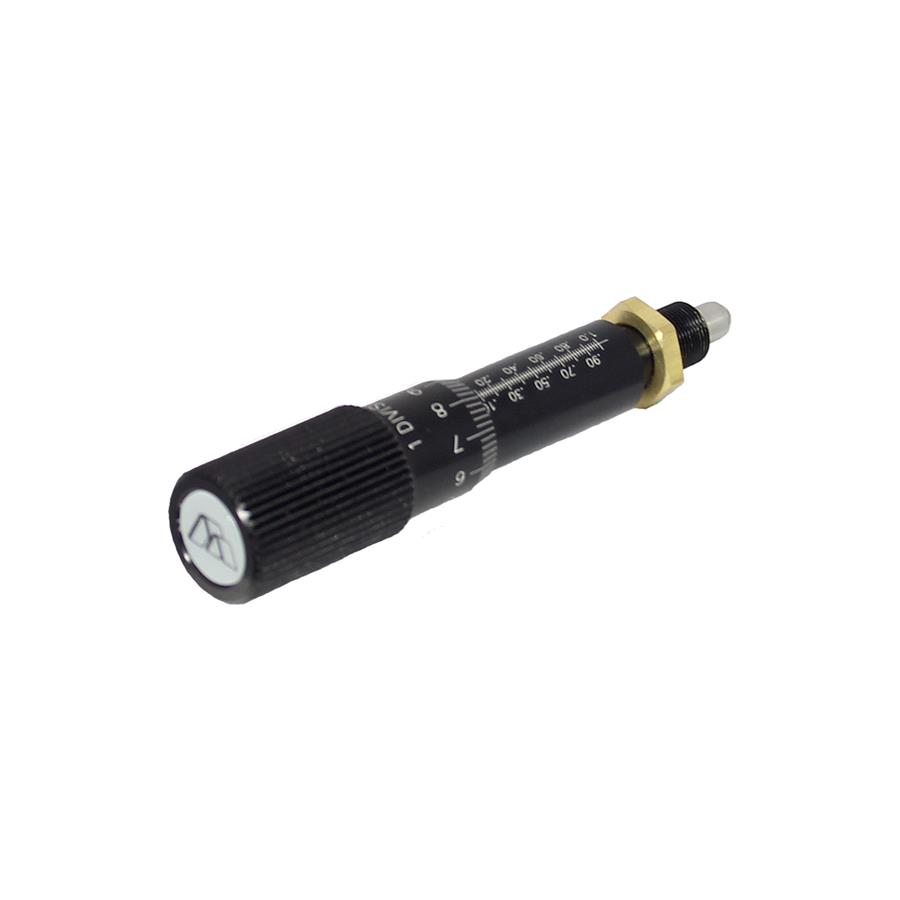

![FAM-1.0 [03300000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/03300000E.jpg)
![FAM-1.0 [03300000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/03300000E_1.jpg)
Product Details
FAM-1.0 Siskiyou FAM series micrometers use the same 100TPI adjustment screws as the SM series. The large diameter adjustment knob improves leverage and resolution even with loads up to 100 pounds. The larger barrel allows laser marks every 0.0002" / 5 µm. They are available in 0.5" 1" and 2" travel version.
Product Features
- 3/8 inch collet mounts
- Standard and differential actuation
- Large adjustment knobs
- RoHS compliant
FAM-2.0 [03320000E]
Variant Images

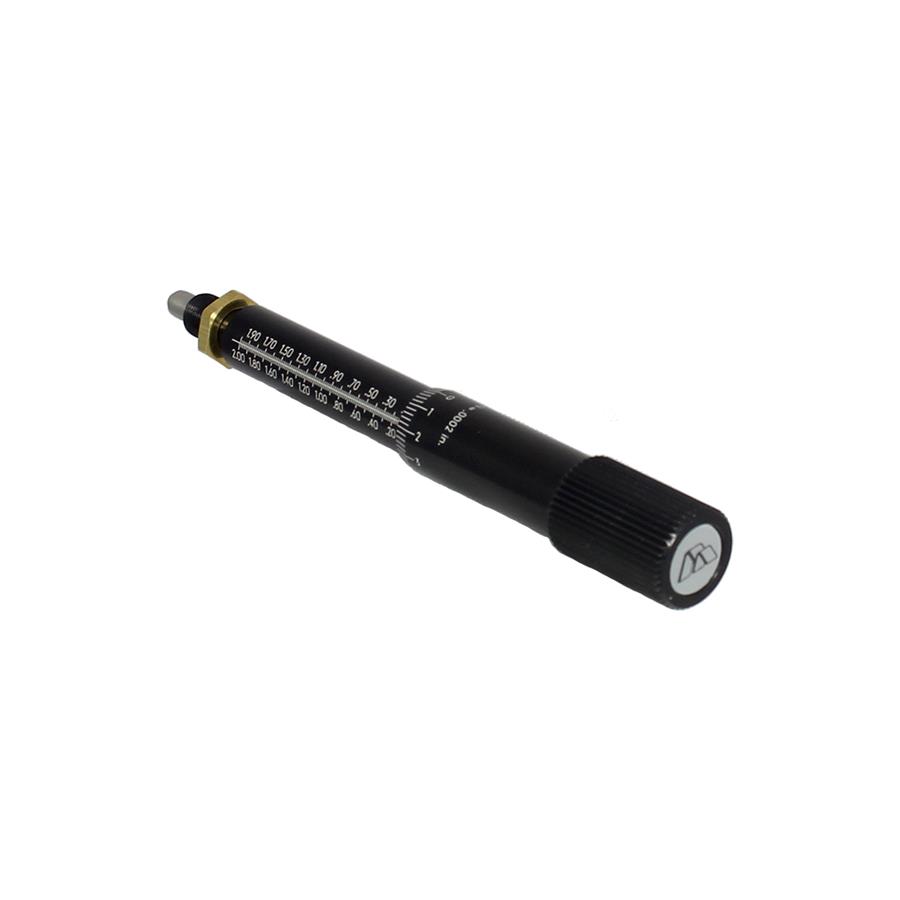

![FAM-2.0 [03320000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/03320000E.jpg)
![FAM-2.0 [03320000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/03320000E_1.jpg)
Product Details
FAM-2.0 Siskiyou FAM series micrometers use the same 100TPI adjustment screws as the SM series. The large diameter adjustment knob improves leverage and resolution even with loads up to 100 pounds. The larger barrel allows laser marks every 0.0002" / 5 µm. They are available in 0.5" 1" and 2" travel version.
Product Features
- 3/8 inch collet mounts
- Standard and differential actuation
- Large adjustment knobs
- RoHS compliant
