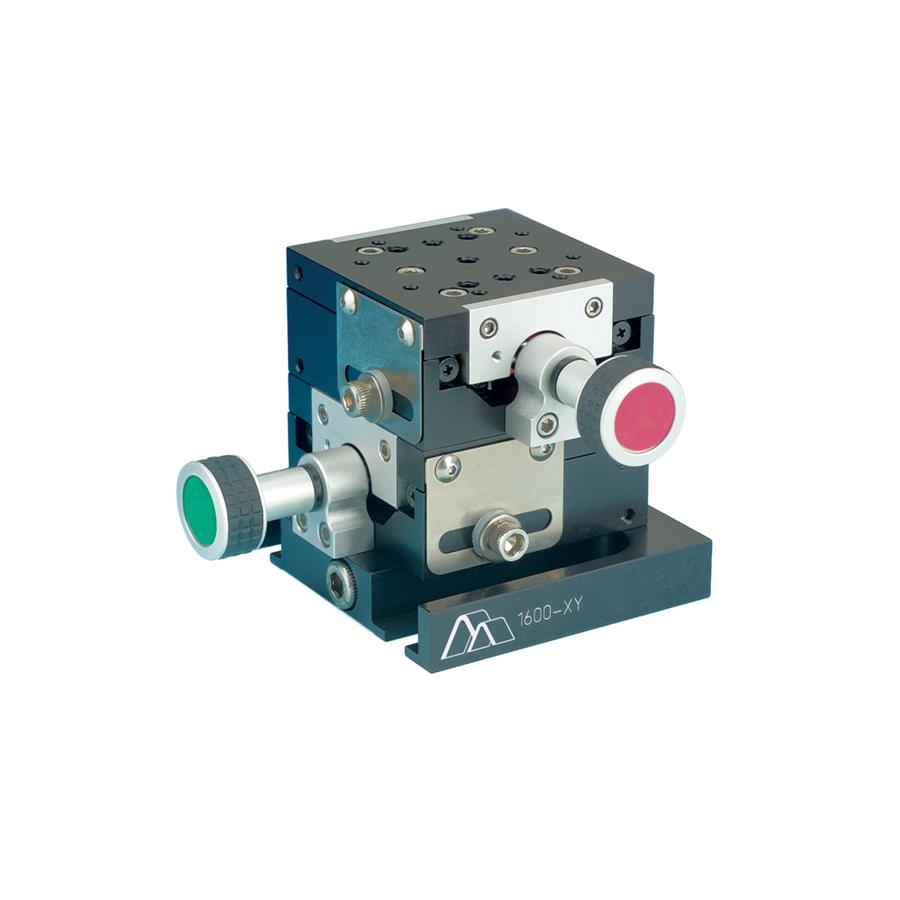

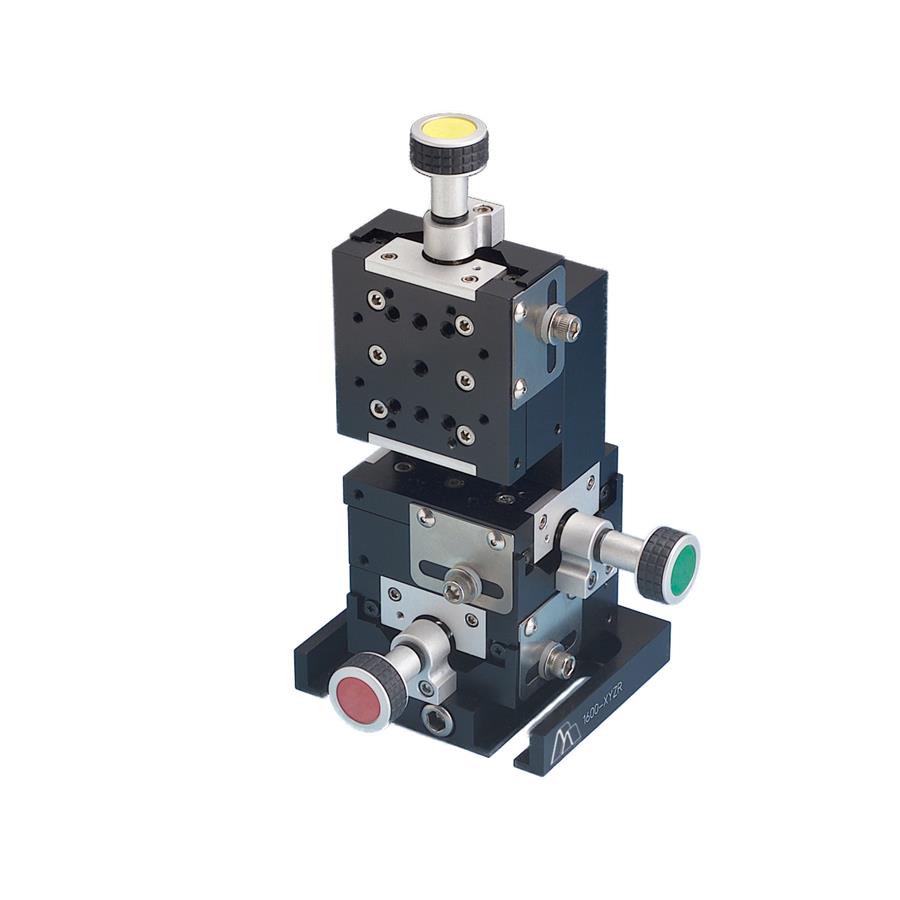

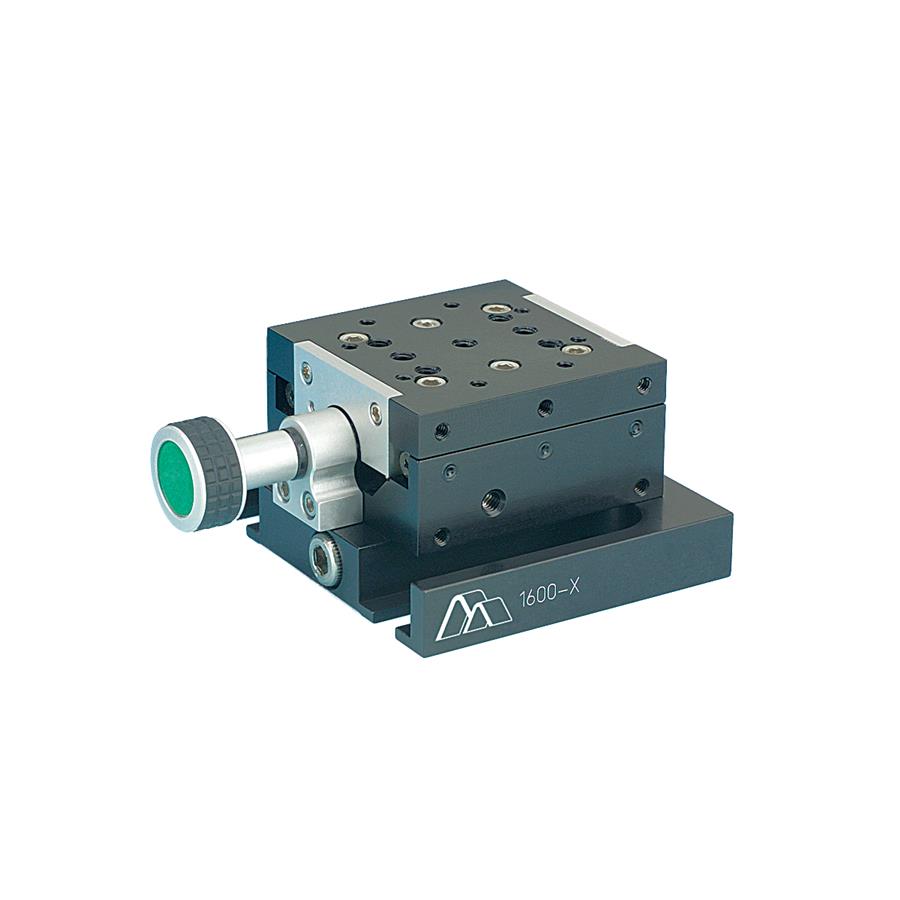

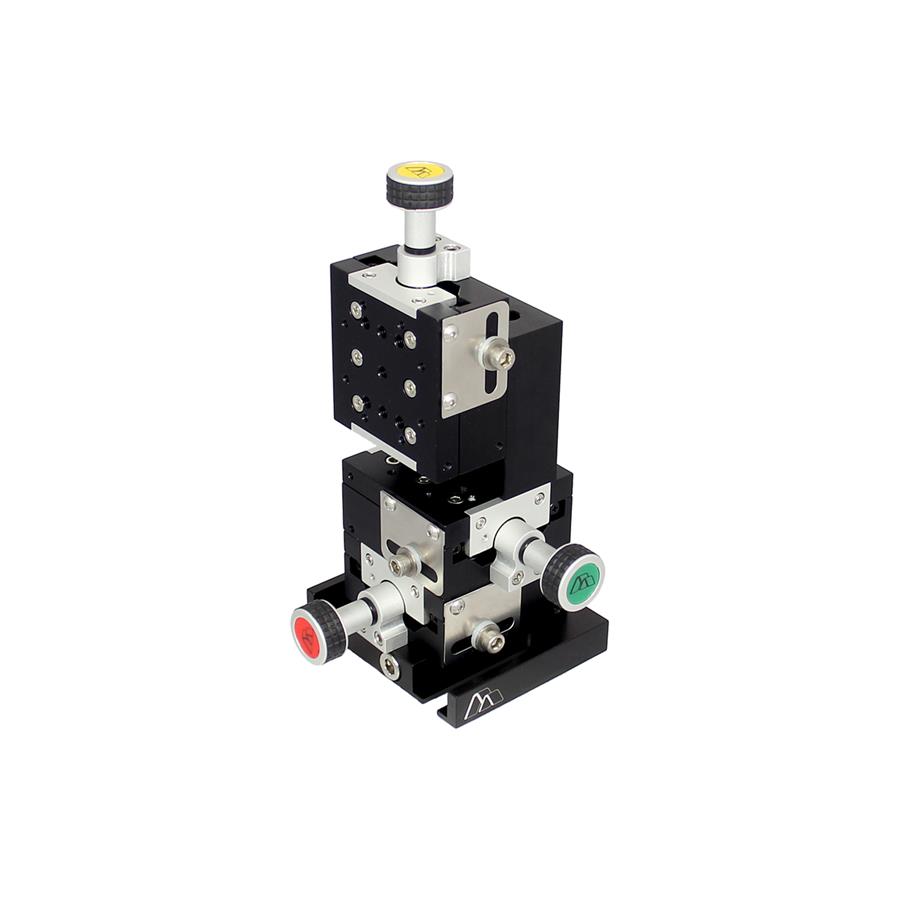

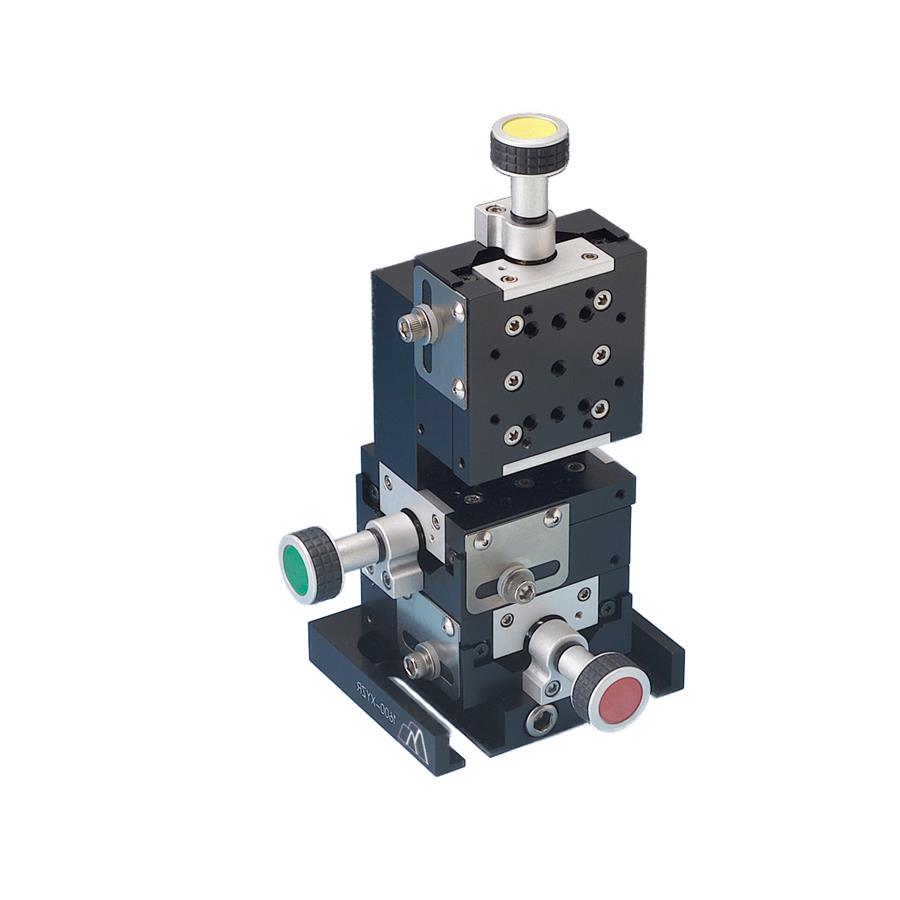

1600 series crossed roller translation stages are ideal for a wide range of micron or submicron-scale motion applications. Our 1600 series stages use precision 40, or 80TPI lead screws for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation.

Product Features

  • Color coded axis knobs
  • Non-influencing lock
  • Rotatable mounting base
  • Vacuum compatible versions available upon request

Performance Specifications

  • Maximum horizontal axis load: 10 lbs
  • Maximum vertical axis load: 4 lbs
  • Travel: 20 mm
  • Minimum controllable motion:
    • 40TPI: 1.7 µm
    • 80TPI: 0.9µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
