1700 SERIES STAGE
Name:
$671.00 - $1,980.00
1700 Series Stage
$671.00 - $1,980.00
1700 Series Stage
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1700 series stages use precision 40 or 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required, the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
Performance Specifications
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*:
- 40TPI: 1.7 µm
- 80TPI: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
1740-X [15420000E]
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

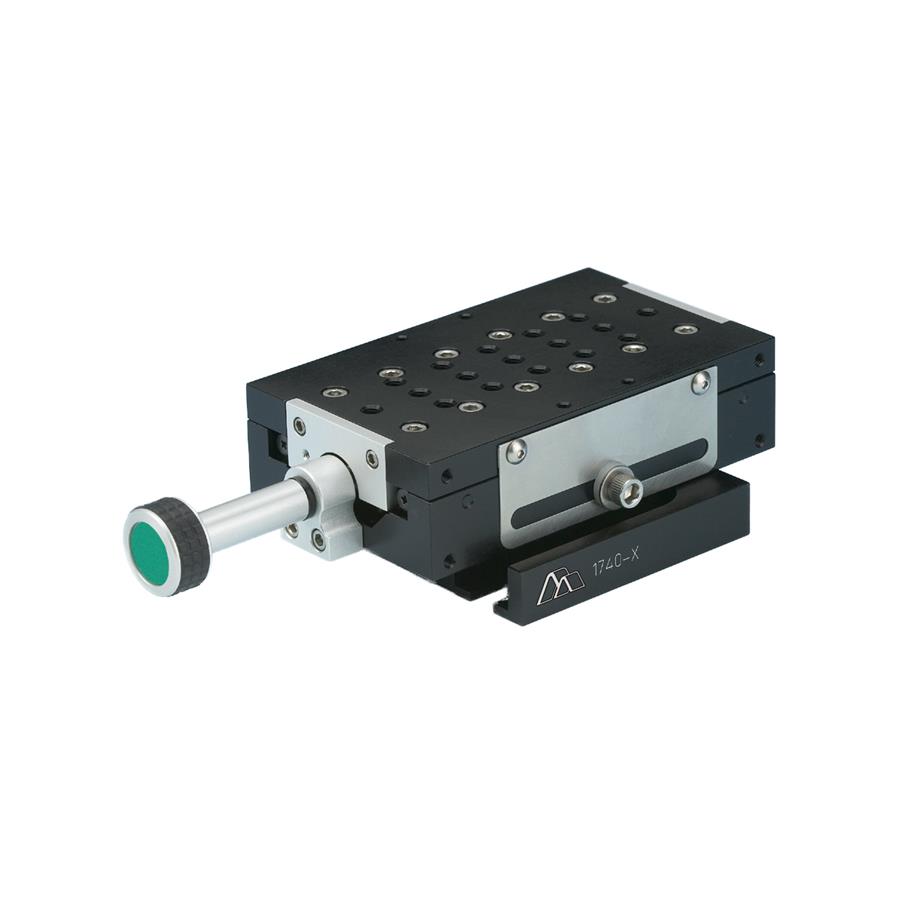

1740-X M [15420000M]
Variant Images
![1740-X M [15420000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15420000M.jpg)
![1740-X M [15420000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15420000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1780-X [15460000E]
Variant Images
![1780-X [15460000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15460000E.jpg)
![1780-X [15460000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15460000E_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

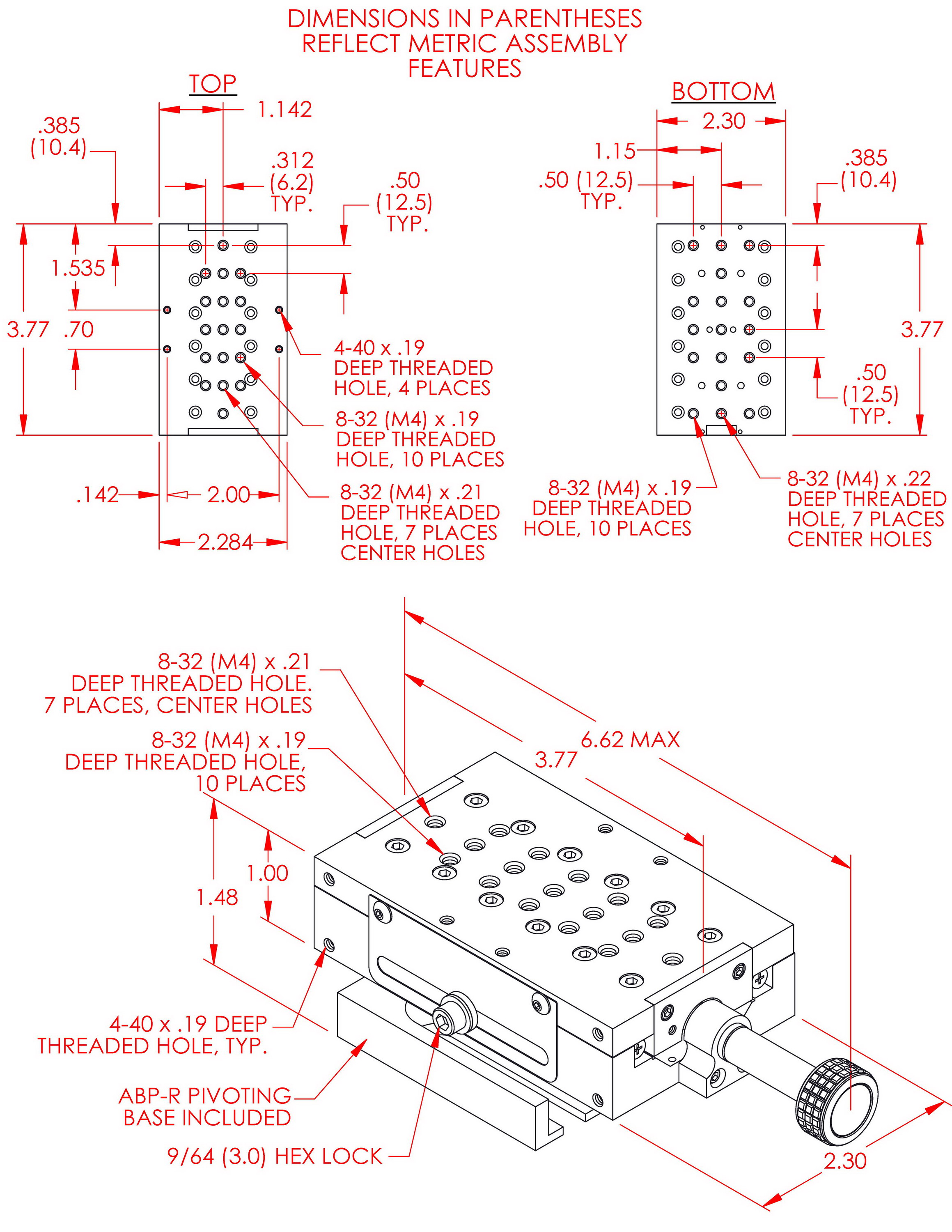

1780-X M [15460000M]
Variant Images
![1780-X M [15460000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15460000M.jpg)
![1780-X M [15460000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15460000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1740-XY [15430000E]
Variant Images
![1740-XY [15430000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15430000E.jpg)
![1740-XY [15430000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15430000E_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1740-XY M [15430000M]
Variant Images
![1740-XY M [15430000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15430000M.jpg)
![1740-XY M [15430000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15430000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

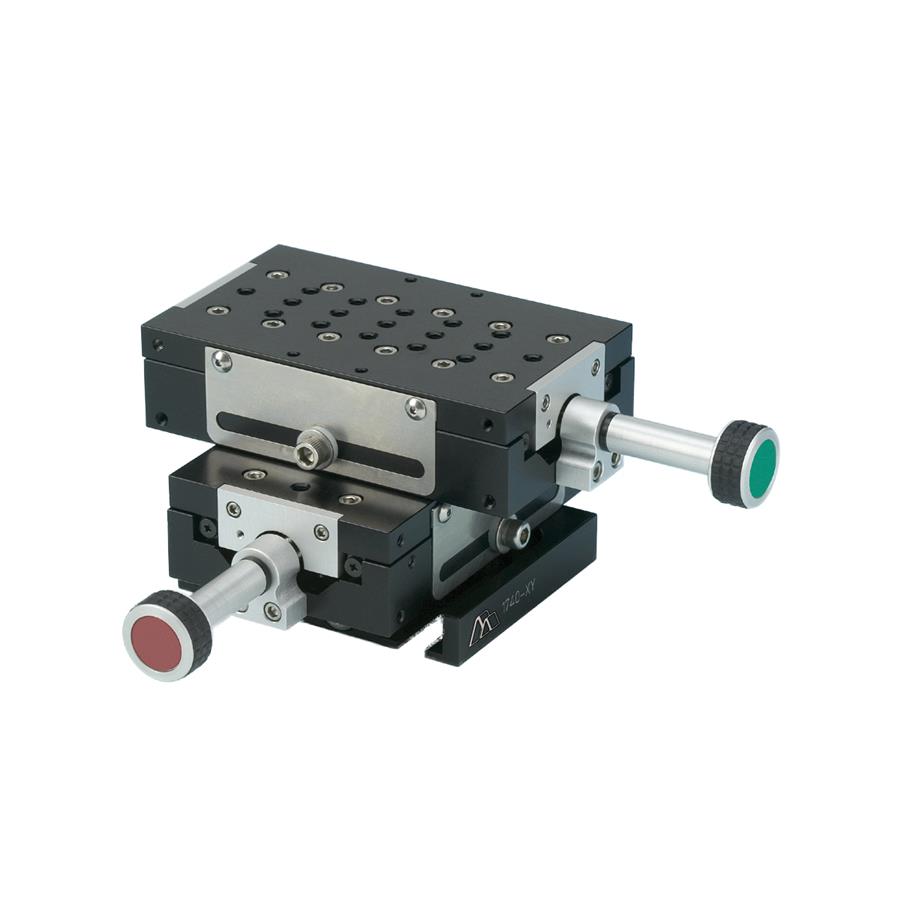

1780-XY [15470000E]
Variant Images
![1780-XY [15470000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15470000E.jpg)
![1780-XY [15470000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15470000E_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

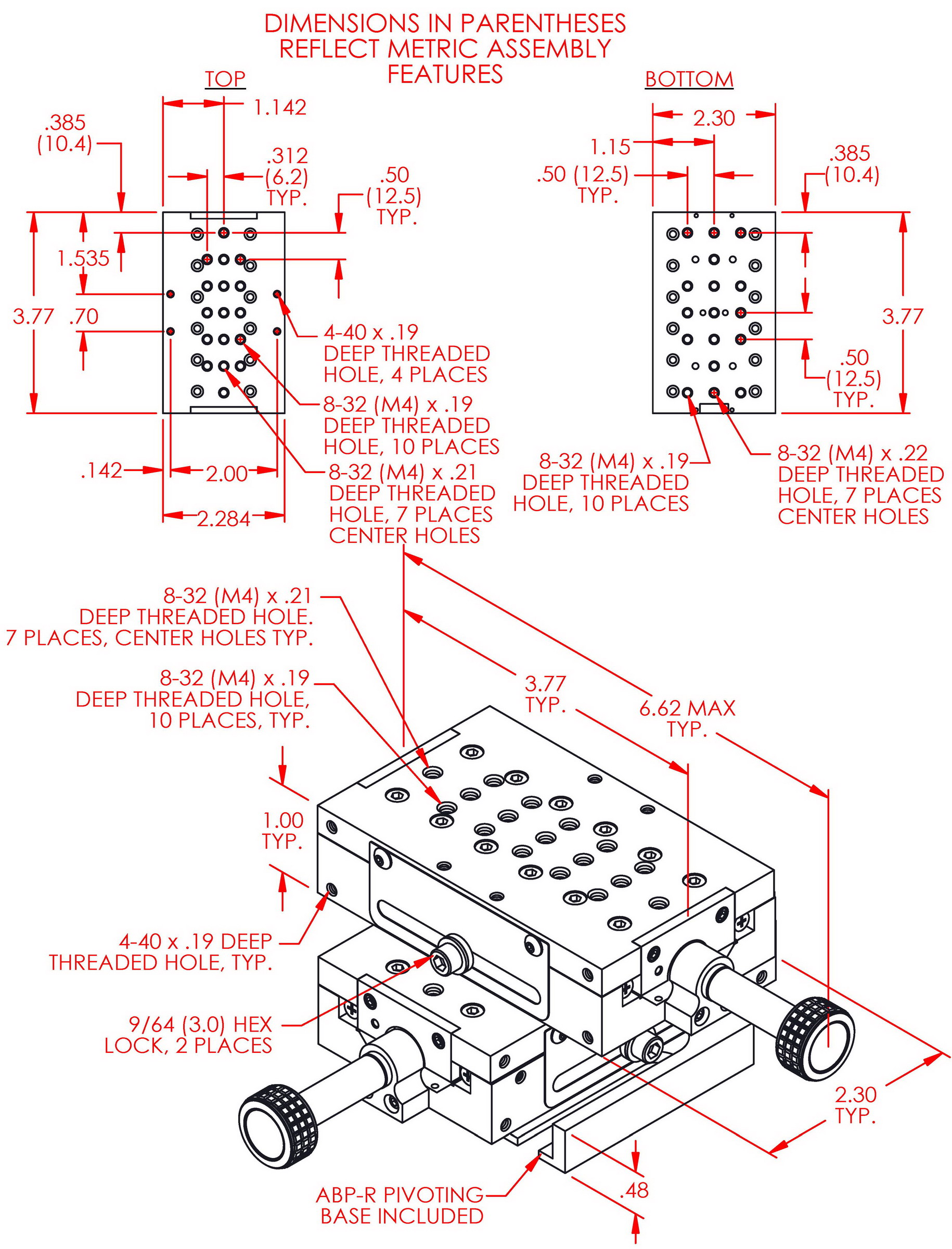

1780-XY M [15470000M]
Variant Images
![1780-XY M [15470000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15470000M.jpg)
![1780-XY M [15470000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15470000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1740-XYZL [15450000E]
Variant Images
![1740-XYZL [15450000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15450000E.jpg)
![1740-XYZL [15450000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15450000E_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1740-XYZL M [15450000M]
Variant Images
![1740-XYZL M [15450000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15450000M.jpg)
![1740-XYZL M [15450000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15450000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

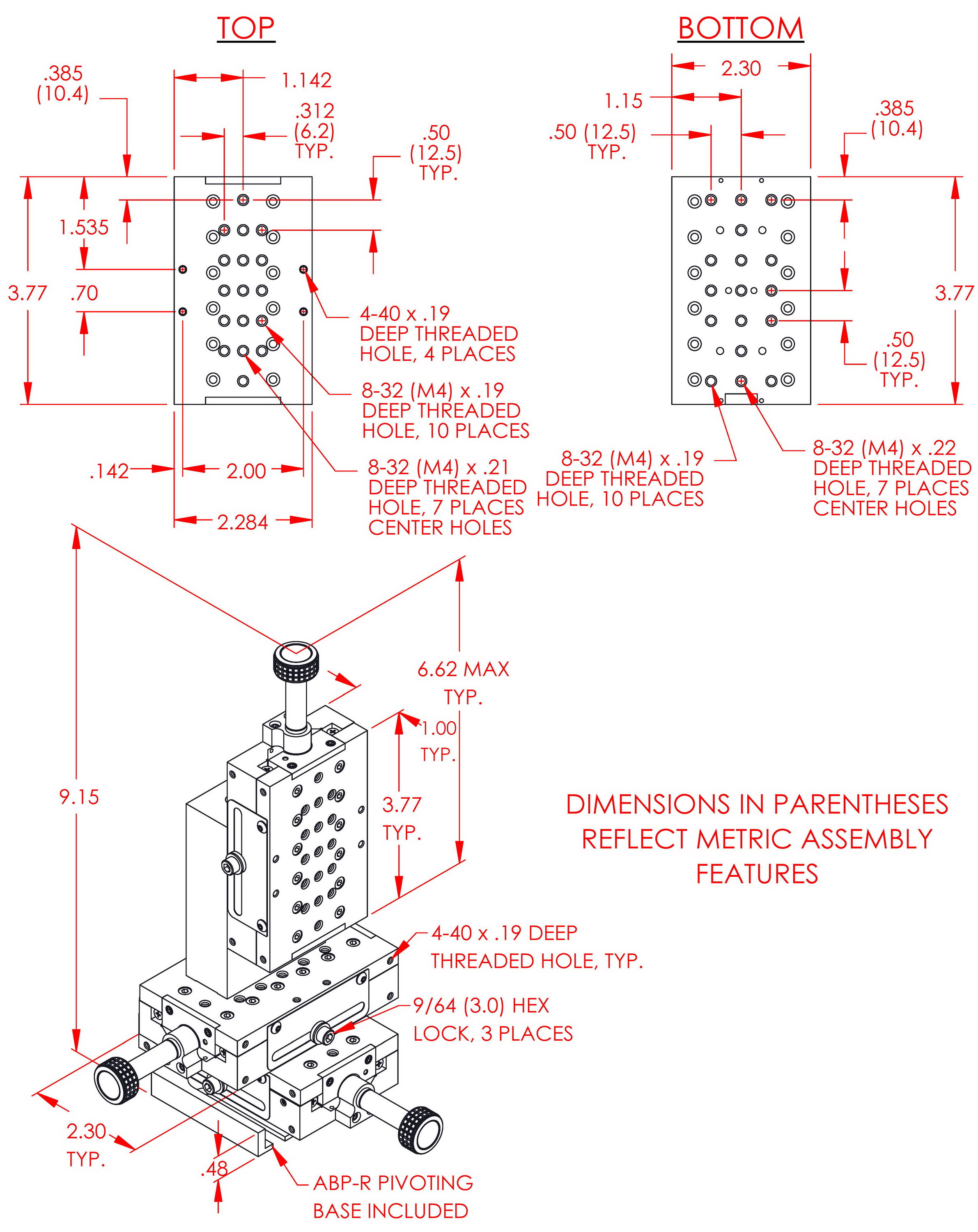

1780-XYZL [15490000E]
Variant Images
![1780-XYZL [15490000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15490000E.jpg)
![1780-XYZL [15490000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15490000E_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

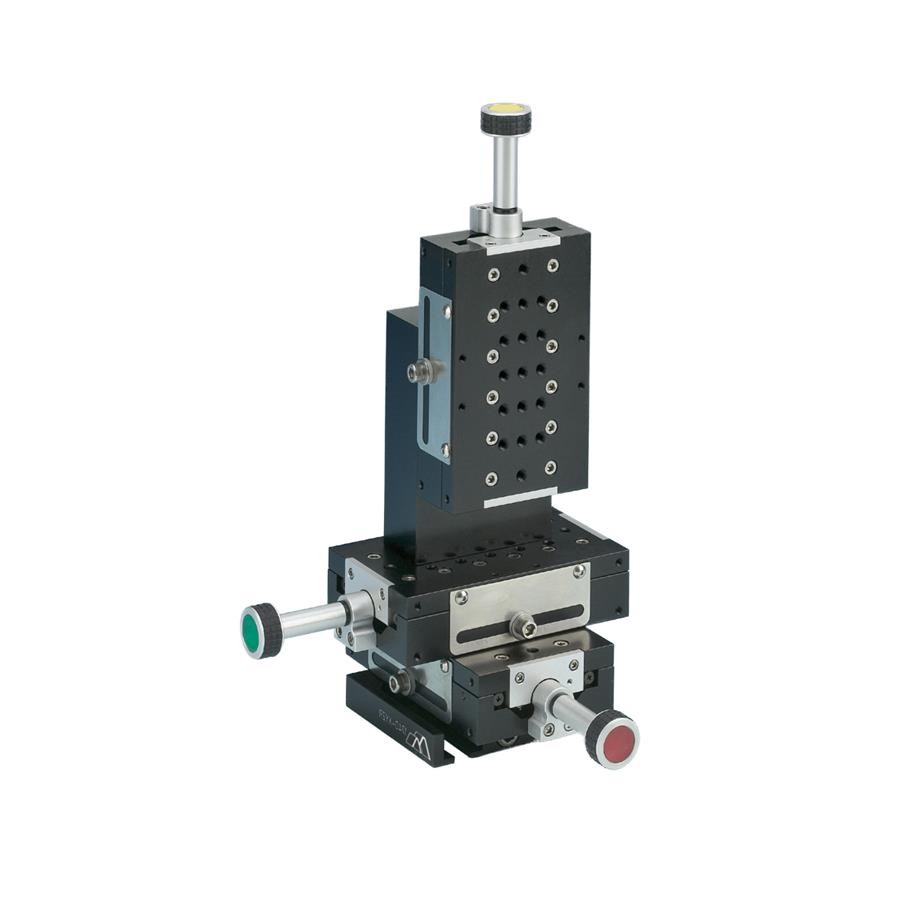

1780-XYZL M [15490000M]
Variant Images
![1780-XYZL M [15490000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15490000M.jpg)
![1780-XYZL M [15490000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15490000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1740-XYZR [15440000E]
Variant Images
![1740-XYZR [15440000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15440000E.jpg)
![1740-XYZR [15440000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15440000E_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1740-XYZR M [15440000M]
Variant Images
![1740-XYZR M [15440000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15440000M.jpg)
![1740-XYZR M [15440000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15440000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1740 series stages use precision 40TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 1.8 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

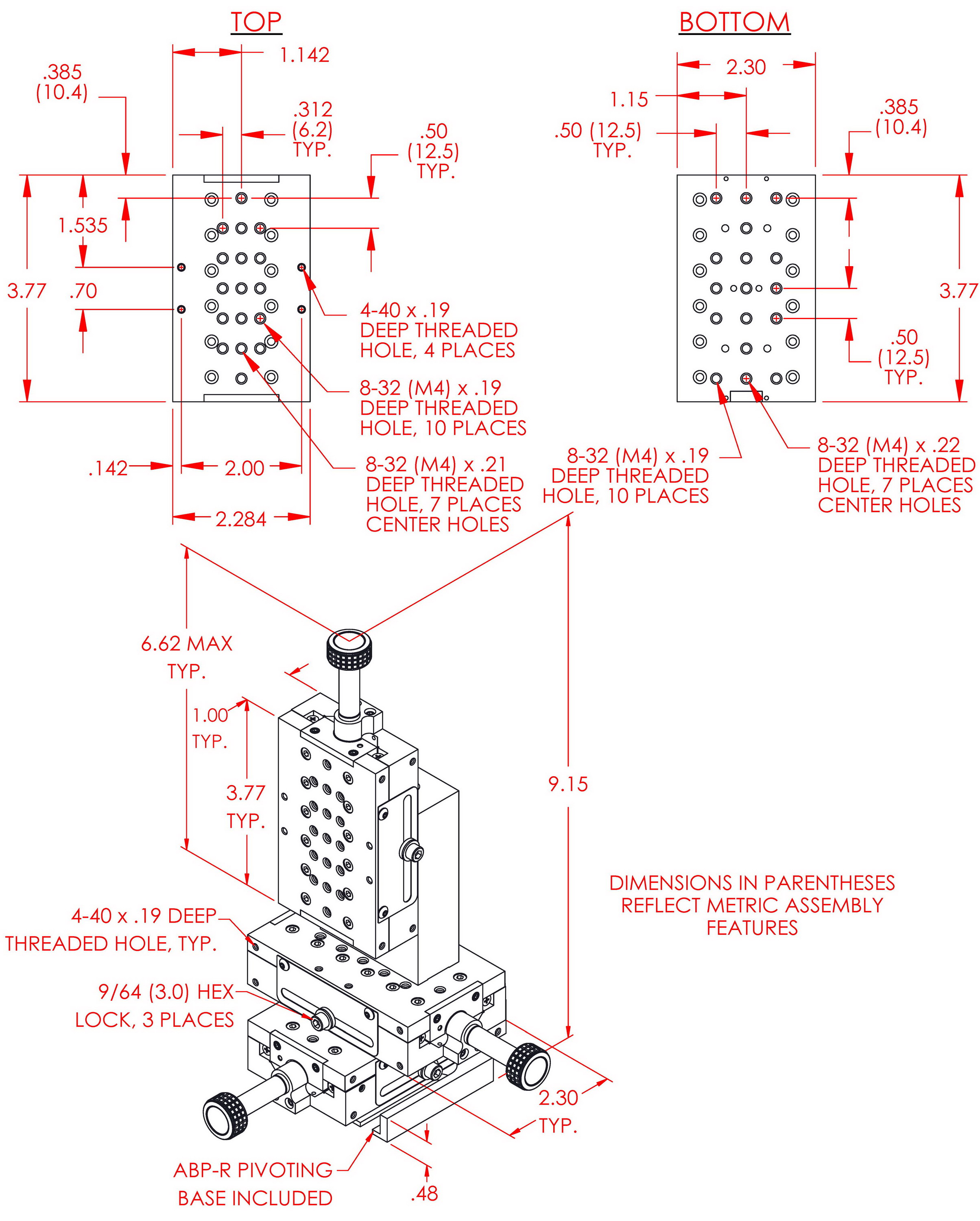

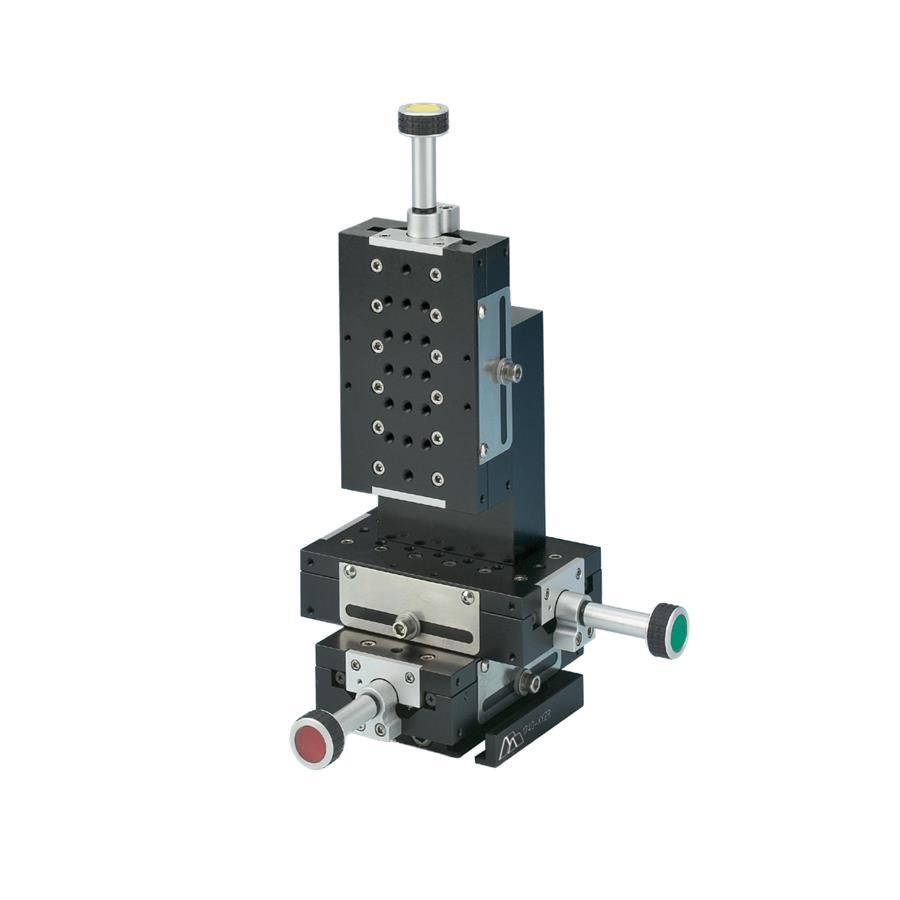

1780-XYZR [15480000E]
Variant Images
![1780-XYZR [15480000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15480000E.jpg)
![1780-XYZR [15480000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15480000E_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
1780-XYZR M [15480000M]
Variant Images
![1780-XYZR M [15480000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15480000M.jpg)
![1780-XYZR M [15480000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/15480000M_1.jpg)
Product Details
1700 series crossed roller translation stages are ideal for a wide range of submicron or micron-scale motion applications. Our 1780 series stages use precision 80TPI lead screw for smooth positioning along their entire travel. These lead screws are spring-loaded against a solid stop to ensure drift-free operation. 1700 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required the MX-RS rotation stage is designed to mount directly into the ABP-R and has mounting holes for all 1700 series stages.
Product Features:
- Color coded axis knobs
- Non-influencing lock
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 50 mm
- Minimum controllable motion*: 0.9 µm
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Related Products
