7700 Series Stage

$1,685.00 - $4,980.00

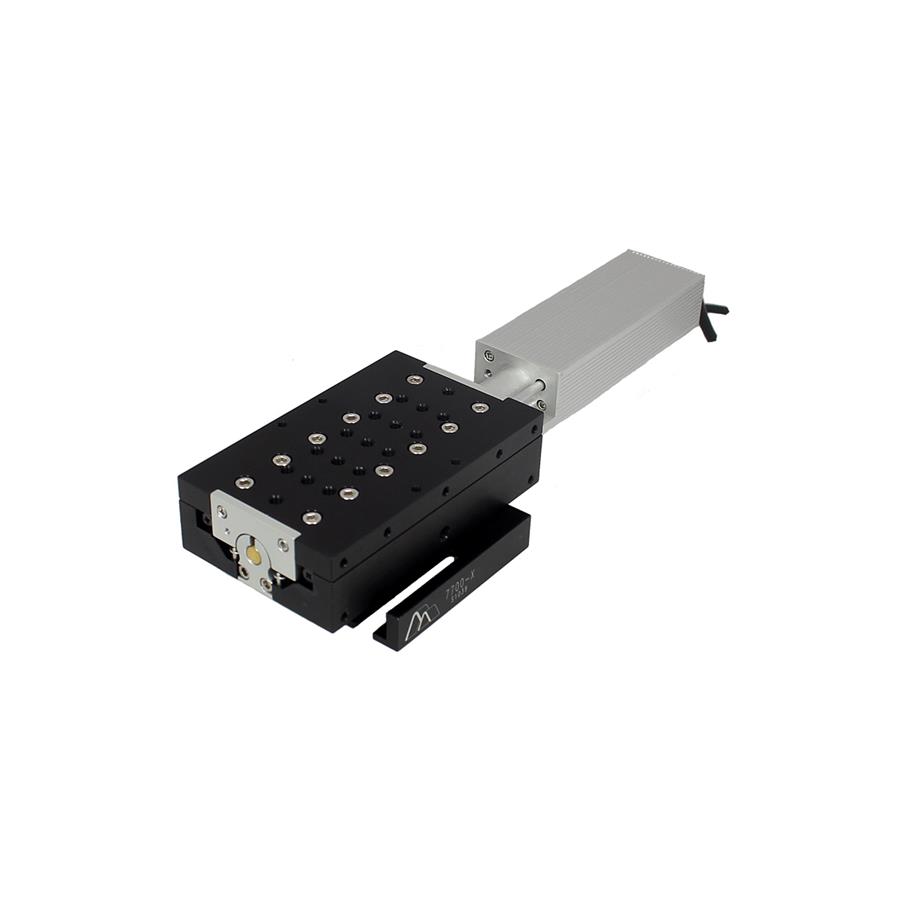

The 7700 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7700 stages are an integrated version of our 1700 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution, respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.

Product Features

  • 1.7 mm/second rapid positioning
  • Quiet running DC servo motors
  • Rotatable mounting base
  • Vacuum compatible versions available upon request

Performance Specifications

  • Maximum horizontal axis load: 10 lbs
  • Maximum vertical axis load: 4 lbs
  • Travel: 50 mm
  • Backlash: < 5 µm
  • Point to point accuracy: ± 2 µm

Choose options to see performance specifications and downloads.
