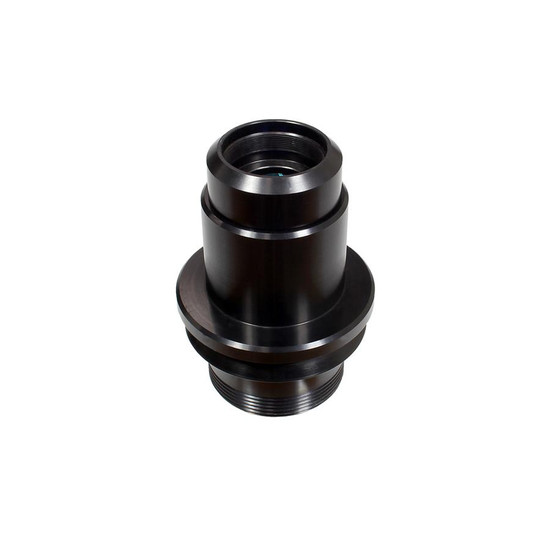

IS-GCI

The IS-GCI condenser, is available with or without an internal LED illuminator, provides a contrast gradient across the sample for contrast enhancement similar to that provided by phase contrast or DIC without requiring special objectives. You can use your standard fluorescence objectives, easily visualizing the electrode and then switching to fluorescence imaging.

Product Features

• Gradient contrast imaging
• Lens tube fits Olympus condenser receivers
• Lens tube accommodates Olympus condenser lens

Performance Specifications

IS-GCI/LED-DB

• 5 Watt - Dental Blue LED
• 900 mW luminous flux/radiant flux
• 460 nm wavelength

IS-GCI/LED-NIR

• 5 Watt - Far Red LED
• 310 mW luminous flux/radiant flux
• 735 nm wavelength

IS-GCI/LED-WW

• 5 Watt - Warm White LED
• 150 lm luminous flux/radiant flux
• Color temperature (CCT) 2870-3700K,
• peak at 590nm

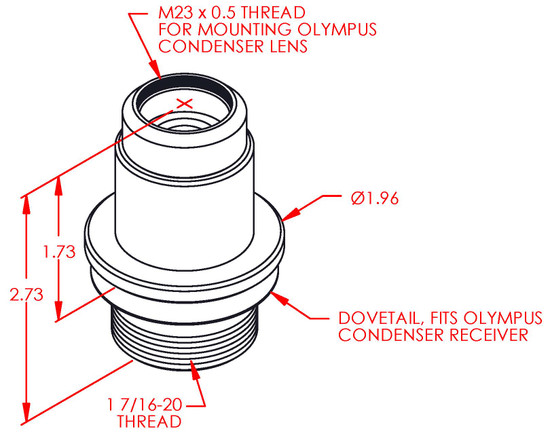

Dimensions 5.00 W x 2.50 H x 6.50 D
