IXF SQMB series mounting block

$22.00 - $55.00
Choose Options

IXF SQMB series mounting block

$22.00 - $55.00
Product Details

IXF SQMB series mounting block

The IXF.sqmb series mounting blocks provide an easy and robust method for mounting Siskiyou monolithic flexures for square optics. Pin pockets in the base prevent unwanted rotation and positive lateral attachment. With pins in place, parts can't shift laterally or experience unwanted rotation. They mount from the top, so access in tight places is simple. If you have a tight optical layout, Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.

Product Features

  • Stable table-top or AS spacer mounting option for the IXF series flexure mounts for square optics
  • Two pin holes in bottom mounting surface for OEM registration pins
  • Monolithic design and Construction


Choose options to see performance specifications and downloads.

Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

80270000M [80270000M] Optic Size: .50in Square | Travel: Select | Diameter: Select | Size: Select | Fiber Size: Select | Width of Platform: Select | Width: Select | Length: Select | Adjustment Location: Select | Axes of Adjustment: Select | Drive Type: Select | Hand: UNIVERSAL | Material: ALUMINUM | Motorized Adjustment: Either | Series: Select | Mounting Angle: 90 DEG | Wavelength: Select | UOM: METRIC
Product Details

The IXF.50SQmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.

Product Features:

  • Stable table-top or AS spacer mounting option for the IXF series flexure mounts
  • Two pin holes in bottom mounting surface for OEM registration pins
  • Monolithic design
  • Aluminum Construction
  • Compatible with IXF.50SQ and IXF.50SQt series flexure mounts
  • RoHS compliant
80240000M [80240000M] Optic Size: .50in Square | Travel: Select | Diameter: Select | Size: Select | Fiber Size: Select | Width of Platform: Select | Width: Select | Length: Select | Adjustment Location: Select | Axes of Adjustment: Select | Drive Type: Select | Hand: UNIVERSAL | Material: STAINLESS STEEL | Motorized Adjustment: Either | Series: Select | Mounting Angle: 90 DEG | Wavelength: Select | UOM: METRIC
Product Details

The IXF.50SQssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.

Product Features:

  • Stable table-top or AS spacer mounting option for the IXF series flexure mounts
  • Two pin holes in bottom mounting surface for OEM registration pins
  • Monolithic design
  • Stainless Steel Construction
  • Compatible with IXF.50SQ and IXF.50SQt series flexure mounts
  • Stainless Steel
  • RoHS compliant
80280000M [80280000M] Optic Size: 1.0in Square | Travel: Select | Diameter: Select | Size: Select | Fiber Size: Select | Width of Platform: Select | Width: Select | Length: Select | Adjustment Location: Select | Axes of Adjustment: Select | Drive Type: Select | Hand: UNIVERSAL | Material: ALUMINUM | Motorized Adjustment: Either | Series: Select | Mounting Angle: 90 DEG | Wavelength: Select | UOM: METRIC
Product Details

The IXF1.0SQmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.

Product Features:

  • Stable table-top or AS spacer mounting option for the IXF series flexure mounts
  • Two pin holes in bottom mounting surface for OEM registration pins
  • Monolithic design
  • Aluminum Construction
  • Compatible with IXF1.0SQ and IXF1.0SQt series flexure mounts
  • RoHS compliant
80250000M [80250000M] Optic Size: 1.0in Square | Travel: Select | Diameter: Select | Size: Select | Fiber Size: Select | Width of Platform: Select | Width: Select | Length: Select | Adjustment Location: Select | Axes of Adjustment: Select | Drive Type: Select | Hand: UNIVERSAL | Material: STAINLESS STEEL | Motorized Adjustment: Either | Series: Select | Mounting Angle: 90 DEG | Wavelength: Select | UOM: METRIC
Variant Images

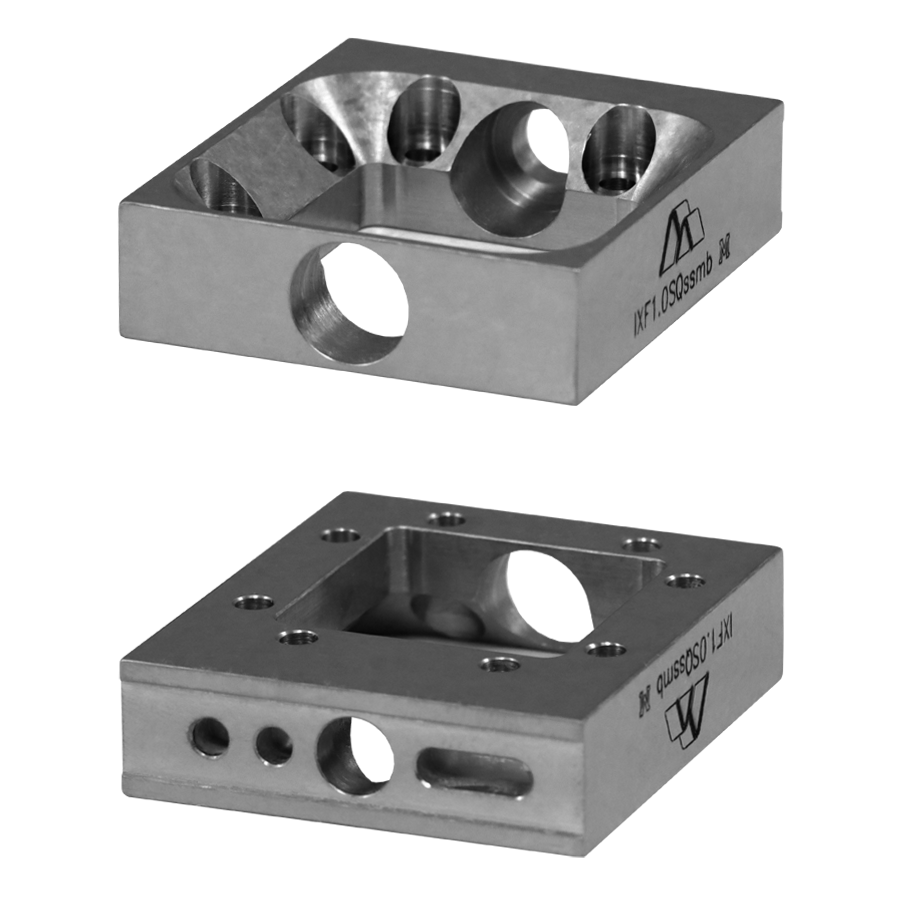

80250000M [80250000M] product variant image view 1

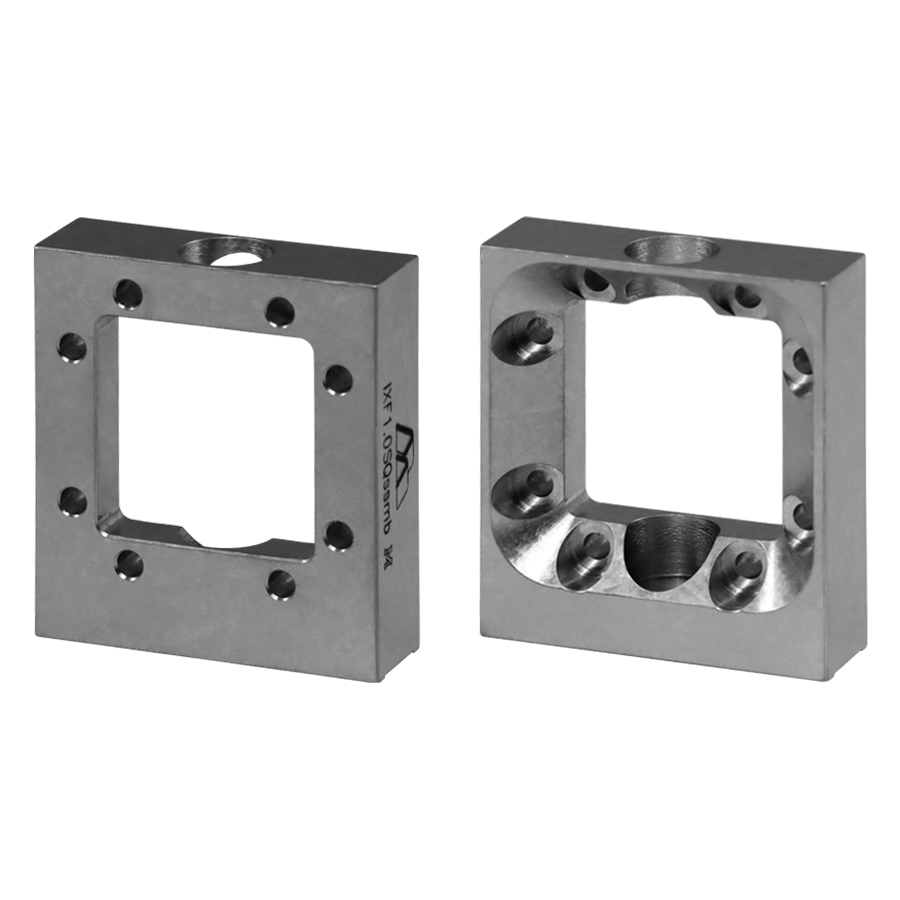

80250000M [80250000M] product variant image view 2
80250000M [80250000M] product variant image view 3
Product Details

The IXF1.0SQssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.

Product Features:

  • Stable table-top or AS spacer mounting option for the IXF series flexure mounts
  • Two pin holes in bottom mounting surface for OEM registration pins
  • Monolithic design
  • Stainless Steel Construction
  • Compatible with IXF1.0SQ and IXF1.0SQt series flexure mounts
  • RoHS compliant
Reference Documents
DocumentViewDownload

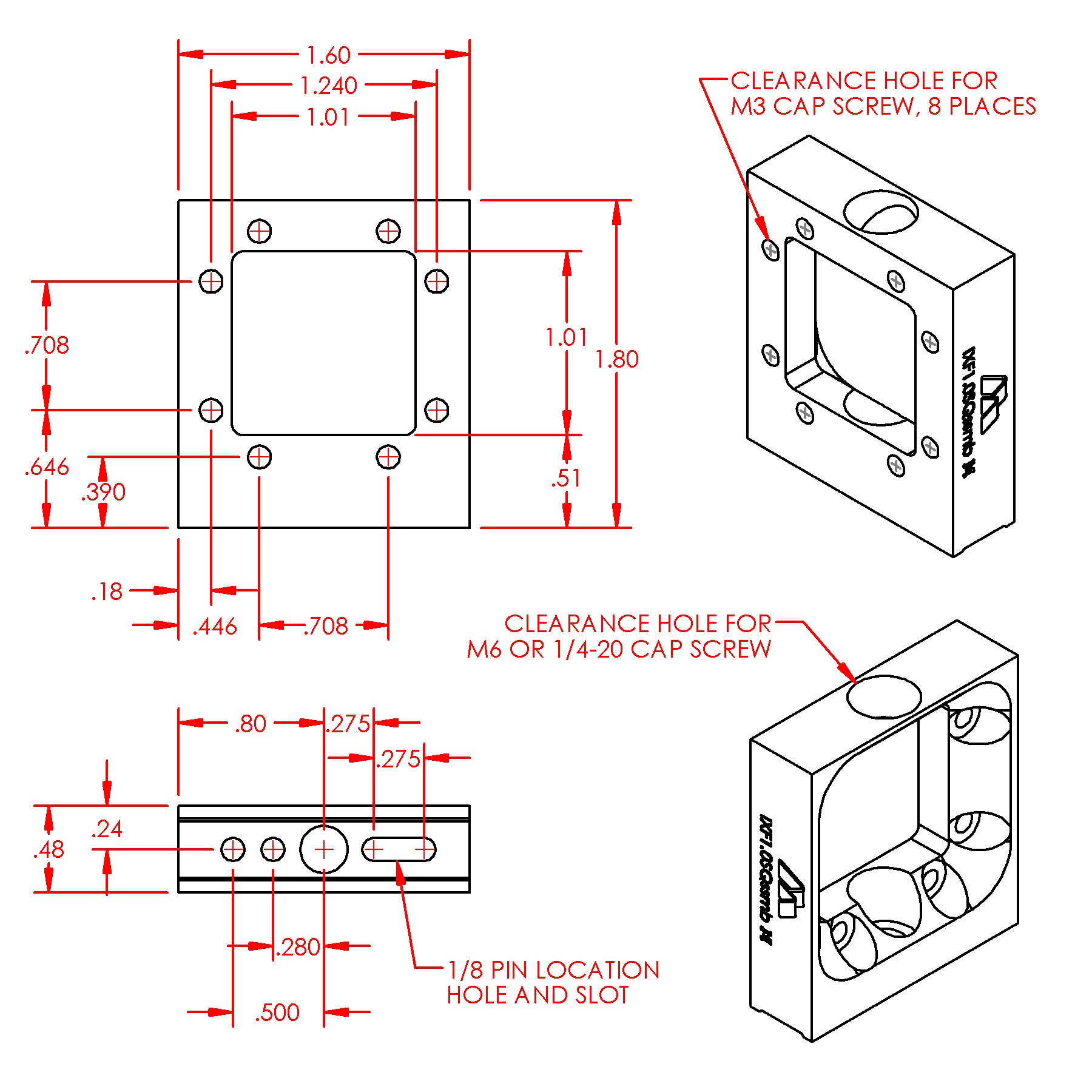

Drawing - 80250000MViewDownload
3D Model - 80250000MDownload
80290000M [80290000M] Optic Size: 2.0in Square | Travel: Select | Diameter: Select | Size: Select | Fiber Size: Select | Width of Platform: Select | Width: Select | Length: Select | Adjustment Location: Select | Axes of Adjustment: Select | Drive Type: Select | Hand: UNIVERSAL | Material: ALUMINUM | Motorized Adjustment: Either | Series: Select | Mounting Angle: 90 DEG | Wavelength: Select | UOM: METRIC
Product Details

The IXF2.0SQmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.

Product Features:

  • Stable table-top or AS spacer mounting option for the IXF series flexure mounts
  • Two pin holes in bottom mounting surface for OEM registration pins
  • Monolithic design
  • Aluminum Construction
  • Compatible with IXF2.0SQ and IXF2.0SQt series flexure mounts
  • RoHS compliant
80260000M [80260000M] Optic Size: 2.0in Square | Travel: Select | Diameter: Select | Size: Select | Fiber Size: Select | Width of Platform: Select | Width: Select | Length: Select | Adjustment Location: Select | Axes of Adjustment: Select | Drive Type: Select | Hand: UNIVERSAL | Material: STAINLESS STEEL | Motorized Adjustment: Either | Series: Select | Mounting Angle: Select | Wavelength: Select | UOM: METRIC
Product Details

The IXF2.0SQssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.

Product Features:

  • Stable table-top or AS spacer mounting option for the IXF series flexure mounts
  • Two pin holes in bottom mounting surface for OEM registration pins
  • Monolithic design
  • Stainless Steel Construction
  • Compatible with IXF2.0SQ and IXF2.0SQt series flexure mounts
  • RoHS compliant

Customers Also Viewed
