MXIX/AO Platform Series

0 review Write a Review
SKU: 91080000
Name:
$10,000.00 - $12,500.00

MXIX/AO Platform Series

$10,000.00 - $12,500.00
Choose Options

MXIX/AO Platform Series

$10,000.00 - $12,500.00

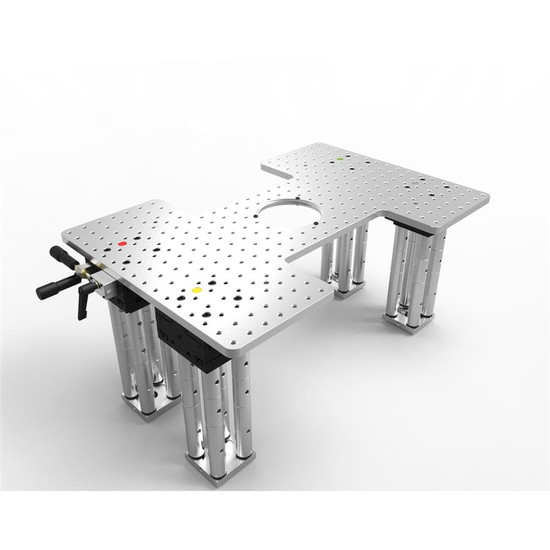

Manual Platform

XY Translating Platforms, with manual drives, are available for most inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you're still recording from your original patch site. They're available exclusively with crossed roller stages for stiction-free repositioning you won't jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope, while sensitive experiments aren't disturbed. Support platforms are color coded to match the top platform, to ensure that the correct support platform is matched with it's support location. The platforms are machined from stress-free aluminum tooling plate, which provides the flattest platforms available.

Product Features

  • 40 and 80 pitch adjustment screws
  • Available for upright and inverted microscopes
  • Full crossed roller bearings
  • Lockable travel (manual versions)
  • RoHS compliant

Performance Specifications

  • Load, maximum centered 100 lb
  • Travel
  • X axis 1.0inch / 25mm
  • Y axis 1.0 inch / 25mm

Controllable motion, minimum:



Motorized Platform

XY Translating Platforms, with motorized drives, are available for most inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you're still recording from your original patch site. They're available exclusively with crossed roller stages for stiction-free repositioning you won't jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope, while sensitive experiments aren't disturbed. Support platforms are color coded to match the top platform, to ensure that the correct support platform is matched with it's support location. The platforms are machined from stress-free aluminum tooling plate, which provides the flattest platforms available.

Product Features

  • 40 and 80 pitch adjustment screws
  • Available for upright and inverted microscopes
  • Full crossed roller bearings
  • Lockable travel (manual versions)

Performance Specifications

  • Load, maximum centered 100 lb
  • Travel:
    • X axis: 2.0 inches (50 mm)
    • Y axis: 1.0 inches (25 mm)
  • Backlash:  ‚⧠5 Œºm
  • Point-to-point accuracy ¬± 2 Œºm
