MXIX/AO Platform Series

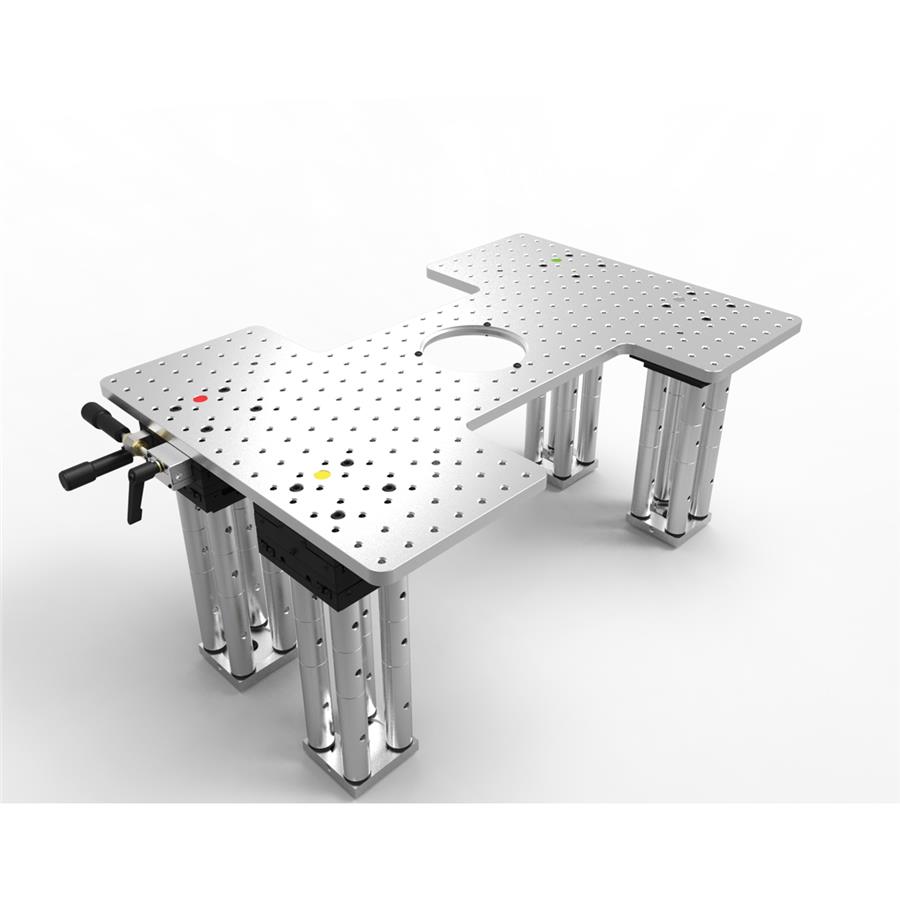

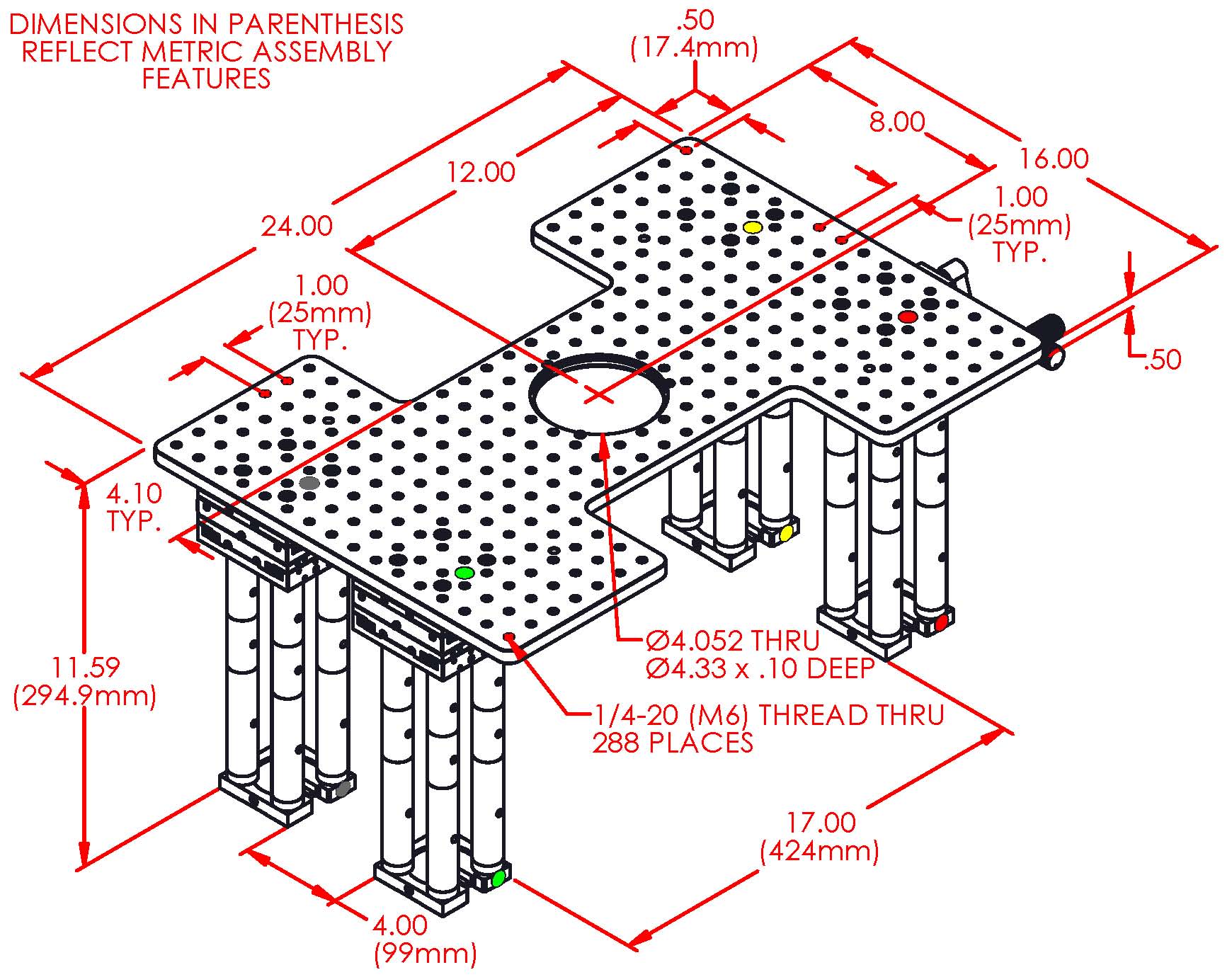

XY Translating Platforms with manual drives are available for most inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you are still recording from your original patch site. They are available exclusively with crossed roller stages for stiction-free repositioning - you will not jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope while sensitive experiments are not disturbed. Support platforms are color coded to match the top platform to ensure that the correct support platform is matched with its support location. The platforms are machined from stress-free aluminum tooling plate which provides the flattest platforms available.

Product Features

• 40 and 80 pitch adjustment screws available separately
• Available for upright and inverted microscopes
• Full crossed roller bearings
• Lockable travel (manual versions)
• RoHS compliant

Performance Specifications:

• Load maximum centered 100 lb
• Travel:
• X axis 1.0inch / 25mm
• Y axis 1.0 inch / 25mm
• Minimum controllable motion*:
• 40 pitch screw: 10 µm
• 80 pitch screw: Submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

XY Translating Platforms with manual drives are available for most inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you are still recording from your original patch site. They are available exclusively with crossed roller stages for stiction-free repositioning - you will not jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope while sensitive experiments are not disturbed. Support platforms are color coded to match the top platform to ensure that the correct support platform is matched with its support location. The platforms are machined from stress-free aluminum tooling plate which provides the flattest platforms available.

Product Features

• 40 and 80 pitch adjustment screws available separately
• Available for upright and inverted microscopes
• Full crossed roller bearings
• Lockable travel (manual versions)
• RoHS compliant

Performance Specifications:

• Load maximum centered 100 lb
• Travel:
• X axis: 1.0inch / 25mm
• Y axis: 1.0 inch / 25mm
• Minimum controllable motion*:
• 40 pitch screw: 10 µm
• 80 pitch screw: Submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

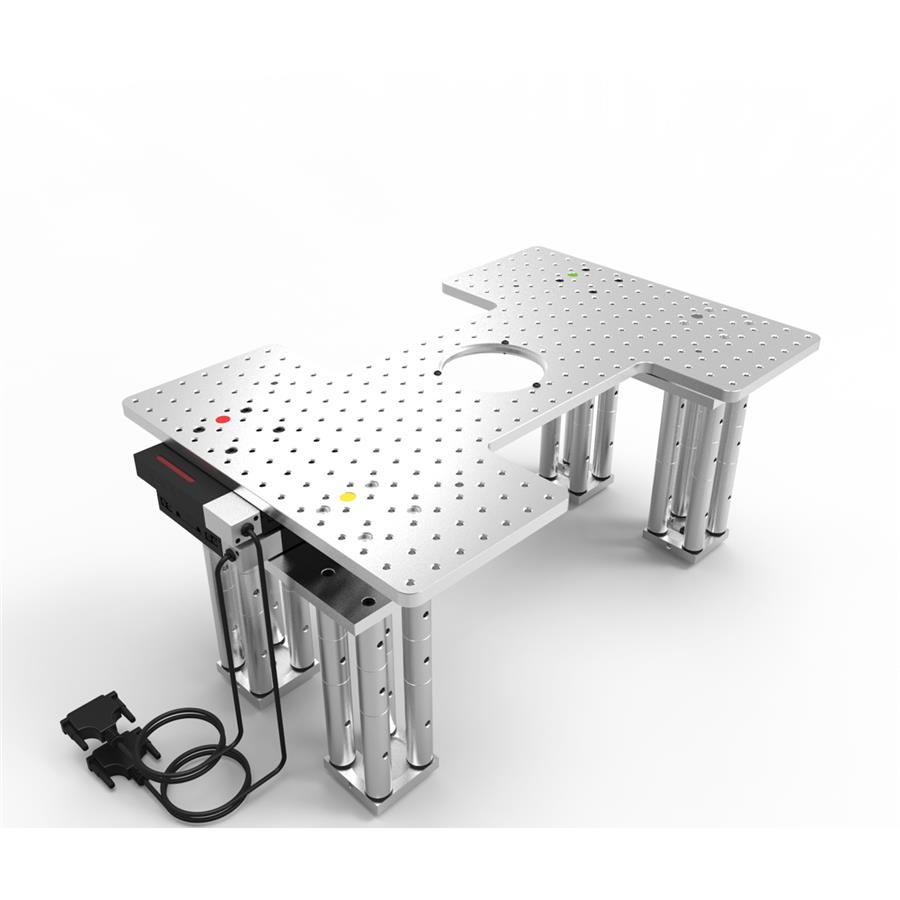

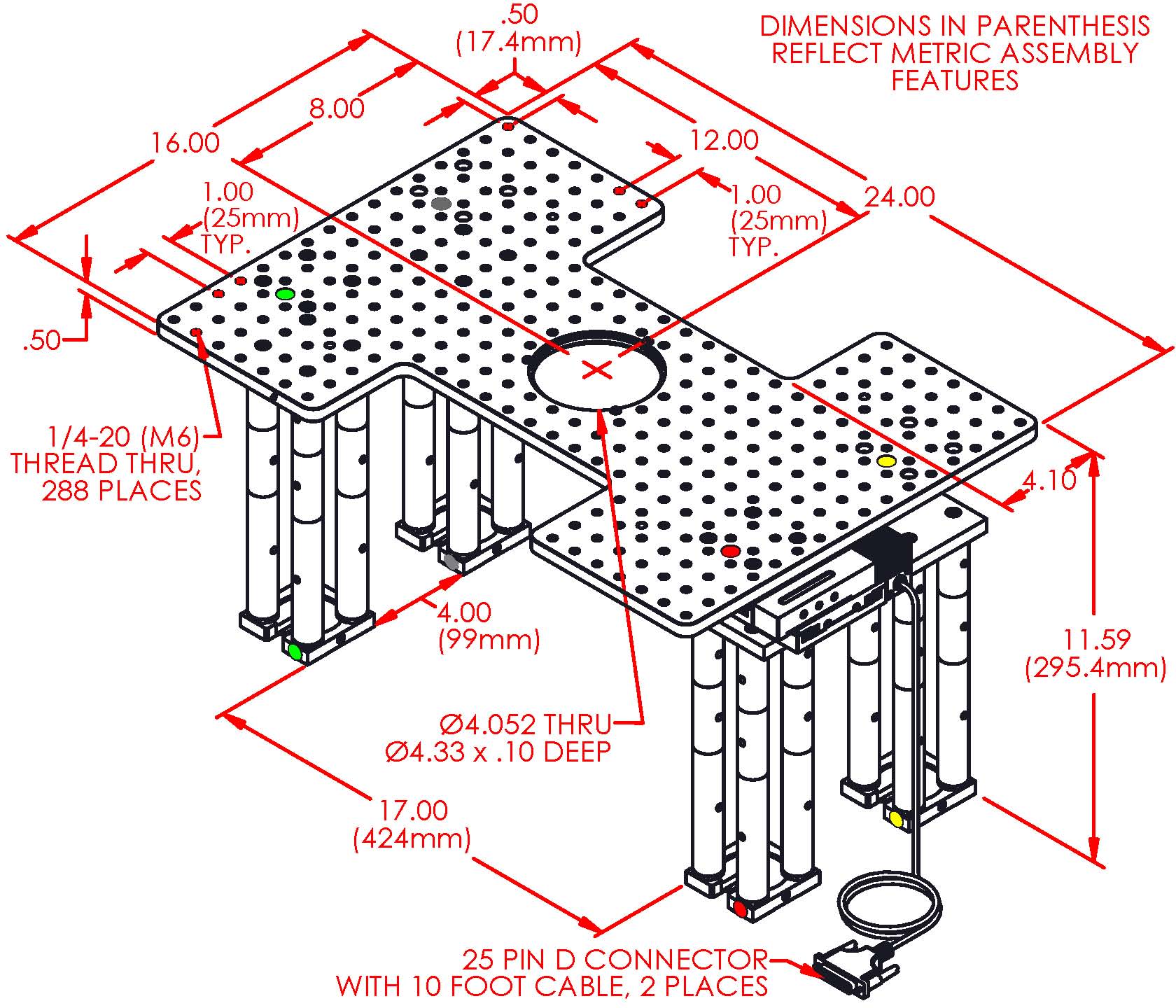

Motorized XY Translating Platforms are available for most inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you are still recording from your original patch site. They are available exclusively with crossed roller stages for stiction-free repositioning - you will not jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope while sensitive experiments are not disturbed. Support platforms are color coded to match the top platform to ensure that the correct support platform is matched with its support location. The platforms are machined from stress-free aluminum tooling plate which provides the flattest platforms available.

Product Features:

• Available for upright and Inverted Microscopes
• Full crossed roller bearings
• RoHS compliant
• CE compliant

Performance Specifications:

• Maximum horizontal axis load: 100 lbs
• Travel: 2.0 inch (50 mm)
• Backlash: < 5 µm
• Point-to-point accuracy: 2 µm

Motorized XY Translating Platforms are available for most inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you are still recording from your original patch site. They are available exclusively with crossed roller stages for stiction-free repositioning - you will not jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope while sensitive experiments are not disturbed. Support platforms are color coded to match the top platform to ensure that the correct support platform is matched with its support location. The platforms are machined from stress-free aluminum tooling plate which provides the flattest platforms available.

Product Features:

• Available for upright and Inverted Microscopes
• Full crossed roller bearings
• RoHS compliant
• CE compliant

Performance Specifications:

• Maximum horizontal axis load: 100 lbs
• Travel: 2.0 inch (50 mm)
• Backlash: < 5 µm
• Point-to-point accuracy: 2 µm
